SPECjbb2005 SPECjbb2005 bops = 3838000, SPECjbb2005 bops/JVM = 119938
IBM Corporation IBM PowerLinux 7R4 (4.0 GHz, 32 core, RHEL)
IBM Corporation JRE 1.7.0 (32-bit) IBM J9 2.6 Linux (build pxp3270sr3-20121025_01(SR3))

JVM run JVM Scores
1119558
2119564
3120831
4120171
5120814
6119004
7119949
8120234
9121198
10119325
11120512
12120850
13119339
14120320
15119735
16119160
17119590
18120377
19121223
20118350
21119686
22121311
23120067
24120153
25118367
26118467
27120768
28119537
29120209
30120168
31118808
32120355
SPECjbb2005 bops = 3838000, SPECjbb2005 bops/JVM = 119938

Hardware
Hardware Vendor IBM Corporation
Vendor URL http://www.ibm.com
Model IBM PowerLinux 7R4 (4.0 GHz, 32 core, RHEL)
Processor POWER7+ (Intelligent Energy Optimization enabled, up to 4431 MHz)
MHz 4060
# of Chips 8
# of Cores 32
# of Cores/Chip 4
HW Threading Enabled? yes
Procs Avail to Java 128
Memory (MB) 262144
Memory Details 64 x 4 GB DDR3 1066 MHz
Primary cache 32 KB I + 32 KB D on chip per core
Secondary cache 256 KB I+D on chip per core
Other cache 10 MB I+D on chip per core
Filesystem ext4
Disks 300 GB SAS SFF 15K RPM
Other hardware None
Software
Software Vendor IBM Corporation
Vendor URL http://www.ibm.com
JVM Version JRE 1.7.0 (32-bit) IBM J9 2.6 Linux (build pxp3270sr3-20121025_01(SR3))
JVM Command Line taskset -c [0-3,4-7,...,124-127] -- -Xlp -Xaggressive -Xgcpolicy:gencon -Xgcthreads4 -XlockReservation -Xnoloa -Xms2560m -Xmx2560m -Xmn2048m -XtlhPrefetch spec.jbb.JBBmain -propfile SPECjbb.props
JVM Initial Heap Memory (MB) 2560
JVM Maximum Heap Memory (MB) 2560
JVM Address bits 32
JVM CLASSPATH ./jbb.jar:
./check.jar:
JVM BOOTCLASSPATH /autobench/sources/ibm-java-ppc-70/jre/lib/aggressive.jar:
/autobench/sources/ibm-java-ppc-70/jre/lib/ppc/default/jclSC170/vm.jar:
/autobench/sources/ibm-java-ppc-70/jre/lib/se-service.jar:
/autobench/sources/ibm-java-ppc-70/jre/lib/math.jar:
/autobench/sources/ibm-java-ppc-70/jre/lib/jlm.jar:
/autobench/sources/ibm-java-ppc-70/jre/lib/ibmorb.jar:
/autobench/sources/ibm-java-ppc-70/jre/lib/ibmorbapi.jar:
/autobench/sources/ibm-java-ppc-70/jre/lib/ibmcfw.jar:
/autobench/sources/ibm-java-ppc-70/jre/lib/ibmpkcs.jar:
/autobench/sources/ibm-java-ppc-70/jre/lib/ibmcertpathfw.jar:
/autobench/sources/ibm-java-ppc-70/jre/lib/ibmjgssfw.jar:
/autobench/sources/ibm-java-ppc-70/jre/lib/ibmjssefw.jar:
/autobench/sources/ibm-java-ppc-70/jre/lib/ibmsaslfw.jar:
/autobench/sources/ibm-java-ppc-70/jre/lib/ibmjcefw.jar:
/autobench/sources/ibm-java-ppc-70/jre/lib/ibmjgssprovider.jar:
/autobench/sources/ibm-java-ppc-70/jre/lib/ibmjsseprovider2.jar:
/autobench/sources/ibm-java-ppc-70/jre/lib/ibmcertpathprovider.jar:
/autobench/sources/ibm-java-ppc-70/jre/lib/xmldsigfw.jar:
/autobench/sources/ibm-java-ppc-70/jre/lib/xml.jar:
/autobench/sources/ibm-java-ppc-70/jre/lib/charsets.jar:
/autobench/sources/ibm-java-ppc-70/jre/lib/resources.jar:
/autobench/sources/ibm-java-ppc-70/jre/lib/rt.jar
OS Version Red Hat Enterprise Linux Server release 6.4 (2.6.32-358.6.1.el6.ppc64)
Other software
Test Information
Tested by IBM Corporation
SPEC license # 11
Test location Austin, TX
Test date May 22, 2013
H/w available Aug-2013
JVM available Nov-2012
OS available Feb-2013
Other s/w available
AOT Compilation

Tuning
Operating system tunings
  • echo 6000 > /proc/sys/vm/nr_hugepages
  • echo 100663296000 > /proc/sys/kernel/shmmax
  • echo 1536000 > /proc/sys/kernel/shmall
  • ppc64_cpu --dscr=1
Platform tunings
  • The "Dynamic Power Saver - Favor Performance" mode was enabled on "IBM Advanced System Management"
Notes
  • 32 JVMs were run in processor sets each containing 1 core


JVM 1 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 37090
2 92722
3 107334
4 122670 *
5 120843 *
6 119562 *
7 118272 *
8 116444 *
SPECjbb2005 (from 4 to 8) 119558 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: May 22, 2013


JVM 2 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 34780
2 94553
3 104929
4 123077 *
5 121257 *
6 119425 *
7 117780 *
8 116282 *
SPECjbb2005 (from 4 to 8) 119564 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: May 22, 2013


JVM 3 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 34357
2 90649
3 105204
4 123752 *
5 122442 *
6 120819 *
7 119304 *
8 117837 *
SPECjbb2005 (from 4 to 8) 120831 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: May 22, 2013


JVM 4 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 32795
2 92149
3 108363
4 122910 *
5 121684 *
6 119947 *
7 118894 *
8 117420 *
SPECjbb2005 (from 4 to 8) 120171 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: May 22, 2013


JVM 5 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 31634
2 94450
3 106717
4 123811 *
5 122376 *
6 121072 *
7 119172 *
8 117638 *
SPECjbb2005 (from 4 to 8) 120814 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: May 22, 2013


JVM 6 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 34401
2 90724
3 106899
4 121903 *
5 120657 *
6 118587 *
7 117652 *
8 116224 *
SPECjbb2005 (from 4 to 8) 119004 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: May 22, 2013


JVM 7 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 38180
2 97589
3 104943
4 122984 *
5 121487 *
6 119955 *
7 118321 *
8 116996 *
SPECjbb2005 (from 4 to 8) 119949 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: May 22, 2013


JVM 8 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 33570
2 90737
3 108014
4 123018 *
5 122020 *
6 120573 *
7 118489 *
8 117069 *
SPECjbb2005 (from 4 to 8) 120234 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: May 22, 2013


JVM 9 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 35021
2 94152
3 109687
4 124339 *
5 122664 *
6 121107 *
7 120015 *
8 117866 *
SPECjbb2005 (from 4 to 8) 121198 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: May 22, 2013


JVM 10 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 33734
2 98362
3 106911
4 122459 *
5 121042 *
6 119207 *
7 117777 *
8 116142 *
SPECjbb2005 (from 4 to 8) 119325 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: May 22, 2013


JVM 11 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 32835
2 88587
3 108671
4 123887 *
5 122189 *
6 120452 *
7 118611 *
8 117424 *
SPECjbb2005 (from 4 to 8) 120512 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: May 22, 2013


JVM 12 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 33621
2 93125
3 108074
4 124169 *
5 121995 *
6 120726 *
7 119677 *
8 117685 *
SPECjbb2005 (from 4 to 8) 120850 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: May 22, 2013


JVM 13 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 32380
2 91443
3 105840
4 122361 *
5 120801 *
6 119184 *
7 117904 *
8 116443 *
SPECjbb2005 (from 4 to 8) 119339 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: May 22, 2013


JVM 14 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 34142
2 91214
3 108125
4 123642 *
5 121999 *
6 120076 *
7 118610 *
8 117271 *
SPECjbb2005 (from 4 to 8) 120320 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: May 22, 2013


JVM 15 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 32591
2 91191
3 107483
4 122869 *
5 121241 *
6 119679 *
7 118191 *
8 116698 *
SPECjbb2005 (from 4 to 8) 119735 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: May 22, 2013


JVM 16 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 31520
2 90715
3 107030
4 122165 *
5 120914 *
6 119305 *
7 117495 *
8 115920 *
SPECjbb2005 (from 4 to 8) 119160 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: May 22, 2013


JVM 17 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 32387
2 90849
3 104861
4 122791 *
5 121028 *
6 119510 *
7 117881 *
8 116741 *
SPECjbb2005 (from 4 to 8) 119590 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: May 22, 2013


JVM 18 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 32302
2 92756
3 106186
4 123372 *
5 121843 *
6 120346 *
7 118939 *
8 117384 *
SPECjbb2005 (from 4 to 8) 120377 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: May 22, 2013


JVM 19 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 40486
2 97437
3 109696
4 124308 *
5 122666 *
6 121241 *
7 119829 *
8 118069 *
SPECjbb2005 (from 4 to 8) 121223 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: May 22, 2013


JVM 20 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 33306
2 91799
3 105996
4 121816 *
5 119639 *
6 118454 *
7 116827 *
8 115016 *
SPECjbb2005 (from 4 to 8) 118350 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: May 22, 2013


JVM 21 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 35049
2 90398
3 105504
4 122828 *
5 121425 *
6 119480 *
7 118169 *
8 116527 *
SPECjbb2005 (from 4 to 8) 119686 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: May 22, 2013


JVM 22 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 32166
2 82924
3 107035
4 124981 *
5 122729 *
6 121213 *
7 119495 *
8 118139 *
SPECjbb2005 (from 4 to 8) 121311 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: May 22, 2013


JVM 23 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 31715
2 90657
3 108306
4 123112 *
5 121681 *
6 120076 *
7 118285 *
8 117183 *
SPECjbb2005 (from 4 to 8) 120067 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: May 22, 2013

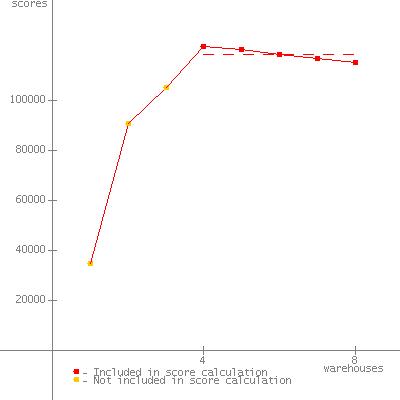

JVM 24 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 33448
2 90173
3 107492
4 123161 *
5 121808 *
6 120159 *
7 118366 *
8 117273 *
SPECjbb2005 (from 4 to 8) 120153 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: May 22, 2013


JVM 25 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 34834
2 90601
3 105194
4 121662 *
5 120386 *
6 118157 *
7 116576 *
8 115052 *
SPECjbb2005 (from 4 to 8) 118367 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: May 22, 2013


JVM 26 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 33231
2 91566
3 106187
4 121213 *
5 119632 *
6 118454 *
7 117257 *
8 115781 *
SPECjbb2005 (from 4 to 8) 118467 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: May 22, 2013


JVM 27 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 34996
2 92106
3 106744
4 124163 *
5 122431 *
6 120550 *
7 118934 *
8 117762 *
SPECjbb2005 (from 4 to 8) 120768 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: May 22, 2013


JVM 28 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 43254
2 94818
3 104293
4 122714 *
5 121031 *
6 119218 *
7 118176 *
8 116546 *
SPECjbb2005 (from 4 to 8) 119537 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: May 22, 2013


JVM 29 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 34463
2 93284
3 107632
4 123051 *
5 121807 *
6 120323 *
7 118776 *
8 117090 *
SPECjbb2005 (from 4 to 8) 120209 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: May 22, 2013


JVM 30 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 34039
2 93321
3 107667
4 123276 *
5 121476 *
6 120224 *
7 118652 *
8 117215 *
SPECjbb2005 (from 4 to 8) 120168 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: May 22, 2013


JVM 31 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 40965
2 94792
3 105519
4 122242 *
5 120435 *
6 118589 *
7 117366 *
8 115405 *
SPECjbb2005 (from 4 to 8) 118808 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: May 22, 2013


JVM 32 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 33260
2 88146
3 107383
4 123653 *
5 122150 *
6 120364 *
7 118516 *
8 117090 *
SPECjbb2005 (from 4 to 8) 120355 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: May 22, 2013

SPECjbb2005 Version: [SPECjbb2005 1.07, March 15, 2006]
Reporting page, Copyright © 2005-2007 SPEC. All rights reserved

First published at SPEC.org on 21-Aug-2013
