SPECjbb2005 SPECjbb2005 bops = 1872915, SPECjbb2005 bops/JVM = 117057
IBM Corporation IBM PowerLinux 7R2 (4.2 GHz, 16 core, SLES)
IBM Corporation JRE 1.7.0 (32-bit) IBM J9 2.6 Linux (build pxp3270sr3-20121025_01(SR3))

JVM run JVM Scores
1114114
2121789
3120184
4112606
5121637
6113794
7111859
8112288
9121164
10120863
11120470
12113174
13121748
14120165
15112277
16114783
SPECjbb2005 bops = 1872915, SPECjbb2005 bops/JVM = 117057

Hardware
Hardware Vendor IBM Corporation
Vendor URL http://www.ibm.com
Model IBM PowerLinux 7R2 (4.2 GHz, 16 core, SLES)
Processor POWER7+ (Intelligent Energy Optimization enabled, up to 4540 MHz)
MHz 4228
# of Chips 2
# of Cores 16
# of Cores/Chip 8
HW Threading Enabled? yes
Procs Avail to Java 64
Memory (MB) 131072
Memory Details 16 x 8 GB DDR3 1066 MHz
Primary cache 32 KB I + 32 KB D on chip per core
Secondary cache 256 KB I+D on chip per core
Other cache 10 MB I+D on chip per core
Filesystem ext3
Disks 1 x 146.8 GB SAS SFF 15K RPM
Other hardware
Software
Software Vendor IBM Corporation
Vendor URL http://www.ibm.com
JVM Version JRE 1.7.0 (32-bit) IBM J9 2.6 Linux (build pxp3270sr3-20121025_01(SR3))
JVM Command Line taskset -c [0-3,4-7,...,60-63] -- -Xlp -Xaggressive -Xgcpolicy:gencon -Xgcthreads4 -XlockReservation -Xnoloa -Xms2560m -Xmx2560m -Xmn2048m -XtlhPrefetch spec.jbb.JBBmain -propfile SPECjbb.props
JVM Initial Heap Memory (MB) 2560
JVM Maximum Heap Memory (MB) 2560
JVM Address bits 32
JVM CLASSPATH ./jbb.jar:
./check.jar:
JVM BOOTCLASSPATH /autobench/sources/ibm-java-ppc-70/jre/lib/aggressive.jar:
/autobench/sources/ibm-java-ppc-70/jre/lib/ppc/default/jclSC170/vm.jar:
/autobench/sources/ibm-java-ppc-70/jre/lib/se-service.jar:
/autobench/sources/ibm-java-ppc-70/jre/lib/math.jar:
/autobench/sources/ibm-java-ppc-70/jre/lib/jlm.jar:
/autobench/sources/ibm-java-ppc-70/jre/lib/ibmorb.jar:
/autobench/sources/ibm-java-ppc-70/jre/lib/ibmorbapi.jar:
/autobench/sources/ibm-java-ppc-70/jre/lib/ibmcfw.jar:
/autobench/sources/ibm-java-ppc-70/jre/lib/ibmpkcs.jar:
/autobench/sources/ibm-java-ppc-70/jre/lib/ibmcertpathfw.jar:
/autobench/sources/ibm-java-ppc-70/jre/lib/ibmjgssfw.jar:
/autobench/sources/ibm-java-ppc-70/jre/lib/ibmjssefw.jar:
/autobench/sources/ibm-java-ppc-70/jre/lib/ibmsaslfw.jar:
/autobench/sources/ibm-java-ppc-70/jre/lib/ibmjcefw.jar:
/autobench/sources/ibm-java-ppc-70/jre/lib/ibmjgssprovider.jar:
/autobench/sources/ibm-java-ppc-70/jre/lib/ibmjsseprovider2.jar:
/autobench/sources/ibm-java-ppc-70/jre/lib/ibmcertpathprovider.jar:
/autobench/sources/ibm-java-ppc-70/jre/lib/xmldsigfw.jar:
/autobench/sources/ibm-java-ppc-70/jre/lib/xml.jar:
/autobench/sources/ibm-java-ppc-70/jre/lib/charsets.jar:
/autobench/sources/ibm-java-ppc-70/jre/lib/resources.jar:
/autobench/sources/ibm-java-ppc-70/jre/lib/rt.jar
OS Version SUSE Linux Enterprise Server 11 SP2 (3.0.42-0.7-ppc64)
Other software
Test Information
Tested by IBM Corporation
SPEC license # 11
Test location Austin, TX
Test date Jan 26, 2013
H/w available Feb-2013
JVM available Nov-2012
OS available Feb-2012
Other s/w available
AOT Compilation

Tuning
Operating system tunings
  • echo 3000 > /proc/sys/vm/nr_hugepages
  • echo 50331648000 > /proc/sys/kernel/shmmax
  • echo 768000 > /proc/sys/kernel/shmall
  • ppc64_cpu --dscr=1
Platform tunings
  • The "Dynamic Power Saver - Favor Performance" mode was enabled on "IBM Advanced System Management"
Notes
  • 16 JVMs were run in processor sets each containing 1 core.

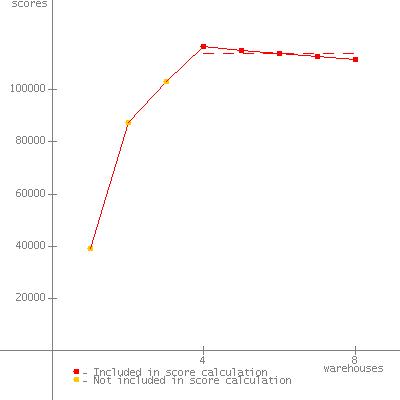

JVM 1 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 39263
2 87400
3 103058
4 116740 *
5 115051 *
6 114035 *
7 112935 *
8 111810 *
SPECjbb2005 (from 4 to 8) 114114 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Jan 26, 2013


JVM 2 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 35579
2 91304
3 110436
4 125169 *
5 123356 *
6 121978 *
7 119854 *
8 118588 *
SPECjbb2005 (from 4 to 8) 121789 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Jan 26, 2013


JVM 3 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 34232
2 93511
3 108872
4 123467 *
5 121612 *
6 120072 *
7 118593 *
8 117179 *
SPECjbb2005 (from 4 to 8) 120184 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Jan 26, 2013


JVM 4 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 38201
2 84386
3 100527
4 115186 *
5 113608 *
6 112637 *
7 111227 *
8 110374 *
SPECjbb2005 (from 4 to 8) 112606 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Jan 26, 2013


JVM 5 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 33002
2 92999
3 110789
4 124839 *
5 123330 *
6 121534 *
7 120080 *
8 118404 *
SPECjbb2005 (from 4 to 8) 121637 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Jan 26, 2013


JVM 6 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 35845
2 86570
3 103186
4 115864 *
5 115179 *
6 113925 *
7 112429 *
8 111570 *
SPECjbb2005 (from 4 to 8) 113794 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Jan 26, 2013


JVM 7 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 40340
2 86259
3 101195
4 114333 *
5 113132 *
6 111853 *
7 110450 *
8 109529 *
SPECjbb2005 (from 4 to 8) 111859 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Jan 26, 2013


JVM 8 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 38638
2 84225
3 100921
4 114704 *
5 113448 *
6 112231 *
7 111083 *
8 109973 *
SPECjbb2005 (from 4 to 8) 112288 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Jan 26, 2013


JVM 9 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 37390
2 91128
3 110443
4 124021 *
5 122942 *
6 121091 *
7 119802 *
8 117964 *
SPECjbb2005 (from 4 to 8) 121164 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Jan 26, 2013


JVM 10 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 35671
2 92857
3 110059
4 124268 *
5 122689 *
6 120748 *
7 119004 *
8 117605 *
SPECjbb2005 (from 4 to 8) 120863 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Jan 26, 2013


JVM 11 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 35117
2 90890
3 109971
4 124022 *
5 121878 *
6 120412 *
7 118637 *
8 117402 *
SPECjbb2005 (from 4 to 8) 120470 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Jan 26, 2013


JVM 12 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 35659
2 84298
3 102561
4 115793 *
5 114047 *
6 113088 *
7 111895 *
8 111046 *
SPECjbb2005 (from 4 to 8) 113174 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Jan 26, 2013


JVM 13 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 35046
2 90835
3 108691
4 125257 *
5 123083 *
6 121755 *
7 119865 *
8 118781 *
SPECjbb2005 (from 4 to 8) 121748 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Jan 26, 2013


JVM 14 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 41091
2 95878
3 108708
4 122927 *
5 122043 *
6 119893 *
7 118899 *
8 117061 *
SPECjbb2005 (from 4 to 8) 120165 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Jan 26, 2013


JVM 15 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 34417
2 83789
3 101917
4 114574 *
5 113456 *
6 112312 *
7 110961 *
8 110082 *
SPECjbb2005 (from 4 to 8) 112277 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Jan 26, 2013


JVM 16 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 40660
2 86635
3 104364
4 117094 *
5 116076 *
6 114803 *
7 113474 *
8 112466 *
SPECjbb2005 (from 4 to 8) 114783 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Jan 26, 2013

SPECjbb2005 Version: [SPECjbb2005 1.07, March 15, 2006]
Reporting page, Copyright © 2005-2007 SPEC. All rights reserved

First published at SPEC.org on 20-Feb-2013
