SPECjbb2005 SPECjbb2005 bops = 5323872, SPECjbb2005 bops/JVM = 665484
Huawei Company Huawei Tecal RH5885 V2
Oracle Corporation Oracle Java HotSpot(TM) 64-Bit Server VM on Windows, version 1.6.0_27

JVM run JVM Scores
1665303
2664707
3664122
4664324
5666430
6664974
7666289
8667723
SPECjbb2005 bops = 5323872, SPECjbb2005 bops/JVM = 665484

Hardware
Hardware Vendor Huawei Company
Vendor URL http://www.huawei.com
Model Huawei Tecal RH5885 V2
Processor Intel Xeon E7-8870 2.40 GHz (Intel Turbo Boost Technology up to 2.80 GHz)
MHz 2400
# of Chips 8
# of Cores 80
# of Cores/Chip 10
HW Threading Enabled? Yes
Procs Avail to Java 160
Memory (MB) 2097152
Memory Details 128 x 16 GB 4Rx4 pc3-10600R-11, ECC
Primary cache 32 KB I + 32 KB D on chip per core
Secondary cache 256 KB I+D) on chip per core
Other cache 30MB L3 per chip
Filesystem NTFS
Disks 1 x 500G 2.5 inch SATA, Huawei P/N 02380KSX
Other hardware N/A
Software
Software Vendor Oracle Corporation
Vendor URL http://www.oracle.com
JVM Version Oracle Java HotSpot(TM) 64-Bit Server VM on Windows, version 1.6.0_27
JVM Command Line start /high /node [0,1,2,3,4,5,6,7] /affinity FFFFF -server -showversion -Xmx29g -Xms29g -Xmn27g -XX:SurvivorRatio=60 -XX:TargetSurvivorRatio=90 -XX:ParallelGCThreads=20 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=4300 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2700 -XX:+AggressiveOpts -XX:+UseLargePages -XX:+UseParallelOldGC -XX:+UseCompressedStrings -XX:-UseAdaptiveSizePolicy
JVM Initial Heap Memory (MB) 29696
JVM Maximum Heap Memory (MB) 29696
JVM Address bits 64
JVM CLASSPATH .\jbb.jar;
.\check.jar;
JVM BOOTCLASSPATH C:\jre6\lib\alt-string.jar;
C:\jre6\lib\alt-rt.jar;
C:\jre6\lib\resources.jar;
C:\jre6\lib\rt.jar;
C:\jre6\lib\sunrsasign.jar;
C:\jre6\lib\jsse.jar;
C:\jre6\lib\jce.jar;
C:\jre6\lib\charsets.jar;
C:\jre6\lib\modules\jdk.boot.jar;
C:\jre6\classes
OS Version Microsoft Windows Server 2008 Enterprise x64 Edition R2 SP1
Other software N/A
Test Information
Tested by Huawei
SPEC license # 50
Test location Hangzhou.RPC
Test date Jan 23, 2013
H/w available Feb-2013
JVM available Aug-2011
OS available Feb-2011
Other s/w available N/A
AOT Compilation
N/A
Tuning
Operating system tunings
  • Using the local security settings console, "Lock pages in memory" was enabled for the user running the benchmark
  • Hardware Prefetcher Disabled in BIOS.Adjacent Cache Line Prefetch Disabled in BIOS.Maximum Performance Mode selected in BIOS.Each JVM instance was affinitized to 1 chip.The parameter expected_peak_warehouse was set to 4.
Notes
  • Command line options are described at: http://www.oracle.com/technetwork/java/javase/tech/vmoptions-jsp-140102.html

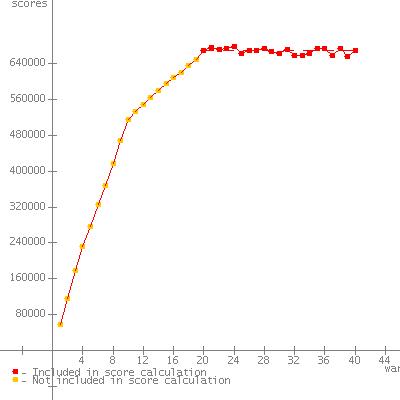

JVM 1 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 58751
2 116437
3 179254
4 232073
5 278625
6 327659
7 368075
8 417736
9 469314
10 516195
11 533579
12 549783
13 564859
14 580268
15 593527
16 607804
17 620529
18 634804
19 647011
20 667344 *
21 668834 *
22 677355 *
23 668581 *
24 668764 *
25 659620 *
26 665872 *
27 662194 *
28 676843 *
29 660034 *
30 666611 *
31 667917 *
32 654291 *
33 658275 *
34 658284 *
35 669381 *
36 669302 *
37 669284 *
38 664976 *
39 652065 *
40 665527 *
SPECjbb2005 (from 20 to 40) 665303 SPECjbb2005 bops
SPEC license # 50 Tested by: Huawei Test date: Jan 23, 2013


JVM 2 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 58209
2 115236
3 177402
4 230094
5 276583
6 324465
7 363859
8 411092
9 464797
10 512830
11 529472
12 546691
13 562151
14 577381
15 591496
16 604662
17 620170
18 633796
19 644717
20 665743 *
21 671246 *
22 670916 *
23 666329 *
24 670599 *
25 663072 *
26 665342 *
27 662031 *
28 668035 *
29 660984 *
30 657697 *
31 667827 *
32 667554 *
33 657623 *
34 657685 *
35 668227 *
36 669222 *
37 667706 *
38 664334 *
39 652587 *
40 664092 *
SPECjbb2005 (from 20 to 40) 664707 SPECjbb2005 bops
SPEC license # 50 Tested by: Huawei Test date: Jan 23, 2013


JVM 3 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 58678
2 115891
3 178646
4 231905
5 278140
6 325435
7 366677
8 416748
9 466846
10 513284
11 530137
12 546265
13 562435
14 577031
15 590911
16 604680
17 619724
18 633047
19 644031
20 667095 *
21 672121 *
22 678509 *
23 666827 *
24 670884 *
25 658668 *
26 665234 *
27 663062 *
28 668952 *
29 658857 *
30 658142 *
31 668150 *
32 654621 *
33 658565 *
34 659551 *
35 668998 *
36 669829 *
37 669040 *
38 665723 *
39 652676 *
40 651066 *
SPECjbb2005 (from 20 to 40) 664122 SPECjbb2005 bops
SPEC license # 50 Tested by: Huawei Test date: Jan 23, 2013


JVM 4 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 58467
2 115518
3 177041
4 230783
5 274948
6 323029
7 365200
8 409882
9 461688
10 509099
11 527574
12 543487
13 559472
14 575450
15 589961
16 602934
17 615197
18 631943
19 644605
20 672770 *
21 675997 *
22 672557 *
23 674701 *
24 669090 *
25 658915 *
26 664969 *
27 662246 *
28 667892 *
29 674842 *
30 658107 *
31 666787 *
32 666295 *
33 654150 *
34 662778 *
35 674396 *
36 653213 *
37 655948 *
38 657543 *
39 652687 *
40 654921 *
SPECjbb2005 (from 20 to 40) 664324 SPECjbb2005 bops
SPEC license # 50 Tested by: Huawei Test date: Jan 23, 2013


JVM 5 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 58830
2 115545
3 178409
4 230810
5 276603
6 325515
7 365712
8 417710
9 469888
10 517274
11 534143
12 550675
13 566088
14 581670
15 595159
16 608584
17 624027
18 636768
19 647813
20 670215 *
21 674359 *
22 671952 *
23 670597 *
24 670793 *
25 661659 *
26 668337 *
27 665872 *
28 671007 *
29 662095 *
30 661594 *
31 670410 *
32 658800 *
33 659786 *
34 661121 *
35 671608 *
36 672106 *
37 671792 *
38 667194 *
39 655012 *
40 658714 *
SPECjbb2005 (from 20 to 40) 666430 SPECjbb2005 bops
SPEC license # 50 Tested by: Huawei Test date: Jan 23, 2013


JVM 6 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 58621
2 116377
3 178860
4 232031
5 277303
6 324677
7 367114
8 416347
9 465340
10 514217
11 531388
12 547981
13 563054
14 578557
15 592843
16 605627
17 617694
18 633627
19 645572
20 666370 *
21 673208 *
22 670059 *
23 666840 *
24 669379 *
25 659539 *
26 665417 *
27 665231 *
28 668788 *
29 662353 *
30 659720 *
31 667952 *
32 662313 *
33 654416 *
34 658363 *
35 669469 *
36 668995 *
37 669654 *
38 664405 *
39 652142 *
40 669844 *
SPECjbb2005 (from 20 to 40) 664974 SPECjbb2005 bops
SPEC license # 50 Tested by: Huawei Test date: Jan 23, 2013


JVM 7 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 58296
2 116184
3 179070
4 232749
5 278317
6 327156
7 367821
8 417569
9 467156
10 514686
11 532396
12 548602
13 564601
14 580147
15 593632
16 607727
17 622515
18 635756
19 646243
20 669902 *
21 675169 *
22 672062 *
23 670330 *
24 670664 *
25 665817 *
26 667063 *
27 662894 *
28 678932 *
29 662269 *
30 659569 *
31 669483 *
32 657230 *
33 660836 *
34 661227 *
35 669908 *
36 671909 *
37 670129 *
38 666469 *
39 655133 *
40 655070 *
SPECjbb2005 (from 20 to 40) 666289 SPECjbb2005 bops
SPEC license # 50 Tested by: Huawei Test date: Jan 23, 2013


JVM 8 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 58483
2 115626
3 178208
4 231394
5 275925
6 325014
7 367465
8 416742
9 467619
10 514687
11 532996
12 549504
13 564770
14 579330
15 595030
16 608650
17 619934
18 635782
19 647830
20 668890 *
21 675635 *
22 671857 *
23 674280 *
24 678444 *
25 662903 *
26 669428 *
27 668764 *
28 672277 *
29 667091 *
30 661095 *
31 671147 *
32 658470 *
33 658363 *
34 662440 *
35 673092 *
36 672789 *
37 657680 *
38 673806 *
39 654804 *
40 668919 *
SPECjbb2005 (from 20 to 40) 667723 SPECjbb2005 bops
SPEC license # 50 Tested by: Huawei Test date: Jan 23, 2013

SPECjbb2005 Version: [SPECjbb2005 1.07, March 15, 2006]
Reporting page, Copyright © 2005-2007 SPEC. All rights reserved

First published at SPEC.org on 20-Feb-2013
