SPECjbb2005 SPECjbb2005 bops = 1576805, SPECjbb2005 bops/JVM = 197101
IBM Corporation IBM System x iDataPlex dx360 M4
IBM Corporation IBM J9 VM (build pwa6470sr1-20120206_01(SR1))

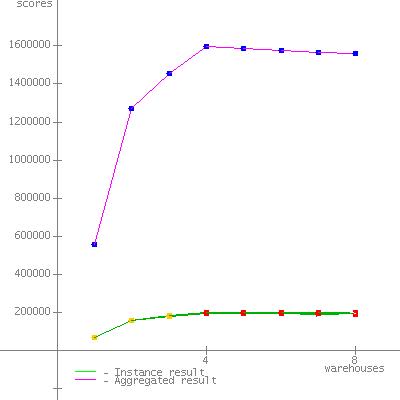

JVM run JVM Scores
1197558
2195348
3199207
4197853
5196754
6192953
7198693
8198439
SPECjbb2005 bops = 1576805, SPECjbb2005 bops/JVM = 197101

Hardware
Hardware Vendor IBM Corporation
Vendor URL http://www.ibm.com
Model IBM System x iDataPlex dx360 M4
Processor Intel Xeon E5-2690 (Intel Turbo Boost Technology up to 3.8 GHz)
MHz 2900
# of Chips 2
# of Cores 16
# of Cores/Chip 8
HW Threading Enabled? Yes
Procs Avail to Java 32
Memory (MB) 65536
Memory Details 16 x 4 GB 2Rx8 PC3-12800R-11, ECC; slot 1 - 16 populated
Primary cache 32 KB I + 32 KB D on chip per core
Secondary cache 256 KB I+D on chip per core
Other cache 20 MB I+D on chip per chip
Filesystem NTFS
Disks 1 x 200 GB SATA SSD, IBM P/N: 43W7742
Other hardware
Software
Software Vendor IBM Corporation
Vendor URL http://www.ibm.com
JVM Version IBM J9 VM (build pwa6470sr1-20120206_01(SR1))
JVM Command Line -Xaggressive -Xcompressedrefs -Xmn1400m -Xms1875m -Xmx1875m -XlockReservation -Xnoloa -XtlhPrefetch -Xlp -Xconcurrentlevel0
JVM Initial Heap Memory (MB) 1875
JVM Maximum Heap Memory (MB) 1875
JVM Address bits 64
JVM CLASSPATH .\jbb.jar;
.\check.jar;
JVM BOOTCLASSPATH C:\IBM\Java7\jre\lib\aggressive.jar;
C:\IBM\Java7\jre\bin\compressedrefs\jclSC170\vm.jar;
C:\IBM\Java7\jre\lib\se-service.jar;
C:\IBM\Java7\jre\lib\math.jar;
C:\IBM\Java7\jre\lib\jlm.jar;
C:\IBM\Java7\jre\lib\ibmorb.jar;
C:\IBM\Java7\jre\lib\ibmorbapi.jar;
C:\IBM\Java7\jre\lib\ibmcfw.jar;
C:\IBM\Java7\jre\lib\ibmpkcs.jar;
C:\IBM\Java7\jre\lib\ibmcertpathfw.jar;
C:\IBM\Java7\jre\lib\ibmjgssfw.jar;
C:\IBM\Java7\jre\lib\ibmjssefw.jar;
C:\IBM\Java7\jre\lib\ibmsaslfw.jar;
C:\IBM\Java7\jre\lib\ibmjcefw.jar;
C:\IBM\Java7\jre\lib\ibmjgssprovider.jar;
C:\IBM\Java7\jre\lib\ibmjsseprovider2.jar;
C:\IBM\Java7\jre\lib\ibmcertpathprovider.jar;
C:\IBM\Java7\jre\lib\xmldsigfw.jar;
C:\IBM\Java7\jre\lib\xml.jar;
C:\IBM\Java7\jre\lib\charsets.jar;
C:\IBM\Java7\jre\lib\resources.jar;
C:\IBM\Java7\jre\lib\rt.jar
OS Version Microsoft Windows Server 2008 Enterprise x64 Edition R2 SP1
Other software
Test Information
Tested by IBM Corporation
SPEC license # 11
Test location Taipei, Taiwan
Test date Nov 7, 2012
H/w available Feb-2013
JVM available Jun 2012
OS available Feb-2011
Other s/w available Feb-2013
AOT Compilation

Tuning
  • Each JVM instance was affinitized four threads on a single socket.
  • Using the local security settings console, "lock pages in memory" was enabled for the user running the benchmark.
  • Power Options: High Performance
  • BIOS Settings
    • Operating Mode: Maximum Performance
    • Hardware Prefetcher: Disable
    • Adjacent Cache Prefetch: Disable
    • DCU Streamer Prefetcher: Disable
    • Patrol Scrub: Disable
Notes
Command line options are described at: http://publib.boulder.ibm.com/infocenter/java7sdk/v7r0/index.jsp

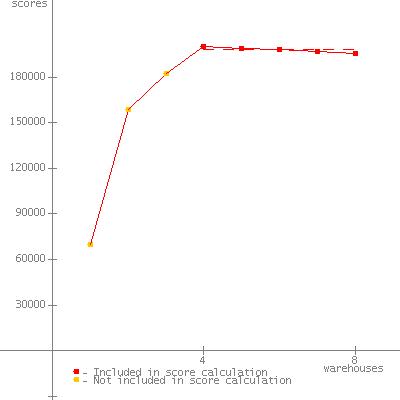

JVM 1 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 69840
2 160559
3 184013
4 199548 *
5 198896 *
6 197528 *
7 196172 *
8 195646 *
SPECjbb2005 (from 4 to 8) 197558 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Nov 7, 2012

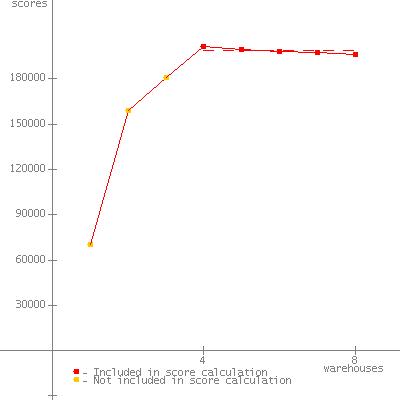

JVM 2 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 68957
2 156518
3 182138
4 198543 *
5 195732 *
6 195317 *
7 194424 *
8 192726 *
SPECjbb2005 (from 4 to 8) 195348 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Nov 7, 2012

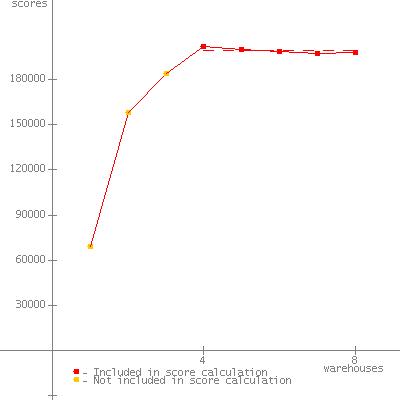

JVM 3 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 69033
2 158041
3 184109
4 202130 *
5 199859 *
6 198856 *
7 197285 *
8 197905 *
SPECjbb2005 (from 4 to 8) 199207 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Nov 7, 2012


JVM 4 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 69698
2 158901
3 182219
4 200360 *
5 198517 *
6 197983 *
7 196709 *
8 195696 *
SPECjbb2005 (from 4 to 8) 197853 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Nov 7, 2012

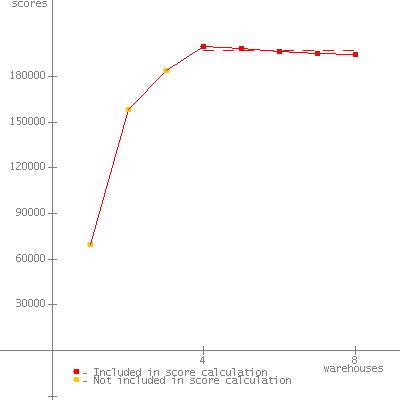

JVM 5 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 69468
2 158367
3 184119
4 199768 *
5 198141 *
6 196556 *
7 195155 *
8 194148 *
SPECjbb2005 (from 4 to 8) 196754 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Nov 7, 2012

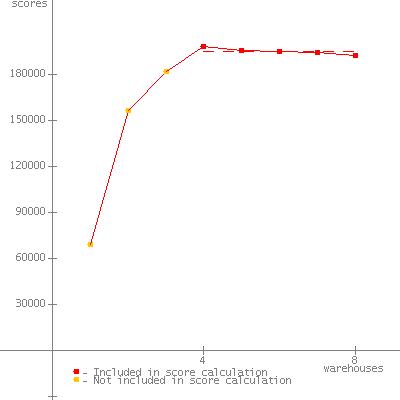

JVM 6 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 69006
2 158852
3 177700
4 195700 *
5 194131 *
6 192887 *
7 191608 *
8 190438 *
SPECjbb2005 (from 4 to 8) 192953 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Nov 7, 2012


JVM 7 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 70026
2 159144
3 180821
4 201690 *
5 199747 *
6 198408 *
7 197646 *
8 195973 *
SPECjbb2005 (from 4 to 8) 198693 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Nov 7, 2012


JVM 8 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 69550
2 159655
3 181930
4 200749 *
5 199380 *
6 198518 *
7 197589 *
8 195960 *
SPECjbb2005 (from 4 to 8) 198439 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Nov 7, 2012

SPECjbb2005 Version: [SPECjbb2005 1.07, March 15, 2006]
