SPECjbb2005 SPECjbb2005 bops = 1360519, SPECjbb2005 bops/JVM = 170065
Huawei Company XH320 V2
IBM IBM J9 VM (build 2.6, JRE 1.7.0 Windows Server 2008 R2 amd64-64 20120322_106209 (JIT enabled, AOT enabled)

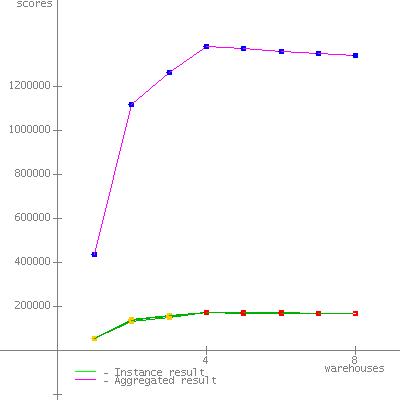

JVM run JVM Scores
1171283
2169946
3168502
4170180
5171358
6169909
7168989
8170352
SPECjbb2005 bops = 1360519, SPECjbb2005 bops/JVM = 170065

Hardware
Hardware Vendor Huawei Company
Vendor URL http://www.huawei.com
Model XH320 V2
Processor Intel Xeon E5-2470 (Intel Turbo Boost Technology up to 3.1 GHz)
MHz 2300
# of Chips 2
# of Cores 16
# of Cores/Chip 8
HW Threading Enabled? Yes
Procs Avail to Java 32
Memory (MB) 98304
Memory Details 12 x 8 GB 2Rx4 PC3-12800R-11, ECC
Primary cache 32 KB I + 32 KB D on chip per core
Secondary cache 256 KB I+D on chip per core
Other cache 20 MB I+D on chip per chip
Filesystem NTFS
Disks 1 x 160GB SSD 2.5" SATA, Huawei P/N 02310KSX
Other hardware Tecal X6000 V2 with 4 half-width nodes/2 full-width nodes ,and 2 x 800W AC PSUs
Software
Software Vendor IBM
Vendor URL http://www.ibm.com
JVM Version IBM J9 VM (build 2.6, JRE 1.7.0 Windows Server 2008 R2 amd64-64 20120322_106209 (JIT enabled, AOT enabled)
JVM Command Line -Xaggressive -Xcompressedrefs -Xmn1400m -Xms1875m -Xmx1875m -XlockReservation -Xnoloa -XtlhPrefetch -Xlp -Xconcurrentlevel0
JVM Initial Heap Memory (MB) 1875
JVM Maximum Heap Memory (MB) 1875
JVM Address bits 64
JVM CLASSPATH .\jbb.jar;
.\check.jar;
JVM BOOTCLASSPATH C:\jre\lib\jre\lib\aggressive.jar;
C:\jre\lib\jre\bin\compressedrefs\jclSC170\vm.jar;
C:\jre\lib\jre\lib\se-service.jar;
C:\jre\lib\jre\lib\math.jar;
C:\jre\lib\jre\lib\jlm.jar;
C:\jre\lib\jre\lib\ibmorb.jar;
C:\jre\lib\jre\lib\ibmorbapi.jar;
C:\jre\lib\jre\lib\ibmcfw.jar;
C:\jre\lib\jre\lib\ibmpkcs.jar;
C:\jre\lib\jre\lib\ibmcertpathfw.jar
OS Version Microsoft Windows Server 2008 Enterprise x64 Edition R2 SP1
Other software N/A
Test Information
Tested by Huawei
SPEC license # 3175
Test location ShenZhen, China
Test date Feb 23, 2012
H/w available Apr-2012
JVM available Jun-2012
OS available Feb-2011
Other s/w available N/A
AOT Compilation
N/A
Tuning
Operating system tunings
  • "Lock pages in memory" was enabled for the user running the benchmark
  • start /affinity [F, F0, F00, F000, F0000, F00000, F000000, F0000000]
Notes
  • Command line options are described at: http://publib.boulder.ibm.com/infocenter/java7sdk/v7r0/index.jsp

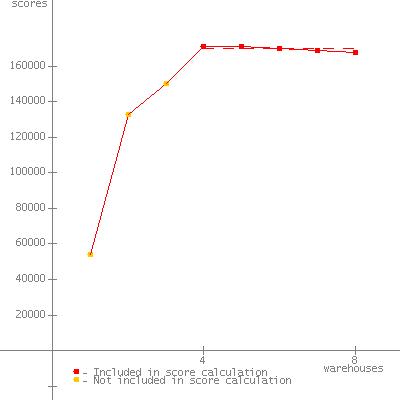

JVM 1 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 53799
2 141805
3 159251
4 173897 *
5 172816 *
6 170905 *
7 169927 *
8 168869 *
SPECjbb2005 (from 4 to 8) 171283 SPECjbb2005 bops
SPEC license # 3175 Tested by: Huawei Test date: Feb 23, 2012

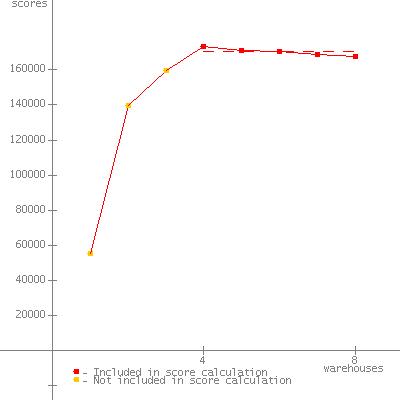

JVM 2 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 54381
2 143320
3 159676
4 173053 *
5 171457 *
6 169840 *
7 168027 *
8 167350 *
SPECjbb2005 (from 4 to 8) 169946 SPECjbb2005 bops
SPEC license # 3175 Tested by: Huawei Test date: Feb 23, 2012


JVM 3 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 54937
2 139347
3 156447
4 170989 *
5 168717 *
6 168294 *
7 167990 *
8 166520 *
SPECjbb2005 (from 4 to 8) 168502 SPECjbb2005 bops
SPEC license # 3175 Tested by: Huawei Test date: Feb 23, 2012


JVM 4 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 55607
2 139552
3 159409
4 173468 *
5 170771 *
6 170288 *
7 168962 *
8 167410 *
SPECjbb2005 (from 4 to 8) 170180 SPECjbb2005 bops
SPEC license # 3175 Tested by: Huawei Test date: Feb 23, 2012


JVM 5 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 55316
2 140938
3 161457
4 174555 *
5 172529 *
6 170798 *
7 169830 *
8 169076 *
SPECjbb2005 (from 4 to 8) 171358 SPECjbb2005 bops
SPEC license # 3175 Tested by: Huawei Test date: Feb 23, 2012


JVM 6 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 53921
2 132989
3 150295
4 171289 *
5 171108 *
6 170162 *
7 169076 *
8 167910 *
SPECjbb2005 (from 4 to 8) 169909 SPECjbb2005 bops
SPEC license # 3175 Tested by: Huawei Test date: Feb 23, 2012


JVM 7 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 57106
2 140603
3 157543
4 171752 *
5 170618 *
6 168497 *
7 167234 *
8 166842 *
SPECjbb2005 (from 4 to 8) 168989 SPECjbb2005 bops
SPEC license # 3175 Tested by: Huawei Test date: Feb 23, 2012


JVM 8 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 53125
2 138168
3 159225
4 173635 *
5 171973 *
6 170280 *
7 167908 *
8 167964 *
SPECjbb2005 (from 4 to 8) 170352 SPECjbb2005 bops
SPEC license # 3175 Tested by: Huawei Test date: Feb 23, 2012

SPECjbb2005 Version: [SPECjbb2005 1.07, March 15, 2006]
Reporting page, Copyright © 2005-2007 SPEC. All rights reserved

First published at SPEC.org on 09-Jan-2013
