SPECjbb2005 SPECjbb2005 bops = 3321226, SPECjbb2005 bops/JVM = 103788
Hewlett-Packard Company ProLiant DL585 G7
IBM Corporation IBM J9 VM (build 2.6, JRE 1.7.0 Windows Server 2008 R2 amd64-64 20120322_106209 (JIT enabled, AOT enabled)

JVM run JVM Scores
1103650
2104027
3102217
4104458
599217
6103929
7105189
8104661
9103593
10106049
11104187
12103364
13104762
14105566
15104369
16103403
17105150
18104124
19102448
20104772
21103832
22104951
23104867
24106303
25104547
26102443
27103841
28100657
29100819
30103384
31101329
32105118
SPECjbb2005 bops = 3321226, SPECjbb2005 bops/JVM = 103788

Hardware
Hardware Vendor Hewlett-Packard Company
Vendor URL http://www.hp.com
Model ProLiant DL585 G7
Processor AMD Opteron 6386 SE (AMD Turbo CORE Technology up to 3.50 GHz)
MHz 2800
# of Chips 4
# of Cores 64
# of Cores/Chip 16
HW Threading Enabled? No
Procs Avail to Java 64
Memory (MB) 262144
Memory Details 8 of 12 DIMMs per socket filled with 8 GB 2Rx4 PC3-12800R-11, ECC memory
Primary cache 512 KB I + 256 KB D on chip per chip
Secondary cache 16 MB I+D on chip per chip, 2 MB shared / 2 cores
Other cache 16 MB I+D on chip per chip, 8 MB shared / 8 cores
Filesystem NTFS
Disks 2 x 146 GB 15000 RPM SAS, RAID 1
Other hardware None
Software
Software Vendor IBM Corporation
Vendor URL http://www.ibm.com
JVM Version IBM J9 VM (build 2.6, JRE 1.7.0 Windows Server 2008 R2 amd64-64 20120322_106209 (JIT enabled, AOT enabled)
JVM Command Line java -Xaggressive -Xcompressedrefs -Xmn1400m -Xms1875m -Xmx1875m -XlockReservation -Xnoloa -Xlp -Xgcpolicy:gencon -Xconcurrentlevel0 -Xgcthreads2 -Xthr:minimizeUserCPU
JVM Initial Heap Memory (MB) 1875
JVM Maximum Heap Memory (MB) 1875
JVM Address bits 64
JVM CLASSPATH .\jbb.jar;
.\check.jar;
JVM BOOTCLASSPATH C:\Java\ibm_sdk70\jre\lib\aggressive.jar;
C:\Java\ibm_sdk70\jre\bin\compressedrefs\jclSC170\vm.jar;
C:\Java\ibm_sdk70\jre\lib\se-service.jar;
C:\Java\ibm_sdk70\jre\lib\math.jar;
C:\Java\ibm_sdk70\jre\lib\jlm.jar;
C:\Java\ibm_sdk70\jre\lib\ibmorb.jar;
C:\Java\ibm_sdk70\jre\lib\ibmorbapi.jar;
C:\Java\ibm_sdk70\jre\lib\ibmcfw.jar;
C:\Java\ibm_sdk70\jre\lib\ibmpkcs.jar;
C:\Java\ibm_sdk70\jre\lib\ibmcertpathfw.jar;
C:\Java\ibm_sdk70\jre\lib\ibmjgssfw.jar;
C:\Java\ibm_sdk70\jre\lib\ibmjssefw.jar;
C:\Java\ibm_sdk70\jre\lib\ibmsaslfw.jar;
C:\Java\ibm_sdk70\jre\lib\ibmjcefw.jar;
C:\Java\ibm_sdk70\jre\lib\ibmjgssprovider.jar;
C:\Java\ibm_sdk70\jre\lib\ibmjsseprovider2.jar;
C:\Java\ibm_sdk70\jre\lib\ibmcertpathprovider.jar;
C:\Java\ibm_sdk70\jre\lib\xmldsigfw.jar;
C:\Java\ibm_sdk70\jre\lib\xml.jar;
C:\Java\ibm_sdk70\jre\lib\charsets.jar;
C:\Java\ibm_sdk70\jre\lib\resources.jar;
C:\Java\ibm_sdk70\jre\lib\rt.jar
OS Version Microsoft Windows Server 2008 Datacenter x64 Edition R2 SP1
Other software IBM Websphere Application Server V8.5 for Windows on x86-64-bit
Test Information
Tested by Hewlett-Packard Company
SPEC license # 3
Test location Houston, TX
Test date Sep 4, 2012
H/w available Dec-2012
JVM available Jun-2012
OS available Feb-2011
Other s/w available Jun-2012
AOT Compilation
None
Tuning
  • Using the local security settings console, "Lock pages in memory" was enabled for the user running the benchmark.
  • Used "start /node [0,1,2,3,4,5,6,7] /AFFINITY [0x3, 0xC, 0x30, 0xc0]".
  • Power Option set to High Performance in OS.
Notes
  • Command line options are described at: http://publib.boulder.ibm.com/infocenter/java7sdk/v7r0/index.jsp
  • BIOS Configuration:
    • HP Power Profile - Maximum Performance
    • Hardware Prefetch training on Software Prefetch - Disabled
    • CPU Core Hardware Prefetcher - Disabled
    • CPU Cache Stride Prefetcher - Disabled
    • DRAM Prefetch on I/O Request - Disabled

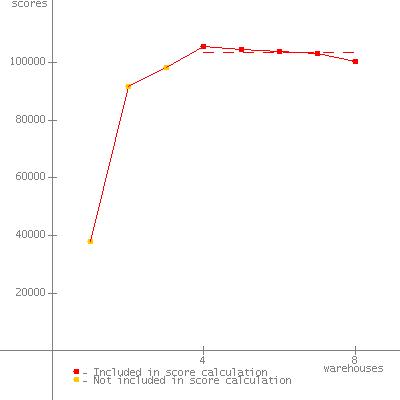

JVM 1 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 37875
2 91684
3 98235
4 105825 *
5 104657 *
6 103865 *
7 103416 *
8 100489 *
SPECjbb2005 (from 4 to 8) 103650 SPECjbb2005 bops
SPEC license # 3 Tested by: Hewlett-Packard Company Test date: Sep 4, 2012

JVM 2 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 39671
2 87532
3 101513
4 104392 *
5 105050 *
6 104032 *
7 103482 *
8 103179 *
SPECjbb2005 (from 4 to 8) 104027 SPECjbb2005 bops
SPEC license # 3 Tested by: Hewlett-Packard Company Test date: Sep 4, 2012

JVM 3 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 37834
2 85522
3 95713
4 102810 *
5 102854 *
6 102650 *
7 101675 *
8 101094 *
SPECjbb2005 (from 4 to 8) 102217 SPECjbb2005 bops
SPEC license # 3 Tested by: Hewlett-Packard Company Test date: Sep 4, 2012

JVM 4 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 36553
2 85412
3 100997
4 105679 *
5 104862 *
6 104615 *
7 104046 *
8 103088 *
SPECjbb2005 (from 4 to 8) 104458 SPECjbb2005 bops
SPEC license # 3 Tested by: Hewlett-Packard Company Test date: Sep 4, 2012

JVM 5 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 36859
2 87750
3 97563
4 100891 *
5 99767 *
6 98679 *
7 98535 *
8 98214 *
SPECjbb2005 (from 4 to 8) 99217 SPECjbb2005 bops
SPEC license # 3 Tested by: Hewlett-Packard Company Test date: Sep 4, 2012

JVM 6 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 35890
2 76909
3 97551
4 104256 *
5 104830 *
6 104317 *
7 103527 *
8 102716 *
SPECjbb2005 (from 4 to 8) 103929 SPECjbb2005 bops
SPEC license # 3 Tested by: Hewlett-Packard Company Test date: Sep 4, 2012

JVM 7 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 36283
2 85113
3 100316
4 105836 *
5 105085 *
6 105441 *
7 105147 *
8 104437 *
SPECjbb2005 (from 4 to 8) 105189 SPECjbb2005 bops
SPEC license # 3 Tested by: Hewlett-Packard Company Test date: Sep 4, 2012

JVM 8 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 40120
2 85904
3 101339
4 105686 *
5 105452 *
6 104822 *
7 103751 *
8 103591 *
SPECjbb2005 (from 4 to 8) 104661 SPECjbb2005 bops
SPEC license # 3 Tested by: Hewlett-Packard Company Test date: Sep 4, 2012

JVM 9 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 38471
2 86028
3 98382
4 105108 *
5 104165 *
6 103607 *
7 102819 *
8 102267 *
SPECjbb2005 (from 4 to 8) 103593 SPECjbb2005 bops
SPEC license # 3 Tested by: Hewlett-Packard Company Test date: Sep 4, 2012

JVM 10 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 39828
2 86263
3 103369
4 106550 *
5 106750 *
6 105800 *
7 105887 *
8 105256 *
SPECjbb2005 (from 4 to 8) 106049 SPECjbb2005 bops
SPEC license # 3 Tested by: Hewlett-Packard Company Test date: Sep 4, 2012

JVM 11 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 39773
2 82878
3 97765
4 105440 *
5 104240 *
6 104315 *
7 103785 *
8 103155 *
SPECjbb2005 (from 4 to 8) 104187 SPECjbb2005 bops
SPEC license # 3 Tested by: Hewlett-Packard Company Test date: Sep 4, 2012

JVM 12 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 36904
2 78742
3 100511
4 104659 *
5 104027 *
6 103121 *
7 102837 *
8 102178 *
SPECjbb2005 (from 4 to 8) 103364 SPECjbb2005 bops
SPEC license # 3 Tested by: Hewlett-Packard Company Test date: Sep 4, 2012

JVM 13 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 38624
2 90623
3 102661
4 105141 *
5 105765 *
6 104810 *
7 104112 *
8 103981 *
SPECjbb2005 (from 4 to 8) 104762 SPECjbb2005 bops
SPEC license # 3 Tested by: Hewlett-Packard Company Test date: Sep 4, 2012

JVM 14 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 39236
2 82087
3 100253
4 106703 *
5 106334 *
6 105676 *
7 104805 *
8 104310 *
SPECjbb2005 (from 4 to 8) 105566 SPECjbb2005 bops
SPEC license # 3 Tested by: Hewlett-Packard Company Test date: Sep 4, 2012

JVM 15 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 39034
2 86682
3 99221
4 105506 *
5 104340 *
6 104332 *
7 103747 *
8 103920 *
SPECjbb2005 (from 4 to 8) 104369 SPECjbb2005 bops
SPEC license # 3 Tested by: Hewlett-Packard Company Test date: Sep 4, 2012

JVM 16 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 36645
2 81186
3 101453
4 103946 *
5 103904 *
6 103433 *
7 103407 *
8 102325 *
SPECjbb2005 (from 4 to 8) 103403 SPECjbb2005 bops
SPEC license # 3 Tested by: Hewlett-Packard Company Test date: Sep 4, 2012

JVM 17 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 38942
2 84414
3 100727
4 105872 *
5 105679 *
6 105332 *
7 104878 *
8 103989 *
SPECjbb2005 (from 4 to 8) 105150 SPECjbb2005 bops
SPEC license # 3 Tested by: Hewlett-Packard Company Test date: Sep 4, 2012

JVM 18 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 37858
2 82085
3 98798
4 104855 *
5 104878 *
6 103889 *
7 103830 *
8 103166 *
SPECjbb2005 (from 4 to 8) 104124 SPECjbb2005 bops
SPEC license # 3 Tested by: Hewlett-Packard Company Test date: Sep 4, 2012

JVM 19 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 39970
2 89213
3 96475
4 105361 *
5 102905 *
6 101892 *
7 101518 *
8 100566 *
SPECjbb2005 (from 4 to 8) 102448 SPECjbb2005 bops
SPEC license # 3 Tested by: Hewlett-Packard Company Test date: Sep 4, 2012

JVM 20 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 37535
2 87944
3 96750
4 104787 *
5 105519 *
6 105230 *
7 104497 *
8 103828 *
SPECjbb2005 (from 4 to 8) 104772 SPECjbb2005 bops
SPEC license # 3 Tested by: Hewlett-Packard Company Test date: Sep 4, 2012

JVM 21 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 40984
2 86999
3 98152
4 104759 *
5 104242 *
6 103415 *
7 103178 *
8 103565 *
SPECjbb2005 (from 4 to 8) 103832 SPECjbb2005 bops
SPEC license # 3 Tested by: Hewlett-Packard Company Test date: Sep 4, 2012

JVM 22 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 39409
2 81032
3 96201
4 106042 *
5 106039 *
6 104703 *
7 104371 *
8 103598 *
SPECjbb2005 (from 4 to 8) 104951 SPECjbb2005 bops
SPEC license # 3 Tested by: Hewlett-Packard Company Test date: Sep 4, 2012

JVM 23 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 37482
2 90629
3 100730
4 105866 *
5 105454 *
6 104579 *
7 104369 *
8 104070 *
SPECjbb2005 (from 4 to 8) 104867 SPECjbb2005 bops
SPEC license # 3 Tested by: Hewlett-Packard Company Test date: Sep 4, 2012

JVM 24 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 35021
2 90742
3 100336
4 107094 *
5 106986 *
6 106220 *
7 106099 *
8 105116 *
SPECjbb2005 (from 4 to 8) 106303 SPECjbb2005 bops
SPEC license # 3 Tested by: Hewlett-Packard Company Test date: Sep 4, 2012

JVM 25 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 37358
2 88496
3 97640
4 105781 *
5 105324 *
6 104681 *
7 104133 *
8 102815 *
SPECjbb2005 (from 4 to 8) 104547 SPECjbb2005 bops
SPEC license # 3 Tested by: Hewlett-Packard Company Test date: Sep 4, 2012

JVM 26 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 35943
2 84909
3 98346
4 104381 *
5 103068 *
6 102203 *
7 101728 *
8 100834 *
SPECjbb2005 (from 4 to 8) 102443 SPECjbb2005 bops
SPEC license # 3 Tested by: Hewlett-Packard Company Test date: Sep 4, 2012

JVM 27 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 37831
2 80543
3 96165
4 102374 *
5 105030 *
6 104558 *
7 103829 *
8 103412 *
SPECjbb2005 (from 4 to 8) 103841 SPECjbb2005 bops
SPEC license # 3 Tested by: Hewlett-Packard Company Test date: Sep 4, 2012

JVM 28 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 38712
2 86214
3 97629
4 102796 *
5 101123 *
6 100549 *
7 99599 *
8 99220 *
SPECjbb2005 (from 4 to 8) 100657 SPECjbb2005 bops
SPEC license # 3 Tested by: Hewlett-Packard Company Test date: Sep 4, 2012

JVM 29 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 37260
2 91365
3 97174
4 101766 *
5 101210 *
6 101065 *
7 100399 *
8 99655 *
SPECjbb2005 (from 4 to 8) 100819 SPECjbb2005 bops
SPEC license # 3 Tested by: Hewlett-Packard Company Test date: Sep 4, 2012

JVM 30 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 41592
2 82928
3 96033
4 104132 *
5 103872 *
6 103218 *
7 103207 *
8 102491 *
SPECjbb2005 (from 4 to 8) 103384 SPECjbb2005 bops
SPEC license # 3 Tested by: Hewlett-Packard Company Test date: Sep 4, 2012

JVM 31 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 40107
2 91525
3 98067
4 103996 *
5 103599 *
6 100309 *
7 99646 *
8 99093 *
SPECjbb2005 (from 4 to 8) 101329 SPECjbb2005 bops
SPEC license # 3 Tested by: Hewlett-Packard Company Test date: Sep 4, 2012

JVM 32 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 37689
2 87009
3 94949
4 106252 *
5 105553 *
6 105179 *
7 104625 *
8 103980 *
SPECjbb2005 (from 4 to 8) 105118 SPECjbb2005 bops
SPEC license # 3 Tested by: Hewlett-Packard Company Test date: Sep 4, 2012
SPECjbb2005 Version: [SPECjbb2005 1.07, March 15, 2006]
Reporting page, Copyright © 2005-2007 SPEC. All rights reserved

First published at SPEC.org on 03-Dec-2012
