SPECjbb2005 SPECjbb2005 bops = 1877581, SPECjbb2005 bops/JVM = 117349
IBM Corporation IBM Flex System p260 (4.1 GHz, 16 core)
IBM Corporation JRE 1.7.0 (32-bit) IBM J9 2.6 AIX [build pap3270sr3-20120319_01(SR3)]

JVM run JVM Scores
1118044
2117530
3118675
4118138
5116052
6116962
7117858
8116821
9116829
10119056
11118298
12116450
13117125
14116894
15116932
16115917
SPECjbb2005 bops = 1877581, SPECjbb2005 bops/JVM = 117349

Hardware
Hardware Vendor IBM Corporation
Vendor URL http://www.ibm.com
Model IBM Flex System p260 (4.1 GHz, 16 core)
Processor POWER7+ (Intelligent Energy Optimization enabled, up to 4340 MHz)
MHz 4116
# of Chips 2
# of Cores 16
# of Cores/Chip 8
HW Threading Enabled? Yes
Procs Avail to Java 64
Memory (MB) 131072
Memory Details 16 x 8 GB DDR3 1066 MHz
Primary cache 32 KBI + 32 KBD on chip per core
Secondary cache 256 KB I+D on chip per core
Other cache 10 MB I+D on chip per core
Filesystem AIX/JFS2
Disks 1 x 177 GB SFF-1 SSD
Other hardware IBM Flex System Enterprise Chassis 7893-92X
Software
Software Vendor IBM Corporation
Vendor URL http://www.ibm.com
JVM Version JRE 1.7.0 (32-bit) IBM J9 2.6 AIX [build pap3270sr3-20120319_01(SR3)]
JVM Command Line execrset -c processor_set_number -e java -Xlp -Xgcpolicy:gencon -Xms2560m -Xmx2560m -Xmn2048m -Xaggressive -XtlhPrefetch -XlockReservation -Xgcthreads4 spec.jbb.JBBmain -propfile SPECjbb.props
JVM Initial Heap Memory (MB) 2560
JVM Maximum Heap Memory (MB) 2560
JVM Address bits 32
JVM CLASSPATH jbb.jar:
check.jar
JVM BOOTCLASSPATH /specssd/sdk/jre/lib/ppc/default/jclSC170/vm.jar:
/specssd/sdk/jre/lib/se-service.jar:
/specssd/sdk/jre/lib/math.jar:
/specssd/sdk/jre/lib/jlm.jar:
/specssd/sdk/jre/lib/ibmorb.jar:
/specssd/sdk/jre/lib/ibmorbapi.jar:
/specssd/sdk/jre/lib/ibmcfw.jar:
/specssd/sdk/jre/lib/ibmpkcs.jar:
/specssd/sdk/jre/lib/ibmcertpathfw.jar:
/specssd/sdk/jre/lib/ibmjgssfw.jar:
/specssd/sdk/jre/lib/ibmjssefw.jar:
/specssd/sdk/jre/lib/ibmsaslfw.jar:
/specssd/sdk/jre/lib/ibmjcefw.jar:
/specssd/sdk/jre/lib/ibmjgssprovider.jar:
/specssd/sdk/jre/lib/ibmjsseprovider2.jar:
/specssd/sdk/jre/lib/ibmcertpathprovider.jar:
/specssd/sdk/jre/lib/xmldsigfw.jar:
/specssd/sdk/jre/lib/xml.jar:
/specssd/sdk/jre/lib/charsets.jar:
/specssd/sdk/jre/lib/resources.jar:
/specssd/sdk/jre/lib/rt.jar
OS Version IBM AIX V7.1 TL 2 SP 1
Other software
Test Information
Tested by IBM Corporation
SPEC license # 11
Test location Austin, TX
Test date Oct 28, 2012
H/w available Nov-2012
JVM available Nov-2012
OS available Nov-2012
Other s/w available
AOT Compilation

Tuning
Operating system tunings
  • dscrctl -n -s 1
  • MEMORY_AFFINITY=MCM
  • IBM Chassis Management Module used to set "Dynamic Power Saving - Favor Performance" mode for this Compute Node
Notes
  • 3840 16 MB large pages defined with vmo command
  • 16 JVMs were run in processor sets each containing 1 core
  • This Compute Node is housed in an "IBM Flex System Enterprise Chassis" and is the only Compute Node


JVM 1 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 37777
2 85240
3 104198
4 121899 *
5 120240 *
6 117709 *
7 116064 *
8 114310 *
SPECjbb2005 (from 4 to 8) 118044 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Oct 28, 2012


JVM 2 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 40168
2 81876
3 103471
4 120841 *
5 119641 *
6 117590 *
7 115620 *
8 113960 *
SPECjbb2005 (from 4 to 8) 117530 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Oct 28, 2012


JVM 3 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 45269
2 87616
3 106176
4 122468 *
5 120284 *
6 118920 *
7 116683 *
8 115018 *
SPECjbb2005 (from 4 to 8) 118675 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Oct 28, 2012


JVM 4 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 41221
2 86648
3 105842
4 122039 *
5 120231 *
6 118140 *
7 115779 *
8 114503 *
SPECjbb2005 (from 4 to 8) 118138 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Oct 28, 2012


JVM 5 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 37300
2 84151
3 103498
4 119555 *
5 118101 *
6 116061 *
7 114197 *
8 112344 *
SPECjbb2005 (from 4 to 8) 116052 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Oct 28, 2012


JVM 6 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 35755
2 86108
3 103396
4 120589 *
5 119139 *
6 116997 *
7 114652 *
8 113434 *
SPECjbb2005 (from 4 to 8) 116962 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Oct 28, 2012


JVM 7 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 38873
2 84042
3 105589
4 121256 *
5 119944 *
6 117969 *
7 115822 *
8 114299 *
SPECjbb2005 (from 4 to 8) 117858 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Oct 28, 2012


JVM 8 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 47377
2 85814
3 104084
4 120572 *
5 118831 *
6 116817 *
7 114741 *
8 113146 *
SPECjbb2005 (from 4 to 8) 116821 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Oct 28, 2012


JVM 9 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 38528
2 82853
3 103730
4 120885 *
5 118991 *
6 116956 *
7 114652 *
8 112660 *
SPECjbb2005 (from 4 to 8) 116829 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Oct 28, 2012


JVM 10 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 38043
2 85236
3 101921
4 122537 *
5 121018 *
6 119106 *
7 117217 *
8 115403 *
SPECjbb2005 (from 4 to 8) 119056 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Oct 28, 2012

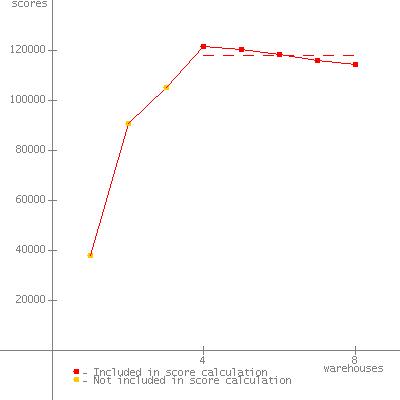

JVM 11 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 37933
2 90736
3 105221
4 121852 *
5 120349 *
6 118433 *
7 116270 *
8 114586 *
SPECjbb2005 (from 4 to 8) 118298 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Oct 28, 2012


JVM 12 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 36199
2 82876
3 102877
4 120674 *
5 118560 *
6 116012 *
7 114396 *
8 112608 *
SPECjbb2005 (from 4 to 8) 116450 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Oct 28, 2012


JVM 13 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 39296
2 81174
3 102061
4 120649 *
5 119257 *
6 117186 *
7 114990 *
8 113543 *
SPECjbb2005 (from 4 to 8) 117125 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Oct 28, 2012


JVM 14 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 42668
2 82970
3 104989
4 120358 *
5 118725 *
6 117020 *
7 114978 *
8 113389 *
SPECjbb2005 (from 4 to 8) 116894 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Oct 28, 2012


JVM 15 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 38108
2 86640
3 104756
4 120833 *
5 118836 *
6 116893 *
7 114880 *
8 113218 *
SPECjbb2005 (from 4 to 8) 116932 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Oct 28, 2012


JVM 16 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 40822
2 81935
3 104014
4 120111 *
5 117905 *
6 115912 *
7 113473 *
8 112185 *
SPECjbb2005 (from 4 to 8) 115917 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Oct 28, 2012

SPECjbb2005 Version: [SPECjbb2005 1.07, March 15, 2006]
Reporting page, Copyright © 2005-2007 SPEC. All rights reserved

First published at SPEC.org on 29-Nov-2012
