SPECjbb

SPECjbb2005		SPECjbb2005 bops = 2801316, SPECjbb2005 bops/JVM = 175082
Huawei Company Tecal RH2245V2 Rack Server
IBM IBM J9 VM (build 2.6, JRE 1.7.0 Windows Server 2008 R2 amd64-64 20120322_106209 (JIT enabled, AOT enabled)

JVM run JVM Scores

1 173860

2 177154

3 172834

4 176551

5 175472

6 175100

7 175464

8 175708

9 173926

10 174593

11 175803

12 174775

13 175483

14 174927

15 174049

16 175617

SPECjbb2005 bops = 2801316, SPECjbb2005 bops/JVM = 175082

Hardware

Hardware Vendor Huawei Company

Vendor URL http://www.huawei.com

Model Tecal RH2245V2 Rack Server

Processor Intel Xeon E5-4650 (Intel Turbo Boost Technology up to 3.3 GHz)

MHz 2700

# of Chips 4

# of Cores 32

# of Cores/Chip 8

HW Threading Enabled? Yes

Procs Avail to Java 32

Memory (MB) 262144

Memory Details 32 x 8 GB 2Rx4 PC3-12800R-11, ECC

Primary cache 32 KB I + 32 KB D on chip per core

Secondary cache 256 KB I+D on chip per core

Other cache 20 MB I+D on chip per chip

Filesystem NTFS

Disks 1 x 160GB SSD 2.5" SATA, Huawei P/N 02310KSX

Other hardware N/A

Software

Software Vendor IBM

Vendor URL http://www.ibm.com

JVM Version IBM J9 VM (build 2.6, JRE 1.7.0 Windows Server 2008 R2 amd64-64 20120322_106209 (JIT enabled, AOT enabled)

JVM Command Line -Xaggressive -Xcompressedrefs -Xmn1400m -Xms1875m -Xmx1875m -XlockReservation -Xnoloa -XtlhPrefetch -Xlp -Xconcurrentlevel0

JVM Initial Heap Memory (MB) 1875

JVM Maximum Heap Memory (MB) 1875

JVM Address bits 64

JVM CLASSPATH .\jbb.jar;
.\check.jar;

JVM BOOTCLASSPATH C:\jre\lib\jre\lib\aggressive.jar;
C:\jre\lib\jre\bin\compressedrefs\jclSC170\vm.jar;
C:\jre\lib\jre\lib\se-service.jar;
C:\jre\lib\jre\lib\math.jar;
C:\jre\lib\jre\lib\jlm.jar;
C:\jre\lib\jre\lib\ibmorb.jar;
C:\jre\lib\jre\lib\ibmorbapi.jar;
C:\jre\lib\jre\lib\ibmcfw.jar;
C:\jre\lib\jre\lib\ibmpkcs.jar;
C:\jre\lib\jre\lib\ibmcertpathfw.jar

OS Version Microsoft Windows Server 2008 Enterprise x64 Edition R2 SP1

Other software N/A

Test Information

Tested by Huawei

SPEC license # 3175

Test location ShenZhen, China

Test date Feb 23, 2012

H/w available Oct-2012

JVM available Jun-2012

OS available Feb-2011

Other s/w available N/A

AOT Compilation

N/A

Tuning

Operating system tunings
"Lock pages in memory" was enabled for the user running the benchmark
start /affinity [F, F0, F00, F000, F0000, F00000, F000000,F0000000,F00000000,F000000000,F0000000000,F00000000000,F000000000000,F0000000000000,F00000000000000,F000000000000000]

Notes

Command line options are described at: http://publib.boulder.ibm.com/infocenter/java7sdk/v7r0/index.jsp

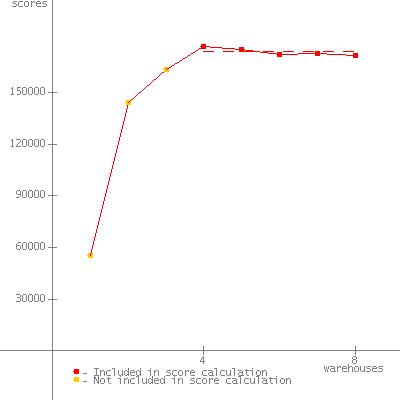

JVM 1 Scores:


Warehouses	SPECjbb2005 bops	Incl. in metric
1	55216
2	144126
3	163377
4	177063	*
5	175314	*
6	172473	*
7	172988	*
8	171464	*
SPECjbb2005	(from 4 to 8)	173860 SPECjbb2005 bops

SPEC license # 3175

Tested by: Huawei

Test date: Feb 23, 2012

JVM 2 Scores:


Warehouses	SPECjbb2005 bops	Incl. in metric
1	55629
2	143087
3	162446
4	180063	*
5	178840	*
6	176712	*
7	175753	*
8	174401	*
SPECjbb2005	(from 4 to 8)	177154 SPECjbb2005 bops

SPEC license # 3175

Tested by: Huawei

Test date: Feb 23, 2012

JVM 3 Scores:


Warehouses	SPECjbb2005 bops	Incl. in metric
1	58175
2	142436
3	164079
4	175470	*
5	173287	*
6	172469	*
7	171804	*
8	171142	*
SPECjbb2005	(from 4 to 8)	172834 SPECjbb2005 bops

SPEC license # 3175

Tested by: Huawei

Test date: Feb 23, 2012

JVM 4 Scores:


Warehouses	SPECjbb2005 bops	Incl. in metric
1	56844
2	142832
3	165201
4	180084	*
5	177163	*
6	176216	*
7	175145	*
8	174146	*
SPECjbb2005	(from 4 to 8)	176551 SPECjbb2005 bops

SPEC license # 3175

Tested by: Huawei

Test date: Feb 23, 2012

JVM 5 Scores:


Warehouses	SPECjbb2005 bops	Incl. in metric
1	56143
2	145379
3	164531
4	178530	*
5	176425	*
6	175090	*
7	174083	*
8	173234	*
SPECjbb2005	(from 4 to 8)	175472 SPECjbb2005 bops

SPEC license # 3175

Tested by: Huawei

Test date: Feb 23, 2012

JVM 6 Scores:


Warehouses	SPECjbb2005 bops	Incl. in metric
1	55197
2	137859
3	163589
4	178418	*
5	176158	*
6	174539	*
7	173742	*
8	172643	*
SPECjbb2005	(from 4 to 8)	175100 SPECjbb2005 bops

SPEC license # 3175

Tested by: Huawei

Test date: Feb 23, 2012

JVM 7 Scores:


Warehouses	SPECjbb2005 bops	Incl. in metric
1	54302
2	137459
3	158405
4	177015	*
5	177672	*
6	176065	*
7	173868	*
8	172697	*
SPECjbb2005	(from 4 to 8)	175464 SPECjbb2005 bops

SPEC license # 3175

Tested by: Huawei

Test date: Feb 23, 2012

JVM 8 Scores:


Warehouses	SPECjbb2005 bops	Incl. in metric
1	54741
2	146053
3	165210
4	178658	*
5	177203	*
6	175189	*
7	174179	*
8	173310	*
SPECjbb2005	(from 4 to 8)	175708 SPECjbb2005 bops

SPEC license # 3175

Tested by: Huawei

Test date: Feb 23, 2012

JVM 9 Scores:


Warehouses	SPECjbb2005 bops	Incl. in metric
1	56754
2	143863
3	163354
4	177322	*
5	175507	*
6	173405	*
7	172620	*
8	170775	*
SPECjbb2005	(from 4 to 8)	173926 SPECjbb2005 bops

SPEC license # 3175

Tested by: Huawei

Test date: Feb 23, 2012

JVM 10 Scores:


Warehouses	SPECjbb2005 bops	Incl. in metric
1	58160
2	144042
3	162974
4	177473	*
5	175927	*
6	174271	*
7	172804	*
8	172491	*
SPECjbb2005	(from 4 to 8)	174593 SPECjbb2005 bops

SPEC license # 3175

Tested by: Huawei

Test date: Feb 23, 2012

JVM 11 Scores:


Warehouses	SPECjbb2005 bops	Incl. in metric
1	58474
2	144355
3	165733
4	179035	*
5	176958	*
6	175487	*
7	174080	*
8	173455	*
SPECjbb2005	(from 4 to 8)	175803 SPECjbb2005 bops

SPEC license # 3175

Tested by: Huawei

Test date: Feb 23, 2012

JVM 12 Scores:


Warehouses	SPECjbb2005 bops	Incl. in metric
1	53963
2	145302
3	163945
4	177733	*
5	176839	*
6	174255	*
7	172514	*
8	172532	*
SPECjbb2005	(from 4 to 8)	174775 SPECjbb2005 bops

SPEC license # 3175

Tested by: Huawei

Test date: Feb 23, 2012

JVM 13 Scores:


Warehouses	SPECjbb2005 bops	Incl. in metric
1	57064
2	138752
3	158489
4	176719	*
5	177788	*
6	175913	*
7	174723	*
8	172275	*
SPECjbb2005	(from 4 to 8)	175483 SPECjbb2005 bops

SPEC license # 3175

Tested by: Huawei

Test date: Feb 23, 2012

JVM 14 Scores:


Warehouses	SPECjbb2005 bops	Incl. in metric
1	51096
2	142044
3	165398
4	179005	*
5	175840	*
6	173529	*
7	173256	*
8	173003	*
SPECjbb2005	(from 4 to 8)	174927 SPECjbb2005 bops

SPEC license # 3175

Tested by: Huawei

Test date: Feb 23, 2012

JVM 15 Scores:


Warehouses	SPECjbb2005 bops	Incl. in metric
1	53929
2	133896
3	162786
4	176418	*
5	174953	*
6	173458	*
7	173062	*
8	172355	*
SPECjbb2005	(from 4 to 8)	174049 SPECjbb2005 bops

SPEC license # 3175

Tested by: Huawei

Test date: Feb 23, 2012

JVM 16 Scores:


Warehouses	SPECjbb2005 bops	Incl. in metric
1	52067
2	138960
3	156402
4	175822	*
5	175234	*
6	177098	*
7	175535	*
8	174399	*
SPECjbb2005	(from 4 to 8)	175617 SPECjbb2005 bops

SPEC license # 3175

Tested by: Huawei

Test date: Feb 23, 2012
