SPECjbb2005 SPECjbb2005 bops = 5130786, SPECjbb2005 bops/JVM = 106891
IBM Corporation IBM Power 770 (4.2 GHz, 48 core)
IBM Corporation JRE 1.7.0 (32-bit) IBM J9 2.6 AIX [build pap3270sr3-20120319_01(SR3)]

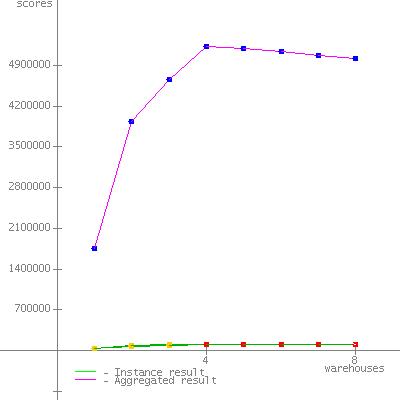

JVM run JVM Scores
1107176
2107099
3107237
4107914
5107569
6107188
7107505
8107636
9106698
10107105
11107112
12107776
13106018
14105713
15107507
16106779
17106478
18107021
19106619
20105607
21105381
22106571
23105829
24107917
25108934
26108058
27106580
28108129
29106601
30107835
31107194
32106900
33106569
34106056
35107709
36107112
37106885
38105020
39106910
40107268
41106139
42105483
43107705
44107616
45106073
46107148
47105039
48106368
SPECjbb2005 bops = 5130786, SPECjbb2005 bops/JVM = 106891

Hardware
Hardware Vendor IBM Corporation
Vendor URL http://www.ibm.com
Model IBM Power 770 (4.2 GHz, 48 core)
Processor POWER7+ (Intelligent Energy Optimization enabled, up to 4396 MHz)
MHz 4228
# of Chips 16
# of Cores 48
# of Cores/Chip 3
HW Threading Enabled? Yes
Procs Avail to Java 192
Memory (MB) 524288
Memory Details 64 x 8 GB DDR3 1066 MHz
Primary cache 32 KBI + 32 KBD on chip per core
Secondary cache 256 KB I+D on chip per core
Other cache 10 MB I+D on chip per core
Filesystem AIX/JFS2
Disks 1 x 146.8 GB 15K RPM SFF SAS
Other hardware
Software
Software Vendor IBM Corporation
Vendor URL http://www.ibm.com
JVM Version JRE 1.7.0 (32-bit) IBM J9 2.6 AIX [build pap3270sr3-20120319_01(SR3)]
JVM Command Line execrset -c processor_set_number -e java -Xlp -Xgcpolicy:gencon -Xms2560m -Xmx2560m -Xmn2048m -Xaggressive -XtlhPrefetch -XlockReservation -Xgcthreads4 spec.jbb.JBBmain -propfile SPECjbb.props
JVM Initial Heap Memory (MB) 2560
JVM Maximum Heap Memory (MB) 2560
JVM Address bits 32
JVM CLASSPATH jbb.jar:
check.jar
JVM BOOTCLASSPATH /speclocal/sdk/jre/lib/ppc/default/jclSC170/vm.jar:
/speclocal/sdk/jre/lib/se-service.jar:
/speclocal/sdk/jre/lib/math.jar:
/speclocal/sdk/jre/lib/jlm.jar:
/speclocal/sdk/jre/lib/ibmorb.jar:
/speclocal/sdk/jre/lib/ibmorbapi.jar:
/speclocal/sdk/jre/lib/ibmcfw.jar:
/speclocal/sdk/jre/lib/ibmpkcs.jar:
/speclocal/sdk/jre/lib/ibmcertpathfw.jar:
/speclocal/sdk/jre/lib/ibmjgssfw.jar:
/speclocal/sdk/jre/lib/ibmjssefw.jar:
/speclocal/sdk/jre/lib/ibmsaslfw.jar:
/speclocal/sdk/jre/lib/ibmjcefw.jar:
/speclocal/sdk/jre/lib/ibmjgssprovider.jar:
/speclocal/sdk/jre/lib/ibmjsseprovider2.jar:
/speclocal/sdk/jre/lib/ibmcertpathprovider.jar:
/speclocal/sdk/jre/lib/xmldsigfw.jar:
/speclocal/sdk/jre/lib/xml.jar:
/speclocal/sdk/jre/lib/charsets.jar:
/speclocal/sdk/jre/lib/resources.jar:
/speclocal/sdk/jre/lib/rt.jar
OS Version IBM AIX V7.1 TL 2
Other software
Test Information
Tested by IBM Corporation
SPEC license # 11
Test location Austin, TX
Test date Sep 26, 2012
H/w available Oct-2012
JVM available Nov-2012
OS available Oct-2012
Other s/w available
AOT Compilation

Tuning
Operating system tunings
  • dscrctl -n -s 1
  • MEMORY_AFFINITY=MCM
Notes
  • 19200 16 MB large pages defined with vmo command
  • 48 JVMs were run in processor sets each containing 1 core
  • Service Processor memory mirroring property disabled

JVM 1 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 40094
2 84458
3 99238
4 109192 *
5 108335 *
6 107689 *
7 105764 *
8 104899 *
SPECjbb2005 (from 4 to 8) 107176 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Sep 26, 2012

JVM 2 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 37765
2 78585
3 97284
4 108920 *
5 108350 *
6 107421 *
7 105884 *
8 104921 *
SPECjbb2005 (from 4 to 8) 107099 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Sep 26, 2012

JVM 3 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 32837
2 82155
3 97163
4 109085 *
5 108307 *
6 107446 *
7 106267 *
8 105081 *
SPECjbb2005 (from 4 to 8) 107237 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Sep 26, 2012

JVM 4 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 34673
2 80628
3 99262
4 110155 *
5 109116 *
6 108081 *
7 106423 *
8 105793 *
SPECjbb2005 (from 4 to 8) 107914 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Sep 26, 2012

JVM 5 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 34458
2 80270
3 96333
4 109992 *
5 108692 *
6 107688 *
7 106399 *
8 105074 *
SPECjbb2005 (from 4 to 8) 107569 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Sep 26, 2012

JVM 6 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 35438
2 82278
3 94845
4 109358 *
5 108641 *
6 107229 *
7 105954 *
8 104759 *
SPECjbb2005 (from 4 to 8) 107188 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Sep 26, 2012

JVM 7 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 33285
2 83208
3 98381
4 109561 *
5 108811 *
6 107660 *
7 106196 *
8 105299 *
SPECjbb2005 (from 4 to 8) 107505 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Sep 26, 2012

JVM 8 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 35623
2 81966
3 95281
4 108730 *
5 108814 *
6 108029 *
7 107007 *
8 105598 *
SPECjbb2005 (from 4 to 8) 107636 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Sep 26, 2012

JVM 9 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 33110
2 80542
3 98379
4 108382 *
5 108198 *
6 107021 *
7 105244 *
8 104643 *
SPECjbb2005 (from 4 to 8) 106698 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Sep 26, 2012

JVM 10 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 36054
2 81562
3 99107
4 108816 *
5 108605 *
6 107127 *
7 106060 *
8 104917 *
SPECjbb2005 (from 4 to 8) 107105 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Sep 26, 2012

JVM 11 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 34155
2 81178
3 98004
4 109572 *
5 108239 *
6 107365 *
7 105750 *
8 104635 *
SPECjbb2005 (from 4 to 8) 107112 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Sep 26, 2012

JVM 12 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 37416
2 79448
3 97934
4 109583 *
5 109111 *
6 107804 *
7 106842 *
8 105539 *
SPECjbb2005 (from 4 to 8) 107776 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Sep 26, 2012

JVM 13 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 44429
2 84467
3 95352
4 108194 *
5 107263 *
6 105962 *
7 104867 *
8 103804 *
SPECjbb2005 (from 4 to 8) 106018 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Sep 26, 2012

JVM 14 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 35266
2 80968
3 94815
4 107163 *
5 107242 *
6 105918 *
7 104625 *
8 103619 *
SPECjbb2005 (from 4 to 8) 105713 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Sep 26, 2012

JVM 15 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 34594
2 78868
3 95864
4 110039 *
5 108519 *
6 107635 *
7 105997 *
8 105343 *
SPECjbb2005 (from 4 to 8) 107507 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Sep 26, 2012

JVM 16 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 37624
2 78501
3 94952
4 108559 *
5 107903 *
6 107004 *
7 106028 *
8 104403 *
SPECjbb2005 (from 4 to 8) 106779 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Sep 26, 2012

JVM 17 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 40685
2 83713
3 97394
4 108753 *
5 107784 *
6 106554 *
7 105254 *
8 104046 *
SPECjbb2005 (from 4 to 8) 106478 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Sep 26, 2012

JVM 18 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 39391
2 89261
3 97384
4 109036 *
5 108745 *
6 107104 *
7 105503 *
8 104716 *
SPECjbb2005 (from 4 to 8) 107021 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Sep 26, 2012

JVM 19 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 38328
2 81566
3 96669
4 108739 *
5 107425 *
6 106775 *
7 105419 *
8 104736 *
SPECjbb2005 (from 4 to 8) 106619 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Sep 26, 2012

JVM 20 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 36656
2 82800
3 93317
4 107589 *
5 106754 *
6 105698 *
7 104585 *
8 103409 *
SPECjbb2005 (from 4 to 8) 105607 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Sep 26, 2012

JVM 21 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 36876
2 78958
3 96177
4 107167 *
5 106608 *
6 105551 *
7 104301 *
8 103276 *
SPECjbb2005 (from 4 to 8) 105381 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Sep 26, 2012

JVM 22 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 34895
2 83014
3 95580
4 108007 *
5 107704 *
6 106817 *
7 105614 *
8 104712 *
SPECjbb2005 (from 4 to 8) 106571 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Sep 26, 2012

JVM 23 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 36298
2 84186
3 95475
4 108001 *
5 106765 *
6 106092 *
7 104781 *
8 103506 *
SPECjbb2005 (from 4 to 8) 105829 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Sep 26, 2012

JVM 24 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 38262
2 83398
3 95877
4 110456 *
5 108771 *
6 108039 *
7 106625 *
8 105691 *
SPECjbb2005 (from 4 to 8) 107917 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Sep 26, 2012

JVM 25 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 35188
2 84191
3 99920
4 111185 *
5 110411 *
6 109126 *
7 107384 *
8 106562 *
SPECjbb2005 (from 4 to 8) 108934 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Sep 26, 2012

JVM 26 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 36763
2 78938
3 97478
4 110362 *
5 109263 *
6 108116 *
7 106853 *
8 105696 *
SPECjbb2005 (from 4 to 8) 108058 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Sep 26, 2012

JVM 27 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 33984
2 83317
3 96012
4 107660 *
5 107883 *
6 107218 *
7 105435 *
8 104704 *
SPECjbb2005 (from 4 to 8) 106580 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Sep 26, 2012

JVM 28 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 35215
2 81304
3 99229
4 109918 *
5 109537 *
6 108625 *
7 106893 *
8 105675 *
SPECjbb2005 (from 4 to 8) 108129 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Sep 26, 2012

JVM 29 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 44151
2 81706
3 98450
4 108167 *
5 107604 *
6 107047 *
7 105426 *
8 104760 *
SPECjbb2005 (from 4 to 8) 106601 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Sep 26, 2012

JVM 30 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 37667
2 80535
3 97806
4 110245 *
5 109122 *
6 107859 *
7 106486 *
8 105460 *
SPECjbb2005 (from 4 to 8) 107835 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Sep 26, 2012

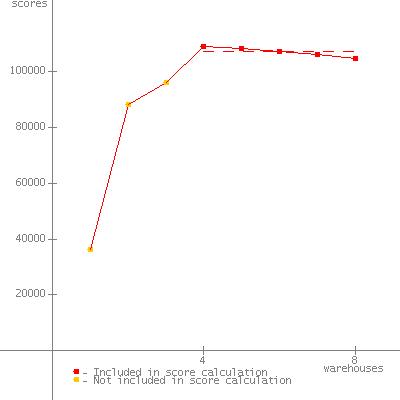

JVM 31 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 36144
2 88266
3 96158
4 109218 *
5 108389 *
6 107370 *
7 106116 *
8 104878 *
SPECjbb2005 (from 4 to 8) 107194 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Sep 26, 2012

JVM 32 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 35778
2 78228
3 97071
4 107390 *
5 108281 *
6 107371 *
7 106251 *
8 105208 *
SPECjbb2005 (from 4 to 8) 106900 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Sep 26, 2012

JVM 33 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 36288
2 81372
3 95034
4 108799 *
5 107565 *
6 106768 *
7 105184 *
8 104530 *
SPECjbb2005 (from 4 to 8) 106569 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Sep 26, 2012

JVM 34 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 37371
2 81271
3 95992
4 108366 *
5 106986 *
6 106092 *
7 104830 *
8 104004 *
SPECjbb2005 (from 4 to 8) 106056 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Sep 26, 2012

JVM 35 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 33919
2 80787
3 98759
4 109867 *
5 109355 *
6 107924 *
7 106015 *
8 105386 *
SPECjbb2005 (from 4 to 8) 107709 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Sep 26, 2012

JVM 36 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 31743
2 79110
3 97077
4 109555 *
5 108817 *
6 107645 *
7 105893 *
8 103653 *
SPECjbb2005 (from 4 to 8) 107112 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Sep 26, 2012

JVM 37 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 32603
2 82292
3 97213
4 109451 *
5 108154 *
6 106698 *
7 105653 *
8 104468 *
SPECjbb2005 (from 4 to 8) 106885 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Sep 26, 2012

JVM 38 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 37451
2 79935
3 96783
4 107027 *
5 106380 *
6 104974 *
7 103810 *
8 102911 *
SPECjbb2005 (from 4 to 8) 105020 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Sep 26, 2012

JVM 39 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 37591
2 85357
3 98781
4 109037 *
5 108397 *
6 106524 *
7 105939 *
8 104652 *
SPECjbb2005 (from 4 to 8) 106910 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Sep 26, 2012

JVM 40 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 33800
2 85212
3 96823
4 109257 *
5 108401 *
6 107427 *
7 106146 *
8 105107 *
SPECjbb2005 (from 4 to 8) 107268 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Sep 26, 2012

JVM 41 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 41993
2 80473
3 96442
4 108151 *
5 107348 *
6 106429 *
7 104824 *
8 103945 *
SPECjbb2005 (from 4 to 8) 106139 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Sep 26, 2012

JVM 42 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 36105
2 78224
3 94421
4 107895 *
5 106864 *
6 105677 *
7 103975 *
8 103003 *
SPECjbb2005 (from 4 to 8) 105483 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Sep 26, 2012

JVM 43 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 38206
2 81421
3 97180
4 109984 *
5 108704 *
6 107744 *
7 106707 *
8 105388 *
SPECjbb2005 (from 4 to 8) 107705 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Sep 26, 2012

JVM 44 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 32996
2 82105
3 97200
4 109474 *
5 108760 *
6 107703 *
7 106745 *
8 105400 *
SPECjbb2005 (from 4 to 8) 107616 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Sep 26, 2012

JVM 45 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 36834
2 80409
3 96886
4 107556 *
5 107341 *
6 106439 *
7 105076 *
8 103951 *
SPECjbb2005 (from 4 to 8) 106073 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Sep 26, 2012

JVM 46 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 36323
2 81405
3 96870
4 109857 *
5 108776 *
6 107293 *
7 105587 *
8 104226 *
SPECjbb2005 (from 4 to 8) 107148 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Sep 26, 2012

JVM 47 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 38254
2 84048
3 96875
4 106866 *
5 106143 *
6 105156 *
7 104179 *
8 102850 *
SPECjbb2005 (from 4 to 8) 105039 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Sep 26, 2012

JVM 48 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 35744
2 81509
3 94918
4 108233 *
5 107314 *
6 106705 *
7 105187 *
8 104398 *
SPECjbb2005 (from 4 to 8) 106368 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Sep 26, 2012
SPECjbb2005 Version: [SPECjbb2005 1.07, March 15, 2006]
Reporting page, Copyright © 2005-2007 SPEC. All rights reserved

First published at SPEC.org on 17-Oct-2012
