SPECjbb2005 SPECjbb2005 bops = 2804589, SPECjbb2005 bops/JVM = 175287
Dell Inc. PowerEdge R820 (Intel Xeon E5-4650, 2.70GHz)
IBM Java IBM J9 VM (build 2.6, JRE 1.7.0 Windows Server 2008 R2 amd64-64 20120322_106209

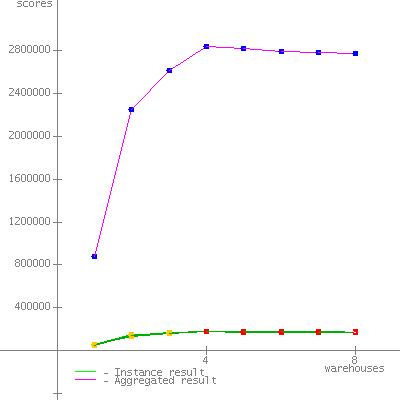

JVM run JVM Scores
1173748
2176964
3174743
4175633
5175353
6172917
7176430
8174094
9177302
10175600
11176575
12176529
13173669
14175362
15175034
16174636
SPECjbb2005 bops = 2804589, SPECjbb2005 bops/JVM = 175287

Hardware
Hardware Vendor Dell Inc.
Vendor URL http://www.dell.com
Model PowerEdge R820 (Intel Xeon E5-4650, 2.70GHz)
Processor Intel Xeon SB-EP E5-4650 (Intel Turbo Boost Technology up to 3.30 GHz)
MHz 2700
# of Chips 4
# of Cores 32
# of Cores/Chip 8
HW Threading Enabled? Yes
Procs Avail to Java 64
Memory (MB) 262144
Memory Details 32 x 8GB 2Rx4 PC3-12800R-11, ECC
Primary cache 32 KB I + 32 KB D
Secondary cache 256 KB I+D on chip per core
Other cache 20 MB I+D on chip per chip
Filesystem NTFS
Disks 1 x 100 GB SATA SSD (classes + OS)
Other hardware N/A
Software
Software Vendor IBM
Vendor URL http://www.IBM.com
JVM Version Java IBM J9 VM (build 2.6, JRE 1.7.0 Windows Server 2008 R2 amd64-64 20120322_106209
JVM Command Line -Xaggressive -Xcompressedrefs -Xmx1875m -Xms1875m -Xmn1400m -XlockReservation -Xnoloa -XtlhPrefetch -Xlp -Xconcurrentlevel0
JVM Initial Heap Memory (MB) 1875
JVM Maximum Heap Memory (MB) 1875
JVM Address bits 64
JVM CLASSPATH .\jbb.jar;
.\check.jar;
JVM BOOTCLASSPATH c:\specjbb2005\jvm\ibm_sdk70\jre\lib\aggressive.jar;
c:\specjbb2005\jvm\ibm_sdk70\jre\bin\compressedrefs\jclSC170\vm.jar;
c:\specjbb2005\jvm\ibm_sdk70\jre\lib\se-service.jar;
c:\specjbb2005\jvm\ibm_sdk70\jre\lib\math.jar;
c:\specjbb2005\jvm\ibm_sdk70\jre\lib\jlm.jar;
c:\specjbb2005\jvm\ibm_sdk70\jre\lib\ibmorb.jar;
c:\specjbb2005\jvm\ibm_sdk70\jre\lib\ibmorbapi.jar;
c:\specjbb2005\jvm\ibm_sdk70\jre\lib\ibmcfw.jar;
c:\specjbb2005\jvm\ibm_sdk70\jre\lib\ibmpkcs.jar;
c:\specjbb2005\jvm\ibm_sdk70\jre\lib\ibmcertpathfw.jar;
c:\specjbb2005\jvm\ibm_sdk70\jre\lib\ibmjgssfw.jar;
c:\specjbb2005\jvm\ibm_sdk70\jre\lib\ibmjssefw.jar;
c:\specjbb2005\jvm\ibm_sdk70\jre\lib\ibmsaslfw.jar;
c:\specjbb2005\jvm\ibm_sdk70\jre\lib\ibmjcefw.jar;
c:\specjbb2005\jvm\ibm_sdk70\jre\lib\ibmjgssprovider.jar;
c:\specjbb2005\jvm\ibm_sdk70\jre\lib\ibmjsseprovider2.jar;
c:\specjbb2005\jvm\ibm_sdk70\jre\lib\ibmcertpathprovider.jar;
c:\specjbb2005\jvm\ibm_sdk70\jre\lib\xmldsigfw.jar;
c:\specjbb2005\jvm\ibm_sdk70\jre\lib\xml.jar;
c:\specjbb2005\jvm\ibm_sdk70\jre\lib\charsets.jar;
c:\specjbb2005\jvm\ibm_sdk70\jre\lib\resources.jar;
c:\specjbb2005\jvm\ibm_sdk70\jre\lib\rt.jar
OS Version Microsoft Windows Server 2008 Enterprise x64 Edition R2 SP1
Other software IBM SDK Java Technology Edition Version 7.0 for Windows x64
Test Information
Tested by Dell Inc.
SPEC license # 55
Test location Round Rock, TX
Test date Aug 6, 2012
H/w available July-2012
JVM available Jun-2012
OS available Feb-2011
Other s/w available Jun-2012
AOT Compilation
None
Tuning
  • Operating system tunings
    • Lock pages in memory enabled
    • Use "start /AFFINITY" [0xF,0xF0,0xF00,0xF000,0xF0000,0xF00000,0xF000000,0xF0000000,0xF00000000,0xF000000000,0xF0000000000,0xF00000000000,0xF000000000000,0xF0000000000000,0xF00000000000000,0xF000000000000000]
Notes
  • BIOS Tunings:
    • Adjacent Cache Line Prefetch disabled
    • Hardware Prefetcher disabled
    • DCU Streamer Prefetcher disabled
    • Performance Optimized System Profile


JVM 1 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 55663
2 144146
3 163454
4 176741 *
5 174722 *
6 172654 *
7 172842 *
8 171780 *
SPECjbb2005 (from 4 to 8) 173748 SPECjbb2005 bops
SPEC license # 55 Tested by: Dell Inc. Test date: Aug 6, 2012

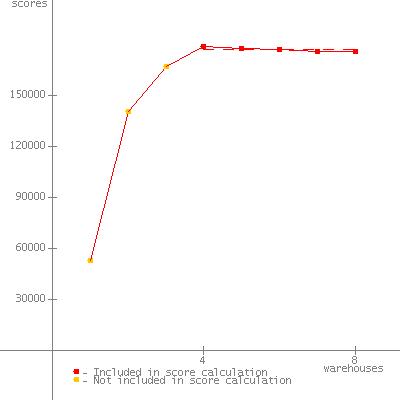

JVM 2 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 52956
2 140645
3 167142
4 178858 *
5 177457 *
6 177001 *
7 175980 *
8 175523 *
SPECjbb2005 (from 4 to 8) 176964 SPECjbb2005 bops
SPEC license # 55 Tested by: Dell Inc. Test date: Aug 6, 2012

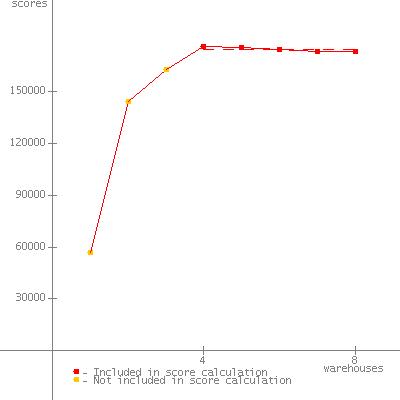

JVM 3 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 57147
2 144190
3 163159
4 176533 *
5 175495 *
6 174710 *
7 173507 *
8 173472 *
SPECjbb2005 (from 4 to 8) 174743 SPECjbb2005 bops
SPEC license # 55 Tested by: Dell Inc. Test date: Aug 6, 2012


JVM 4 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 53491
2 137837
3 162089
4 178274 *
5 176485 *
6 174622 *
7 174890 *
8 173894 *
SPECjbb2005 (from 4 to 8) 175633 SPECjbb2005 bops
SPEC license # 55 Tested by: Dell Inc. Test date: Aug 6, 2012

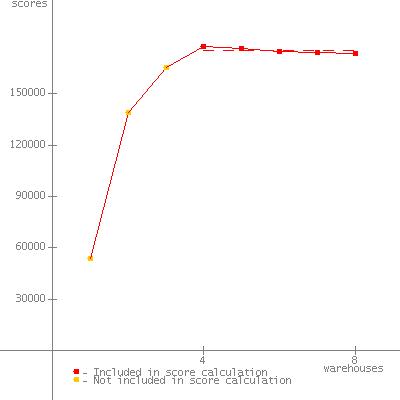

JVM 5 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 54027
2 139309
3 165276
4 177840 *
5 176517 *
6 174883 *
7 174066 *
8 173458 *
SPECjbb2005 (from 4 to 8) 175353 SPECjbb2005 bops
SPEC license # 55 Tested by: Dell Inc. Test date: Aug 6, 2012

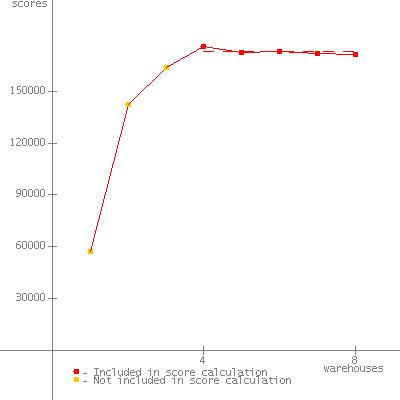

JVM 6 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 57425
2 142035
3 163724
4 176033 *
5 172498 *
6 173068 *
7 171845 *
8 171141 *
SPECjbb2005 (from 4 to 8) 172917 SPECjbb2005 bops
SPEC license # 55 Tested by: Dell Inc. Test date: Aug 6, 2012


JVM 7 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 54705
2 140199
3 160307
4 177406 *
5 177408 *
6 176663 *
7 175382 *
8 175289 *
SPECjbb2005 (from 4 to 8) 176430 SPECjbb2005 bops
SPEC license # 55 Tested by: Dell Inc. Test date: Aug 6, 2012


JVM 8 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 54972
2 143019
3 162605
4 177153 *
5 174667 *
6 173872 *
7 172930 *
8 171846 *
SPECjbb2005 (from 4 to 8) 174094 SPECjbb2005 bops
SPEC license # 55 Tested by: Dell Inc. Test date: Aug 6, 2012


JVM 9 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 54042
2 134773
3 165718
4 179560 *
5 177969 *
6 177617 *
7 176289 *
8 175077 *
SPECjbb2005 (from 4 to 8) 177302 SPECjbb2005 bops
SPEC license # 55 Tested by: Dell Inc. Test date: Aug 6, 2012


JVM 10 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 56154
2 146380
3 163259
4 178301 *
5 177409 *
6 174453 *
7 174046 *
8 173792 *
SPECjbb2005 (from 4 to 8) 175600 SPECjbb2005 bops
SPEC license # 55 Tested by: Dell Inc. Test date: Aug 6, 2012


JVM 11 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 53997
2 137071
3 163907
4 179512 *
5 177419 *
6 175879 *
7 175098 *
8 174967 *
SPECjbb2005 (from 4 to 8) 176575 SPECjbb2005 bops
SPEC license # 55 Tested by: Dell Inc. Test date: Aug 6, 2012

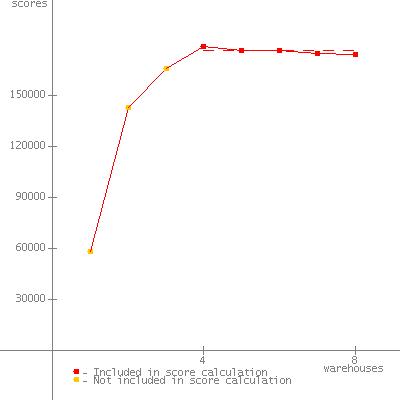

JVM 12 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 58147
2 143446
3 166313
4 179275 *
5 177009 *
6 176601 *
7 175133 *
8 174628 *
SPECjbb2005 (from 4 to 8) 176529 SPECjbb2005 bops
SPEC license # 55 Tested by: Dell Inc. Test date: Aug 6, 2012

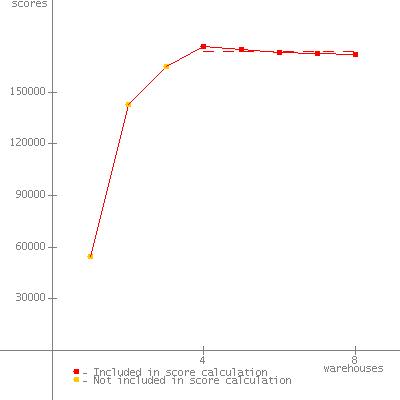

JVM 13 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 54638
2 142821
3 164615
4 176669 *
5 174780 *
6 172734 *
7 172463 *
8 171699 *
SPECjbb2005 (from 4 to 8) 173669 SPECjbb2005 bops
SPEC license # 55 Tested by: Dell Inc. Test date: Aug 6, 2012


JVM 14 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 52812
2 132885
3 158023
4 177389 *
5 176978 *
6 174628 *
7 174498 *
8 173318 *
SPECjbb2005 (from 4 to 8) 175362 SPECjbb2005 bops
SPEC license # 55 Tested by: Dell Inc. Test date: Aug 6, 2012

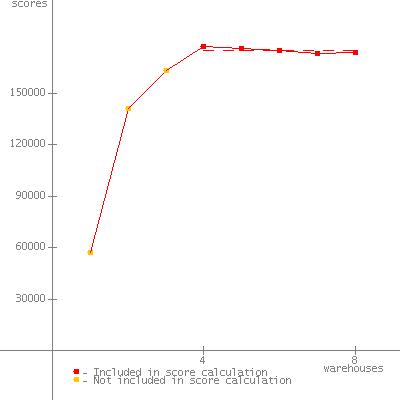

JVM 15 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 57238
2 140902
3 163255
4 177458 *
5 176079 *
6 175034 *
7 173088 *
8 173511 *
SPECjbb2005 (from 4 to 8) 175034 SPECjbb2005 bops
SPEC license # 55 Tested by: Dell Inc. Test date: Aug 6, 2012


JVM 16 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 50656
2 141391
3 161124
4 177201 *
5 175941 *
6 174050 *
7 173106 *
8 172883 *
SPECjbb2005 (from 4 to 8) 174636 SPECjbb2005 bops
SPEC license # 55 Tested by: Dell Inc. Test date: Aug 6, 2012

SPECjbb2005 Version: [SPECjbb2005 1.07, March 15, 2006]
Reporting page, Copyright © 2005-2007 SPEC. All rights reserved

First published at SPEC.org on 22-Aug-2012
