SPECjbb

SPECjbb2005		SPECjbb2005 bops = 424938, SPECjbb2005 bops/JVM = 424938
Dell Inc. PowerEdge R210 II (Intel E3-1280 V2, 3.6GHz)
Oracle Oracle HotSpot(TM) 64-Bit Server VM (build 1.6.0_25, mixed mode)

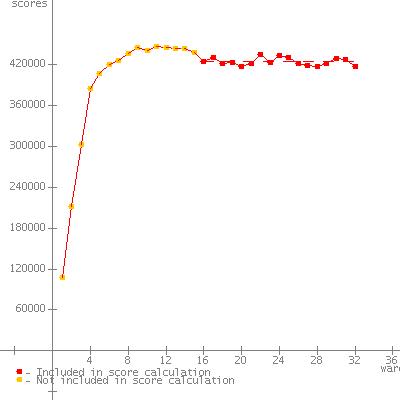

Warehouses	SPECjbb2005 bops	Incl. in metric
1	106989
2	211488
3	302556
4	384748
5	408158
6	420337
7	427080
8	437448
9	445290
10	440701
11	447677
12	445982
13	444468
14	443939
15	438413
16	425440	*
17	430302	*
18	422679	*
19	424161	*
20	418260	*
21	422177	*
22	435199	*
23	423271	*
24	433274	*
25	431166	*
26	422721	*
27	418870	*
28	418243	*
29	422538	*
30	429484	*
31	427816	*
32	418351	*
SPECjbb2005	(from 16 to 32)	424938 SPECjbb2005 bops

SPEC license # 55

Tested by: Dell Inc.

Test date: May 2, 2012

Hardware

Hardware Vendor Dell Inc.

Vendor URL http://www.dell.com

Model PowerEdge R210 II (Intel E3-1280 V2, 3.6GHz)

Processor Intel Xeon E3-1280V2 (Intel Turbo Boost Technology up to 4.0 GHz)

MHz 3600

# of Chips 1

# of Cores 4

# of Cores/Chip 4

HW Threading Enabled? Yes

Procs Avail to Java 8

Memory (MB) 16384

Memory Details 2 x 8GB 2Rx8 PC3L-12800E-11, ECC, Slots A1 and B1 populated

Primary cache 32 KB I + 32 KB D

Secondary cache 256 KB I+D on chip per core

Other cache 8 MB I+D on chip per chip

Filesystem NTFS

Disks 1 x 250 GB SATA(classes + OS)

Other hardware None

Software

Software Vendor Oracle

Vendor URL http://www.oracle.com

JVM Version Oracle HotSpot(TM) 64-Bit Server VM (build 1.6.0_25, mixed mode)

JVM Command Line -server -Xmx12g -Xms12g -Xmn10g -XX:SurvivorRatio=60 -XX:TargetSurvivorRatio=90 -XX:ParallelGCThreads=16 -XX:-UseAdaptiveSizePolicy -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+UseLargePages -XX:+UseParallelOldGC -XX:+UseCompressedStrings -XX:+AggressiveOpts -XX:+UseAdaptiveSizePolicy

JVM Initial Heap Memory (MB) 12288

JVM Maximum Heap Memory (MB) 12288

JVM Address bits 64

JVM CLASSPATH .\jbb.jar;
.\check.jar;

JVM BOOTCLASSPATH c:\specjbb2005\jvm\jre6\lib\alt-string.jar;
c:\specjbb2005\jvm\jre6\lib\alt-rt.jar;
c:\specjbb2005\jvm\jre6\lib\resources.jar;
c:\specjbb2005\jvm\jre6\lib\rt.jar;
c:\specjbb2005\jvm\jre6\lib\sunrsasign.jar;
c:\specjbb2005\jvm\jre6\lib\jsse.jar;
c:\specjbb2005\jvm\jre6\lib\jce.jar;
c:\specjbb2005\jvm\jre6\lib\charsets.jar;
c:\specjbb2005\jvm\jre6\lib\modules\jdk.boot.jar;
c:\specjbb2005\jvm\jre6\classes

OS Version Windows 2008 Enterprise x64 Edition R2 SP1

Other software None

Test Information

Tested by Dell Inc.

SPEC license # 55

Test location Round Rock, TX

Test date May 2, 2012

H/w available May-2012

JVM available Apr-2011

OS available Feb-2011

Other s/w available NA

AOT Compilation

None

Tuning

Operating system tunings
Lock pages in memory enabled
BIOS Tunings
Adjacent Cache Line Prefetch disabled
Hardware Prefetch disabled
DCU Streamer Prefetchdisabled
DCU IP Prefetch disabled
Maximum Performance Mode

Notes

"Notes here"

Details of Runs

Warehouses	Thrput	Total heap (MB)		Thread spread %	% > 120s	transaction type	Count	Time (in seconds)
Warehouses	Thrput	Size	Used	Thread spread %	% > 120s	transaction type	Count	total	max
1	106989	12123	6153	<0.01%	<0.01	new_order	1410863	13.5	.016
						payment	973080	5.25	.016
						order_status	97308	.656	.016
						delivery	97307	4.76	.016
						stock_level	97308	.528	.016
						cust_report	535298	4.43	.016
2	211488	12123	6689	.305%	<0.01	new_order	2788980	25.4	.016
						payment	1923576	10.5	.016
						order_status	192358	1.41	.016
						delivery	192356	10.5	.016
						stock_level	192358	1.14	.016
						cust_report	1058177	9.24	.016
3	302556	12170	319	.663%	<0.01	new_order	3990499	38.1	.031
						payment	2751881	15.1	.031
						order_status	275189	1.70	.016
						delivery	275189	17.1	.031
						stock_level	275188	1.95	.016
						cust_report	1513263	13.2	.031
4	384748	12189	5252	.498%	<0.01	new_order	5073819	50.5	.032
						payment	3499340	21.1	.032
						order_status	349935	2.92	.016
						delivery	349935	21.1	.031
						stock_level	349935	2.79	.016
						cust_report	1924861	18.2	.031
5	408158	12202	3475	5.66%	<0.01	new_order	5385061	61.9	.016
						payment	3714243	26.0	.016
						order_status	371423	3.26	.016
						delivery	371424	27.3	.016
						stock_level	371425	3.12	.016
						cust_report	2043408	23.8	.016
6	420337	12219	3287	17.9%	<0.01	new_order	5546542	72.7	.016
						payment	3825066	30.9	.016
						order_status	382506	3.68	.016
						delivery	382505	34.5	.032
						stock_level	382507	4.35	.016
						cust_report	2103590	29.0	.016
7	427080	12233	3856	11.7%	<0.01	new_order	5631958	80.2	.016
						payment	3884363	33.4	.016
						order_status	388435	4.33	.016
						delivery	388435	48.0	.016
						stock_level	388437	5.56	.016
						cust_report	2136766	33.1	.016
8	437448	12241	6618	1.03%	<0.01	new_order	5769481	90.9	.016
						payment	3978795	37.8	.016
						order_status	397878	4.79	.016
						delivery	397879	61.1	.016
						stock_level	397881	7.03	.016
						cust_report	2188102	38.3	.016
9	445290	12244	424	24.5%	<0.01	new_order	5872546	105	.219
						payment	4050110	44.1	.219
						order_status	405013	5.00	.203
						delivery	405010	71.9	.437
						stock_level	405012	8.59	.218
						cust_report	2227688	41.9	.328
10	440701	12246	3754	33.9%	<0.01	new_order	5836243	116	.234
						payment	4024934	50.0	.219
						order_status	402494	5.74	.203
						delivery	402494	78.9	.219
						stock_level	402495	9.88	.219
						cust_report	2213625	45.2	.328
11	447677	12246	7463	41.7%	<0.01	new_order	5902970	125	.421
						payment	4071817	58.0	.281
						order_status	407184	5.39	.219
						delivery	407183	86.6	.250
						stock_level	407182	10.1	.234
						cust_report	2240676	53.6	.343
12	445982	12247	918	43.1%	<0.01	new_order	5880327	140	.422
						payment	4056413	58.2	.421
						order_status	405643	7.94	.421
						delivery	405639	93.5	.421
						stock_level	405641	12.1	.421
						cust_report	2232494	57.0	.452
13	444468	12244	4227	41.5%	<0.01	new_order	5865549	149	.468
						payment	4044661	66.6	.421
						order_status	404465	8.30	.531
						delivery	404465	104	.609
						stock_level	404468	10.9	.374
						cust_report	2223779	60.9	.422
14	443939	12240	8115	53.3%	<0.01	new_order	5855653	159	.811
						payment	4037693	72.6	.624
						order_status	403769	9.34	.421
						delivery	403768	111	.624
						stock_level	403769	11.1	.375
						cust_report	2219727	66.1	.842
15	438413	12236	1520	52.9%	<0.01	new_order	5819508	178	.765
						payment	4014397	72.0	.499
						order_status	401441	8.63	.296
						delivery	401440	115	.765
						stock_level	401440	16.3	.422
						cust_report	2209301	68.9	.765
16	425440	12243	4246	33.2%	.087	new_order	44904326	1439	.874
						payment	30968018	616	.889
						order_status	3096799	76.2	.608
						delivery	3096797	972	.796
						stock_level	3096802	113	.827
						cust_report	17031704	562	.936
17	430302	12236	1281	34.0%	<0.01	new_order	45379644	1569	.920
						payment	31297561	667	1.53
						order_status	3129754	83.3	.624
						delivery	3129754	1050	.874
						stock_level	3129754	116	.702
						cust_report	17215480	612	.858
18	422679	12232	11188	29.9%	<0.01	new_order	44578867	1640	1.06
						payment	30743126	675	.827
						order_status	3074311	86.7	.733
						delivery	3074309	1108	1.01
						stock_level	3074313	127	1.05
						cust_report	16907376	626	.951
19	424161	12228	3744	41.6%	<0.01	new_order	44737931	1706	1.17
						payment	30850916	730	1.14
						order_status	3085092	92.1	1.20
						delivery	3085090	1163	1.23
						stock_level	3085091	134	1.03
						cust_report	16963910	675	1.17
20	418260	12208	10941	24.1%	<0.01	new_order	44109374	1777	1.61
						payment	30419807	794	1.55
						order_status	3041980	99.2	.889
						delivery	3041979	1197	1.64
						stock_level	3041978	136	1.16
						cust_report	16730242	728	1.70
21	422177	12206	3402	42.0%	<0.01	new_order	44522035	1911	1.39
						payment	30704513	801	1.33
						order_status	3070450	108	1.01
						delivery	3070448	1254	1.25
						stock_level	3070449	143	1.22
						cust_report	16886999	748	1.23
22	435199	12204	3478	39.8%	.581	new_order	46161400	2065	1.40
						payment	31834830	895	1.25
						order_status	3183483	106	1.03
						delivery	3183482	1388	1.45
						stock_level	3183482	158	1.09
						cust_report	17508267	786	1.17
23	423271	12201	8175	22.8%	.100	new_order	44682434	2052	1.54
						payment	30814097	891	1.40
						order_status	3081409	118	1.25
						delivery	3081406	1396	1.37
						stock_level	3081404	147	1.05
						cust_report	16945766	834	1.26
24	433274	12199	3677	32.8%	<0.01	new_order	45691705	2189	1.67
						payment	31511604	991	1.62
						order_status	3151161	127	1.22
						delivery	3151158	1495	1.83
						stock_level	3151160	163	.952
						cust_report	17331502	868	1.62
25	431166	12196	6826	36.8%	<0.01	new_order	45471386	2296	1.65
						payment	31358312	1017	1.75
						order_status	3135830	129	1.23
						delivery	3135829	1541	3.59
						stock_level	3135833	185	1.25
						cust_report	17245250	910	1.47
26	422721	12193	3478	30.1%	.087	new_order	44617787	2314	1.83
						payment	30770132	1011	1.83
						order_status	3077012	131	1.23
						delivery	3077007	1581	1.84
						stock_level	3077015	174	1.31
						cust_report	16922480	943	1.67
27	418870	12191	3845	36.0%	<0.01	new_order	44177483	2418	1.90
						payment	30466061	1007	1.62
						order_status	3046605	117	1.40
						delivery	3046605	1654	2.00
						stock_level	3046604	183	1.48
						cust_report	16754655	960	1.51
28	418243	12189	4769	33.0%	<0.01	new_order	44110756	2465	1.79
						payment	30420436	1105	1.69
						order_status	3042046	124	1.31
						delivery	3042038	1718	1.79
						stock_level	3042047	189	1.76
						cust_report	16730128	986	1.72
29	422538	12186	10873	29.8%	.074	new_order	44592948	2610	1.86
						payment	30752803	1143	2.28
						order_status	3075278	151	1.20
						delivery	3075275	1728	1.92
						stock_level	3075282	197	1.69
						cust_report	16912648	1051	1.84
30	429484	12184	1097	42.1%	<0.01	new_order	45292458	2716	3.51
						payment	31236107	1232	2.14
						order_status	3123608	144	1.56
						delivery	3123607	1908	2.87
						stock_level	3123614	198	1.73
						cust_report	17179739	1100	3.50
31	427816	12181	1284	36.9%	<0.01	new_order	45118225	2825	2.18
						payment	31114710	1225	2.18
						order_status	3111469	141	1.69
						delivery	3111465	1961	2.17
						stock_level	3111468	232	2.12
						cust_report	17111177	1099	1.90
32	418351	12179	2218	29.5%	.087	new_order	44154782	2851	2.01
						payment	30452007	1258	2.20
						order_status	3045201	166	1.75
						delivery	3045199	1913	2.75
						stock_level	3045200	229	2.04
						cust_report	16749219	1108	2.03
