SPECjbb2005 SPECjbb2005 bops = 1580327, SPECjbb2005 bops/JVM = 197541
IBM Corporation IBM Flex System x240
IBM Corporation IBM J9 JVM (build 2.6, JRE 1.7.0 Windows Server 2008 R2 amd64-64 20120204_101769 (JIT enabled, AOT enabled)

JVM run JVM Scores
1197362
2198680
3198974
4196795
5197822
6197240
7196865
8196589
SPECjbb2005 bops = 1580327, SPECjbb2005 bops/JVM = 197541

Hardware
Hardware Vendor IBM Corporation
Vendor URL http://www.ibm.com
Model IBM Flex System x240
Processor Intel Xeon E5-2690 (Intel Turbo Boost Technology up to 3.80 GHz)
MHz 2900
# of Chips 2
# of Cores 16
# of Cores/Chip 8
HW Threading Enabled? Yes
Procs Avail to Java 32
Memory (MB) 131072
Memory Details 16 x 8GB 2Rx8 PC3-12800R-11, ECC
Primary cache 32 KB I + 32 KB D on chip per core
Secondary cache 256 KB I+D on chip per core
Other cache 20 MB I+D on chip per chip
Filesystem NTFS
Disks 1 x 300GB 10 K SAS
Other hardware
Software
Software Vendor IBM Corporation
Vendor URL http://www.ibm.com
JVM Version IBM J9 JVM (build 2.6, JRE 1.7.0 Windows Server 2008 R2 amd64-64 20120204_101769 (JIT enabled, AOT enabled)
JVM Command Line start /AFFINITY %HEX% java -Xaggressive -Xcompressedrefs -Xmn1400m -Xms1875m -Xmx1875m -XlockReservation -Xnoloa -XtlhPrefetch -Xlp -Xconcurrentlevel0 -spec.jbb.JBBmain -propfile SPECjbb.props
JVM Initial Heap Memory (MB) 1875
JVM Maximum Heap Memory (MB) 1875
JVM Address bits 64
JVM CLASSPATH c:\SPECjbb2005\jbb.jar;
c:\SPECjbb2005\check.jar
JVM BOOTCLASSPATH c:\sdk\jre\bin\compressedrefs\jclSC170\vm.jar;
c:\sdk\jre\lib\se-service.jar;
c:\sdk\jre\lib\math.jar;
c:\sdk\jre\lib\jlm.jar;
c:\sdk\jre\lib\ibmorb.jar;
c:\sdk\jre\lib\ibmorbapi.jar;
c:\sdk\jre\lib\ibmcfw.jar;
c:\sdk\jre\lib\ibmpkcs.jar;
c:\sdk\jre\lib\ibmcertpathfw.jar;
c:\sdk\jre\lib\ibmjgssfw.jar;
c:\sdk\jre\lib\ibmjssefw.jar;
c:\sdk\jre\lib\ibmsaslfw.jar;
c:\sdk\jre\lib\ibmjcefw.jar;
c:\sdk\jre\lib\ibmjgssprovider.jar;
c:\sdk\jre\lib\ibmjsseprovider2.jar;
c:\sdk\jre\lib\ibmcertpathprovider.jar;
c:\sdk\jre\lib\xmldsigfw.jar;
c:\sdk\jre\lib\xml.jar;
c:\sdk\jre\lib\charsets.jar;
c:\sdk\jre\lib\resources.jar;
c:\sdk\jre\lib\rt.jar
OS Version Microsoft Windows Server 2008 Enterprise x64 Edition R2 SP1
Other software
Test Information
Tested by IBM Corporation
SPEC license # 11
Test location RTP, NC
Test date Mar 22, 2012
H/w available Mar-2012
JVM available Jun-2012
OS available Feb-2011
Other s/w available
AOT Compilation
N/A
Tuning
    Operating System Tunings
    • Affinity Masks set to 0xF, 0xF0, 0xF00, 0xF000, 0xF0000, 0xF00000, 0xF000000, 0xF0000000
    • "lock pages in memory" was enabled for the user running the benchmark
  • BIOS Configuration
    • Operating mode set to "Maximum Performance"
    • HW Prefetch set to Disabled
    • Adjacent Sector Prefetch set to Disabled
    • DCU Prefetcher set to Disabled
Notes
"Notes here"

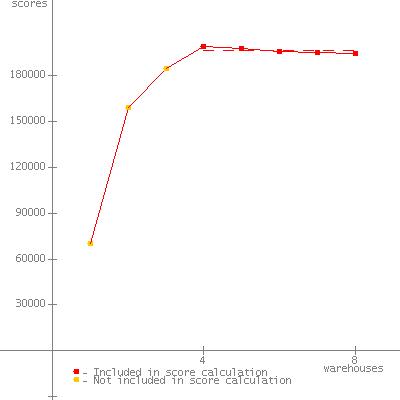

JVM 1 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 70715
2 161457
3 183243
4 199958 *
5 198575 *
6 197257 *
7 196636 *
8 194384 *
SPECjbb2005 (from 4 to 8) 197362 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Mar 22, 2012

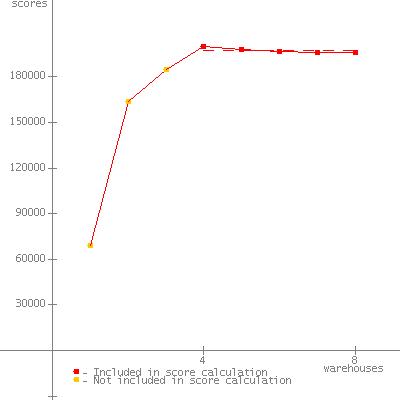

JVM 2 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 68459
2 162295
3 184493
4 201557 *
5 199480 *
6 197594 *
7 197981 *
8 196790 *
SPECjbb2005 (from 4 to 8) 198680 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Mar 22, 2012

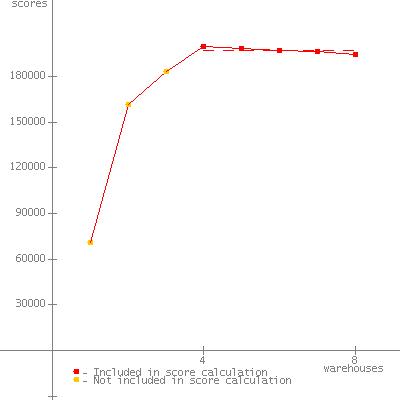

JVM 3 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 70405
2 165428
3 186724
4 201312 *
5 200025 *
6 198741 *
7 197750 *
8 197039 *
SPECjbb2005 (from 4 to 8) 198974 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Mar 22, 2012


JVM 4 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 70898
2 159303
3 186892
4 198724 *
5 197543 *
6 196180 *
7 196163 *
8 195364 *
SPECjbb2005 (from 4 to 8) 196795 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Mar 22, 2012


JVM 5 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 69414
2 160445
3 182986
4 200126 *
5 197334 *
6 197701 *
7 197720 *
8 196230 *
SPECjbb2005 (from 4 to 8) 197822 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Mar 22, 2012


JVM 6 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 68902
2 163411
3 184831
4 200094 *
5 197950 *
6 196654 *
7 195665 *
8 195837 *
SPECjbb2005 (from 4 to 8) 197240 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Mar 22, 2012


JVM 7 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 70741
2 157258
3 186725
4 198684 *
5 198644 *
6 195897 *
7 196634 *
8 194466 *
SPECjbb2005 (from 4 to 8) 196865 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Mar 22, 2012


JVM 8 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 70293
2 159006
3 184894
4 199469 *
5 197810 *
6 195909 *
7 195221 *
8 194535 *
SPECjbb2005 (from 4 to 8) 196589 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Mar 22, 2012

SPECjbb2005 Version: [SPECjbb2005 1.07, March 15, 2006]
Reporting page, Copyright © 2005-2007 SPEC. All rights reserved

First published at SPEC.org on 02-May-2012
