SPECjbb2005 SPECjbb2005 bops = 1452452, SPECjbb2005 bops/JVM = 726226
Hitachi, Ltd. Hitachi Compute Blade 520H server blade (2.7GHz Xeon E5-2680)
Oracle Corporation Oracle Java HotSpot(TM) 64-Bit Server VM on Windows, version 1.6.0_30

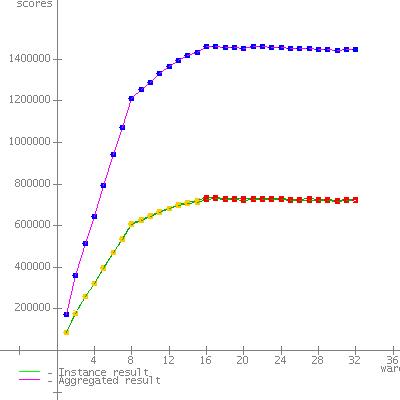

JVM run JVM Scores
1729133
2723319
SPECjbb2005 bops = 1452452, SPECjbb2005 bops/JVM = 726226

Hardware
Hardware Vendor Hitachi, Ltd.
Vendor URL http://www.hitachi.com
Model Hitachi Compute Blade 520H server blade (2.7GHz Xeon E5-2680)
Processor Intel Xeon E5-2680 (Intel Turbo Boost Technology up to 3.50 GHz)
MHz 2700
# of Chips 2
# of Cores 16
# of Cores/Chip 8
HW Threading Enabled? Yes
Procs Avail to Java 32
Memory (MB) 131072
Memory Details 16 x 8 GB 2Rx4 PC3L-12800R-11, ECC
Primary cache 32KB(I) + 32KB(D) on chip per core
Secondary cache 256KB(I+D) on chip per core
Other cache 20 MB(I+D) on chip per chip
Filesystem NTFS
Disks 1 x 146 GB 15000 rpm SAS HDD
Other hardware
Software
Software Vendor Oracle Corporation
Vendor URL http://www.oracle.com
JVM Version Oracle Java HotSpot(TM) 64-Bit Server VM on Windows, version 1.6.0_30
JVM Command Line start /HIGH /AFFINITY [FFFF,FFFF0000] java -server -Xmx29g -Xms29g -Xmn24g -XX:ParallelGCThreads=16 -XX:BiasedLockingStartupDelay=200 -XX:SurvivorRatio=60 -XX:TargetSurvivorRatio=90 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:LoopUnrollLimit=45 -XX:+UseCompressedStrings -XX:+AggressiveOpts -XX:+UseLargePages -XX:+UseParallelOldGC -XX:-UseAdaptiveSizePolicy
JVM Initial Heap Memory (MB) 29696
JVM Maximum Heap Memory (MB) 29696
JVM Address bits 64
JVM CLASSPATH .\jbb.jar;
.\check.jar;
JVM BOOTCLASSPATH C:\Program Files\Java\jre6\lib\alt-string.jar;
C:\Program Files\Java\jre6\lib\alt-rt.jar;
C:\Program Files\Java\jre6\lib\resources.jar;
C:\Program Files\Java\jre6\lib\rt.jar;
C:\Program Files\Java\jre6\lib\sunrsasign.jar;
C:\Program Files\Java\jre6\lib\jsse.jar;
C:\Program Files\Java\jre6\lib\jce.jar;
C:\Program Files\Java\jre6\lib\charsets.jar;
C:\Program Files\Java\jre6\lib\modules\jdk.boot.jar;
C:\Program Files\Java\jre6\classes
OS Version Microsoft Windows Server 2008 R2 Enterprise SP1 (64-bit)
Other software None
Test Information
Tested by Hitachi, Ltd.
SPEC license # 35
Test location Japan
Test date Mar 5, 2012
H/w available Apr-2012
JVM available Dec-2011
OS available Feb-2011
Other s/w available
AOT Compilation
None
Tuning
  • Turned off "Hardware Prefetcher" in BIOS.
  • Turned off "Adjacent Cache Prefetch" in BIOS.
  • Turned off "DCU Streamer Prefetcher" in BIOS.
  • "Operating Mode" set to "Maximum Performance" in BIOS.
  • Each JVM instance had the affinity mask set to bind to 16 cores each, 2 JVMs total
Notes
  • input.expected_peak_warehouse is set to 16
  • Hitachi Compute Blade 520H and BladeSymphony BS520H are electronically equivalent. The result has been measured on a BladeSymphony BS520H.
  • Command line options are described at: http://www.oracle.com/technetwork/java/javase/tech/vmoptions-jsp-140102.html

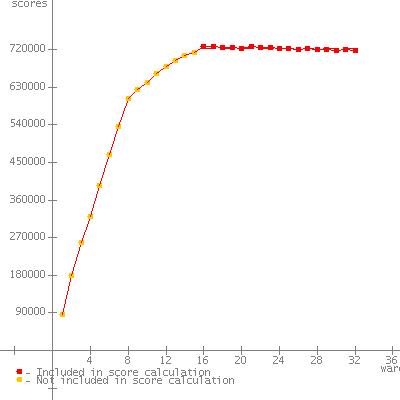

JVM 1 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 87992
2 181278
3 258475
4 322526
5 398249
6 471543
7 538282
8 609362
9 630561
10 646992
11 668761
12 684594
13 699571
14 711173
15 719720
16 733578 *
17 733652 *
18 730937 *
19 731962 *
20 729822 *
21 732941 *
22 732320 *
23 730320 *
24 729810 *
25 727653 *
26 727134 *
27 728669 *
28 726528 *
29 726979 *
30 723124 *
31 725152 *
32 724680 *
SPECjbb2005 (from 16 to 32) 729133 SPECjbb2005 bops
SPEC license # 35 Tested by: Hitachi, Ltd. Test date: Mar 5, 2012

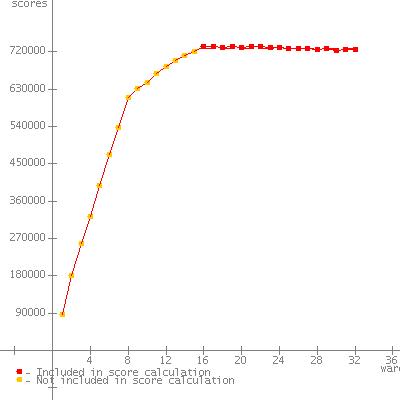

JVM 2 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 86676
2 180088
3 257697
4 320360
5 396052
6 469762
7 535226
8 603454
9 625060
10 641950
11 663123
12 680743
13 694556
14 706918
15 713730
16 727481 *
17 728522 *
18 725025 *
19 725900 *
20 722991 *
21 727401 *
22 726333 *
23 724521 *
24 723593 *
25 722133 *
26 721498 *
27 722961 *
28 720359 *
29 721500 *
30 717133 *
31 719799 *
32 719269 *
SPECjbb2005 (from 16 to 32) 723319 SPECjbb2005 bops
SPEC license # 35 Tested by: Hitachi, Ltd. Test date: Mar 5, 2012

SPECjbb2005 Version: [SPECjbb2005 1.07, March 15, 2006]
Reporting page, Copyright © 2005-2007 SPEC. All rights reserved

First published at SPEC.org on 04-Apr-2012
