SPECjbb2005 SPECjbb2005 bops = 1584567, SPECjbb2005 bops/JVM = 792284
Cisco Systems Cisco UCS C220 M3 (Intel Xeon E5-2690, 2.9GHz)
Oracle Corporation Oracle Java HotSpot(TM) 64-bit Server VM on Windows, version 1.6.0_29

JVM run JVM Scores
1785633
2798934
SPECjbb2005 bops = 1584567, SPECjbb2005 bops/JVM = 792284

Hardware
Hardware Vendor Cisco Systems
Vendor URL http://www.cisco.com
Model Cisco UCS C220 M3 (Intel Xeon E5-2690, 2.9GHz)
Processor Intel Xeon E5-2690 (Intel Turbo Boost Technology upto 3.8GHz)
MHz 2900
# of Chips 2
# of Cores 16
# of Cores/Chip 8
HW Threading Enabled? yes
Procs Avail to Java 32
Memory (MB) 131072
Memory Details 128GB (16 x 8GB PC3-12800R, ECC, running 1600MHz)
Primary cache 32KB I+32KB D on chip per core
Secondary cache 256KB(I+D) on chip per core
Other cache 20MB (I+D) on chip per chip
Filesystem NTFS
Disks 2 X 300GB SAS
Other hardware
Software
Software Vendor Oracle Corporation
Vendor URL http://www.oracle.com
JVM Version Oracle Java HotSpot(TM) 64-bit Server VM on Windows, version 1.6.0_29
JVM Command Line start /high /node [0,1] /affinity FFFF -server -showversion -Xmx29g -Xms29g -Xmn27g -XX:SurvivorRatio=60 -XX:TargetSurvivorRatio=90 -XX:ParallelGCThreads=16 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+AggressiveOpts -XX:+UseLargePages -XX:+UseParallelOldGC -XX:+UseCompressedStrings -XX:-UseAdaptiveSizePolicy
JVM Initial Heap Memory (MB) 29696
JVM Maximum Heap Memory (MB) 29696
JVM Address bits 64
JVM CLASSPATH .\jbb.jar;
.\check.jar;
JVM BOOTCLASSPATH c:\JAVA\jre1.6_29\lib\alt-string.jar;
c:\JAVA\jre1.6_29\lib\alt-rt.jar;
c:\JAVA\jre1.6_29\lib\resources.jar;
c:\JAVA\jre1.6_29\lib\rt.jar;
c:\JAVA\jre1.6_29\lib\sunrsasign.jar;
c:\JAVA\jre1.6_29\lib\jsse.jar;
c:\JAVA\jre1.6_29\lib\jce.jar;
c:\JAVA\jre1.6_29\lib\charsets.jar;
c:\JAVA\jre1.6_29\lib\modules\jdk.boot.jar;
c:\JAVA\jre1.6_29\classes
OS Version Microsoft Windows Server 2008 R2 Enterprise Edition SP1
Other software
Test Information
Tested by Cisco Systems
SPEC license # 9019
Test location San Jose, CA
Test date Jan 15, 2012
H/w available April-2012
JVM available Aug-2011
OS available Feb-2011
Other s/w available N/A
AOT Compilation

Tuning
Operating system tunings
  • "Lock pages in memory" enabled for benchmark user.
  • Hardware Prefetcher disabled in BIOS
  • Adjacent Cache Line Prefetch disabled in BIOS
  • Each JVM instance was affinitized to a chip.
  • Parameter expected_peak_warehouse was set to 16
Notes
Command line options are described at: http://www.oracle.com/technetwork/java/javase/tech/vmoptions-jsp-140102.html

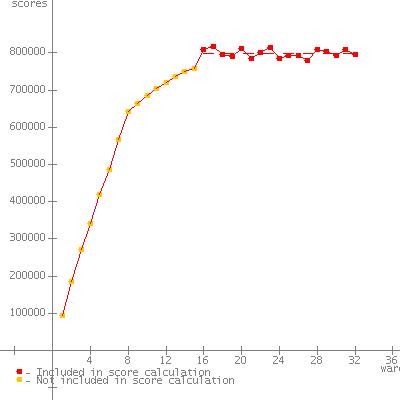

JVM 1 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 93683
2 185851
3 270166
4 339277
5 420012
6 485323
7 565374
8 635526
9 662469
10 683829
11 702023
12 721302
13 734157
14 748098
15 756480
16 790087 *
17 772514 *
18 790006 *
19 789239 *
20 786764 *
21 789537 *
22 786591 *
23 805922 *
24 790643 *
25 786213 *
26 768903 *
27 782901 *
28 779205 *
29 785932 *
30 785783 *
31 769539 *
32 795976 *
SPECjbb2005 (from 16 to 32) 785633 SPECjbb2005 bops
SPEC license # 9019 Tested by: Cisco Systems Test date: Jan 15, 2012


JVM 2 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 94406
2 184834
3 271789
4 340156
5 418308
6 485558
7 566127
8 642134
9 664096
10 684105
11 702903
12 720784
13 735995
14 748467
15 756738
16 808061 *
17 817791 *
18 794712 *
19 790116 *
20 812371 *
21 785096 *
22 800001 *
23 814128 *
24 784710 *
25 793087 *
26 792823 *
27 779768 *
28 808624 *
29 803351 *
30 792691 *
31 810032 *
32 794519 *
SPECjbb2005 (from 16 to 32) 798934 SPECjbb2005 bops
SPEC license # 9019 Tested by: Cisco Systems Test date: Jan 15, 2012

SPECjbb2005 Version: [SPECjbb2005 1.07, March 15, 2006]
Reporting page, Copyright © 2005-2007 SPEC. All rights reserved

First published at SPEC.org on 21-Mar-2012
