SPECjbb2005 SPECjbb2005 bops = 1573304, SPECjbb2005 bops/JVM = 196663
IBM Corporation IBM System x3500 M4
IBM Corporation IBM J9 VM (build 2.6, JRE 1.7.0 Windows Server 2008 R2 amd64-64 20120204_101769 (JIT enabled, AOT enabled)

JVM run JVM Scores
1195620
2196733
3198454
4197790
5195973
6196765
7197101
8194868
SPECjbb2005 bops = 1573304, SPECjbb2005 bops/JVM = 196663

Hardware
Hardware Vendor IBM Corporation
Vendor URL http://www.ibm.com
Model IBM System x3500 M4
Processor Intel Xeon E5-2690 (Intel Turbo Boost Technology up to 3.8 GHz)
MHz 2900
# of Chips 2
# of Cores 16
# of Cores/Chip 8
HW Threading Enabled? Yes
Procs Avail to Java 32
Memory (MB) 65536
Memory Details 16 x 4096MB, 2Rx8 PC3-12800R; slots 1, 2, 4, 5, 8, 9, 11, 12, 13, 14, 16, 17, 20, 21, 23 and 24 populated
Primary cache 32KBI+32KBD
Secondary cache 256 KB (I+D) on chip per core
Other cache 20 MB per processor
Filesystem NTFS
Disks 1 x 1TB 2.5 SATA(IBM P/N: 81Y9732)
Other hardware
Software
Software Vendor IBM Corporation
Vendor URL http://www.ibm.com
JVM Version IBM J9 VM (build 2.6, JRE 1.7.0 Windows Server 2008 R2 amd64-64 20120204_101769 (JIT enabled, AOT enabled)
JVM Command Line -Xaggressive -Xcompressedrefs -Xmn1400m -Xms1875m -Xmx1875m -XlockReservation -Xnoloa -XtlhPrefetch -Xlp -Xconcurrentlevel0
JVM Initial Heap Memory (MB) 1875
JVM Maximum Heap Memory (MB) 1875
JVM Address bits 64
JVM CLASSPATH .\jbb.jar;
.\check.jar;
JVM BOOTCLASSPATH C:\IBM\Java7_0229\jre\bin\compressedrefs\jclSC170\vm.jar;
C:\IBM\Java7_0229\jre\lib\se-service.jar;
C:\IBM\Java7_0229\jre\lib\math.jar;
C:\IBM\Java7_0229\jre\lib\jlm.jar;
C:\IBM\Java7_0229\jre\lib\ibmorb.jar;
C:\IBM\Java7_0229\jre\lib\ibmorbapi.jar;
C:\IBM\Java7_0229\jre\lib\ibmcfw.jar;
C:\IBM\Java7_0229\jre\lib\ibmpkcs.jar;
C:\IBM\Java7_0229\jre\lib\ibmcertpathfw.jar;
C:\IBM\Java7_0229\jre\lib\ibmjgssfw.jar;
C:\IBM\Java7_0229\jre\lib\ibmjssefw.jar;
C:\IBM\Java7_0229\jre\lib\ibmsaslfw.jar;
C:\IBM\Java7_0229\jre\lib\ibmjcefw.jar;
C:\IBM\Java7_0229\jre\lib\ibmjgssprovider.jar;
C:\IBM\Java7_0229\jre\lib\ibmjsseprovider2.jar;
C:\IBM\Java7_0229\jre\lib\ibmcertpathprovider.jar;
C:\IBM\Java7_0229\jre\lib\xmldsigfw.jar;
C:\IBM\Java7_0229\jre\lib\xml.jar;
C:\IBM\Java7_0229\jre\lib\charsets.jar;
C:\IBM\Java7_0229\jre\lib\resources.jar;
C:\IBM\Java7_0229\jre\lib\rt.jar
OS Version Microsoft Windows Server 2008 R2 Enterprise x64 SP1
Other software
Test Information
Tested by IBM Corporation
SPEC license # 11
Test location Taipei, Taiwan
Test date Mar 5, 2012
H/w available Mar-2012
JVM available Jun 2012
OS available Feb-2011
Other s/w available
AOT Compilation

Tuning
  • Affinity masks set to 0xF, 0xF0, 0xF00, 0xF000, 0xF0000, 0xF00000, 0xF000000, 0xF0000000
  • Using the local security settings console, "lock pages in memory" was enabled for the user running the benchmark.
  • BIOS Settings
    • Turbo Mode: Enable
    • All Prefetcher: Disable
    • QPI Link Frequency: Max Performance
    • Memory Power Management: Disable
    • Patrol Scrub: Disable
    • Memory Data Scrambling: Disable
    • Active Energy Management: Capping Disabled
    • Power/Performance Bias: Platform Controlled
    • Platform Controlled Type: Max Performance
Notes
Command line options are described at: http://publib.boulder.ibm.com/infocenter/java7sdk/v7r0/index.jsp

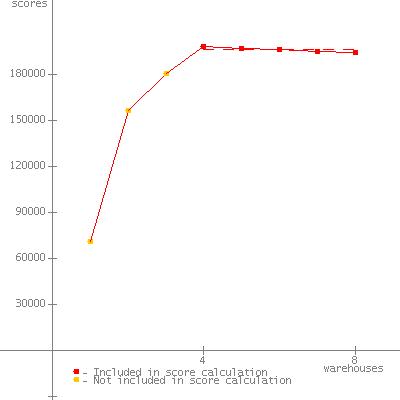

JVM 1 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 67556
2 158999
3 177623
4 197085 *
5 196352 *
6 195747 *
7 195301 *
8 193614 *
SPECjbb2005 (from 4 to 8) 195620 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Mar 5, 2012

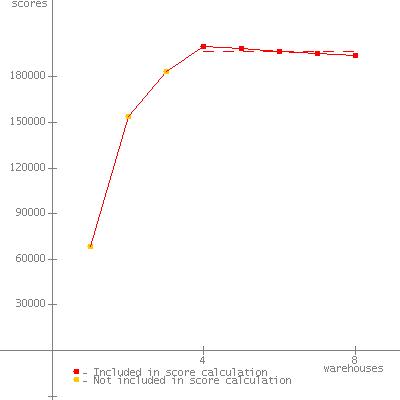

JVM 2 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 70243
2 155299
3 183095
4 199370 *
5 198010 *
6 196699 *
7 195642 *
8 193944 *
SPECjbb2005 (from 4 to 8) 196733 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Mar 5, 2012

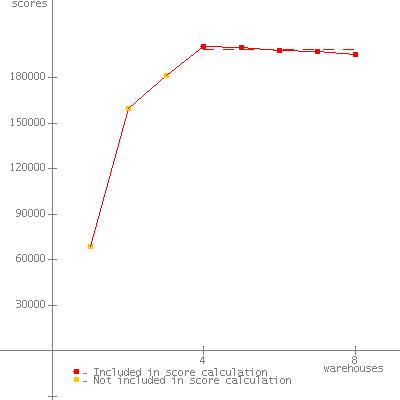

JVM 3 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 68692
2 159833
3 181639
4 200949 *
5 200024 *
6 198375 *
7 197199 *
8 195722 *
SPECjbb2005 (from 4 to 8) 198454 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Mar 5, 2012


JVM 4 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 69222
2 158647
3 181198
4 199188 *
5 199179 *
6 198240 *
7 196660 *
8 195682 *
SPECjbb2005 (from 4 to 8) 197790 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Mar 5, 2012


JVM 5 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 70870
2 156415
3 180828
4 198373 *
5 196697 *
6 196152 *
7 194662 *
8 193982 *
SPECjbb2005 (from 4 to 8) 195973 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Mar 5, 2012


JVM 6 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 68513
2 153638
3 183409
4 200118 *
5 198531 *
6 196439 *
7 195038 *
8 193698 *
SPECjbb2005 (from 4 to 8) 196765 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Mar 5, 2012


JVM 7 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 70720
2 153427
3 182640
4 200568 *
5 199136 *
6 196223 *
7 195336 *
8 194244 *
SPECjbb2005 (from 4 to 8) 197101 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Mar 5, 2012


JVM 8 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 65931
2 156754
3 179920
4 197230 *
5 195303 *
6 195151 *
7 193830 *
8 192828 *
SPECjbb2005 (from 4 to 8) 194868 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Mar 5, 2012

SPECjbb2005 Version: [SPECjbb2005 1.07, March 15, 2006]
Reporting page, Copyright © 2005-2007 SPEC. All rights reserved

First published at SPEC.org on 23-Mar-2012
