SPECjbb

SPECjbb2005		SPECjbb2005 bops = 2431762, SPECjbb2005 bops/JVM = 75993
Dell Inc. PowerEdge M915 (AMD Opteron 6282 SE, 2.60 GHz)
IBM Corporation IBM J9 VM (build 2.4, J2RE 1.6.0 IBM J9 2.4 Windows Server 2008 amd64-64 jvmwa64 60sr5-20090519_35743 (JIT enabled, AOT enabled)

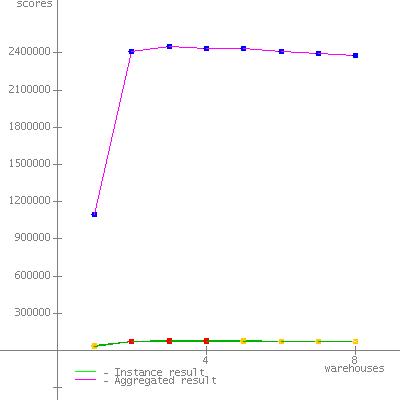

JVM run JVM Scores

1 75890

2 76326

3 75930

4 77127

5 76643

6 76620

7 75218

8 76778

9 76051

10 76820

11 76047

12 75965

13 76554

14 75386

15 75604

16 75958

17 75644

18 75879

19 76436

20 76399

21 75905

22 75120

23 75163

24 74779

25 75874

26 77263

27 74454

28 75900

29 76828

30 75993

31 74701

32 76507

SPECjbb2005 bops = 2431762, SPECjbb2005 bops/JVM = 75993

Hardware

Hardware Vendor Dell Inc.

Vendor URL http://www.dell.com

Model PowerEdge M915 (AMD Opteron 6282 SE, 2.60 GHz)

Processor AMD Opteron 6282 SE (AMD Turbo Core up to 3.3 GHz)

MHz 2600

# of Chips 4

# of Cores 64

# of Cores/Chip 16

HW Threading Enabled? No

Procs Avail to Java 64

Memory (MB) 262144

Memory Details 32 x 8GB 2Rx8 PC3L-10600R-9, ECC

Primary cache 512 KB I + 256 KB D on chip per chip, 64 KB I shared / 2 cores, 16 KB D per core

Secondary cache 16 MB I+D on chip per chip, 2 MB shared / 2 cores

Other cache 16 MB I+D L3 on chip per chip, 8 MB shared / 8 cores

Filesystem NTFS

Disks 1 x 73 GB 15k 6Gb SAS (classes + OS)

Other hardware N/A

Software

Software Vendor IBM Corporation

Vendor URL http://www.IBM.com

JVM Version IBM J9 VM (build 2.4, J2RE 1.6.0 IBM J9 2.4 Windows Server 2008 amd64-64 jvmwa64 60sr5-20090519_35743 (JIT enabled, AOT enabled)

JVM Command Line start /high /affinity [F, F0, F00,F000, F0000, F00000, F000000, F0000000, F00000000, F000000000, F0000000000, F00000000000, F000000000000, F0000000000000, F00000000000000, F000000000000000] -Xmn1400m -Xms1875m -Xmx1875m -Xaggressive -Xcompressedrefs -Xgcpolicy:gencon -XlockReservation -Xnoloa -Xlp

JVM Initial Heap Memory (MB) 1875

JVM Maximum Heap Memory (MB) 1875

JVM Address bits 64

JVM CLASSPATH .\jbb.jar;
.\check.jar;

JVM BOOTCLASSPATH c:\specjbb2005\jvm\jre\bin\compressedrefs\jclSC160\vm.jar;
c:\specjbb2005\jvm\jre\lib\annotation.jar;
c:\specjbb2005\jvm\jre\lib\beans.jar;
c:\specjbb2005\jvm\jre\lib\java.util.jar;
c:\specjbb2005\jvm\jre\lib\jndi.jar;
c:\specjbb2005\jvm\jre\lib\logging.jar;
c:\specjbb2005\jvm\jre\lib\security.jar;
c:\specjbb2005\jvm\jre\lib\sql.jar;
c:\specjbb2005\jvm\jre\lib\ibmorb.jar;
c:\specjbb2005\jvm\jre\lib\ibmorbapi.jar;
c:\specjbb2005\jvm\jre\lib\ibmcfw.jar;
c:\specjbb2005\jvm\jre\lib\rt.jar;
c:\specjbb2005\jvm\jre\lib\charsets.jar;
c:\specjbb2005\jvm\jre\lib\resources.jar;
c:\specjbb2005\jvm\jre\lib\ibmpkcs.jar;
c:\specjbb2005\jvm\jre\lib\ibmcertpathfw.jar;
c:\specjbb2005\jvm\jre\lib\ibmjgssfw.jar;
c:\specjbb2005\jvm\jre\lib\ibmjssefw.jar;
c:\specjbb2005\jvm\jre\lib\ibmsaslfw.jar;
c:\specjbb2005\jvm\jre\lib\ibmjcefw.jar;
c:\specjbb2005\jvm\jre\lib\ibmjgssprovider.jar;
c:\specjbb2005\jvm\jre\lib\ibmjsseprovider2.jar;
c:\specjbb2005\jvm\jre\lib\ibmcertpathprovider.jar;
c:\specjbb2005\jvm\jre\lib\ibmxmlcrypto.jar;
c:\specjbb2005\jvm\jre\lib\management-agent.jar;
c:\specjbb2005\jvm\jre\lib\xml.jar;
c:\specjbb2005\jvm\jre\lib\jlm.jar;
c:\specjbb2005\jvm\jre\lib\javascript.jar

OS Version Microsoft Windows Server 2008 Enterprise x64 Edition R2 SP1

Other software IBM Websphere application server V7.0 for Windows on X86-64bit.

Test Information

Tested by Dell Inc.

SPEC license # 55

Test location Austin, TX

Test date Nov 7, 2011

H/w available Nov-2011

JVM available Jul-2009

OS available Feb-2011

Other s/w available NA

AOT Compilation

None

Tuning

Operating system tunings
'Lock pages in memory' enabled for benchmark user
Each JVM instance was affinitized to 4 cores
BIOS Tunings
'Power Management' set to 'Maximum Performance' in BIOS
Core Boost disabled in BIOS

Notes

"Notes here"

JVM 1 Scores:


Warehouses	SPECjbb2005 bops	Incl. in metric
1	33834
2	75902	*
3	76162	*
4	75605	*
5	75560
6	74913
7	74334
8	74045
SPECjbb2005	(from 2 to 4)	75890 SPECjbb2005 bops

SPEC license # 55

Tested by: Dell Inc.

Test date: Nov 7, 2011

JVM 2 Scores:


Warehouses	SPECjbb2005 bops	Incl. in metric
1	34544
2	76041	*
3	76720	*
4	76217	*
5	75556
6	75170
7	74363
8	74214
SPECjbb2005	(from 2 to 4)	76326 SPECjbb2005 bops

SPEC license # 55

Tested by: Dell Inc.

Test date: Nov 7, 2011

JVM 3 Scores:


Warehouses	SPECjbb2005 bops	Incl. in metric
1	34994
2	75409	*
3	76185	*
4	76195	*
5	76422
6	75185
7	74067
8	74108
SPECjbb2005	(from 2 to 4)	75930 SPECjbb2005 bops

SPEC license # 55

Tested by: Dell Inc.

Test date: Nov 7, 2011

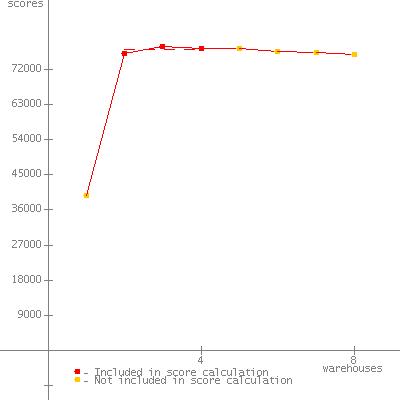

JVM 4 Scores:


Warehouses	SPECjbb2005 bops	Incl. in metric
1	39682
2	76160	*
3	77917	*
4	77305	*
5	77419
6	76441
7	76207
8	75745
SPECjbb2005	(from 2 to 4)	77127 SPECjbb2005 bops

SPEC license # 55

Tested by: Dell Inc.

Test date: Nov 7, 2011

JVM 5 Scores:


Warehouses	SPECjbb2005 bops	Incl. in metric
1	34636
2	75542	*
3	77665	*
4	76721	*
5	76588
6	75940
7	75090
8	74974
SPECjbb2005	(from 2 to 4)	76643 SPECjbb2005 bops

SPEC license # 55

Tested by: Dell Inc.

Test date: Nov 7, 2011

JVM 6 Scores:


Warehouses	SPECjbb2005 bops	Incl. in metric
1	34089
2	75759	*
3	77442	*
4	76658	*
5	77513
6	76156
7	75478
8	74671
SPECjbb2005	(from 2 to 4)	76620 SPECjbb2005 bops

SPEC license # 55

Tested by: Dell Inc.

Test date: Nov 7, 2011

JVM 7 Scores:


Warehouses	SPECjbb2005 bops	Incl. in metric
1	36191
2	74687	*
3	75712	*
4	75254	*
5	75296
6	73946
7	73668
8	73216
SPECjbb2005	(from 2 to 4)	75218 SPECjbb2005 bops

SPEC license # 55

Tested by: Dell Inc.

Test date: Nov 7, 2011

JVM 8 Scores:


Warehouses	SPECjbb2005 bops	Incl. in metric
1	33514
2	75475	*
3	77780	*
4	77080	*
5	77310
6	76094
7	75217
8	74808
SPECjbb2005	(from 2 to 4)	76778 SPECjbb2005 bops

SPEC license # 55

Tested by: Dell Inc.

Test date: Nov 7, 2011

JVM 9 Scores:


Warehouses	SPECjbb2005 bops	Incl. in metric
1	34686
2	74761	*
3	76598	*
4	76793	*
5	76485
6	75647
7	75355
8	74625
SPECjbb2005	(from 2 to 4)	76051 SPECjbb2005 bops

SPEC license # 55

Tested by: Dell Inc.

Test date: Nov 7, 2011

JVM 10 Scores:


Warehouses	SPECjbb2005 bops	Incl. in metric
1	32959
2	75988	*
3	77744	*
4	76727	*
5	76542
6	75795
7	75644
8	74883
SPECjbb2005	(from 2 to 4)	76820 SPECjbb2005 bops

SPEC license # 55

Tested by: Dell Inc.

Test date: Nov 7, 2011

JVM 11 Scores:


Warehouses	SPECjbb2005 bops	Incl. in metric
1	32861
2	74749	*
3	76841	*
4	76553	*
5	75927
6	75480
7	75166
8	74587
SPECjbb2005	(from 2 to 4)	76047 SPECjbb2005 bops

SPEC license # 55

Tested by: Dell Inc.

Test date: Nov 7, 2011

JVM 12 Scores:


Warehouses	SPECjbb2005 bops	Incl. in metric
1	34656
2	74911	*
3	76620	*
4	76363	*
5	75648
6	75233
7	75088
8	74370
SPECjbb2005	(from 2 to 4)	75965 SPECjbb2005 bops

SPEC license # 55

Tested by: Dell Inc.

Test date: Nov 7, 2011

JVM 13 Scores:


Warehouses	SPECjbb2005 bops	Incl. in metric
1	33168
2	75707	*
3	76806	*
4	77149	*
5	77041
6	76071
7	75369
8	75586
SPECjbb2005	(from 2 to 4)	76554 SPECjbb2005 bops

SPEC license # 55

Tested by: Dell Inc.

Test date: Nov 7, 2011

JVM 14 Scores:


Warehouses	SPECjbb2005 bops	Incl. in metric
1	33549
2	75250	*
3	75303	*
4	75604	*
5	74941
6	73991
7	74292
8	73636
SPECjbb2005	(from 2 to 4)	75386 SPECjbb2005 bops

SPEC license # 55

Tested by: Dell Inc.

Test date: Nov 7, 2011

JVM 15 Scores:


Warehouses	SPECjbb2005 bops	Incl. in metric
1	33684
2	74614	*
3	76272	*
4	75927	*
5	75949
6	74926
7	74373
8	74387
SPECjbb2005	(from 2 to 4)	75604 SPECjbb2005 bops

SPEC license # 55

Tested by: Dell Inc.

Test date: Nov 7, 2011

JVM 16 Scores:


Warehouses	SPECjbb2005 bops	Incl. in metric
1	33706
2	74957	*
3	76766	*
4	76150	*
5	76556
6	75333
7	74903
8	74462
SPECjbb2005	(from 2 to 4)	75958 SPECjbb2005 bops

SPEC license # 55

Tested by: Dell Inc.

Test date: Nov 7, 2011

JVM 17 Scores:


Warehouses	SPECjbb2005 bops	Incl. in metric
1	34163
2	75078	*
3	76082	*
4	75773	*
5	75605
6	75824
7	75184
8	73993
SPECjbb2005	(from 2 to 4)	75644 SPECjbb2005 bops

SPEC license # 55

Tested by: Dell Inc.

Test date: Nov 7, 2011

JVM 18 Scores:


Warehouses	SPECjbb2005 bops	Incl. in metric
1	33756
2	75550	*
3	76631	*
4	75455	*
5	75737
6	74625
7	74520
8	73749
SPECjbb2005	(from 2 to 4)	75879 SPECjbb2005 bops

SPEC license # 55

Tested by: Dell Inc.

Test date: Nov 7, 2011

JVM 19 Scores:


Warehouses	SPECjbb2005 bops	Incl. in metric
1	35006
2	76204	*
3	76953	*
4	76151	*
5	76206
6	75430
7	74989
8	74732
SPECjbb2005	(from 2 to 4)	76436 SPECjbb2005 bops

SPEC license # 55

Tested by: Dell Inc.

Test date: Nov 7, 2011

JVM 20 Scores:


Warehouses	SPECjbb2005 bops	Incl. in metric
1	33777
2	74649	*
3	77769	*
4	76780	*
5	78390
6	76319
7	75856
8	75435
SPECjbb2005	(from 2 to 4)	76399 SPECjbb2005 bops

SPEC license # 55

Tested by: Dell Inc.

Test date: Nov 7, 2011

JVM 21 Scores:


Warehouses	SPECjbb2005 bops	Incl. in metric
1	33812
2	76097	*
3	76373	*
4	75244	*
5	75938
6	75051
7	74607
8	74733
SPECjbb2005	(from 2 to 4)	75905 SPECjbb2005 bops

SPEC license # 55

Tested by: Dell Inc.

Test date: Nov 7, 2011

JVM 22 Scores:


Warehouses	SPECjbb2005 bops	Incl. in metric
1	34347
2	74713	*
3	75364	*
4	75284	*
5	76127
6	75729
7	74838
8	74703
SPECjbb2005	(from 2 to 4)	75120 SPECjbb2005 bops

SPEC license # 55

Tested by: Dell Inc.

Test date: Nov 7, 2011

JVM 23 Scores:


Warehouses	SPECjbb2005 bops	Incl. in metric
1	32876
2	75398	*
3	75423	*
4	74667	*
5	75141
6	74150
7	73760
8	73366
SPECjbb2005	(from 2 to 4)	75163 SPECjbb2005 bops

SPEC license # 55

Tested by: Dell Inc.

Test date: Nov 7, 2011

JVM 24 Scores:


Warehouses	SPECjbb2005 bops	Incl. in metric
1	34483
2	74800	*
3	74917	*
4	74620	*
5	74401
6	73431
7	73140
8	72921
SPECjbb2005	(from 2 to 4)	74779 SPECjbb2005 bops

SPEC license # 55

Tested by: Dell Inc.

Test date: Nov 7, 2011

JVM 25 Scores:


Warehouses	SPECjbb2005 bops	Incl. in metric
1	34475
2	75026	*
3	76637	*
4	75958	*
5	75956
6	74740
7	74404
8	74142
SPECjbb2005	(from 2 to 4)	75874 SPECjbb2005 bops

SPEC license # 55

Tested by: Dell Inc.

Test date: Nov 7, 2011

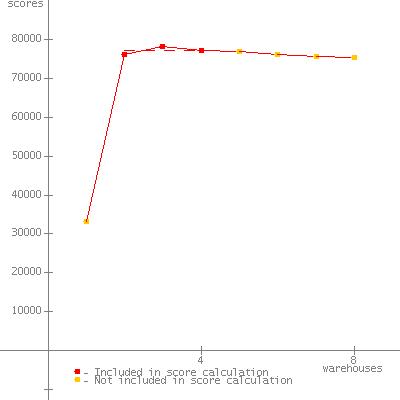

JVM 26 Scores:


Warehouses	SPECjbb2005 bops	Incl. in metric
1	33220
2	76259	*
3	78322	*
4	77208	*
5	77057
6	76206
7	75683
8	75413
SPECjbb2005	(from 2 to 4)	77263 SPECjbb2005 bops

SPEC license # 55

Tested by: Dell Inc.

Test date: Nov 7, 2011

JVM 27 Scores:


Warehouses	SPECjbb2005 bops	Incl. in metric
1	33697
2	74257	*
3	74326	*
4	74778	*
5	74164
6	73309
7	73443
8	72950
SPECjbb2005	(from 2 to 4)	74454 SPECjbb2005 bops

SPEC license # 55

Tested by: Dell Inc.

Test date: Nov 7, 2011

JVM 28 Scores:


Warehouses	SPECjbb2005 bops	Incl. in metric
1	34654
2	75471	*
3	76265	*
4	75963	*
5	75017
6	74348
7	74203
8	74613
SPECjbb2005	(from 2 to 4)	75900 SPECjbb2005 bops

SPEC license # 55

Tested by: Dell Inc.

Test date: Nov 7, 2011

JVM 29 Scores:


Warehouses	SPECjbb2005 bops	Incl. in metric
1	33045
2	75231	*
3	77638	*
4	77615	*
5	76651
6	76498
7	75913
8	75494
SPECjbb2005	(from 2 to 4)	76828 SPECjbb2005 bops

SPEC license # 55

Tested by: Dell Inc.

Test date: Nov 7, 2011

JVM 30 Scores:


Warehouses	SPECjbb2005 bops	Incl. in metric
1	35600
2	75332	*
3	76627	*
4	76020	*
5	76313
6	75303
7	75339
8	74725
SPECjbb2005	(from 2 to 4)	75993 SPECjbb2005 bops

SPEC license # 55

Tested by: Dell Inc.

Test date: Nov 7, 2011

JVM 31 Scores:


Warehouses	SPECjbb2005 bops	Incl. in metric
1	32770
2	73865	*
3	75293	*
4	74945	*
5	74351
6	74049
7	73391
8	72768
SPECjbb2005	(from 2 to 4)	74701 SPECjbb2005 bops

SPEC license # 55

Tested by: Dell Inc.

Test date: Nov 7, 2011

JVM 32 Scores:


Warehouses	SPECjbb2005 bops	Incl. in metric
1	33138
2	75648	*
3	77224	*
4	76649	*
5	76360
6	75702
7	75156
8	75080
SPECjbb2005	(from 2 to 4)	76507 SPECjbb2005 bops

SPEC license # 55

Tested by: Dell Inc.

Test date: Nov 7, 2011
