SPECjbb

SPECjbb2005		SPECjbb2005 bops = 5042563, SPECjbb2005 bops/JVM = 630320
Hitachi, Ltd. Hitachi Compute Blade 2000 GVAX57A2 4blade SMP(2.4GHz Xeon E7-8870)
Oracle Corporation Oracle Java HotSpot(TM) 64-Bit Server VM on Windows, version 1.6.0_25

JVM run JVM Scores

1 628429

2 628060

3 631016

4 629291

5 635746

6 627783

7 631171

8 631067

SPECjbb2005 bops = 5042563, SPECjbb2005 bops/JVM = 630320

Hardware

Hardware Vendor Hitachi, Ltd.

Vendor URL http://www.hitachi.com

Model Hitachi Compute Blade 2000 GVAX57A2 4blade SMP(2.4GHz Xeon E7-8870)

Processor Intel Xeon E7-8870 (Intel Turbo Boost Technology up to 2.80 GHz)

MHz 2400

# of Chips 8

# of Cores 80

# of Cores/Chip 10

HW Threading Enabled? Yes

Procs Avail to Java 160

Memory (MB) 524288

Memory Details 128 x 4 GB 2Rx4 PC3-10600R-9, ECC, running at 1066 MHz

Primary cache 32KB(I) + 32KB(D) on chip per core

Secondary cache 256KB(I+D) on chip per core

Other cache 30 MB(I+D) on chip per chip

Filesystem NTFS

Disks 2 x 146 GB 10000 rpm Fibre Channel RAID1 configuration

Other hardware Hitachi Compute Blade 2000 Chassis, Hitachi 8Gb 2-port FC adapter, AMS500 (Disk Array system)

Software

Software Vendor Oracle Corporation

Vendor URL http://www.oracle.com

JVM Version Oracle Java HotSpot(TM) 64-Bit Server VM on Windows, version 1.6.0_25

JVM Command Line start /HIGH /NODE 0-7 /AFFINITY [0xFFFFF] /B java -Xmx25g -Xms25g -Xmn23g -XX:SurvivorRatio=60 -XX:TargetSurvivorRatio=90 -XX:ParallelGCThreads=20 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+AggressiveOpts -XX:+UseLargePages -XX:+UseParallelOldGC -XX:+UseCompressedStrings -XX:-UseAdaptiveSizePolicy

JVM Initial Heap Memory (MB) 25600

JVM Maximum Heap Memory (MB) 25600

JVM Address bits 64

JVM CLASSPATH .\jbb.jar;
.\check.jar;

JVM BOOTCLASSPATH C:\Program Files\Java\jdk1.6.0_25\jre\lib\alt-string.jar;
C:\Program Files\Java\jdk1.6.0_25\jre\lib\alt-rt.jar;
C:\Program Files\Java\jdk1.6.0_25\jre\lib\resources.jar;
C:\Program Files\Java\jdk1.6.0_25\jre\lib\rt.jar;
C:\Program Files\Java\jdk1.6.0_25\jre\lib\sunrsasign.jar;
C:\Program Files\Java\jdk1.6.0_25\jre\lib\jsse.jar;
C:\Program Files\Java\jdk1.6.0_25\jre\lib\jce.jar;
C:\Program Files\Java\jdk1.6.0_25\jre\lib\charsets.jar;
C:\Program Files\Java\jdk1.6.0_25\jre\lib\modules\jdk.boot.jar;
C:\Program Files\Java\jdk1.6.0_25\jre\classes

OS Version Microsoft Windows Server 2008 R2 Enterprise SP1 (64-bit)

Other software

Test Information

Tested by Hitachi, Ltd.

SPEC license # 35

Test location JAPAN

Test date Aug 25, 2011

H/w available Oct-2011

JVM available Apr-2011

OS available Jan-2009

Other s/w available

AOT Compilation

N/A

Tuning

Turned off "Hardware Prefetch" in BIOS.
Turned off "Adjacent Cache Line Prefetch" in BIOS.
Each JVM instance was affinitized to a socket.
Using the local security settings console, "lock pages in memory" was enabled for the user running the benchmark.

Notes

input.expected_peak_warehouse is set to 20, because Runtime.getRuntime.availableProcessors() doesn't return number of processors in the system but returns number of processors in the group which the process belongs to on Windows 2008 R2.
Hitachi Compute Blade 2000 and HITACHI BladeSymphony BS2000 are electronically equivalent. The result have been measured on a HITACHI BladeSymphony BS2000.
Command line options are described at: http://www.oracle.com/technetwork/java/javase/tech/vmoptions-jsp-140102.html

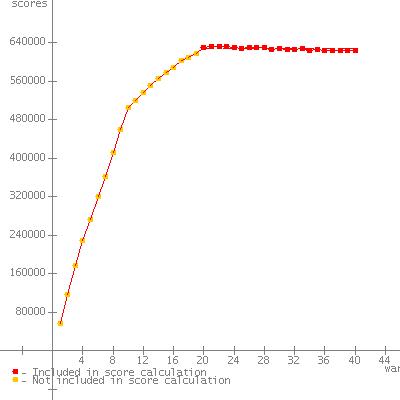

JVM 1 Scores:


Warehouses	SPECjbb2005 bops	Incl. in metric
1	56513
2	116081
3	176313
4	228851
5	272599
6	320684
7	359425
8	410895
9	459480
10	504267
11	519034
12	534812
13	549000
14	562591
15	576528
16	589653
17	600972
18	611164
19	619123
20	631235	*
21	632927	*
22	633349	*
23	631433	*
24	632430	*
25	631111	*
26	630335	*
27	629372	*
28	629382	*
29	626516	*
30	626959	*
31	627923	*
32	627207	*
33	628053	*
34	625404	*
35	626548	*
36	626097	*
37	625926	*
38	626435	*
39	624820	*
40	623537	*
SPECjbb2005	(from 20 to 40)	628429 SPECjbb2005 bops

SPEC license # 35

Tested by: Hitachi, Ltd.

Test date: Aug 25, 2011

JVM 2 Scores:


Warehouses	SPECjbb2005 bops	Incl. in metric
1	56364
2	116216
3	177969
4	229626
5	273531
6	321595
7	361203
8	412671
9	459954
10	506043
11	520956
12	536503
13	550486
14	565202
15	577780
16	589729
17	602639
18	610636
19	617875
20	630915	*
21	631755	*
22	633299	*
23	631581	*
24	631211	*
25	628750	*
26	630768	*
27	629919	*
28	629525	*
29	627005	*
30	628189	*
31	627353	*
32	627296	*
33	628290	*
34	625204	*
35	626395	*
36	624273	*
37	624893	*
38	625000	*
39	624389	*
40	623257	*
SPECjbb2005	(from 20 to 40)	628060 SPECjbb2005 bops

SPEC license # 35

Tested by: Hitachi, Ltd.

Test date: Aug 25, 2011

JVM 3 Scores:


Warehouses	SPECjbb2005 bops	Incl. in metric
1	56770
2	117533
3	177709
4	232167
5	276502
6	325168
7	365598
8	415869
9	463196
10	510347
11	526728
12	539798
13	554825
14	569633
15	580687
16	593516
17	605173
18	614466
19	622272
20	633594	*
21	635382	*
22	636447	*
23	634149	*
24	634825	*
25	633004	*
26	634266	*
27	632907	*
28	632156	*
29	629246	*
30	629889	*
31	630139	*
32	629690	*
33	630147	*
34	627350	*
35	628491	*
36	629187	*
37	627916	*
38	627418	*
39	628266	*
40	626860	*
SPECjbb2005	(from 20 to 40)	631016 SPECjbb2005 bops

SPEC license # 35

Tested by: Hitachi, Ltd.

Test date: Aug 25, 2011

JVM 4 Scores:


Warehouses	SPECjbb2005 bops	Incl. in metric
1	56460
2	115743
3	177218
4	230192
5	274317
6	321939
7	364192
8	403592
9	462429
10	508000
11	523083
12	538308
13	553094
14	566542
15	579025
16	591498
17	603958
18	613417
19	620752
20	633210	*
21	632730	*
22	633227	*
23	631959	*
24	633386	*
25	631877	*
26	633088	*
27	629574	*
28	630594	*
29	627686	*
30	627790	*
31	628113	*
32	627603	*
33	629267	*
34	626445	*
35	627220	*
36	627149	*
37	626528	*
38	626924	*
39	626032	*
40	624718	*
SPECjbb2005	(from 20 to 40)	629291 SPECjbb2005 bops

SPEC license # 35

Tested by: Hitachi, Ltd.

Test date: Aug 25, 2011

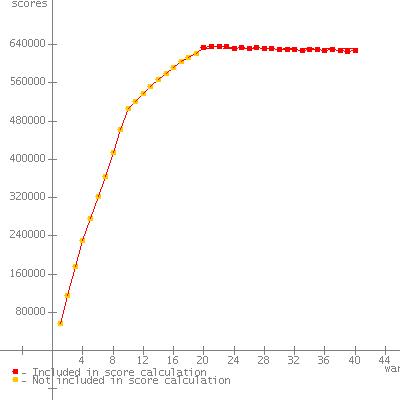

JVM 5 Scores:


Warehouses	SPECjbb2005 bops	Incl. in metric
1	56933
2	117088
3	177483
4	231897
5	277003
6	325095
7	365462
8	416539
9	465008
10	511856
11	528817
12	544263
13	558884
14	573006
15	584300
16	597029
17	608983
18	618999
19	626007
20	638036	*
21	641956	*
22	640961	*
23	640464	*
24	637090	*
25	638246	*
26	638446	*
27	637486	*
28	635794	*
29	635726	*
30	635084	*
31	633916	*
32	635064	*
33	632247	*
34	633380	*
35	633886	*
36	632822	*
37	633109	*
38	632592	*
39	631801	*
40	632551	*
SPECjbb2005	(from 20 to 40)	635746 SPECjbb2005 bops

SPEC license # 35

Tested by: Hitachi, Ltd.

Test date: Aug 25, 2011

JVM 6 Scores:


Warehouses	SPECjbb2005 bops	Incl. in metric
1	55508
2	115385
3	176109
4	227794
5	271774
6	319344
7	359120
8	410625
9	454469
10	503037
11	519118
12	535743
13	551068
14	563218
15	577426
16	590299
17	601076
18	610900
19	618681
20	629774	*
21	631311	*
22	633398	*
23	632188	*
24	628865	*
25	630642	*
26	630388	*
27	629629	*
28	628358	*
29	628865	*
30	626902	*
31	627426	*
32	627233	*
33	624986	*
34	625831	*
35	625200	*
36	624052	*
37	625260	*
38	624403	*
39	623926	*
40	624803	*
SPECjbb2005	(from 20 to 40)	627783 SPECjbb2005 bops

SPEC license # 35

Tested by: Hitachi, Ltd.

Test date: Aug 25, 2011

JVM 7 Scores:


Warehouses	SPECjbb2005 bops	Incl. in metric
1	56140
2	115350
3	176510
4	229803
5	275420
6	322631
7	363935
8	413725
9	462527
10	507194
11	522027
12	538448
13	553544
14	566678
15	579724
16	592088
17	604107
18	612868
19	621115
20	634559	*
21	636889	*
22	636270	*
23	635772	*
24	632595	*
25	633280	*
26	632950	*
27	633137	*
28	631882	*
29	631073	*
30	630846	*
31	629443	*
32	629834	*
33	627980	*
34	629415	*
35	630300	*
36	627805	*
37	628998	*
38	626993	*
39	626737	*
40	627831	*
SPECjbb2005	(from 20 to 40)	631171 SPECjbb2005 bops

SPEC license # 35

Tested by: Hitachi, Ltd.

Test date: Aug 25, 2011

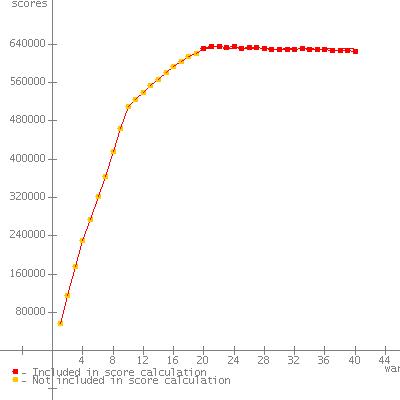

JVM 8 Scores:


Warehouses	SPECjbb2005 bops	Incl. in metric
1	56319
2	115840
3	176485
4	229284
5	273249
6	322328
7	364457
8	416121
9	464546
10	509462
11	524732
12	539832
13	553482
14	567537
15	581486
16	594322
17	605027
18	615331
19	621279
20	632449	*
21	635059	*
22	636433	*
23	633809	*
24	634765	*
25	632405	*
26	633464	*
27	633056	*
28	632077	*
29	630331	*
30	629399	*
31	630153	*
32	629848	*
33	630667	*
34	629127	*
35	628737	*
36	629419	*
37	628214	*
38	628396	*
39	628296	*
40	626297	*
SPECjbb2005	(from 20 to 40)	631067 SPECjbb2005 bops

SPEC license # 35

Tested by: Hitachi, Ltd.

Test date: Aug 25, 2011
