SPECjbb2005 SPECjbb2005 bops = 5042563, SPECjbb2005 bops/JVM = 630320
Hitachi, Ltd. HITACHI BladeSymphony BS2000 GVAE57A2 4blade SMP(2.4GHz Xeon E7-8870)
Oracle Corporation Oracle Java HotSpot(TM) 64-Bit Server VM on Windows, version 1.6.0_25

JVM run JVM Scores
1631171
2631067
3628060
4628429
5627783
6629291
7635746
8631016
SPECjbb2005 bops = 5042563, SPECjbb2005 bops/JVM = 630320

Hardware
Hardware Vendor Hitachi, Ltd.
Vendor URL http://www.hitachi.com
Model HITACHI BladeSymphony BS2000 GVAE57A2 4blade SMP(2.4GHz Xeon E7-8870)
Processor Intel Xeon E7-8870 (Intel Turbo Boost Technology up to 2.80 GHz)
MHz 2400
# of Chips 8
# of Cores 80
# of Cores/Chip 10
HW Threading Enabled? Yes
Procs Avail to Java 160
Memory (MB) 524288
Memory Details 128 x 4 GB 2Rx4 PC3-10600R-9, ECC, running at 1066 MHz
Primary cache 32KB(I) + 32KB(D) on chip per core
Secondary cache 256KB(I+D) on chip per core
Other cache 30 MB(I+D) on chip per chip
Filesystem NTFS
Disks 2 x 146 GB 10000 rpm Fibre Channel RAID1 configuration
Other hardware HITACHI BladeSymphony BS2000 Chassis, Hitachi 8Gb 2-port FC adapter, AMS500 (Disk Array system)
Software
Software Vendor Oracle Corporation
Vendor URL http://www.oracle.com
JVM Version Oracle Java HotSpot(TM) 64-Bit Server VM on Windows, version 1.6.0_25
JVM Command Line start /HIGH /NODE 0-7 /AFFINITY [0xFFFFF] /B java -Xmx25g -Xms25g -Xmn23g -XX:SurvivorRatio=60 -XX:TargetSurvivorRatio=90 -XX:ParallelGCThreads=20 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+AggressiveOpts -XX:+UseLargePages -XX:+UseParallelOldGC -XX:+UseCompressedStrings -XX:-UseAdaptiveSizePolicy
JVM Initial Heap Memory (MB) 25600
JVM Maximum Heap Memory (MB) 25600
JVM Address bits 64
JVM CLASSPATH .\jbb.jar;
.\check.jar;
JVM BOOTCLASSPATH C:\Program Files\Java\jdk1.6.0_25\jre\lib\alt-string.jar;
C:\Program Files\Java\jdk1.6.0_25\jre\lib\alt-rt.jar;
C:\Program Files\Java\jdk1.6.0_25\jre\lib\resources.jar;
C:\Program Files\Java\jdk1.6.0_25\jre\lib\rt.jar;
C:\Program Files\Java\jdk1.6.0_25\jre\lib\sunrsasign.jar;
C:\Program Files\Java\jdk1.6.0_25\jre\lib\jsse.jar;
C:\Program Files\Java\jdk1.6.0_25\jre\lib\jce.jar;
C:\Program Files\Java\jdk1.6.0_25\jre\lib\charsets.jar;
C:\Program Files\Java\jdk1.6.0_25\jre\lib\modules\jdk.boot.jar;
C:\Program Files\Java\jdk1.6.0_25\jre\classes
OS Version Microsoft Windows Server 2008 R2 Enterprise SP1 (64-bit)
Other software
Test Information
Tested by Hitachi, Ltd.
SPEC license # 35
Test location JAPAN
Test date Aug 25, 2011
H/w available Jun-2011
JVM available Apr-2011
OS available Jan-2009
Other s/w available
AOT Compilation
N/A
Tuning
  • Turned off "Hardware Prefetch" in BIOS.
  • Turned off "Adjacent Cache Line Prefetch" in BIOS.
  • Each JVM instance was affinitized to a socket.
  • Using the local security settings console, "lock pages in memory" was enabled for the user running the benchmark.
Notes
  • input.expected_peak_warehouse is set to 20, because Runtime.getRuntime.availableProcessors() doesn't return number of processors in the system but returns number of processors in the group which the process belongs to on Windows 2008 R2.
  • Hitachi Compute Blade 2000 and HITACHI BladeSymphony BS2000 are electronically equivalent. The result have been measured on a HITACHI BladeSymphony BS2000.
  • Command line options are described at: http://www.oracle.com/technetwork/java/javase/tech/vmoptions-jsp-140102.html

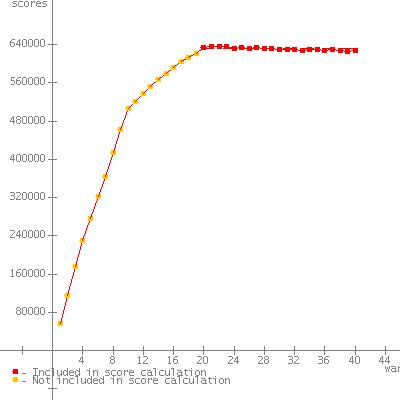

JVM 1 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 56140
2 115350
3 176510
4 229803
5 275420
6 322631
7 363935
8 413725
9 462527
10 507194
11 522027
12 538448
13 553544
14 566678
15 579724
16 592088
17 604107
18 612868
19 621115
20 634559 *
21 636889 *
22 636270 *
23 635772 *
24 632595 *
25 633280 *
26 632950 *
27 633137 *
28 631882 *
29 631073 *
30 630846 *
31 629443 *
32 629834 *
33 627980 *
34 629415 *
35 630300 *
36 627805 *
37 628998 *
38 626993 *
39 626737 *
40 627831 *
SPECjbb2005 (from 20 to 40) 631171 SPECjbb2005 bops
SPEC license # 35 Tested by: Hitachi, Ltd. Test date: Aug 25, 2011


JVM 2 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 56319
2 115840
3 176485
4 229284
5 273249
6 322328
7 364457
8 416121
9 464546
10 509462
11 524732
12 539832
13 553482
14 567537
15 581486
16 594322
17 605027
18 615331
19 621279
20 632449 *
21 635059 *
22 636433 *
23 633809 *
24 634765 *
25 632405 *
26 633464 *
27 633056 *
28 632077 *
29 630331 *
30 629399 *
31 630153 *
32 629848 *
33 630667 *
34 629127 *
35 628737 *
36 629419 *
37 628214 *
38 628396 *
39 628296 *
40 626297 *
SPECjbb2005 (from 20 to 40) 631067 SPECjbb2005 bops
SPEC license # 35 Tested by: Hitachi, Ltd. Test date: Aug 25, 2011


JVM 3 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 56364
2 116216
3 177969
4 229626
5 273531
6 321595
7 361203
8 412671
9 459954
10 506043
11 520956
12 536503
13 550486
14 565202
15 577780
16 589729
17 602639
18 610636
19 617875
20 630915 *
21 631755 *
22 633299 *
23 631581 *
24 631211 *
25 628750 *
26 630768 *
27 629919 *
28 629525 *
29 627005 *
30 628189 *
31 627353 *
32 627296 *
33 628290 *
34 625204 *
35 626395 *
36 624273 *
37 624893 *
38 625000 *
39 624389 *
40 623257 *
SPECjbb2005 (from 20 to 40) 628060 SPECjbb2005 bops
SPEC license # 35 Tested by: Hitachi, Ltd. Test date: Aug 25, 2011


JVM 4 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 56513
2 116081
3 176313
4 228851
5 272599
6 320684
7 359425
8 410895
9 459480
10 504267
11 519034
12 534812
13 549000
14 562591
15 576528
16 589653
17 600972
18 611164
19 619123
20 631235 *
21 632927 *
22 633349 *
23 631433 *
24 632430 *
25 631111 *
26 630335 *
27 629372 *
28 629382 *
29 626516 *
30 626959 *
31 627923 *
32 627207 *
33 628053 *
34 625404 *
35 626548 *
36 626097 *
37 625926 *
38 626435 *
39 624820 *
40 623537 *
SPECjbb2005 (from 20 to 40) 628429 SPECjbb2005 bops
SPEC license # 35 Tested by: Hitachi, Ltd. Test date: Aug 25, 2011


JVM 5 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 55508
2 115385
3 176109
4 227794
5 271774
6 319344
7 359120
8 410625
9 454469
10 503037
11 519118
12 535743
13 551068
14 563218
15 577426
16 590299
17 601076
18 610900
19 618681
20 629774 *
21 631311 *
22 633398 *
23 632188 *
24 628865 *
25 630642 *
26 630388 *
27 629629 *
28 628358 *
29 628865 *
30 626902 *
31 627426 *
32 627233 *
33 624986 *
34 625831 *
35 625200 *
36 624052 *
37 625260 *
38 624403 *
39 623926 *
40 624803 *
SPECjbb2005 (from 20 to 40) 627783 SPECjbb2005 bops
SPEC license # 35 Tested by: Hitachi, Ltd. Test date: Aug 25, 2011


JVM 6 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 56460
2 115743
3 177218
4 230192
5 274317
6 321939
7 364192
8 403592
9 462429
10 508000
11 523083
12 538308
13 553094
14 566542
15 579025
16 591498
17 603958
18 613417
19 620752
20 633210 *
21 632730 *
22 633227 *
23 631959 *
24 633386 *
25 631877 *
26 633088 *
27 629574 *
28 630594 *
29 627686 *
30 627790 *
31 628113 *
32 627603 *
33 629267 *
34 626445 *
35 627220 *
36 627149 *
37 626528 *
38 626924 *
39 626032 *
40 624718 *
SPECjbb2005 (from 20 to 40) 629291 SPECjbb2005 bops
SPEC license # 35 Tested by: Hitachi, Ltd. Test date: Aug 25, 2011


JVM 7 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 56933
2 117088
3 177483
4 231897
5 277003
6 325095
7 365462
8 416539
9 465008
10 511856
11 528817
12 544263
13 558884
14 573006
15 584300
16 597029
17 608983
18 618999
19 626007
20 638036 *
21 641956 *
22 640961 *
23 640464 *
24 637090 *
25 638246 *
26 638446 *
27 637486 *
28 635794 *
29 635726 *
30 635084 *
31 633916 *
32 635064 *
33 632247 *
34 633380 *
35 633886 *
36 632822 *
37 633109 *
38 632592 *
39 631801 *
40 632551 *
SPECjbb2005 (from 20 to 40) 635746 SPECjbb2005 bops
SPEC license # 35 Tested by: Hitachi, Ltd. Test date: Aug 25, 2011


JVM 8 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 56770
2 117533
3 177709
4 232167
5 276502
6 325168
7 365598
8 415869
9 463196
10 510347
11 526728
12 539798
13 554825
14 569633
15 580687
16 593516
17 605173
18 614466
19 622272
20 633594 *
21 635382 *
22 636447 *
23 634149 *
24 634825 *
25 633004 *
26 634266 *
27 632907 *
28 632156 *
29 629246 *
30 629889 *
31 630139 *
32 629690 *
33 630147 *
34 627350 *
35 628491 *
36 629187 *
37 627916 *
38 627418 *
39 628266 *
40 626860 *
SPECjbb2005 (from 20 to 40) 631016 SPECjbb2005 bops
SPEC license # 35 Tested by: Hitachi, Ltd. Test date: Aug 25, 2011

SPECjbb2005 Version: [SPECjbb2005 1.07, March 15, 2006]
Reporting page, Copyright © 2005-2007 SPEC. All rights reserved

First published at SPEC.org on 19-Oct-2011
