SPECjbb2005 SPECjbb2005 bops = 2798763, SPECjbb2005 bops/JVM = 699691
Cisco Systems Cisco UCS B440 M2 (Intel Xeon E7-4870, 2.40GHz)
Oracle Corporation Oracle Corporation Oracle Java HotSpot(TM) 64-bit Server VM on Windows, version 1.6.0_27

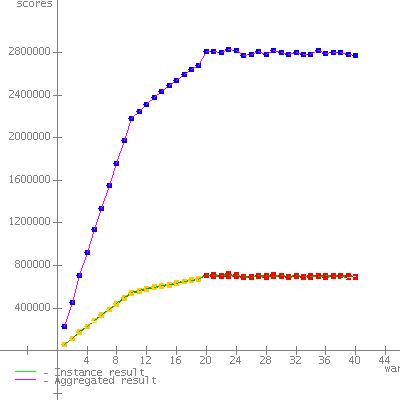

JVM run JVM Scores
1699852
2698313
3700594
4700004
SPECjbb2005 bops = 2798763, SPECjbb2005 bops/JVM = 699691

Hardware
Hardware Vendor Cisco Systems
Vendor URL http://www.cisco.com
Model Cisco UCS B440 M2 (Intel Xeon E7-4870, 2.40GHz)
Processor Intel Xeon E7-4870 (Intel Turbo Boost Technology up to 2.80GHz)
MHz 2400
# of Chips 4
# of Cores 40
# of Cores/Chip 10
HW Threading Enabled? yes
Procs Avail to Java 80
Memory (MB) 524288
Memory Details 512GB (32 x 16GB 4Rx4 PC3L-8500R, ECC, running 1066MHz)
Primary cache 32KB I+32KB D on chip per core
Secondary cache 256KB(I+D) on chip per core
Other cache 30MB (I+D) on chip per chip
Filesystem NTFS
Disks 1 x 100GB SATA SSD
Other hardware Cisco UCS 6120XP 20 Port Fabric Interconnect, Cisco UCS 5100 Series Blade Server Chassis, Cisco UCS 2104XP Fabric Extender
Software
Software Vendor Oracle Corporation
Vendor URL http://www.oracle.com
JVM Version Oracle Corporation Oracle Java HotSpot(TM) 64-bit Server VM on Windows, version 1.6.0_27
JVM Command Line start /high /node [0,1,2,3] /affinity FFFFF -server -showversion -Xmx29g -Xms29g -Xmn27g -XX:SurvivorRatio=60 -XX:TargetSurvivorRatio=90 -XX:ParallelGCThreads=20 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+AggressiveOpts -XX:+UseLargePages -XX:+UseParallelOldGC -XX:+UseCompressedStrings -XX:-UseAdaptiveSizePolicy
JVM Initial Heap Memory (MB) 29696
JVM Maximum Heap Memory (MB) 29696
JVM Address bits 64
JVM CLASSPATH .\jbb.jar;
.\check.jar;
JVM BOOTCLASSPATH c:\JAVA\Sun-6u27\lib\alt-string.jar;
c:\JAVA\Sun-6u27\lib\alt-rt.jar;
c:\JAVA\Sun-6u27\lib\resources.jar;
c:\JAVA\Sun-6u27\lib\rt.jar;
c:\JAVA\Sun-6u27\lib\sunrsasign.jar;
c:\JAVA\Sun-6u27\lib\jsse.jar;
c:\JAVA\Sun-6u27\lib\jce.jar;
c:\JAVA\Sun-6u27\lib\charsets.jar;
c:\JAVA\Sun-6u27\lib\modules\jdk.boot.jar;
c:\JAVA\Sun-6u27\classes
OS Version Microsoft Windows Server 2008 R2 Enterprise Edition SP1
Other software
Test Information
Tested by Cisco Systems
SPEC license # 9019
Test location San Jose, CA
Test date Sep 25, 2011
H/w available Aug-2011
JVM available Aug-2011
OS available Feb-2011
Other s/w available N/A
AOT Compilation

Tuning
Operating system tunings
  • "Lock pages in memory" enabled for benchmark user.
  • Hardware Prefetcher disabled in BIOS
  • Adjacent Cache Line Prefetch disabled in BIOS
  • Each JVM instance was affinitized to a chip.
  • Parameter expected_peak_warehouse was set to 20
Notes
Command line options are described at: http://www.oracle.com/technetwork/java/javase/tech/vmoptions-jsp-140102.html

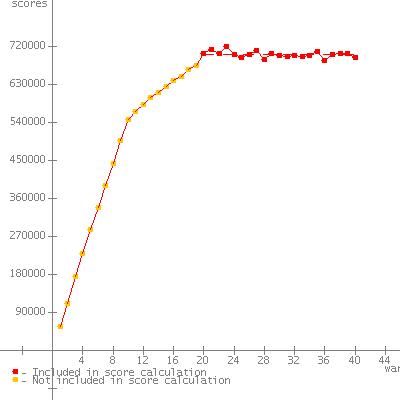

JVM 1 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 56482
2 112765
3 176118
4 231095
5 285248
6 336560
7 388965
8 439864
9 493184
10 545692
11 561153
12 579714
13 594732
14 609142
15 622625
16 635590
17 650298
18 661352
19 669299
20 702867 *
21 697618 *
22 699892 *
23 700439 *
24 715354 *
25 689211 *
26 694511 *
27 698609 *
28 704511 *
29 700220 *
30 697579 *
31 693938 *
32 704617 *
33 688840 *
34 703662 *
35 708813 *
36 700568 *
37 701957 *
38 701438 *
39 699630 *
40 692614 *
SPECjbb2005 (from 20 to 40) 699852 SPECjbb2005 bops
SPEC license # 9019 Tested by: Cisco Systems Test date: Sep 25, 2011


JVM 2 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 55767
2 111910
3 174227
4 229113
5 282587
6 330651
7 385009
8 436589
9 489627
10 539275
11 557069
12 573970
13 590252
14 606042
15 616677
16 629815
17 645043
18 657234
19 667793
20 702403 *
21 696882 *
22 698242 *
23 701552 *
24 699754 *
25 699031 *
26 697360 *
27 699644 *
28 689913 *
29 716537 *
30 699860 *
31 690534 *
32 699325 *
33 699467 *
34 683115 *
35 710644 *
36 700028 *
37 695315 *
38 695805 *
39 697316 *
40 691838 *
SPECjbb2005 (from 20 to 40) 698313 SPECjbb2005 bops
SPEC license # 9019 Tested by: Cisco Systems Test date: Sep 25, 2011

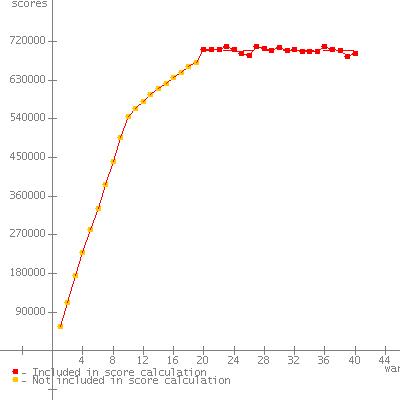

JVM 3 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 56216
2 112471
3 176467
4 230474
5 285870
6 337818
7 389919
8 441858
9 496059
10 547005
11 565374
12 581548
13 597983
14 611543
15 624703
16 639289
17 649699
18 664477
19 675622
20 702599 *
21 712868 *
22 703102 *
23 720383 *
24 699723 *
25 692765 *
26 700957 *
27 709722 *
28 687951 *
29 702243 *
30 698832 *
31 695255 *
32 697435 *
33 696317 *
34 698474 *
35 707250 *
36 687070 *
37 700082 *
38 703009 *
39 702565 *
40 693868 *
SPECjbb2005 (from 20 to 40) 700594 SPECjbb2005 bops
SPEC license # 9019 Tested by: Cisco Systems Test date: Sep 25, 2011


JVM 4 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 55937
2 112154
3 175364
4 229682
5 281879
6 331160
7 387054
8 441282
9 495656
10 546747
11 565096
12 581166
13 596831
14 611288
15 623697
16 635558
17 648685
18 662363
19 671557
20 701630 *
21 702132 *
22 702526 *
23 708345 *
24 703055 *
25 692673 *
26 687626 *
27 708413 *
28 705211 *
29 698956 *
30 705452 *
31 700621 *
32 702620 *
33 696286 *
34 697375 *
35 697382 *
36 709682 *
37 701163 *
38 700336 *
39 686469 *
40 692131 *
SPECjbb2005 (from 20 to 40) 700004 SPECjbb2005 bops
SPEC license # 9019 Tested by: Cisco Systems Test date: Sep 25, 2011

SPECjbb2005 Version: [SPECjbb2005 1.07, March 15, 2006]
Reporting page, Copyright © 2005-2007 SPEC. All rights reserved

First published at SPEC.org on 20-Oct-2011
