SPECjbb2005 SPECjbb2005 bops = 388812, SPECjbb2005 bops/JVM = 194406
IBM Corporation IBM System x3250 M4
IBM Corporation IBM J9 VM (build 2.4, J2RE 1.6.0 IBM J9 2.4 Windows Server 2008 amd64-64 jvmwa6460sr5-20090519_35743 (JIT enabled, AOT enabled)

JVM run JVM Scores
1193470
2195342
SPECjbb2005 bops = 388812, SPECjbb2005 bops/JVM = 194406

Hardware
Hardware Vendor IBM Corporation
Vendor URL http://www.ibm.com
Model IBM System x3250 M4
Processor Intel Xeon E3-1280 (Intel Turbo Boost Technology up to 3.90 GHz)
MHz 3500
# of Chips 1
# of Cores 4
# of Cores/Chip 4
HW Threading Enabled? Yes
Procs Avail to Java 8
Memory (MB) 16384
Memory Details 4x4GB 2Rx8 PC3-10600E UDIMM; slots 1, 2, 3 and 4 populated
Primary cache 32KB(I) + 32KB(D) on chip, per core
Secondary cache 256KB(I+D) on chip, per core
Other cache 8MB(I+D) on chip, per chip
Filesystem NTFS
Disks 1 x 250GB 7200 RPM SATA
Other hardware None
Software
Software Vendor IBM Corporation
Vendor URL http://www.ibm.com
JVM Version IBM J9 VM (build 2.4, J2RE 1.6.0 IBM J9 2.4 Windows Server 2008 amd64-64 jvmwa6460sr5-20090519_35743 (JIT enabled, AOT enabled)
JVM Command Line -Xaggressive -Xcompressedrefs -Xgcpolicy:gencon -Xmn1400m -Xms1875m -Xmx1875m -XlockReservation -Xnoloa -XtlhPrefetch -Xlp
JVM Initial Heap Memory (MB) 1875
JVM Maximum Heap Memory (MB) 1875
JVM Address bits 64
JVM CLASSPATH .\jbb.jar;
.\check.jar;
JVM BOOTCLASSPATH C:\IBM\Java60\jre\bin\compressedrefs\jclSC160\vm.jar;
C:\IBM\Java60\jre\lib\annotation.jar;
C:\IBM\Java60\jre\lib\beans.jar;
C:\IBM\Java60\jre\lib\java.util.jar;
C:\IBM\Java60\jre\lib\jndi.jar;
C:\IBM\Java60\jre\lib\logging.jar;
C:\IBM\Java60\jre\lib\security.jar;
C:\IBM\Java60\jre\lib\sql.jar;
C:\IBM\Java60\jre\lib\ibmorb.jar;
C:\IBM\Java60\jre\lib\ibmorbapi.jar;
C:\IBM\Java60\jre\lib\ibmcfw.jar;
C:\IBM\Java60\jre\lib\rt.jar;
C:\IBM\Java60\jre\lib\charsets.jar;
C:\IBM\Java60\jre\lib\resources.jar;
C:\IBM\Java60\jre\lib\ibmpkcs.jar;
C:\IBM\Java60\jre\lib\ibmcertpathfw.jar;
C:\IBM\Java60\jre\lib\ibmjgssfw.jar;
C:\IBM\Java60\jre\lib\ibmjssefw.jar;
C:\IBM\Java60\jre\lib\ibmsaslfw.jar;
C:\IBM\Java60\jre\lib\ibmjcefw.jar;
C:\IBM\Java60\jre\lib\ibmjgssprovider.jar;
C:\IBM\Java60\jre\lib\ibmjsseprovider2.jar;
C:\IBM\Java60\jre\lib\ibmcertpathprovider.jar;
C:\IBM\Java60\jre\lib\ibmxmlcrypto.jar;
C:\IBM\Java60\jre\lib\management-agent.jar;
C:\IBM\Java60\jre\lib\xml.jar;
C:\IBM\Java60\jre\lib\jlm.jar;
C:\IBM\Java60\jre\lib\javascript.jar
OS Version Microsoft Windows Server 2008 R2 Enterprise with SP1
Other software None
Test Information
Tested by IBM Corporation
SPEC license # 11
Test location Taipei, Taiwan
Test date Aug 25, 2011
H/w available Oct-2011
JVM available Jun-2009
OS available Feb-2011
Other s/w available None
AOT Compilation
None
Tuning
  • Affinity Masks set to 0x0F 0xF0,.
  • Using the local security settings console, "lock pages in memory" was enabled for the user running the benchmark.
  • Screen Saver set to None.
  • Power Options set to "High Performance".
  • "Visual Effects" set to "Adjust to best performance" in Performance Options.
  • BIOS Settings:
    • "Operating Mode" set to "Custom Mode"
    • Enable "Turbo Mode"
    • Enable "CPU C-States"
    • "Package ACPI C-State limit" set to "ACPI C3"
    • Disable "Hardware Prefetcher"
    • Disable "Adjacent Cache Line Prefetch"
    • Disable "DCU Streamer Prefetcher"
    • Disable "DCU IP Prefetcher"
    • "Memory Speed" set to "Max Performance"
Notes
None

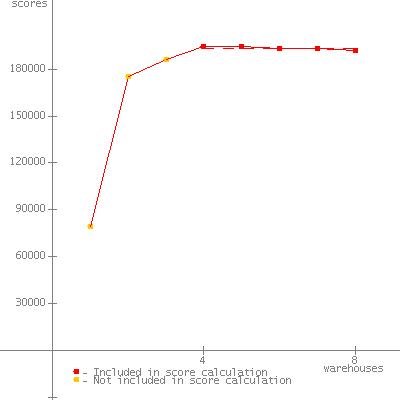

JVM 1 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 79658
2 174981
3 185897
4 194658 *
5 194694 *
6 193109 *
7 192962 *
8 191926 *
SPECjbb2005 (from 4 to 8) 193470 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Aug 25, 2011


JVM 2 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 77327
2 172588
3 186149
4 196757 *
5 196065 *
6 195775 *
7 194311 *
8 193800 *
SPECjbb2005 (from 4 to 8) 195342 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Aug 25, 2011

SPECjbb2005 Version: [SPECjbb2005 1.07, March 15, 2006]
