SPECjbb2005 SPECjbb2005 bops = 2783744, SPECjbb2005 bops/JVM = 139187
NEC Corporation Express5800/A1080a-S
Oracle Corporation Oracle Java HotSpot(TM) 64-Bit Server VM on Windows, version 1.6.0_26

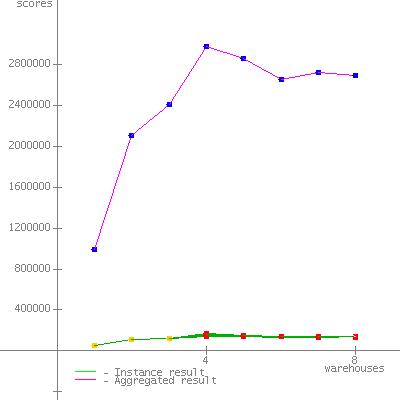

JVM run JVM Scores
1138133
2138191
3144406
4137241
5140642
6138718
7135841
8145222
9137541
10135369
11135353
12140830
13140535
14141341
15134943
16140480
17142012
18139716
19134219
20143011
SPECjbb2005 bops = 2783744, SPECjbb2005 bops/JVM = 139187

Hardware
Hardware Vendor NEC Corporation
Vendor URL http://www.nec.com
Model Express5800/A1080a-S
Processor Intel Xeon processor E7-8870 (Intel Turbo Boost Technology up to 2.8 GHz)
MHz 2400
# of Chips 4
# of Cores 40
# of Cores/Chip 10
HW Threading Enabled? Yes
Procs Avail to Java 80
Memory (MB) 524288
Memory Details 32 x 16GB DDR3L-1066 RDIMMs
Primary cache 32KB(I) + 32KB(D) on chip per core
Secondary cache 256KB(I+D) on chip per core
Other cache 30MB(I+D) on chip per chip
Filesystem NTFS
Disks 1 x 300GB 10krpm SAS
Other hardware
Software
Software Vendor Oracle Corporation
Vendor URL http://www.oracle.com
JVM Version Oracle Java HotSpot(TM) 64-Bit Server VM on Windows, version 1.6.0_26
JVM Command Line start /HIGH /NODE [0-3] /AFFINITY [F,F0,F00,F000,F0000] java -Xmx18g -Xms18g -Xmn16g -XX:+AggressiveOpts -XX:+UseCompressedStrings -XX:+UseParallelOldGC -XX:ParallelGCThreads=4 -XX:+UseLargePages -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:SurvivorRatio=60 -XX:TargetSurvivorRatio=90 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:-UseAdaptiveSizePolicy spec.jbb.JBBmain -propfile SPECjbb.props -id $JVM_id
JVM Initial Heap Memory (MB) 18432
JVM Maximum Heap Memory (MB) 18432
JVM Address bits 64
JVM CLASSPATH .\jbb.jar;
.\check.jar;
JVM BOOTCLASSPATH C:\Program Files\Java\jre6\lib\alt-string.jar;
C:\Program Files\Java\jre6\lib\alt-rt.jar;
C:\Program Files\Java\jre6\lib\resources.jar;
C:\Program Files\Java\jre6\lib\rt.jar;
C:\Program Files\Java\jre6\lib\sunrsasign.jar;
C:\Program Files\Java\jre6\lib\jsse.jar;
C:\Program Files\Java\jre6\lib\jce.jar;
C:\Program Files\Java\jre6\lib\charsets.jar;
C:\Program Files\Java\jre6\lib\modules\jdk.boot.jar;
C:\Program Files\Java\jre6\classes
OS Version Microsoft Windows Server 2008 R2 Enterprise with SP1
Other software
Test Information
Tested by NEC Corporation
SPEC license # 9006
Test location Fuchu, Tokyo, Japan
Test date Jun 9, 2011
H/w available Jun-2011
JVM available Jun-2011
OS available Feb-2011
Other s/w available
AOT Compilation

Tuning
  • Using the local security settings console, "lock pages in memory" was enabled for the user running the benchmark.
  • Hardware Prefetcher was disabled in BIOS.
  • Adj Cache Line Prefet was disabled in BIOS.
  • Power Technology was set to Custom in BIOS.
  • CPU C6 Report was disabled in BIOS.
  • Patrol Scrubbing was disabled in Server Web Console.
Notes
  • input.expected_peak_warehouse was set to 4, because Runtime.getRuntime().availableProcessors() doesn't return the number of processors in the system but return that in the processor group which JVM process belongs to on systems with Microsoft Windows Server 2008 R2 and more than 64 processor threads.
  • Command line options are described under http://download.oracle.com/docs/cd/E17409_01/javase/6/docs/index.html and at http://www.oracle.com/technetwork/java/javase/tech/vmoptions-jsp-140102.html.

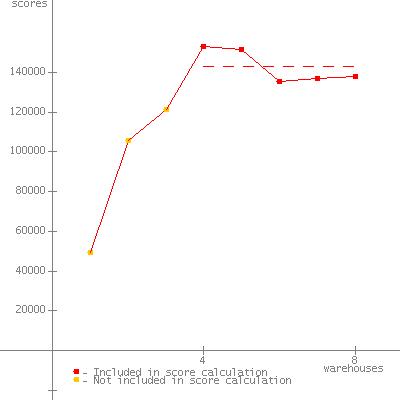

JVM 1 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 49721
2 105719
3 121448
4 150488 *
5 138108 *
6 131234 *
7 136620 *
8 134216 *
SPECjbb2005 (from 4 to 8) 138133 SPECjbb2005 bops
SPEC license # 9006 Tested by: NEC Corporation Test date: Jun 9, 2011

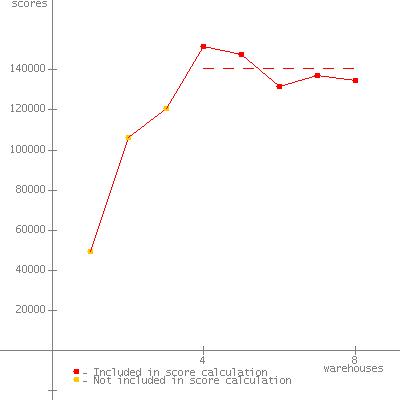

JVM 2 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 49905
2 106927
3 121523
4 150994 *
5 138710 *
6 132424 *
7 134619 *
8 134208 *
SPECjbb2005 (from 4 to 8) 138191 SPECjbb2005 bops
SPEC license # 9006 Tested by: NEC Corporation Test date: Jun 9, 2011

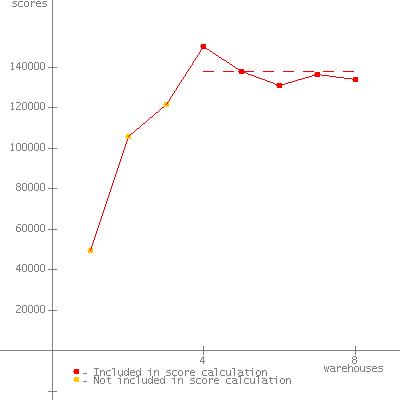

JVM 3 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 49221
2 105238
3 121059
4 163604 *
5 147652 *
6 136965 *
7 137039 *
8 136769 *
SPECjbb2005 (from 4 to 8) 144406 SPECjbb2005 bops
SPEC license # 9006 Tested by: NEC Corporation Test date: Jun 9, 2011

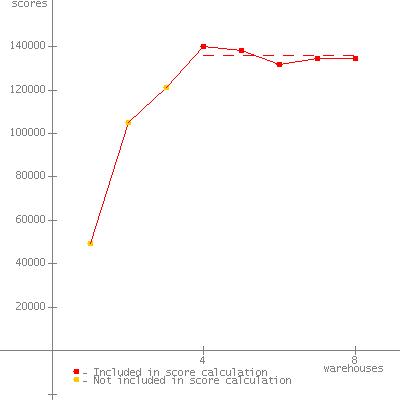

JVM 4 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 49233
2 105276
3 121268
4 150104 *
5 137656 *
6 131076 *
7 134060 *
8 133310 *
SPECjbb2005 (from 4 to 8) 137241 SPECjbb2005 bops
SPEC license # 9006 Tested by: NEC Corporation Test date: Jun 9, 2011


JVM 5 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 49313
2 104889
3 120403
4 150259 *
5 146741 *
6 135345 *
7 136020 *
8 134845 *
SPECjbb2005 (from 4 to 8) 140642 SPECjbb2005 bops
SPEC license # 9006 Tested by: NEC Corporation Test date: Jun 9, 2011


JVM 6 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 49013
2 104674
3 120455
4 151259 *
5 138485 *
6 131692 *
7 137358 *
8 134796 *
SPECjbb2005 (from 4 to 8) 138718 SPECjbb2005 bops
SPEC license # 9006 Tested by: NEC Corporation Test date: Jun 9, 2011


JVM 7 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 49372
2 105259
3 121313
4 140209 *
5 138436 *
6 131711 *
7 134458 *
8 134389 *
SPECjbb2005 (from 4 to 8) 135841 SPECjbb2005 bops
SPEC license # 9006 Tested by: NEC Corporation Test date: Jun 9, 2011

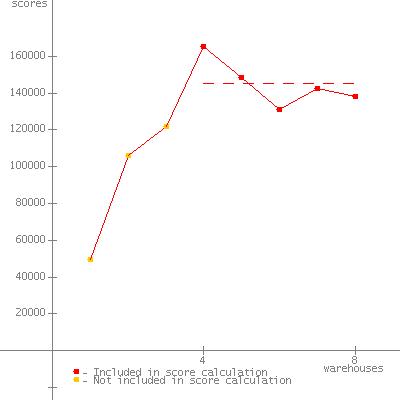

JVM 8 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 49436
2 106006
3 121815
4 165545 *
5 148378 *
6 131359 *
7 142389 *
8 138440 *
SPECjbb2005 (from 4 to 8) 145222 SPECjbb2005 bops
SPEC license # 9006 Tested by: NEC Corporation Test date: Jun 9, 2011


JVM 9 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 49317
2 105490
3 120804
4 149938 *
5 138155 *
6 131668 *
7 133698 *
8 134248 *
SPECjbb2005 (from 4 to 8) 137541 SPECjbb2005 bops
SPEC license # 9006 Tested by: NEC Corporation Test date: Jun 9, 2011


JVM 10 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 49671
2 104704
3 119897
4 138915 *
5 136903 *
6 130924 *
7 137042 *
8 133061 *
SPECjbb2005 (from 4 to 8) 135369 SPECjbb2005 bops
SPEC license # 9006 Tested by: NEC Corporation Test date: Jun 9, 2011


JVM 11 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 49595
2 106282
3 121649
4 139907 *
5 138490 *
6 131861 *
7 134516 *
8 131992 *
SPECjbb2005 (from 4 to 8) 135353 SPECjbb2005 bops
SPEC license # 9006 Tested by: NEC Corporation Test date: Jun 9, 2011


JVM 12 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 49249
2 104591
3 120006
4 150582 *
5 146484 *
6 130811 *
7 142153 *
8 134118 *
SPECjbb2005 (from 4 to 8) 140830 SPECjbb2005 bops
SPEC license # 9006 Tested by: NEC Corporation Test date: Jun 9, 2011


JVM 13 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 49368
2 106156
3 120945
4 151773 *
5 147380 *
6 131625 *
7 137061 *
8 134837 *
SPECjbb2005 (from 4 to 8) 140535 SPECjbb2005 bops
SPEC license # 9006 Tested by: NEC Corporation Test date: Jun 9, 2011


JVM 14 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 49520
2 106503
3 121263
4 151625 *
5 147974 *
6 134545 *
7 137266 *
8 135297 *
SPECjbb2005 (from 4 to 8) 141341 SPECjbb2005 bops
SPEC license # 9006 Tested by: NEC Corporation Test date: Jun 9, 2011


JVM 15 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 49768
2 106976
3 121052
4 139231 *
5 137351 *
6 131176 *
7 133820 *
8 133135 *
SPECjbb2005 (from 4 to 8) 134943 SPECjbb2005 bops
SPEC license # 9006 Tested by: NEC Corporation Test date: Jun 9, 2011


JVM 16 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 49452
2 105510
3 119302
4 150446 *
5 146255 *
6 134277 *
7 136054 *
8 135368 *
SPECjbb2005 (from 4 to 8) 140480 SPECjbb2005 bops
SPEC license # 9006 Tested by: NEC Corporation Test date: Jun 9, 2011


JVM 17 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 49417
2 104911
3 119933
4 150185 *
5 150027 *
6 136464 *
7 137339 *
8 136042 *
SPECjbb2005 (from 4 to 8) 142012 SPECjbb2005 bops
SPEC license # 9006 Tested by: NEC Corporation Test date: Jun 9, 2011


JVM 18 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 49361
2 105521
3 121315
4 139414 *
5 147543 *
6 136421 *
7 138187 *
8 137016 *
SPECjbb2005 (from 4 to 8) 139716 SPECjbb2005 bops
SPEC license # 9006 Tested by: NEC Corporation Test date: Jun 9, 2011


JVM 19 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 49462
2 104345
3 120379
4 138621 *
5 137019 *
6 130350 *
7 132521 *
8 132585 *
SPECjbb2005 (from 4 to 8) 134219 SPECjbb2005 bops
SPEC license # 9006 Tested by: NEC Corporation Test date: Jun 9, 2011


JVM 20 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 49247
2 105610
3 121429
4 153252 *
5 151559 *
6 135428 *
7 136848 *
8 137966 *
SPECjbb2005 (from 4 to 8) 143011 SPECjbb2005 bops
SPEC license # 9006 Tested by: NEC Corporation Test date: Jun 9, 2011

SPECjbb2005 Version: [SPECjbb2005 1.07, March 15, 2006]
Reporting page, Copyright © 2005-2007 SPEC. All rights reserved

First published at SPEC.org on 29-Jun-2011
