SPECjbb2005 SPECjbb2005 bops = 374995, SPECjbb2005 bops/JVM = 374995
Fujitsu PRIMERGY TX120 S3, Intel Xeon E3-1240, 3.30 GHz
Oracle Corporation Oracle Java HotSpot(TM) 64-Bit Server VM on Windows, version 1.6.0_25

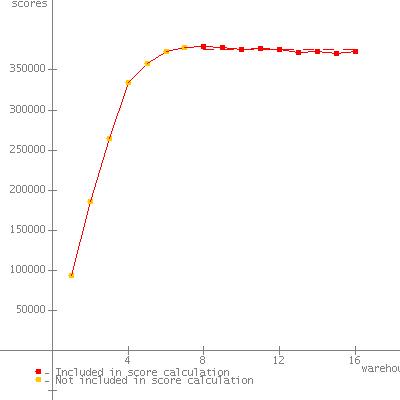

Warehouses SPECjbb2005 bops Incl. in metric
1 94014
2 186347
3 264702
4 334360
5 357867
6 372578
7 378648
8 379694 *
9 378077 *
10 375572 *
11 376538 *
12 375838 *
13 372094 *
14 372852 *
15 370955 *
16 373336 *
SPECjbb2005 (from 8 to 16) 374995 SPECjbb2005 bops
SPEC license # 19 Tested by: Fujitsu Test date: Apr 30, 2011

Hardware
Hardware Vendor Fujitsu
Vendor URL http://www.fujitsu.com
Model PRIMERGY TX120 S3, Intel Xeon E3-1240, 3.30 GHz
Processor Intel Xeon E3-1240 (Intel Turbo Boost Technology up to 3.70 GHz)
MHz 3300
# of Chips 1
# of Cores 4
# of Cores/Chip 4
HW Threading Enabled? Yes
Procs Avail to Java 8
Memory (MB) 16384
Memory Details 2x8GB PC3-10600E (CAS 9-9-9)
Primary cache 32KB(I) + 32KB(D) on chip, per core
Secondary cache 256KB(I+D) on chip, per core
Other cache 8MB(I+D) on chip, per chip
Filesystem NTFS
Disks Fujitsu (2.5", SATA, 64GB, SSD)
Other hardware N/A
Software
Software Vendor Oracle Corporation
Vendor URL http://www.oracle.com
JVM Version Oracle Java HotSpot(TM) 64-Bit Server VM on Windows, version 1.6.0_25
JVM Command Line java -server -Xmx12g -Xms12g -Xmn10g -XX:SurvivorRatio=55 -XX:TargetSurvivorRatio=90 -XX:ParallelGCThreads=8 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+UseLargePages -XX:+UseParallelOldGC -XX:+UseCompressedStrings -XX:+AggressiveOpts
JVM Initial Heap Memory (MB) 12288
JVM Maximum Heap Memory (MB) 12288
JVM Address bits 64
JVM CLASSPATH .\jbb.jar;
.\check.jar;
JVM BOOTCLASSPATH C:\Program Files\Java\jdk1.6.0_25\jre\lib\alt-string.jar;
C:\Program Files\Java\jdk1.6.0_25\jre\lib\alt-rt.jar;
C:\Program Files\Java\jdk1.6.0_25\jre\lib\resources.jar;
C:\Program Files\Java\jdk1.6.0_25\jre\lib\rt.jar;
C:\Program Files\Java\jdk1.6.0_25\jre\lib\sunrsasign.jar;
C:\Program Files\Java\jdk1.6.0_25\jre\lib\jsse.jar;
C:\Program Files\Java\jdk1.6.0_25\jre\lib\jce.jar;
C:\Program Files\Java\jdk1.6.0_25\jre\lib\charsets.jar;
C:\Program Files\Java\jdk1.6.0_25\jre\lib\modules\jdk.boot.jar;
C:\Program Files\Java\jdk1.6.0_25\jre\classes
OS Version Microsoft Windows Server 2008 R2 Enterprise with SP1
Other software N/A
Test Information
Tested by Fujitsu
SPEC license # 19
Test location Paderborn, Germany
Test date Apr 30, 2011
H/w available Jun-2011
JVM available Apr-2011
OS available Feb-2011
Other s/w available N/A
AOT Compilation
N/A
Tuning
  • Set "Hardware Prefetch = Disable" in BIOS.
  • Set "Adjacent Sector Prefetch = Disable" in BIOS.
  • Set "DCU Streamer Prefetch = Disable" in BIOS.
  • Set "DCU IP Prefetch = Disable" in BIOS.
Notes
  • Using the local security settings console, "lock pages in memory" was enabled for the user running the benchmark.

Details of Runs

Warehouses Thrput Total heap (MB) Thread spread % % > 120s transaction type Count Time (in seconds)
SizeUsed totalmax
1 94014 12108 4199 <0.01% <0.01 new_order 1239728 13.1 .016
payment 855098 4.72 .016
order_status 85509 .499 .016
delivery 85510 5.01 .016
stock_level 85510 .796 .016
cust_report 470464 5.08 .016
2 186347 12108 1383 .553% <0.01 new_order 2457698 25.3 .031
payment 1694912 10.7 .031
order_status 169490 1.40 .016
delivery 169491 10.3 .016
stock_level 169491 1.39 .016
cust_report 932126 8.98 .016
3 264702 12151 9502 .661% <0.01 new_order 3492665 37.6 .031
payment 2408786 16.0 .031
order_status 240878 1.95 .016
delivery 240880 16.0 .031
stock_level 240879 2.12 .016
cust_report 1324901 13.8 .016
4 334360 12175 7386 .665% <0.01 new_order 4412678 51.1 .047
payment 3042784 18.6 .047
order_status 304278 3.11 .016
delivery 304277 22.5 .046
stock_level 304278 3.06 .031
cust_report 1672879 17.9 .031
5 357867 12183 8539 21.2% <0.01 new_order 4719098 61.6 .032
payment 3254856 25.4 .031
order_status 325485 3.40 .032
delivery 325486 28.3 .016
stock_level 325485 3.07 .016
cust_report 1790605 24.1 .032
6 372578 12198 1779 16.1% <0.01 new_order 4912785 71.5 .016
payment 3388654 29.5 .016
order_status 338865 4.09 .016
delivery 338864 36.3 .016
stock_level 338865 4.41 .016
cust_report 1864517 29.5 .016
7 378648 12219 5777 19.0% <0.01 new_order 4993746 80.3 .016
payment 3443860 33.2 .016
order_status 344385 5.00 .016
delivery 344385 48.5 .016
stock_level 344388 5.76 .016
cust_report 1893976 32.2 .016
8 379694 12266 3671 1.38% .055 new_order 40059738 699 .031
payment 27629290 293 .031
order_status 2762930 39.4 .016
delivery 2762929 502 .140
stock_level 2762930 55.0 .016
cust_report 15198857 286 .062
9 378077 12258 10118 7.51% .048 new_order 39887690 793 .281
payment 27509767 333 .250
order_status 2750977 45.2 .219
delivery 2750977 554 .406
stock_level 2750976 62.8 .219
cust_report 15131858 321 .390
10 375572 12251 4379 13.6% .042 new_order 39621442 873 .422
payment 27325681 377 .422
order_status 2732566 52.9 .406
delivery 2732570 624 .421
stock_level 2732568 68.1 .608
cust_report 15029923 350 .422
11 376538 12247 10197 19.5% .055 new_order 39730387 964 .422
payment 27399554 413 .422
order_status 2739955 52.6 .359
delivery 2739953 690 .562
stock_level 2739957 73.2 .422
cust_report 15068722 390 .422
12 375838 12243 5995 28.8% .035 new_order 39648890 1026 .811
payment 27343369 451 .624
order_status 2734339 59.6 .421
delivery 2734335 751 .640
stock_level 2734334 84.7 .609
cust_report 15037825 440 .624
13 372094 12221 8522 23.3% .145 new_order 39295796 1118 1.34
payment 27100758 495 .749
order_status 2710078 62.9 .515
delivery 2710075 823 1.01
stock_level 2710077 86.0 .530
cust_report 14905735 474 .843
14 372852 12223 2554 33.7% .055 new_order 39338870 1222 .920
payment 27131276 534 .624
order_status 2713129 66.5 .671
delivery 2713127 854 .733
stock_level 2713126 91.8 .624
cust_report 14923691 506 .765
15 370955 12220 5085 39.3% .146 new_order 39174932 1294 .982
payment 27017896 561 .920
order_status 2701790 74.9 .734
delivery 2701788 943 1.11
stock_level 2701790 106 .640
cust_report 14860887 545 .936
16 373336 12218 3937 24.1% .497 new_order 39565856 1392 .921
payment 27286585 632 .951
order_status 2728659 82.6 .795
delivery 2728664 991 1.61
stock_level 2728660 111 .686
cust_report 15007315 574 .890

SPECjbb2005 Version: [SPECjbb2005 1.07, March 15, 2006]
Reporting page, Copyright © 2005-2007 SPEC. All rights reserved

First published at SPEC.org on 15-Jun-2011
