SPECjbb2005 SPECjbb2005 bops = 1949160, SPECjbb2005 bops/JVM = 243645
Dell Inc. PowerEdge M915 (AMD Opteron 6180SE, 2.50 GHz)
IBM Corporation IBM J9 VM (build 2.4, J2RE 1.6.0 IBM J9 2.4 Windows Server 2008 amd64-64 jvmwa64 60sr5-20090519_35743 (JIT enabled, AOT enabled)

JVM run JVM Scores
1243247
2244309
3242673
4241902
5244034
6244659
7243754
8244582
SPECjbb2005 bops = 1949160, SPECjbb2005 bops/JVM = 243645

Hardware
Hardware Vendor Dell Inc.
Vendor URL http://www.dell.com
Model PowerEdge M915 (AMD Opteron 6180SE, 2.50 GHz)
Processor AMD Opteron 6180SE
MHz 2500
# of Chips 4
# of Cores 48
# of Cores/Chip 12
HW Threading Enabled? No
Procs Avail to Java 48
Memory (MB) 131072
Memory Details 32 x 4 GB 2Rx8 PC3L-10600R-9, ECC
Primary cache 64 KB I + 64 KB D
Secondary cache 512 KB I+D on chip per core
Other cache 12 MB I+D on chip per chip
Filesystem NTFS
Disks 1 x 73 GB 15k 6Gb SAS (classes + OS)
Other hardware None
Software
Software Vendor IBM Corporation
Vendor URL http://www.IBM.com
JVM Version IBM J9 VM (build 2.4, J2RE 1.6.0 IBM J9 2.4 Windows Server 2008 amd64-64 jvmwa64 60sr5-20090519_35743 (JIT enabled, AOT enabled)
JVM Command Line start /HIGH /affinity [3F,FC0,3F000,FC0000,3F000000,FC0000000,3F000000000,FC0000000000] java -Xmn1400m -Xms1875m -Xmx1875m -Xaggressive -Xcompressedrefs -Xgcpolicy:gencon -XlockReservation -Xnoloa -XtlhPrefetch -Xlp
JVM Initial Heap Memory (MB) 1875
JVM Maximum Heap Memory (MB) 1875
JVM Address bits 64
JVM CLASSPATH .\jbb.jar;
.\check.jar;
JVM BOOTCLASSPATH c:\specjbb2005\jvm\jre\bin\compressedrefs\jclSC160\vm.jar;
c:\specjbb2005\jvm\jre\lib\annotation.jar;
c:\specjbb2005\jvm\jre\lib\beans.jar;
c:\specjbb2005\jvm\jre\lib\java.util.jar;
c:\specjbb2005\jvm\jre\lib\jndi.jar;
c:\specjbb2005\jvm\jre\lib\logging.jar;
c:\specjbb2005\jvm\jre\lib\security.jar;
c:\specjbb2005\jvm\jre\lib\sql.jar;
c:\specjbb2005\jvm\jre\lib\ibmorb.jar;
c:\specjbb2005\jvm\jre\lib\ibmorbapi.jar;
c:\specjbb2005\jvm\jre\lib\ibmcfw.jar;
c:\specjbb2005\jvm\jre\lib\rt.jar;
c:\specjbb2005\jvm\jre\lib\charsets.jar;
c:\specjbb2005\jvm\jre\lib\resources.jar;
c:\specjbb2005\jvm\jre\lib\ibmpkcs.jar;
c:\specjbb2005\jvm\jre\lib\ibmcertpathfw.jar;
c:\specjbb2005\jvm\jre\lib\ibmjgssfw.jar;
c:\specjbb2005\jvm\jre\lib\ibmjssefw.jar;
c:\specjbb2005\jvm\jre\lib\ibmsaslfw.jar;
c:\specjbb2005\jvm\jre\lib\ibmjcefw.jar;
c:\specjbb2005\jvm\jre\lib\ibmjgssprovider.jar;
c:\specjbb2005\jvm\jre\lib\ibmjsseprovider2.jar;
c:\specjbb2005\jvm\jre\lib\ibmcertpathprovider.jar;
c:\specjbb2005\jvm\jre\lib\ibmxmlcrypto.jar;
c:\specjbb2005\jvm\jre\lib\management-agent.jar;
c:\specjbb2005\jvm\jre\lib\xml.jar;
c:\specjbb2005\jvm\jre\lib\jlm.jar;
c:\specjbb2005\jvm\jre\lib\javascript.jar
OS Version Microsoft Windows Server 2008 R2 Enterprise
Other software IBM Websphere application server V7.0 for Windows on x86-64bit.
Test Information
Tested by Dell Inc.
SPEC license # 55
Test location Austin, TX
Test date Apr 25, 2011
H/w available May-2011
JVM available Jul-2009
OS available Oct-2009
Other s/w available N/A
AOT Compilation
None
Tuning
Operating system tunings
  • 'Lock pages in memory' enabled for benchmark user
  • Each JVM instance was affinitized to 6 cores
  • Disabled 'DRAM Prefetcher' in BIOS
  • Disabled 'Hardware Prefetch training on Software Prefetch' in BIOS
  • Disabled 'Hardware Prefetcher' in BIOS
  • 'Power Management' set to 'Maximum Performance' in BIOS
Notes
Command line options are described at: http://publib.boulder.ibm.com/infocenter/javasdk/v6r0/index.jsp

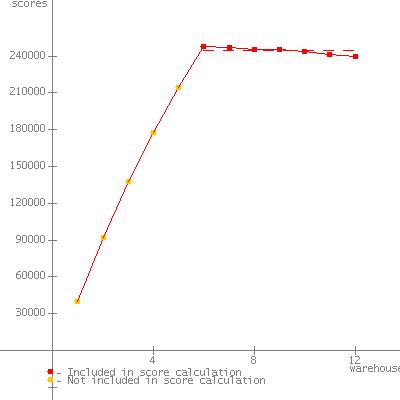

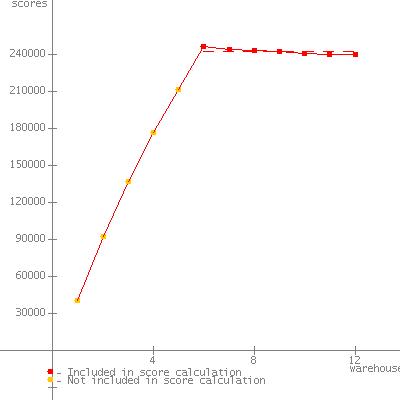

JVM 1 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 38716
2 92826
3 137466
4 175775
5 211841
6 246990 *
7 244758 *
8 244762 *
9 243046 *
10 241808 *
11 241383 *
12 239983 *
SPECjbb2005 (from 6 to 12) 243247 SPECjbb2005 bops
SPEC license # 55 Tested by: Dell Inc. Test date: Apr 25, 2011


JVM 2 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 40113
2 92457
3 137901
4 177939
5 214343
6 248100 *
7 247163 *
8 245014 *
9 245041 *
10 243971 *
11 240987 *
12 239884 *
SPECjbb2005 (from 6 to 12) 244309 SPECjbb2005 bops
SPEC license # 55 Tested by: Dell Inc. Test date: Apr 25, 2011


JVM 3 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 40643
2 92581
3 136799
4 176897
5 212051
6 246804 *
7 244137 *
8 243182 *
9 242622 *
10 241235 *
11 240392 *
12 240337 *
SPECjbb2005 (from 6 to 12) 242673 SPECjbb2005 bops
SPEC license # 55 Tested by: Dell Inc. Test date: Apr 25, 2011


JVM 4 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 38602
2 91512
3 135728
4 175081
5 210445
6 244488 *
7 244450 *
8 242660 *
9 241522 *
10 240828 *
11 240168 *
12 239195 *
SPECjbb2005 (from 6 to 12) 241902 SPECjbb2005 bops
SPEC license # 55 Tested by: Dell Inc. Test date: Apr 25, 2011


JVM 5 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 39231
2 92567
3 136868
4 176981
5 212865
6 247830 *
7 245708 *
8 244933 *
9 244784 *
10 242812 *
11 242169 *
12 239999 *
SPECjbb2005 (from 6 to 12) 244034 SPECjbb2005 bops
SPEC license # 55 Tested by: Dell Inc. Test date: Apr 25, 2011


JVM 6 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 38447
2 93221
3 136878
4 177243
5 212620
6 248357 *
7 248212 *
8 246002 *
9 243114 *
10 243515 *
11 241911 *
12 241501 *
SPECjbb2005 (from 6 to 12) 244659 SPECjbb2005 bops
SPEC license # 55 Tested by: Dell Inc. Test date: Apr 25, 2011


JVM 7 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 38967
2 92530
3 136968
4 177211
5 212475
6 247104 *
7 246579 *
8 244521 *
9 243036 *
10 242670 *
11 241414 *
12 240954 *
SPECjbb2005 (from 6 to 12) 243754 SPECjbb2005 bops
SPEC license # 55 Tested by: Dell Inc. Test date: Apr 25, 2011


JVM 8 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 39158
2 93272
3 137548
4 176950
5 212837
6 247275 *
7 246365 *
8 246143 *
9 244303 *
10 243071 *
11 242978 *
12 241940 *
SPECjbb2005 (from 6 to 12) 244582 SPECjbb2005 bops
SPEC license # 55 Tested by: Dell Inc. Test date: Apr 25, 2011

SPECjbb2005 Version: [SPECjbb2005 1.07, March 15, 2006]
Reporting page, Copyright © 2005-2007 SPEC. All rights reserved

First published at SPEC.org on 01-Jun-2011
