SPECjbb2005 SPECjbb2005 bops = 2491323, SPECjbb2005 bops/JVM = 77854
IBM Corporation IBM Power 750 Express (3.61 GHz, 32 core)
IBM Corporation JRE 1.6.0 (32-bit) IBM J9 2.4 AIX [build jvmap3260sr7-20091214_49398(SR7)]

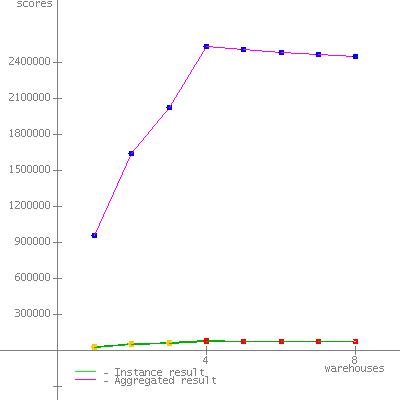

JVM run JVM Scores
177769
278140
378183
477592
577014
677160
777767
877352
977221
1077955
1177626
1277885
1377544
1477858
1577123
1678148
1777531
1877565
1978675
2078153
2178248
2277895
2377720
2477983
2578485
2677952
2778794
2877400
2978256
3077628
3178391
3278310
SPECjbb2005 bops = 2491323, SPECjbb2005 bops/JVM = 77854

Hardware
Hardware Vendor IBM Corporation
Vendor URL http://www.ibm.com
Model IBM Power 750 Express (3.61 GHz, 32 core)
Processor POWER7 (Intelligent Energy Optimization enabled, up to 3.86 GHz)
MHz 3612
# of Chips 4
# of Cores 32
# of Cores/Chip 8
HW Threading Enabled? Yes
Procs Avail to Java 128
Memory (MB) 262144
Memory Details 32 x 8GB DDR3 1066 MHz
Primary cache 32 KB I + 32 KB D on chip per core
Secondary cache 256 KB I+D on chip per core
Other cache 4 MB I+D on chip per core
Filesystem AIX/JFS2
Disks 1 x 73GB SAS 15K RPM
Other hardware
Software
Software Vendor IBM Corporation
Vendor URL http://www.ibm.com
JVM Version JRE 1.6.0 (32-bit) IBM J9 2.4 AIX [build jvmap3260sr7-20091214_49398(SR7)]
JVM Command Line "execrset -c processor_set_number -e java -Xlp -Xgcpolicy:gencon -Xms2560m -Xmx2560m -Xmn2048m -Xaggressive -XtlhPrefetch -XlockReservation -Xgcthreads4 -Xnoloa spec.jbb.JBBmain -propfile SPECjbb.props"
JVM Initial Heap Memory (MB) 2560
JVM Maximum Heap Memory (MB) 2560
JVM Address bits 32
JVM CLASSPATH jbb.jar:
check.jar
JVM BOOTCLASSPATH /specraid/sr7/jre/lib/vm.jar:
/specraid/sr7/jre/lib/annotation.jar:
/specraid/sr7/jre/lib/beans.jar:
/specraid/sr7/jre/lib/java.util.jar:
/specraid/sr7/jre/lib/jndi.jar:
/specraid/sr7/jre/lib/logging.jar:
/specraid/sr7/jre/lib/security.jar:
/specraid/sr7/jre/lib/sql.jar:
/specraid/sr7/jre/lib/ibmorb.jar:
/specraid/sr7/jre/lib/ibmorbapi.jar:
/specraid/sr7/jre/lib/ibmcfw.jar:
/specraid/sr7/jre/lib/rt.jar:
/specraid/sr7/jre/lib/charsets.jar:
/specraid/sr7/jre/lib/resources.jar:
/specraid/sr7/jre/lib/ibmpkcs.jar:
/specraid/sr7/jre/lib/ibmcertpathfw.jar:
/specraid/sr7/jre/lib/ibmjgssfw.jar:
/specraid/sr7/jre/lib/ibmjssefw.jar:
/specraid/sr7/jre/lib/ibmsaslfw.jar:
/specraid/sr7/jre/lib/ibmjcefw.jar:
/specraid/sr7/jre/lib/ibmjgssprovider.jar:
/specraid/sr7/jre/lib/ibmjsseprovider2.jar:
/specraid/sr7/jre/lib/ibmcertpathprovider.jar:
/specraid/sr7/jre/lib/ibmxmlcrypto.jar:
/specraid/sr7/jre/lib/management-agent.jar:
/specraid/sr7/jre/lib/xml.jar:
/specraid/sr7/jre/lib/jlm.jar:
/specraid/sr7/jre/lib/javascript.jar
OS Version IBM AIX V7.1 with Service Pack 3
Other software
Test Information
Tested by IBM Corporation
SPEC license # 11
Test location Austin, TX
Test date Mar 15, 2011
H/w available May-2011
JVM available Dec-2009
OS available May-2011
Other s/w available
AOT Compilation

Tuning
Operating system tunings
  • vmo -o lgpg_regions=7680 -o lgpg_size=16777216 -o v_pinshm=1
  • dscrctl -n -s 1
  • MEMORY_AFFINITY=MCM
Notes
  • 32 JVMs were run in processor sets each containing 1 core
  • IBM Systems Director is required to set the Intelligent Energy Optimization HW mode"


JVM 1 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 31888
2 54298
3 64070
4 79207 *
5 78428 *
6 77649 *
7 76985 *
8 76578 *
SPECjbb2005 (from 4 to 8) 77769 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Mar 15, 2011


JVM 2 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 27729
2 51079
3 64243
4 79698 *
5 78781 *
6 77981 *
7 77400 *
8 76839 *
SPECjbb2005 (from 4 to 8) 78140 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Mar 15, 2011


JVM 3 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 30355
2 52039
3 62810
4 79809 *
5 78772 *
6 77993 *
7 77462 *
8 76881 *
SPECjbb2005 (from 4 to 8) 78183 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Mar 15, 2011


JVM 4 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 28980
2 50204
3 62870
4 79085 *
5 78176 *
6 77589 *
7 76885 *
8 76225 *
SPECjbb2005 (from 4 to 8) 77592 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Mar 15, 2011


JVM 5 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 29682
2 51242
3 63104
4 78287 *
5 77637 *
6 76970 *
7 76398 *
8 75778 *
SPECjbb2005 (from 4 to 8) 77014 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Mar 15, 2011


JVM 6 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 28255
2 50041
3 63822
4 78671 *
5 77809 *
6 77048 *
7 76439 *
8 75832 *
SPECjbb2005 (from 4 to 8) 77160 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Mar 15, 2011

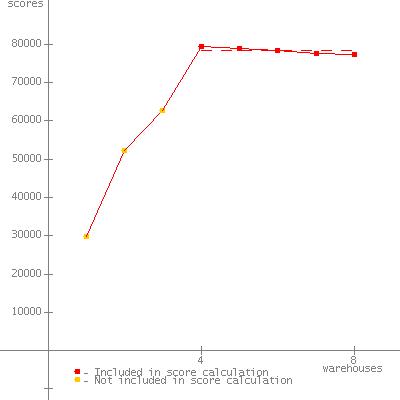

JVM 7 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 30517
2 50594
3 62888
4 79322 *
5 78319 *
6 77725 *
7 76856 *
8 76613 *
SPECjbb2005 (from 4 to 8) 77767 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Mar 15, 2011

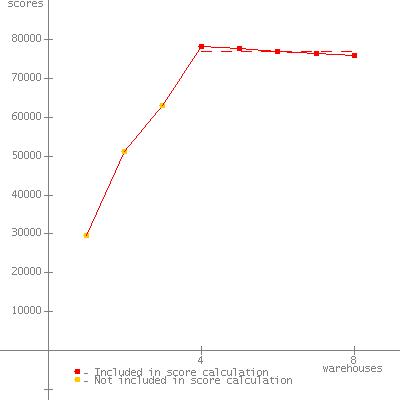

JVM 8 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 28393
2 51843
3 63019
4 78967 *
5 77928 *
6 77301 *
7 76559 *
8 76002 *
SPECjbb2005 (from 4 to 8) 77352 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Mar 15, 2011


JVM 9 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 30960
2 48168
3 63748
4 78683 *
5 77809 *
6 77106 *
7 76581 *
8 75925 *
SPECjbb2005 (from 4 to 8) 77221 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Mar 15, 2011


JVM 10 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 27838
2 48380
3 62968
4 79337 *
5 78574 *
6 77841 *
7 77219 *
8 76800 *
SPECjbb2005 (from 4 to 8) 77955 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Mar 15, 2011


JVM 11 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 32365
2 52553
3 63448
4 79405 *
5 78103 *
6 77731 *
7 76608 *
8 76282 *
SPECjbb2005 (from 4 to 8) 77626 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Mar 15, 2011


JVM 12 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 29488
2 50254
3 63556
4 79307 *
5 78384 *
6 77769 *
7 77386 *
8 76579 *
SPECjbb2005 (from 4 to 8) 77885 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Mar 15, 2011


JVM 13 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 33328
2 51815
3 63746
4 79041 *
5 78206 *
6 77402 *
7 76833 *
8 76236 *
SPECjbb2005 (from 4 to 8) 77544 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Mar 15, 2011


JVM 14 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 30564
2 50779
3 63203
4 79378 *
5 78512 *
6 77511 *
7 77299 *
8 76592 *
SPECjbb2005 (from 4 to 8) 77858 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Mar 15, 2011


JVM 15 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 33920
2 53515
3 63288
4 78631 *
5 77679 *
6 77050 *
7 76281 *
8 75973 *
SPECjbb2005 (from 4 to 8) 77123 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Mar 15, 2011


JVM 16 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 31993
2 52777
3 63667
4 79746 *
5 78628 *
6 78106 *
7 77420 *
8 76840 *
SPECjbb2005 (from 4 to 8) 78148 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Mar 15, 2011


JVM 17 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 30441
2 50383
3 62690
4 79069 *
5 78161 *
6 77330 *
7 76755 *
8 76343 *
SPECjbb2005 (from 4 to 8) 77531 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Mar 15, 2011

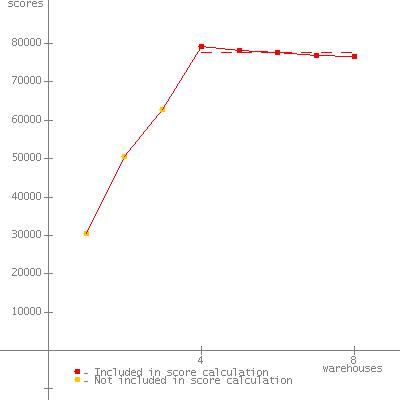

JVM 18 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 31804
2 49011
3 64341
4 78856 *
5 78099 *
6 77617 *
7 76925 *
8 76327 *
SPECjbb2005 (from 4 to 8) 77565 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Mar 15, 2011


JVM 19 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 35062
2 51317
3 63739
4 80312 *
5 79554 *
6 78364 *
7 77656 *
8 77491 *
SPECjbb2005 (from 4 to 8) 78675 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Mar 15, 2011


JVM 20 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 26807
2 58750
3 62548
4 79562 *
5 78782 *
6 78091 *
7 77413 *
8 76916 *
SPECjbb2005 (from 4 to 8) 78153 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Mar 15, 2011


JVM 21 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 28748
2 49915
3 63104
4 79835 *
5 78781 *
6 78015 *
7 77631 *
8 76978 *
SPECjbb2005 (from 4 to 8) 78248 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Mar 15, 2011


JVM 22 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 30103
2 49373
3 64829
4 79538 *
5 78107 *
6 77818 *
7 77231 *
8 76779 *
SPECjbb2005 (from 4 to 8) 77895 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Mar 15, 2011


JVM 23 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 31454
2 51848
3 63127
4 79254 *
5 78314 *
6 77582 *
7 76952 *
8 76498 *
SPECjbb2005 (from 4 to 8) 77720 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Mar 15, 2011


JVM 24 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 29025
2 49894
3 63791
4 79797 *
5 78563 *
6 77776 *
7 77237 *
8 76541 *
SPECjbb2005 (from 4 to 8) 77983 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Mar 15, 2011


JVM 25 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 31583
2 54580
3 64020
4 80018 *
5 79012 *
6 78375 *
7 77787 *
8 77232 *
SPECjbb2005 (from 4 to 8) 78485 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Mar 15, 2011


JVM 26 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 31285
2 49874
3 63904
4 79580 *
5 78596 *
6 77758 *
7 77153 *
8 76673 *
SPECjbb2005 (from 4 to 8) 77952 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Mar 15, 2011


JVM 27 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 27991
2 51987
3 64032
4 80175 *
5 79391 *
6 78839 *
7 77989 *
8 77578 *
SPECjbb2005 (from 4 to 8) 78794 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Mar 15, 2011


JVM 28 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 28247
2 49370
3 62718
4 78851 *
5 77892 *
6 77353 *
7 76571 *
8 76334 *
SPECjbb2005 (from 4 to 8) 77400 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Mar 15, 2011


JVM 29 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 28313
2 58115
3 62917
4 79703 *
5 78824 *
6 78112 *
7 77529 *
8 77111 *
SPECjbb2005 (from 4 to 8) 78256 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Mar 15, 2011


JVM 30 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 27912
2 47344
3 63974
4 79251 *
5 77950 *
6 77624 *
7 76947 *
8 76370 *
SPECjbb2005 (from 4 to 8) 77628 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Mar 15, 2011


JVM 31 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 29291
2 49984
3 63693
4 79936 *
5 79008 *
6 78327 *
7 77671 *
8 77013 *
SPECjbb2005 (from 4 to 8) 78391 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Mar 15, 2011


JVM 32 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 29832
2 52341
3 62647
4 79491 *
5 78905 *
6 78254 *
7 77638 *
8 77262 *
SPECjbb2005 (from 4 to 8) 78310 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Mar 15, 2011

SPECjbb2005 Version: [SPECjbb2005 1.07, March 15, 2006]
Reporting page, Copyright © 2005-2007 SPEC. All rights reserved

First published at SPEC.org on 04-May-2011
