SPECjbb2005 SPECjbb2005 bops = 2703740, SPECjbb2005 bops/JVM = 675935
Oracle Corporation Sun Fire X4470 M2
Oracle Corporation Java HotSpot(TM) 64-Bit Server VM on Windows, version 1.6.0_25

JVM run JVM Scores
1677705
2674120
3675716
4676199
SPECjbb2005 bops = 2703740, SPECjbb2005 bops/JVM = 675935

Hardware
Hardware Vendor Oracle Corporation
Vendor URL http://www.oracle.com
Model Sun Fire X4470 M2
Processor Intel(R) Xeon(R) CPU E7-4870 (Intel Turbo Boost Technology up to 2.80 GHz)
MHz 2394
# of Chips 4
# of Cores 40
# of Cores/Chip 10
HW Threading Enabled? Yes
Procs Avail to Java 80
Memory (MB) 524288
Memory Details 64 x 8GB RDIMM DDR3 2Rx4 PC3L-10600R, running 1066MHz
Primary cache 32KB(I)+32KB(D) on chip per core
Secondary cache 256 KB on chip per core
Other cache 30MB(I+D) L3 on chip per chip
Filesystem NTFS
Disks 1 x 300GB SCSI
Other hardware
Software
Software Vendor Oracle Corporation
Vendor URL http://www.oracle.com
JVM Version Java HotSpot(TM) 64-Bit Server VM on Windows, version 1.6.0_25
JVM Command Line java -server -showversion -Xmx25g -Xms25g -Xmn23g -XX:SurvivorRatio=60 -XX:TargetSurvivorRatio=90 -XX:ParallelGCThreads=20 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+AggressiveOpts -XX:+UseLargePages -XX:+UseParallelOldGC -XX:+UseCompressedStrings -XX:-UseAdaptiveSizePolicy -verbosegc spec.jbb.JBBmain -propfile SPECjbb_multi.props
JVM Initial Heap Memory (MB) 25600
JVM Maximum Heap Memory (MB) 25600
JVM Address bits 64
JVM CLASSPATH .\jbb.jar;
.\check.jar;
JVM BOOTCLASSPATH C:\Users\Administrator\benchmarks\jdk1.6.0_25\jre\lib\alt-string.jar;
C:\Users\Administrator\benchmarks\jdk1.6.0_25\jre\lib\alt-rt.jar;
C:\Users\Administrator\benchmarks\jdk1.6.0_25\jre\lib\resources.jar;
C:\Users\Administrator\benchmarks\jdk1.6.0_25\jre\lib\rt.jar;
C:\Users\Administrator\benchmarks\jdk1.6.0_25\jre\lib\sunrsasign.jar;
C:\Users\Administrator\benchmarks\jdk1.6.0_25\jre\lib\jsse.jar;
C:\Users\Administrator\benchmarks\jdk1.6.0_25\jre\lib\jce.jar;
C:\Users\Administrator\benchmarks\jdk1.6.0_25\jre\lib\charsets.jar;
C:\Users\Administrator\benchmarks\jdk1.6.0_25\jre\lib\modules\jdk.boot.jar;
C:\Users\Administrator\benchmarks\jdk1.6.0_25\jre\classes
OS Version Microsoft Windows Server R2 2008 Enterprise Edition x64 SP1
Other software
Test Information
Tested by Oracle Corporation
SPEC license # 73
Test location Burlington, MA.
Test date Mar 26, 2011
H/w available Jun-2011
JVM available Apr-2011
OS available Feb-2011
Other s/w available
AOT Compilation

Tuning
BIOS tunings
  • Disabled "Hardware Prefetcher"
  • Disabled "Adjacent Cache Line Prefetch"
Operating System
  • "Lock pages in memory" enabled for benchmark user.
  • Each JVM instance was affinitized to 1 chip.
The parameter expected_peak_warehouse was set to 20.
Notes
Command line options are described at: http://www.oracle.com/technetwork/java/javase/tech/vmoptions-jsp-140102.html

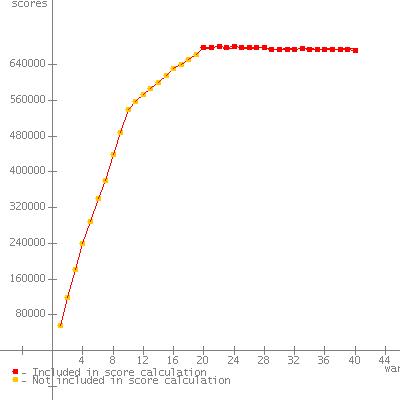

JVM 1 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 57091
2 119808
3 181077
4 237397
5 283111
6 339439
7 381281
8 436442
9 487964
10 537933
11 556809
12 571501
13 586243
14 602166
15 616773
16 629284
17 644313
18 654456
19 664095
20 680323 *
21 682452 *
22 682792 *
23 681905 *
24 677749 *
25 678921 *
26 679452 *
27 680153 *
28 678548 *
29 676387 *
30 677664 *
31 675667 *
32 677425 *
33 674884 *
34 676038 *
35 676862 *
36 674754 *
37 675916 *
38 675092 *
39 673814 *
40 674998 *
SPECjbb2005 (from 20 to 40) 677705 SPECjbb2005 bops
SPEC license # 73 Tested by: Oracle Corporation Test date: Mar 26, 2011


JVM 2 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 56432
2 121015
3 184158
4 241044
5 289435
6 341305
7 381911
8 438363
9 488857
10 538191
11 554638
12 568735
13 586319
14 600295
15 614027
16 626914
17 640681
18 652443
19 663000
20 676623 *
21 676395 *
22 678293 *
23 677218 *
24 677133 *
25 674640 *
26 677129 *
27 675160 *
28 676153 *
29 671800 *
30 672626 *
31 673611 *
32 673295 *
33 673869 *
34 670670 *
35 672865 *
36 672440 *
37 671796 *
38 672490 *
39 672180 *
40 670137 *
SPECjbb2005 (from 20 to 40) 674120 SPECjbb2005 bops
SPEC license # 73 Tested by: Oracle Corporation Test date: Mar 26, 2011


JVM 3 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 56978
2 119877
3 180663
4 239102
5 289017
6 339350
7 381244
8 437865
9 488982
10 539681
11 557149
12 572473
13 587337
14 599898
15 615089
16 631282
17 641137
18 652230
19 663393
20 679073 *
21 678017 *
22 681033 *
23 677353 *
24 679752 *
25 677033 *
26 679080 *
27 677182 *
28 677243 *
29 673622 *
30 674377 *
31 674370 *
32 674284 *
33 676020 *
34 672675 *
35 673934 *
36 674270 *
37 672969 *
38 674435 *
39 672839 *
40 670471 *
SPECjbb2005 (from 20 to 40) 675716 SPECjbb2005 bops
SPEC license # 73 Tested by: Oracle Corporation Test date: Mar 26, 2011


JVM 4 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 57411
2 120793
3 181682
4 239831
5 288792
6 340726
7 382964
8 437157
9 490447
10 540428
11 557551
12 572181
13 587562
14 601591
15 615476
16 630282
17 642585
18 653485
19 664105
20 678476 *
21 679475 *
22 680648 *
23 678235 *
24 679855 *
25 678358 *
26 679163 *
27 678525 *
28 677817 *
29 674684 *
30 675048 *
31 675808 *
32 675196 *
33 675870 *
34 672602 *
35 675143 *
36 674294 *
37 673327 *
38 673744 *
39 673148 *
40 670760 *
SPECjbb2005 (from 20 to 40) 676199 SPECjbb2005 bops
SPEC license # 73 Tested by: Oracle Corporation Test date: Mar 26, 2011

SPECjbb2005 Version: [SPECjbb2005 1.07, March 15, 2006]
Reporting page, Copyright © 2005-2007 SPEC. All rights reserved

First published at SPEC.org on 20-Apr-2011
