SPECjbb2005 SPECjbb2005 bops = 391503, SPECjbb2005 bops/JVM = 391503
Fujitsu PRIMERGY TX140 S1, Intel Xeon E3-1280, 3.50 GHz
Oracle Corporation Oracle Java HotSpot(TM) 64-Bit Server VM on Windows, version 1.6.0_25

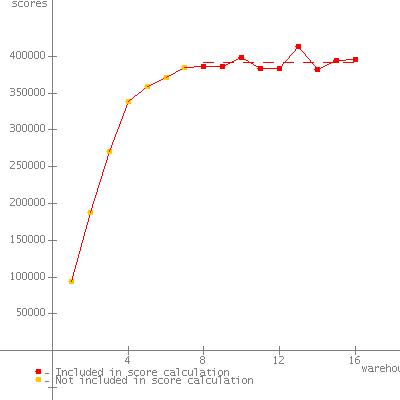

Warehouses SPECjbb2005 bops Incl. in metric
1 94097
2 187639
3 271039
4 339072
5 358552
6 371182
7 384770
8 385872 *
9 386306 *
10 397882 *
11 383414 *
12 383823 *
13 413799 *
14 382217 *
15 394923 *
16 395285 *
SPECjbb2005 (from 8 to 16) 391503 SPECjbb2005 bops
SPEC license # 19 Tested by: Fujitsu Test date: Mar 27, 2011

Hardware
Hardware Vendor Fujitsu
Vendor URL http://www.fujitsu.com
Model PRIMERGY TX140 S1, Intel Xeon E3-1280, 3.50 GHz
Processor Intel Xeon E3-1280 (Intel Turbo Boost Technology up to 3.90 GHz)
MHz 3500
# of Chips 1
# of Cores 4
# of Cores/Chip 4
HW Threading Enabled? Yes
Procs Avail to Java 8
Memory (MB) 32768
Memory Details 4x8GB PC3-10600E (CAS 9-9-9)
Primary cache 32KB(I) + 32KB(D) on chip, per core
Secondary cache 256KB(I+D) on chip, per core
Other cache 8MB(I+D) on chip, per chip
Filesystem NTFS
Disks Fujitsu (2.5", SATA, 64GB, SSD)
Other hardware N/A
Software
Software Vendor Oracle Corporation
Vendor URL http://www.oracle.com
JVM Version Oracle Java HotSpot(TM) 64-Bit Server VM on Windows, version 1.6.0_25
JVM Command Line start /HIGH java -server -Xmx18g -Xms18g -Xmn16g -XX:SurvivorRatio=60 -XX:TargetSurvivorRatio=90 -XX:ParallelGCThreads=8 -XX:AllocatePrefetchDistance=192 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=5500 -XX:MaxInlineSize=220 -XX:FreqInlineSize=2500 -XX:+UseLargePages -XX:+UseParallelOldGC -XX:+UseCompressedStrings -XX:+AggressiveOpts
JVM Initial Heap Memory (MB) 18432
JVM Maximum Heap Memory (MB) 18432
JVM Address bits 64
JVM CLASSPATH .\jbb.jar;
.\check.jar;
JVM BOOTCLASSPATH C:\Program Files\Java\jdk1.6.0_25\jre\lib\alt-string.jar;
C:\Program Files\Java\jdk1.6.0_25\jre\lib\alt-rt.jar;
C:\Program Files\Java\jdk1.6.0_25\jre\lib\resources.jar;
C:\Program Files\Java\jdk1.6.0_25\jre\lib\rt.jar;
C:\Program Files\Java\jdk1.6.0_25\jre\lib\sunrsasign.jar;
C:\Program Files\Java\jdk1.6.0_25\jre\lib\jsse.jar;
C:\Program Files\Java\jdk1.6.0_25\jre\lib\jce.jar;
C:\Program Files\Java\jdk1.6.0_25\jre\lib\charsets.jar;
C:\Program Files\Java\jdk1.6.0_25\jre\lib\modules\jdk.boot.jar;
C:\Program Files\Java\jdk1.6.0_25\jre\classes
OS Version Microsoft Windows Server 2008 R2 Enterprise with SP1
Other software N/A
Test Information
Tested by Fujitsu
SPEC license # 19
Test location Paderborn, Germany
Test date Mar 27, 2011
H/w available Jun-2011
JVM available Apr-2011
OS available Feb-2011
Other s/w available N/A
AOT Compilation
N/A
Tuning
  • Set "Hardware Prefetch = Disable" in BIOS.
  • Set "Adjacent Sector Prefetch = Disable" in BIOS.
  • Set "DCU Streamer Prefetch = Disable" in BIOS.
  • Set "DCU IP Prefetch = Disable" in BIOS.
  • Using the local security settings console, "lock pages in memory" was enabled for the user running the benchmark.
Notes


Details of Runs

Warehouses Thrput Total heap (MB) Thread spread % % > 120s transaction type Count Time (in seconds)
SizeUsed totalmax
1 94097 18168 14271 <0.01% <0.01 new_order 1240332 13.6 .016
payment 855427 4.76 .016
order_status 85542 .590 .016
delivery 85543 5.13 .016
stock_level 85542 .655 .016
cust_report 470516 4.20 .016
2 187639 18168 9899 .032% <0.01 new_order 2473093 25.9 .032
payment 1705810 10.8 .016
order_status 170581 1.49 .016
delivery 170581 9.49 .032
stock_level 170581 1.43 .016
cust_report 938524 9.09 .016
3 271039 18168 1421 .204% <0.01 new_order 3573319 36.9 .031
payment 2463989 16.1 .031
order_status 246400 1.87 .016
delivery 246398 17.0 .016
stock_level 246399 1.92 .016
cust_report 1354655 13.7 .031
4 339072 18276 2037 2.10% <0.01 new_order 4469127 51.4 .047
payment 3082473 20.4 .047
order_status 308247 2.85 .016
delivery 308246 21.6 .046
stock_level 308247 2.50 .016
cust_report 1695810 18.0 .047
5 358552 18286 5209 18.2% <0.01 new_order 4728469 62.0 .047
payment 3261191 25.9 .047
order_status 326119 3.16 .016
delivery 326118 27.9 .047
stock_level 326120 3.45 .016
cust_report 1793925 23.4 .031
6 371182 18312 10010 13.5% <0.01 new_order 4893000 72.4 .032
payment 3374381 31.1 .032
order_status 337439 3.54 .016
delivery 337437 35.9 .032
stock_level 337436 4.69 .016
cust_report 1855771 27.6 .032
7 384770 18316 799 13.9% <0.01 new_order 5070977 81.5 .031
payment 3497913 34.1 .031
order_status 349790 4.30 .016
delivery 349790 47.9 .031
stock_level 349790 5.36 .016
cust_report 1924844 31.9 .031
8 385872 18390 5108 1.39% <0.01 new_order 40692837 701 .032
payment 28063411 297 .032
order_status 2806344 39.0 .016
delivery 2806339 501 .032
stock_level 2806340 52.6 .016
cust_report 15433992 287 .032
9 386306 18399 9689 18.6% <0.01 new_order 40740873 789 2.44
payment 28096770 327 .343
order_status 2809679 45.0 .219
delivery 2809679 563 8.95
stock_level 2809678 59.7 .219
cust_report 15452675 337 4.47
10 397882 18383 10519 21.8% <0.01 new_order 41956709 902 .437
payment 28936855 390 .422
order_status 2893687 48.9 .219
delivery 2893685 651 .437
stock_level 2893686 71.5 .406
cust_report 15917000 369 .422
11 383414 18384 11409 29.2% <0.01 new_order 40430904 950 .563
payment 27884673 415 .422
order_status 2788468 54.0 .422
delivery 2788465 691 .547
stock_level 2788468 75.9 .422
cust_report 15338454 390 .641
12 383823 18378 13886 43.0% <0.01 new_order 40478880 1060 .625
payment 27914419 447 .422
order_status 2791443 57.5 .484
delivery 2791442 754 .640
stock_level 2791442 79.0 .422
cust_report 15349969 430 .547
13 413799 18338 16764 34.4% <0.01 new_order 43641258 1236 .985
payment 30094493 540 1.19
order_status 3009449 70.7 .625
delivery 3009451 869 .719
stock_level 3009450 96.6 .828
cust_report 16547744 495 .985
14 382217 18345 1787 42.6% <0.01 new_order 40305218 1222 .703
payment 27797605 539 .922
order_status 2779762 62.7 .672
delivery 2779757 888 .703
stock_level 2779763 101 .563
cust_report 15290006 493 .719
15 394923 18344 960 43.0% <0.01 new_order 41650425 1377 .953
payment 28723622 577 .828
order_status 2872363 85.5 .765
delivery 2872361 982 .968
stock_level 2872363 103 .625
cust_report 15796823 540 .703
16 395285 18341 16552 35.7% <0.01 new_order 41684502 1449 .890
payment 28748012 644 .812
order_status 2874802 82.3 .422
delivery 2874797 1050 .968
stock_level 2874801 110 .688
cust_report 15811509 574 .828

SPECjbb2005 Version: [SPECjbb2005 1.07, March 15, 2006]
Reporting page, Copyright © 2005-2007 SPEC. All rights reserved

First published at SPEC.org on 27-Apr-2011
