SPECjbb2005 SPECjbb2005 bops = 929994, SPECjbb2005 bops/JVM = 154999
Dell Inc. PowerEdge R710 (Intel Xeon X5690, 3.46 GHz)
IBM Corporation IBM J9 VM (build 2.4, J2RE 1.6.0 IBM J9 2.4 Windows Server 2008 amd64-64 jvmwa64 60sr5-20090519_35743 (JIT enabled, AOT enabled)

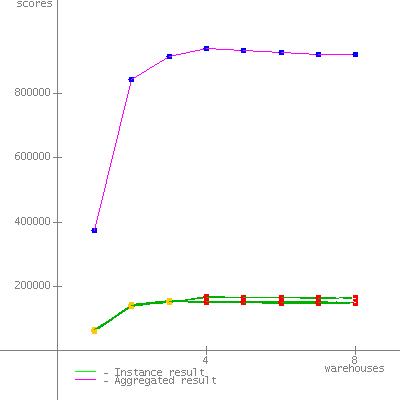

JVM run JVM Scores
1165422
2152615
3149089
4164560
5148042
6150266
SPECjbb2005 bops = 929994, SPECjbb2005 bops/JVM = 154999

Hardware
Hardware Vendor Dell Inc.
Vendor URL http://www.dell.com
Model PowerEdge R710 (Intel Xeon X5690, 3.46 GHz)
Processor Intel Xeon X5690 (Intel Turbo Boost Technology up to 3.73 GHz)
MHz 3467
# of Chips 2
# of Cores 12
# of Cores/Chip 6
HW Threading Enabled? Yes
Procs Avail to Java 24
Memory (MB) 49152
Memory Details 12 x 4 GB PC3-10600R (CAS 9-9-9)
Primary cache 32 KB (I) + 32 KB (D)
Secondary cache 256 KB (I+D) on chip per core
Other cache 12 MB (I+D) on chip per chip
Filesystem NTFS
Disks 1 x 73 GB 2.5" SAS (classes + OS)
Other hardware None
Software
Software Vendor IBM Corporation
Vendor URL http://www.IBM.com
JVM Version IBM J9 VM (build 2.4, J2RE 1.6.0 IBM J9 2.4 Windows Server 2008 amd64-64 jvmwa64 60sr5-20090519_35743 (JIT enabled, AOT enabled)
JVM Command Line start /HIGH /AFFINITY [0xF,0x70,0x700,0xF000,0x70000,0x700000] /B java -Xmn1400m -Xms1875m -Xmx1875m -Xaggressive -Xcompressedrefs -Xgcpolicy:gencon -XlockReservation -Xnoloa -XtlhPrefetch -Xlp
JVM Initial Heap Memory (MB) 1875
JVM Maximum Heap Memory (MB) 1875
JVM Address bits 64
JVM CLASSPATH .\jbb.jar;
.\check.jar;
JVM BOOTCLASSPATH c:\specjbb2005\jvm\jre\bin\compressedrefs\jclSC160\vm.jar;
c:\specjbb2005\jvm\jre\lib\annotation.jar;
c:\specjbb2005\jvm\jre\lib\beans.jar;
c:\specjbb2005\jvm\jre\lib\java.util.jar;
c:\specjbb2005\jvm\jre\lib\jndi.jar;
c:\specjbb2005\jvm\jre\lib\logging.jar;
c:\specjbb2005\jvm\jre\lib\security.jar;
c:\specjbb2005\jvm\jre\lib\sql.jar;
c:\specjbb2005\jvm\jre\lib\ibmorb.jar;
c:\specjbb2005\jvm\jre\lib\ibmorbapi.jar;
c:\specjbb2005\jvm\jre\lib\ibmcfw.jar;
c:\specjbb2005\jvm\jre\lib\rt.jar;
c:\specjbb2005\jvm\jre\lib\charsets.jar;
c:\specjbb2005\jvm\jre\lib\resources.jar;
c:\specjbb2005\jvm\jre\lib\ibmpkcs.jar;
c:\specjbb2005\jvm\jre\lib\ibmcertpathfw.jar;
c:\specjbb2005\jvm\jre\lib\ibmjgssfw.jar;
c:\specjbb2005\jvm\jre\lib\ibmjssefw.jar;
c:\specjbb2005\jvm\jre\lib\ibmsaslfw.jar;
c:\specjbb2005\jvm\jre\lib\ibmjcefw.jar;
c:\specjbb2005\jvm\jre\lib\ibmjgssprovider.jar;
c:\specjbb2005\jvm\jre\lib\ibmjsseprovider2.jar;
c:\specjbb2005\jvm\jre\lib\ibmcertpathprovider.jar;
c:\specjbb2005\jvm\jre\lib\ibmxmlcrypto.jar;
c:\specjbb2005\jvm\jre\lib\management-agent.jar;
c:\specjbb2005\jvm\jre\lib\xml.jar;
c:\specjbb2005\jvm\jre\lib\jlm.jar;
c:\specjbb2005\jvm\jre\lib\javascript.jar
OS Version Microsoft Windows Server 2008 R2 Enterprise
Other software IBM Websphere application server V7.0 for Windows on x86-64bit.
Test Information
Tested by Dell Inc.
SPEC license # 55
Test location
Test date Feb 9, 2011
H/w available Feb-2011
JVM available Jul-2009
OS available Oct-2009
Other s/w available N/A
AOT Compilation
None
Tuning
Operating system tunings
  • Using the local security settings console, "Lock pages in memory" was enabled for the user running the benchmark
  • Hardware Prefetcher disabled in BIOS
  • Adjacent Cache Line Prefetch disabled in BIOS
  • DCU Prefetcher disabled in BIOS
  • Data Reuse disabled in BIOS
  • Maximum Performance Mode selected in BIOS
  • Each JVM instance was affinitized to 2 cores of a socket
Notes
Command line options are described at: http://publib.boulder.ibm.com/infocenter/javasdk/v6r0/index.jsp

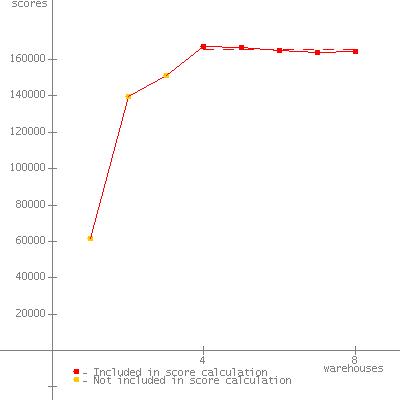

JVM 1 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 61809
2 139991
3 151285
4 167399 *
5 166584 *
6 164889 *
7 163949 *
8 164289 *
SPECjbb2005 (from 4 to 8) 165422 SPECjbb2005 bops
SPEC license # 55 Tested by: Dell Inc. Test date: Feb 9, 2011


JVM 2 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 62818
2 144620
3 156539
4 154172 *
5 153396 *
6 152613 *
7 151754 *
8 151142 *
SPECjbb2005 (from 4 to 8) 152615 SPECjbb2005 bops
SPEC license # 55 Tested by: Dell Inc. Test date: Feb 9, 2011


JVM 3 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 61758
2 140365
3 151735
4 150794 *
5 149934 *
6 148919 *
7 148106 *
8 147692 *
SPECjbb2005 (from 4 to 8) 149089 SPECjbb2005 bops
SPEC license # 55 Tested by: Dell Inc. Test date: Feb 9, 2011

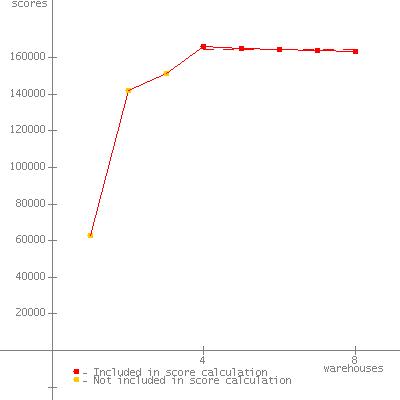

JVM 4 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 62825
2 142301
3 151107
4 166260 *
5 164870 *
6 164592 *
7 163782 *
8 163295 *
SPECjbb2005 (from 4 to 8) 164560 SPECjbb2005 bops
SPEC license # 55 Tested by: Dell Inc. Test date: Feb 9, 2011

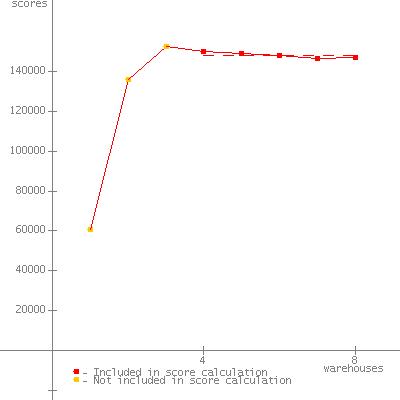

JVM 5 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 60615
2 136166
3 152708
4 149859 *
5 148975 *
6 147964 *
7 146543 *
8 146869 *
SPECjbb2005 (from 4 to 8) 148042 SPECjbb2005 bops
SPEC license # 55 Tested by: Dell Inc. Test date: Feb 9, 2011


JVM 6 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 65217
2 141971
3 153612
4 151792 *
5 150911 *
6 149948 *
7 149420 *
8 149258 *
SPECjbb2005 (from 4 to 8) 150266 SPECjbb2005 bops
SPEC license # 55 Tested by: Dell Inc. Test date: Feb 9, 2011

SPECjbb2005 Version: [SPECjbb2005 1.07, March 15, 2006]
Reporting page, Copyright © 2005-2007 SPEC. All rights reserved

First published at SPEC.org on 09-Mar-2011
