SPECjbb2005 SPECjbb2005 bops = 930166, SPECjbb2005 bops/JVM = 155028
IBM Corporation IBM System x3550 M3
IBM Corporation IBM J9 VM (build 2.4, J2RE 1.6.0 IBM J9 2.4 Windows Server 2008 amd64-64 jvmwa6460sr5-20090326_01(SR5) (JIT enabled, AOT enabled)

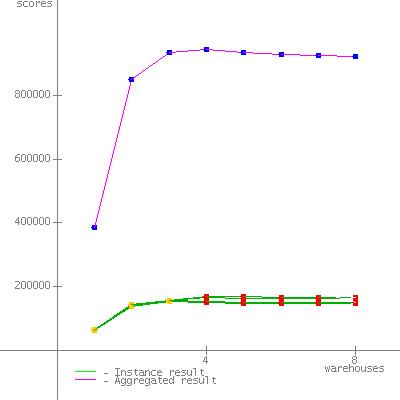

JVM run JVM Scores
1150435
2163930
3167355
4148936
5148449
6151061
SPECjbb2005 bops = 930166, SPECjbb2005 bops/JVM = 155028

Hardware
Hardware Vendor IBM Corporation
Vendor URL http://www.ibm.com
Model IBM System x3550 M3
Processor Intel Xeon X5690
MHz 3460
# of Chips 2
# of Cores 12
# of Cores/Chip 6
HW Threading Enabled? Yes
Procs Avail to Java 24
Memory (MB) 24576
Memory Details 12 x 2GB, 2Rx8 PC3L-10600R; slots 2, 3, 5, 6, 8, 9, 11, 12, 14, 15, 17 and 18 populated
Primary cache 32KBI+32KBD
Secondary cache 256 KB (I+D) on chip per core
Other cache 12 MB per processor
Filesystem NTFS
Disks 1 x 50GB SATA SSD,IBM Feature code 5197
Other hardware
Software
Software Vendor IBM Corporation
Vendor URL http://www.ibm.com
JVM Version IBM J9 VM (build 2.4, J2RE 1.6.0 IBM J9 2.4 Windows Server 2008 amd64-64 jvmwa6460sr5-20090326_01(SR5) (JIT enabled, AOT enabled)
JVM Command Line start /AFFINITY %HEX% java -Xaggressive -Xcompressedrefs -Xgcpolicy:gencon -Xmn1500m -Xms1875m -Xmx1875m -XlockReservation -Xnoloa -XtlhPrefetch -Xlp spec.jbb.JBBmain -propfile SPECjbb.props
JVM Initial Heap Memory (MB) 1875
JVM Maximum Heap Memory (MB) 1875
JVM Address bits 64
JVM CLASSPATH .\jbb.jar;
.\check.jar;
JVM BOOTCLASSPATH C:\IBM\Java60\jre\bin\compressedrefs\jclSC160\vm.jar;
C:\IBM\Java60\jre\lib\annotation.jar;
C:\IBM\Java60\jre\lib\beans.jar;
C:\IBM\Java60\jre\lib\java.util.jar;
C:\IBM\Java60\jre\lib\jndi.jar;
C:\IBM\Java60\jre\lib\logging.jar;
C:\IBM\Java60\jre\lib\security.jar;
C:\IBM\Java60\jre\lib\sql.jar;
C:\IBM\Java60\jre\lib\ibmorb.jar;
C:\IBM\Java60\jre\lib\ibmorbapi.jar;
C:\IBM\Java60\jre\lib\ibmcfw.jar;
C:\IBM\Java60\jre\lib\rt.jar;
C:\IBM\Java60\jre\lib\charsets.jar;
C:\IBM\Java60\jre\lib\resources.jar;
C:\IBM\Java60\jre\lib\ibmpkcs.jar;
C:\IBM\Java60\jre\lib\ibmcertpathfw.jar;
C:\IBM\Java60\jre\lib\ibmjgssfw.jar;
C:\IBM\Java60\jre\lib\ibmjssefw.jar;
C:\IBM\Java60\jre\lib\ibmsaslfw.jar;
C:\IBM\Java60\jre\lib\ibmjcefw.jar;
C:\IBM\Java60\jre\lib\ibmjgssprovider.jar;
C:\IBM\Java60\jre\lib\ibmjsseprovider2.jar;
C:\IBM\Java60\jre\lib\ibmcertpathprovider.jar;
C:\IBM\Java60\jre\lib\ibmxmlcrypto.jar;
C:\IBM\Java60\jre\lib\management-agent.jar;
C:\IBM\Java60\jre\lib\xml.jar;
C:\IBM\Java60\jre\lib\jlm.jar;
C:\IBM\Java60\jre\lib\javascript.jar
OS Version Microsoft Windows Server 2008 Enterprise x64 Edition R2
Other software
Test Information
Tested by IBM Corporation
SPEC license # 11
Test location Taipei, Taiwan
Test date Jan 19, 2011
H/w available Mar-2011
JVM available Jun-2009
OS available Oct-2009
Other s/w available
AOT Compilation

Tuning
  • Affinity masks set to 0xF, 0x70, 0x700, 0xF000, 0x70000, 0x700000
  • Using the local security settings console, "lock pages in memory" was enabled for the user running the benchmark.
  • Power Options: High Performance
  • BIOS Settings
    • Turbo Mode: Enable
    • Turbo Boost Power Optimization: Traditional
    • CPU C-States: Enable
    • Processor Data Prefetch: Disable
    • Data Reuse: Disable
    • LV-DIMM Power: Enhanced Performance
    • Demand Scrub: Disable
Notes

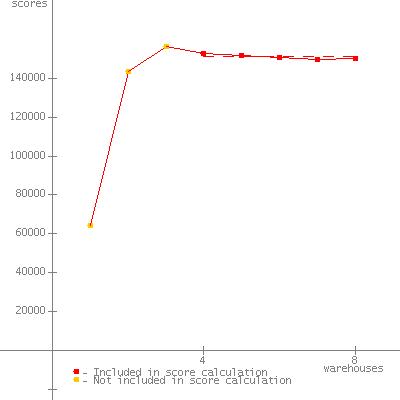

JVM 1 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 63643
2 139186
3 154801
4 153453 *
5 151109 *
6 150529 *
7 148762 *
8 148324 *
SPECjbb2005 (from 4 to 8) 150435 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Jan 19, 2011

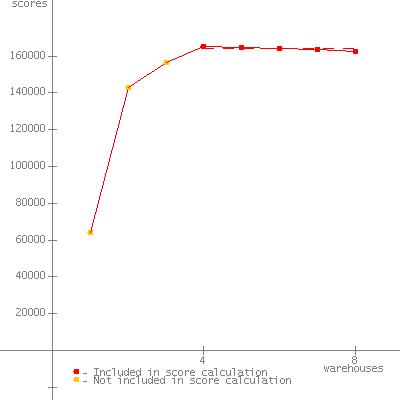

JVM 2 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 64090
2 142931
3 156550
4 165374 *
5 164427 *
6 163897 *
7 163489 *
8 162464 *
SPECjbb2005 (from 4 to 8) 163930 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Jan 19, 2011


JVM 3 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 65296
2 145127
3 157807
4 169772 *
5 168331 *
6 166990 *
7 166527 *
8 165153 *
SPECjbb2005 (from 4 to 8) 167355 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Jan 19, 2011


JVM 4 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 65102
2 141153
3 154256
4 150664 *
5 149972 *
6 148854 *
7 148140 *
8 147047 *
SPECjbb2005 (from 4 to 8) 148936 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Jan 19, 2011


JVM 5 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 63649
2 139094
3 153294
4 150212 *
5 148926 *
6 148379 *
7 147224 *
8 147506 *
SPECjbb2005 (from 4 to 8) 148449 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Jan 19, 2011


JVM 6 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 64483
2 143451
3 156497
4 152927 *
5 151784 *
6 150764 *
7 149697 *
8 150133 *
SPECjbb2005 (from 4 to 8) 151061 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Jan 19, 2011

SPECjbb2005 Version: [SPECjbb2005 1.07, March 15, 2006]
Reporting page, Copyright © 2005-2007 SPEC. All rights reserved

First published at SPEC.org on 09-Mar-2011
