SPECjbb2005 SPECjbb2005 bops = 934133, SPECjbb2005 bops/JVM = 233533
Hewlett-Packard Company ProLiant DL165 G7
IBM Corporation IBM J9 VM (build 2.4, J2RE 1.6.0 IBM J9 2.4 Windows Server 2008 amd64-64 jvmwa6460sr5-20090519_35743 (JIT enabled, AOT enabled)

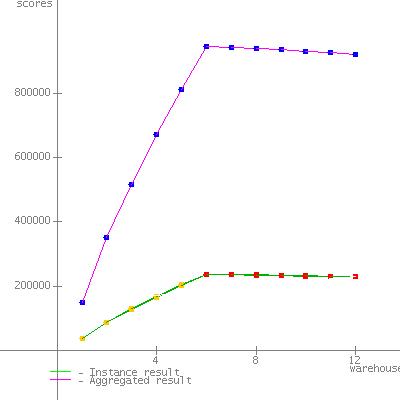

JVM run JVM Scores
1233506
2233919
3233193
4233515
SPECjbb2005 bops = 934133, SPECjbb2005 bops/JVM = 233533

Hardware
Hardware Vendor Hewlett-Packard Company
Vendor URL http://www.hp.com
Model ProLiant DL165 G7
Processor AMD Opteron 6176
MHz 2300
# of Chips 2
# of Cores 24
# of Cores/Chip 12
HW Threading Enabled? No
Procs Avail to Java 24
Memory (MB) 65536
Memory Details 16 x 4 GB 2Rx4 PC3-10600R-9, ECC
Primary cache 64 KB I + 64 KB D on chip per core
Secondary cache 512 KB I+D on chip per core
Other cache 12 MB I+D on chip per chip, 6 MB shared / 6 cores
Filesystem NTFS
Disks 1 x 160 GB 7.2 K SATA
Other hardware
Software
Software Vendor IBM Corporation
Vendor URL http://www.ibm.com
JVM Version IBM J9 VM (build 2.4, J2RE 1.6.0 IBM J9 2.4 Windows Server 2008 amd64-64 jvmwa6460sr5-20090519_35743 (JIT enabled, AOT enabled)
JVM Command Line java -Xaggressive -Xcompressedrefs -Xgcpolicy:gencon -Xmn1500m -Xms1900m -Xmx1900m -XlockReservation -Xnoloa -XtlhPrefetch -Xlp -spec.jbb.JBBmain -propfile SPECjbb.V1.props6
JVM Initial Heap Memory (MB) 1900
JVM Maximum Heap Memory (MB) 1900
JVM Address bits 64
JVM CLASSPATH .\jbb.jar;
.\check.jar;
JVM BOOTCLASSPATH C:\java\Jul-2009-update\jre\bin\compressedrefs\jclSC160\vm.jar;
C:\java\Jul-2009-update\jre\lib\annotation.jar;
C:\java\Jul-2009-update\jre\lib\beans.jar;
C:\java\Jul-2009-update\jre\lib\java.util.jar;
C:\java\Jul-2009-update\jre\lib\jndi.jar;
C:\java\Jul-2009-update\jre\lib\logging.jar;
C:\java\Jul-2009-update\jre\lib\security.jar;
C:\java\Jul-2009-update\jre\lib\sql.jar;
C:\java\Jul-2009-update\jre\lib\ibmorb.jar;
C:\java\Jul-2009-update\jre\lib\ibmorbapi.jar;
C:\java\Jul-2009-update\jre\lib\ibmcfw.jar;
C:\java\Jul-2009-update\jre\lib\rt.jar;
C:\java\Jul-2009-update\jre\lib\charsets.jar;
C:\java\Jul-2009-update\jre\lib\resources.jar;
C:\java\Jul-2009-update\jre\lib\ibmpkcs.jar;
C:\java\Jul-2009-update\jre\lib\ibmcertpathfw.jar;
C:\java\Jul-2009-update\jre\lib\ibmjgssfw.jar;
C:\java\Jul-2009-update\jre\lib\ibmjssefw.jar;
C:\java\Jul-2009-update\jre\lib\ibmsaslfw.jar;
C:\java\Jul-2009-update\jre\lib\ibmjcefw.jar;
C:\java\Jul-2009-update\jre\lib\ibmjgssprovider.jar;
C:\java\Jul-2009-update\jre\lib\ibmjsseprovider2.jar;
C:\java\Jul-2009-update\jre\lib\ibmcertpathprovider.jar;
C:\java\Jul-2009-update\jre\lib\ibmxmlcrypto.jar;
C:\java\Jul-2009-update\jre\lib\management-agent.jar;
C:\java\Jul-2009-update\jre\lib\xml.jar;
C:\java\Jul-2009-update\jre\lib\jlm.jar;
C:\java\Jul-2009-update\jre\lib\javascript.jar
OS Version Microsoft Windows Server 2008 Enterprise x64 Edition R2
Other software
Test Information
Tested by Hewlett-Packard Company
SPEC license # 3
Test location
Test date Feb 7, 2011
H/w available Feb-2011
JVM available Jul-2009
OS available Sep-2009
Other s/w available
AOT Compilation

Tuning
  • "Lock pages in memory" enabled for benchmark user
  • Power Option Set to High Performance
  • Used start /affinity to bind each JVM to 6 cores in each socket
    • Used the following affinity masks: [3F,FC0,3F000,FC0000]
Notes
Java command line options are described at http://publib.boulder.ibm.com/infocenter/javasdk/v6r0/index.jsp
BIOS Configuration
  • Memory Interleaving set to Full Interleaving
  • Node Interleaving set to Disabled
  • Hardware and Software Prefetcher set to Disabled
  • 1 GB Mem gap set to Disabled
  • HT Assist set to Enabled

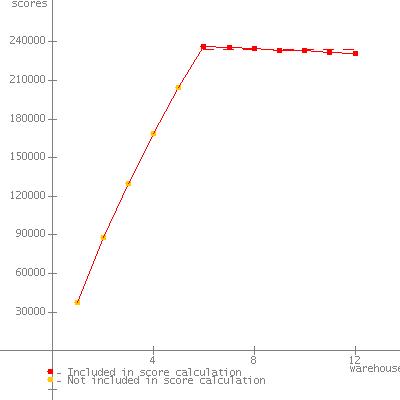

JVM 1 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 37505
2 87054
3 128850
4 169094
5 203254
6 236659 *
7 235061 *
8 235380 *
9 233942 *
10 231262 *
11 231529 *
12 230710 *
SPECjbb2005 (from 6 to 12) 233506 SPECjbb2005 bops
SPEC license # 3 Tested by: Hewlett-Packard Company Test date: Feb 7, 2011


JVM 2 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 37638
2 88012
3 130212
4 169196
5 204761
6 236749 *
7 235951 *
8 235080 *
9 233630 *
10 233187 *
11 231911 *
12 230927 *
SPECjbb2005 (from 6 to 12) 233919 SPECjbb2005 bops
SPEC license # 3 Tested by: Hewlett-Packard Company Test date: Feb 7, 2011


JVM 3 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 37264
2 87366
3 128697
4 165206
5 201238
6 236781 *
7 235120 *
8 233918 *
9 234093 *
10 232058 *
11 231263 *
12 229122 *
SPECjbb2005 (from 6 to 12) 233193 SPECjbb2005 bops
SPEC license # 3 Tested by: Hewlett-Packard Company Test date: Feb 7, 2011


JVM 4 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 37377
2 88049
3 129667
4 167283
5 201204
6 236264 *
7 235462 *
8 234635 *
9 233355 *
10 232753 *
11 231297 *
12 230840 *
SPECjbb2005 (from 6 to 12) 233515 SPECjbb2005 bops
SPEC license # 3 Tested by: Hewlett-Packard Company Test date: Feb 7, 2011

SPECjbb2005 Version: [SPECjbb2005 1.07, March 15, 2006]
Reporting page, Copyright © 2005-2007 SPEC. All rights reserved

First published at SPEC.org on 23-Feb-2011
