SPECjbb2005 SPECjbb2005 bops = 1017141, SPECjbb2005 bops/JVM = 127143
Cisco Systems Cisco UCS B230 M1
IBM Corporation IBM J9 VM (build 2.4, J2RE 1.6.0 IBM J9 2.4 Windows Server 2008 amd64-64 jvmwa6460sr5-20090519_35743 (JIT enabled, AOT enabled)

JVM run JVM Scores
1125319
2127615
3127699
4128201
5127752
6125353
7127851
8127351
SPECjbb2005 bops = 1017141, SPECjbb2005 bops/JVM = 127143

Hardware
Hardware Vendor Cisco Systems
Vendor URL http://www.cisco.com
Model Cisco UCS B230 M1
Processor Intel Xeon X7560 (Intel Turbo Boost Technology up to 2.666GHz)
MHz 2266
# of Chips 2
# of Cores 16
# of Cores/Chip 8
HW Threading Enabled? yes
Procs Avail to Java 32
Memory (MB) 131072
Memory Details 128GB (32 x 4GB 2Rx4 PC3L-10600R, ECC, running 1066MHz)
Primary cache 32KB I + 32KB D on chip per core
Secondary cache 256KB(I+D) on chip per core
Other cache 24MB(I+D) on chip per chip
Filesystem NTFS
Disks 2 x 64GB 3Gb/s SATA SSD
Other hardware Cisco UCS 6120XP 20 Port Fabric Interconnect, Cisco UCS 5100 Series Blade Server Chassis, Cisco UCS 2104XP Fabric Extender
Software
Software Vendor IBM Corporation
Vendor URL http://www.ibm.com
JVM Version IBM J9 VM (build 2.4, J2RE 1.6.0 IBM J9 2.4 Windows Server 2008 amd64-64 jvmwa6460sr5-20090519_35743 (JIT enabled, AOT enabled)
JVM Command Line java /HIGH /AFFINITY [0xF,0xF0,0xF00,0xF000,0xF0000,0xF00000,0xF000000,0xF0000000] -Xaggressive -Xcompressedrefs -Xgcpolicy:gencon -Xmn1400m -Xms1875m -Xmx1875m -XlockReservation -Xnoloa -XtlhPrefetch -Xlp spec.jbb.JBBmain -propfile SPECjbb-UCS-B230-M1.props
JVM Initial Heap Memory (MB) 1875
JVM Maximum Heap Memory (MB) 1875
JVM Address bits 64
JVM CLASSPATH .\jbb.jar;
.\check.jar;
JVM BOOTCLASSPATH C:\Java\IBM_J9_SR5_x8664_Windows\Java\jre\bin\compressedrefs\jclSC160\vm.jar;
C:\Java\IBM_J9_SR5_x8664_Windows\Java\jre\lib\annotation.jar;
C:\Java\IBM_J9_SR5_x8664_Windows\Java\jre\lib\beans.jar;
C:\Java\IBM_J9_SR5_x8664_Windows\Java\jre\lib\java.util.jar;
C:\Java\IBM_J9_SR5_x8664_Windows\Java\jre\lib\jndi.jar;
C:\Java\IBM_J9_SR5_x8664_Windows\Java\jre\lib\logging.jar;
C:\Java\IBM_J9_SR5_x8664_Windows\Java\jre\lib\security.jar;
C:\Java\IBM_J9_SR5_x8664_Windows\Java\jre\lib\sql.jar;
C:\Java\IBM_J9_SR5_x8664_Windows\Java\jre\lib\ibmorb.jar;
C:\Java\IBM_J9_SR5_x8664_Windows\Java\jre\lib\ibmorbapi.jar;
C:\Java\IBM_J9_SR5_x8664_Windows\Java\jre\lib\ibmcfw.jar;
C:\Java\IBM_J9_SR5_x8664_Windows\Java\jre\lib\rt.jar;
C:\Java\IBM_J9_SR5_x8664_Windows\Java\jre\lib\charsets.jar;
C:\Java\IBM_J9_SR5_x8664_Windows\Java\jre\lib\resources.jar;
C:\Java\IBM_J9_SR5_x8664_Windows\Java\jre\lib\ibmpkcs.jar;
C:\Java\IBM_J9_SR5_x8664_Windows\Java\jre\lib\ibmcertpathfw.jar;
C:\Java\IBM_J9_SR5_x8664_Windows\Java\jre\lib\ibmjgssfw.jar;
C:\Java\IBM_J9_SR5_x8664_Windows\Java\jre\lib\ibmjssefw.jar;
C:\Java\IBM_J9_SR5_x8664_Windows\Java\jre\lib\ibmsaslfw.jar;
C:\Java\IBM_J9_SR5_x8664_Windows\Java\jre\lib\ibmjcefw.jar;
C:\Java\IBM_J9_SR5_x8664_Windows\Java\jre\lib\ibmjgssprovider.jar;
C:\Java\IBM_J9_SR5_x8664_Windows\Java\jre\lib\ibmjsseprovider2.jar;
C:\Java\IBM_J9_SR5_x8664_Windows\Java\jre\lib\ibmcertpathprovider.jar;
C:\Java\IBM_J9_SR5_x8664_Windows\Java\jre\lib\ibmxmlcrypto.jar;
C:\Java\IBM_J9_SR5_x8664_Windows\Java\jre\lib\management-agent.jar;
C:\Java\IBM_J9_SR5_x8664_Windows\Java\jre\lib\xml.jar;
C:\Java\IBM_J9_SR5_x8664_Windows\Java\jre\lib\jlm.jar;
C:\Java\IBM_J9_SR5_x8664_Windows\Java\jre\lib\javascript.jar
OS Version Microsoft Windows Server 2008 R2 Enterprise Edition x64
Other software None
Test Information
Tested by Cisco Systems
SPEC license # 9019
Test location San Jose, CA
Test date Sep 8, 2010
H/w available Oct-2010
JVM available May-2009
OS available Oct-2009
Other s/w available N/A
AOT Compilation

Tuning
Operating system tunings
  • Turned off "Hardware Prefetcher" in BIOS.
  • Turned off "Adjacent Cache Line Prefetch" in BIOS.
  • "Lock pages in memory" enabled for benchmark user.
  • Each JVM instance was affinitized to four logical cores of a chip.
Notes
Command line options are described at: http://publib.boulder.ibm.com/infocenter/javasdk/v6r0/index.jsp

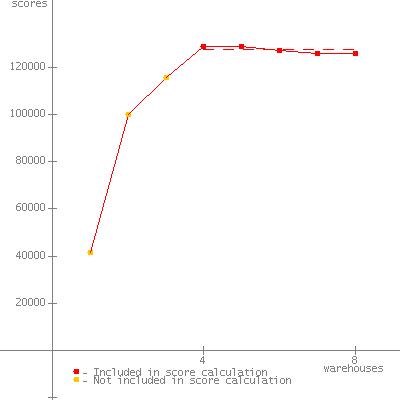

JVM 1 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 43205
2 97280
3 111539
4 126970 *
5 125531 *
6 125730 *
7 124337 *
8 124027 *
SPECjbb2005 (from 4 to 8) 125319 SPECjbb2005 bops
SPEC license # 9019 Tested by: Cisco Systems Test date: Sep 8, 2010

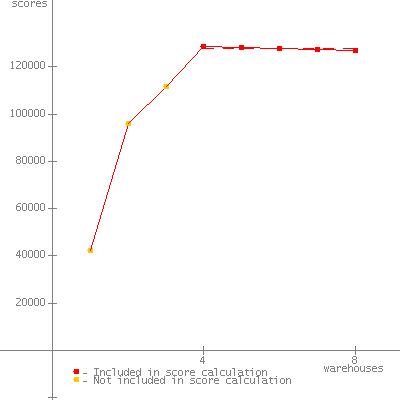

JVM 2 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 42182
2 96311
3 116085
4 129179 *
5 128888 *
6 126956 *
7 126487 *
8 126567 *
SPECjbb2005 (from 4 to 8) 127615 SPECjbb2005 bops
SPEC license # 9019 Tested by: Cisco Systems Test date: Sep 8, 2010


JVM 3 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 42849
2 99112
3 116701
4 129657 *
5 128545 *
6 127669 *
7 126194 *
8 126432 *
SPECjbb2005 (from 4 to 8) 127699 SPECjbb2005 bops
SPEC license # 9019 Tested by: Cisco Systems Test date: Sep 8, 2010


JVM 4 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 42051
2 99319
3 113670
4 129978 *
5 129112 *
6 127733 *
7 127882 *
8 126298 *
SPECjbb2005 (from 4 to 8) 128201 SPECjbb2005 bops
SPEC license # 9019 Tested by: Cisco Systems Test date: Sep 8, 2010


JVM 5 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 41318
2 99062
3 115251
4 129157 *
5 128825 *
6 127611 *
7 126958 *
8 126208 *
SPECjbb2005 (from 4 to 8) 127752 SPECjbb2005 bops
SPEC license # 9019 Tested by: Cisco Systems Test date: Sep 8, 2010


JVM 6 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 40123
2 95247
3 111039
4 127143 *
5 126389 *
6 124885 *
7 124600 *
8 123749 *
SPECjbb2005 (from 4 to 8) 125353 SPECjbb2005 bops
SPEC license # 9019 Tested by: Cisco Systems Test date: Sep 8, 2010


JVM 7 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 42416
2 95843
3 111739
4 128707 *
5 128308 *
6 127869 *
7 127285 *
8 127084 *
SPECjbb2005 (from 4 to 8) 127851 SPECjbb2005 bops
SPEC license # 9019 Tested by: Cisco Systems Test date: Sep 8, 2010


JVM 8 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 41633
2 100063
3 115788
4 128965 *
5 128954 *
6 127064 *
7 125943 *
8 125827 *
SPECjbb2005 (from 4 to 8) 127351 SPECjbb2005 bops
SPEC license # 9019 Tested by: Cisco Systems Test date: Sep 8, 2010

SPECjbb2005 Version: [SPECjbb2005 1.07, March 15, 2006]
Reporting page, Copyright © 2005-2007 SPEC. All rights reserved

First published at SPEC.org on 06-Oct-2010
