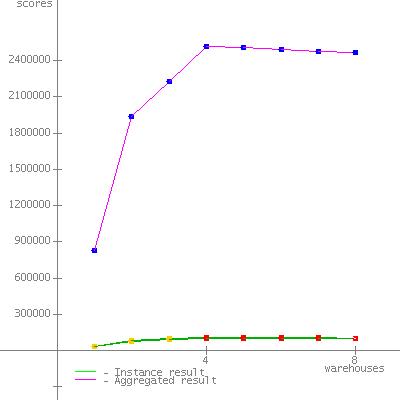

SPECjbb2005 SPECjbb2005 bops = 2491139, SPECjbb2005 bops/JVM = 103797
Fujitsu PRIMERGY RX900 S1, Intel Xeon E7540, 2.0 GHz
IBM Corporation IBM J9 VM (build 2.4, JRE 1.6.0 IBM J9 2.4 Windows Server 2008 amd64-64 jvmwa6460sr6-20090923_42924 (JIT enabled, AOT enabled)

JVM run JVM Scores
1102811
2103240
3104619
4103748
5103978
6103213
7104623
8105337
9103648
10104420
11102566
12104347
13103850
14103335
15103234
16103368
17103847
18102659
19104808
20104464
21103561
22103243
23105079
24103141
SPECjbb2005 bops = 2491139, SPECjbb2005 bops/JVM = 103797

Hardware
Hardware Vendor Fujitsu
Vendor URL http://www.fujitsu.com
Model PRIMERGY RX900 S1, Intel Xeon E7540, 2.0 GHz
Processor Intel Xeon E7540 (Intel Turbo Boost Technology up to 2.26 GHz)
MHz 2000
# of Chips 8
# of Cores 48
# of Cores/Chip 6
HW Threading Enabled? Yes
Procs Avail to Java 96
Memory (MB) 1048576
Memory Details 128x8GB PC3-8500R (CAS 7-7-7)
Primary cache 32KB(I) + 32KB(D) on chip, per core
Secondary cache 256 KB(I+D) on chip, per core
Other cache 18MB(I+D) on chip, per chip
Filesystem NTFS
Disks 147GB 15K RPM SAS
Other hardware N/A
Software
Software Vendor IBM Corporation
Vendor URL http://www.ibm.com
JVM Version IBM J9 VM (build 2.4, JRE 1.6.0 IBM J9 2.4 Windows Server 2008 amd64-64 jvmwa6460sr6-20090923_42924 (JIT enabled, AOT enabled)
JVM Command Line start /HIGH /AFFINITY %AFFINITY% /B java -Xaggressive -Xcompressedrefs -Xgcpolicy:gencon -Xmn1400m -Xms1875m -Xmx1875m -XlockReservation -Xnoloa -XtlhPrefetch -Xlp
JVM Initial Heap Memory (MB) 1875
JVM Maximum Heap Memory (MB) 1875
JVM Address bits 64
JVM CLASSPATH .\jbb.jar;
.\check.jar;
JVM BOOTCLASSPATH C:\archives\installfactory.7007.windows.x64_2009-11-13\java\jre\bin\compressedrefs\jclSC160\vm.jar;
C:\archives\installfactory.7007.windows.x64_2009-11-13\java\jre\lib\annotation.jar;
C:\archives\installfactory.7007.windows.x64_2009-11-13\java\jre\lib\beans.jar;
C:\archives\installfactory.7007.windows.x64_2009-11-13\java\jre\lib\java.util.jar;
C:\archives\installfactory.7007.windows.x64_2009-11-13\java\jre\lib\jndi.jar;
C:\archives\installfactory.7007.windows.x64_2009-11-13\java\jre\lib\logging.jar;
C:\archives\installfactory.7007.windows.x64_2009-11-13\java\jre\lib\security.jar;
C:\archives\installfactory.7007.windows.x64_2009-11-13\java\jre\lib\sql.jar;
C:\archives\installfactory.7007.windows.x64_2009-11-13\java\jre\lib\ibmorb.jar;
C:\archives\installfactory.7007.windows.x64_2009-11-13\java\jre\lib\ibmorbapi.jar;
C:\archives\installfactory.7007.windows.x64_2009-11-13\java\jre\lib\ibmcfw.jar;
C:\archives\installfactory.7007.windows.x64_2009-11-13\java\jre\lib\rt.jar;
C:\archives\installfactory.7007.windows.x64_2009-11-13\java\jre\lib\charsets.jar;
C:\archives\installfactory.7007.windows.x64_2009-11-13\java\jre\lib\resources.jar;
C:\archives\installfactory.7007.windows.x64_2009-11-13\java\jre\lib\ibmpkcs.jar;
C:\archives\installfactory.7007.windows.x64_2009-11-13\java\jre\lib\ibmcertpathfw.jar;
C:\archives\installfactory.7007.windows.x64_2009-11-13\java\jre\lib\ibmjgssfw.jar;
C:\archives\installfactory.7007.windows.x64_2009-11-13\java\jre\lib\ibmjssefw.jar;
C:\archives\installfactory.7007.windows.x64_2009-11-13\java\jre\lib\ibmsaslfw.jar;
C:\archives\installfactory.7007.windows.x64_2009-11-13\java\jre\lib\ibmjcefw.jar;
C:\archives\installfactory.7007.windows.x64_2009-11-13\java\jre\lib\ibmjgssprovider.jar;
C:\archives\installfactory.7007.windows.x64_2009-11-13\java\jre\lib\ibmjsseprovider2.jar;
C:\archives\installfactory.7007.windows.x64_2009-11-13\java\jre\lib\ibmcertpathprovider.jar;
C:\archives\installfactory.7007.windows.x64_2009-11-13\java\jre\lib\ibmxmlcrypto.jar;
C:\archives\installfactory.7007.windows.x64_2009-11-13\java\jre\lib\management-agent.jar;
C:\archives\installfactory.7007.windows.x64_2009-11-13\java\jre\lib\xml.jar;
C:\archives\installfactory.7007.windows.x64_2009-11-13\java\jre\lib\jlm.jar;
C:\archives\installfactory.7007.windows.x64_2009-11-13\java\jre\lib\javascript.jar
OS Version Microsoft Windows Server 2008 Datacenter x64 Edition R2
Other software N/A
Test Information
Tested by Fujitsu
SPEC license # 19
Test location Kawasaki, Japan
Test date Aug 9, 2010
H/w available Aug-2010
JVM available Nov-2009
OS available Oct-2009
Other s/w available N/A
AOT Compilation
N/A
Tuning
  • Turned off "Hardware Prefetch" in BIOS.
  • Turned off "Adjacent Sector Prefetch" in BIOS.
  • Each JVM instance was affinitized to 2 cores of a socket.
  • Using the local security settings console, "lock pages in memory" was enabled for the user running the benchmark.
Notes
input.expected_peak_warehouse is set to 4, because Runtime.getRuntime.availableProcessors() doesn't return number of processors in the system but return number of processors in the group which command prompt belongs to on windows 2008 R2.

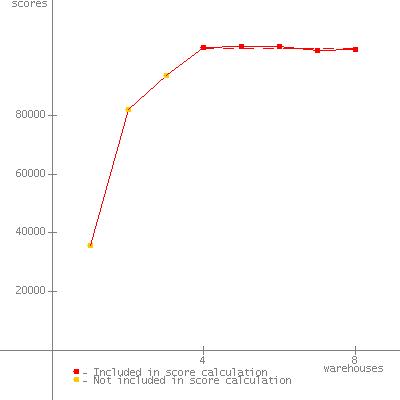

JVM 1 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 35602
2 81784
3 93634
4 103097 *
5 103457 *
6 103275 *
7 102039 *
8 102186 *
SPECjbb2005 (from 4 to 8) 102811 SPECjbb2005 bops
SPEC license # 19 Tested by: Fujitsu Test date: Aug 9, 2010


JVM 2 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 34212
2 80599
3 91252
4 104316 *
5 104332 *
6 102985 *
7 102270 *
8 102294 *
SPECjbb2005 (from 4 to 8) 103240 SPECjbb2005 bops
SPEC license # 19 Tested by: Fujitsu Test date: Aug 9, 2010


JVM 3 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 35464
2 80333
3 93285
4 105048 *
5 105242 *
6 105237 *
7 104034 *
8 103533 *
SPECjbb2005 (from 4 to 8) 104619 SPECjbb2005 bops
SPEC license # 19 Tested by: Fujitsu Test date: Aug 9, 2010


JVM 4 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 35625
2 82383
3 95649
4 104901 *
5 104627 *
6 103165 *
7 103627 *
8 102421 *
SPECjbb2005 (from 4 to 8) 103748 SPECjbb2005 bops
SPEC license # 19 Tested by: Fujitsu Test date: Aug 9, 2010


JVM 5 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 35069
2 80068
3 90707
4 105126 *
5 104194 *
6 104164 *
7 103485 *
8 102923 *
SPECjbb2005 (from 4 to 8) 103978 SPECjbb2005 bops
SPEC license # 19 Tested by: Fujitsu Test date: Aug 9, 2010


JVM 6 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 34462
2 79144
3 91309
4 104117 *
5 103741 *
6 103257 *
7 102484 *
8 102466 *
SPECjbb2005 (from 4 to 8) 103213 SPECjbb2005 bops
SPEC license # 19 Tested by: Fujitsu Test date: Aug 9, 2010


JVM 7 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 35083
2 82329
3 90974
4 105549 *
5 105662 *
6 104345 *
7 104207 *
8 103354 *
SPECjbb2005 (from 4 to 8) 104623 SPECjbb2005 bops
SPEC license # 19 Tested by: Fujitsu Test date: Aug 9, 2010


JVM 8 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 34355
2 80628
3 91226
4 106149 *
5 106037 *
6 105483 *
7 104800 *
8 104215 *
SPECjbb2005 (from 4 to 8) 105337 SPECjbb2005 bops
SPEC license # 19 Tested by: Fujitsu Test date: Aug 9, 2010


JVM 9 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 33491
2 75941
3 90945
4 104945 *
5 104518 *
6 102443 *
7 103270 *
8 103062 *
SPECjbb2005 (from 4 to 8) 103648 SPECjbb2005 bops
SPEC license # 19 Tested by: Fujitsu Test date: Aug 9, 2010


JVM 10 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 34953
2 82489
3 91857
4 106034 *
5 104856 *
6 104243 *
7 103625 *
8 103343 *
SPECjbb2005 (from 4 to 8) 104420 SPECjbb2005 bops
SPEC license # 19 Tested by: Fujitsu Test date: Aug 9, 2010


JVM 11 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 35738
2 80119
3 90768
4 104066 *
5 102997 *
6 102410 *
7 101679 *
8 101678 *
SPECjbb2005 (from 4 to 8) 102566 SPECjbb2005 bops
SPEC license # 19 Tested by: Fujitsu Test date: Aug 9, 2010


JVM 12 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 33866
2 81917
3 95021
4 103954 *
5 105327 *
6 104667 *
7 103857 *
8 103929 *
SPECjbb2005 (from 4 to 8) 104347 SPECjbb2005 bops
SPEC license # 19 Tested by: Fujitsu Test date: Aug 9, 2010


JVM 13 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 33669
2 80351
3 93593
4 104106 *
5 104824 *
6 103751 *
7 103783 *
8 102786 *
SPECjbb2005 (from 4 to 8) 103850 SPECjbb2005 bops
SPEC license # 19 Tested by: Fujitsu Test date: Aug 9, 2010


JVM 14 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 33418
2 81676
3 93656
4 104856 *
5 104150 *
6 103313 *
7 102524 *
8 101831 *
SPECjbb2005 (from 4 to 8) 103335 SPECjbb2005 bops
SPEC license # 19 Tested by: Fujitsu Test date: Aug 9, 2010


JVM 15 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 35902
2 81866
3 95254
4 103771 *
5 104051 *
6 104322 *
7 102540 *
8 101485 *
SPECjbb2005 (from 4 to 8) 103234 SPECjbb2005 bops
SPEC license # 19 Tested by: Fujitsu Test date: Aug 9, 2010


JVM 16 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 33836
2 80452
3 94939
4 104470 *
5 103434 *
6 103069 *
7 103104 *
8 102762 *
SPECjbb2005 (from 4 to 8) 103368 SPECjbb2005 bops
SPEC license # 19 Tested by: Fujitsu Test date: Aug 9, 2010


JVM 17 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 35429
2 82084
3 94608
4 104044 *
5 105082 *
6 104000 *
7 102718 *
8 103389 *
SPECjbb2005 (from 4 to 8) 103847 SPECjbb2005 bops
SPEC license # 19 Tested by: Fujitsu Test date: Aug 9, 2010


JVM 18 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 34069
2 79523
3 91982
4 103863 *
5 103396 *
6 102536 *
7 101996 *
8 101505 *
SPECjbb2005 (from 4 to 8) 102659 SPECjbb2005 bops
SPEC license # 19 Tested by: Fujitsu Test date: Aug 9, 2010


JVM 19 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 34101
2 80088
3 96948
4 105487 *
5 105492 *
6 105197 *
7 104609 *
8 103254 *
SPECjbb2005 (from 4 to 8) 104808 SPECjbb2005 bops
SPEC license # 19 Tested by: Fujitsu Test date: Aug 9, 2010


JVM 20 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 33910
2 81219
3 96007
4 105794 *
5 105331 *
6 104471 *
7 103647 *
8 103078 *
SPECjbb2005 (from 4 to 8) 104464 SPECjbb2005 bops
SPEC license # 19 Tested by: Fujitsu Test date: Aug 9, 2010


JVM 21 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 33079
2 82236
3 88899
4 104803 *
5 103614 *
6 103859 *
7 102741 *
8 102787 *
SPECjbb2005 (from 4 to 8) 103561 SPECjbb2005 bops
SPEC license # 19 Tested by: Fujitsu Test date: Aug 9, 2010


JVM 22 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 31670
2 78508
3 87876
4 104853 *
5 103717 *
6 103351 *
7 102653 *
8 101640 *
SPECjbb2005 (from 4 to 8) 103243 SPECjbb2005 bops
SPEC license # 19 Tested by: Fujitsu Test date: Aug 9, 2010


JVM 23 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 36587
2 81469
3 92994
4 106834 *
5 105170 *
6 104920 *
7 104440 *
8 104032 *
SPECjbb2005 (from 4 to 8) 105079 SPECjbb2005 bops
SPEC license # 19 Tested by: Fujitsu Test date: Aug 9, 2010


JVM 24 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 34105
2 81362
3 93234
4 103545 *
5 103955 *
6 103390 *
7 102151 *
8 102664 *
SPECjbb2005 (from 4 to 8) 103141 SPECjbb2005 bops
SPEC license # 19 Tested by: Fujitsu Test date: Aug 9, 2010

SPECjbb2005 Version: [SPECjbb2005 1.07, March 15, 2006]
Reporting page, Copyright © 2005-2007 SPEC. All rights reserved

First published at SPEC.org on 08-Sep-2010
