SPECjbb2005 SPECjbb2005 bops = 1212466, SPECjbb2005 bops/JVM = 75779
IBM Corporation IBM Power 740 Express (3.55 GHz, 16 core)
IBM Corporation JRE 1.6.0 (32-bit) IBM J9 2.4 AIX [build jvmap3260sr7-20091214_49398(SR7)]

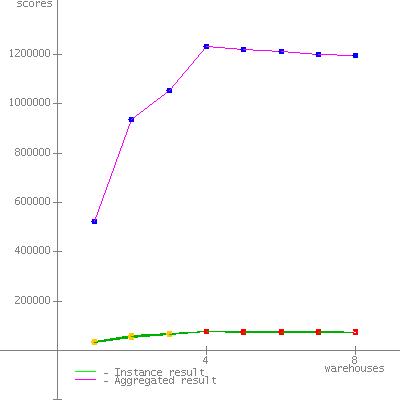

JVM run JVM Scores
176177
275807
376539
475095
576188
675439
776062
876116
976805
1076634
1174689
1275469
1375462
1475615
1575713
1674656
SPECjbb2005 bops = 1212466, SPECjbb2005 bops/JVM = 75779

Hardware
Hardware Vendor IBM Corporation
Vendor URL http://www.ibm.com
Model IBM Power 740 Express (3.55 GHz, 16 core)
Processor POWER7 (Intelligent Energy Optimization enabled, up to 3.86 GHz)
MHz 3556
# of Chips 2
# of Cores 16
# of Cores/Chip 8
HW Threading Enabled? Yes
Procs Avail to Java 64
Memory (MB) 262144
Memory Details 32 x 8GB DDR3 1066 MHz
Primary cache 32 KB I + 32 KB D on chip per core
Secondary cache 256KB I+D on chip per core
Other cache 4MB I+D on chip per core
Filesystem AIX/JFS2
Disks 1 x 146GB SAS SFF 15K RPM
Other hardware
Software
Software Vendor IBM Corporation
Vendor URL http://www.ibm.com
JVM Version JRE 1.6.0 (32-bit) IBM J9 2.4 AIX [build jvmap3260sr7-20091214_49398(SR7)]
JVM Command Line execrset -c processor_set_number -e java -Xlp -Xgcpolicy:gencon -Xms2560m -Xmx2560m -Xmn2048m -Xaggressive -XtlhPrefetch -XlockReservation -Xgcthreads4 -Xnoloa spec.jbb.JBBmain -propfile SPECjbb.props
JVM Initial Heap Memory (MB) 2560
JVM Maximum Heap Memory (MB) 2560
JVM Address bits 32
JVM CLASSPATH jbb.jar:
check.jar
JVM BOOTCLASSPATH /specjbb2005/sr7/jre/lib/vm.jar:
/specjbb2005/sr7/jre/lib/annotation.jar:
/specjbb2005/sr7/jre/lib/beans.jar:
/specjbb2005/sr7/jre/lib/java.util.jar:
/specjbb2005/sr7/jre/lib/jndi.jar:
/specjbb2005/sr7/jre/lib/logging.jar:
/specjbb2005/sr7/jre/lib/security.jar:
/specjbb2005/sr7/jre/lib/sql.jar:
/specjbb2005/sr7/jre/lib/ibmorb.jar:
/specjbb2005/sr7/jre/lib/ibmorbapi.jar:
/specjbb2005/sr7/jre/lib/ibmcfw.jar:
/specjbb2005/sr7/jre/lib/rt.jar:
/specjbb2005/sr7/jre/lib/charsets.jar:
/specjbb2005/sr7/jre/lib/resources.jar:
/specjbb2005/sr7/jre/lib/ibmpkcs.jar:
/specjbb2005/sr7/jre/lib/ibmcertpathfw.jar:
/specjbb2005/sr7/jre/lib/ibmjgssfw.jar:
/specjbb2005/sr7/jre/lib/ibmjssefw.jar:
/specjbb2005/sr7/jre/lib/ibmsaslfw.jar:
/specjbb2005/sr7/jre/lib/ibmjcefw.jar:
/specjbb2005/sr7/jre/lib/ibmjgssprovider.jar:
/specjbb2005/sr7/jre/lib/ibmjsseprovider2.jar:
/specjbb2005/sr7/jre/lib/ibmcertpathprovider.jar:
/specjbb2005/sr7/jre/lib/ibmxmlcrypto.jar:
/specjbb2005/sr7/jre/lib/management-agent.jar:
/specjbb2005/sr7/jre/lib/xml.jar:
/specjbb2005/sr7/jre/lib/jlm.jar:
/specjbb2005/sr7/jre/lib/javascript.jar
OS Version IBM AIX V7.1
Other software
Test Information
Tested by IBM Corporation
SPEC license # 11
Test location Austin, TX
Test date Aug 3, 2010
H/w available Sep-2010
JVM available Dec-2009
OS available Sep-2010
Other s/w available
AOT Compilation

Tuning
Operating system tunings
  • vmo -o lgpg_regions=12800 -o lgpg_size=16777216 -o v_pinshm=1
  • dscrctl -n -s 1
  • MEMORY_AFFINITY=MCM
Notes
  • 16 JVMs were run in processor sets each containing 1 core
  • IBM Systems Director is required to set the Intelligent Energy Optimization HW mode

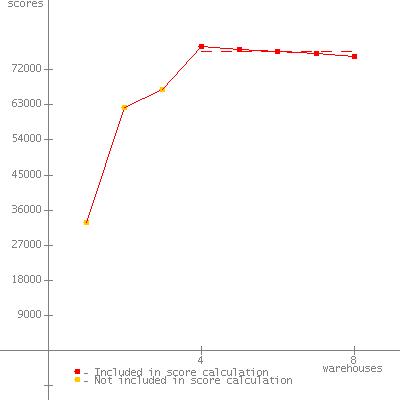

JVM 1 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 32138
2 59797
3 65346
4 77483 *
5 76799 *
6 76093 *
7 75484 *
8 75026 *
SPECjbb2005 (from 4 to 8) 76177 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Aug 3, 2010

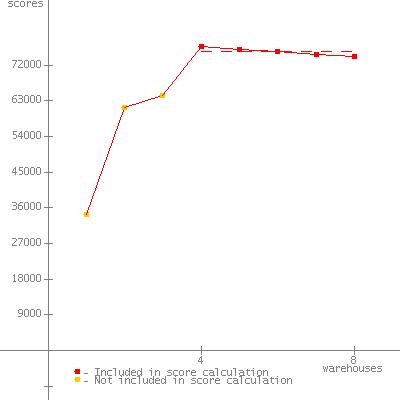

JVM 2 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 32054
2 58981
3 66733
4 77066 *
5 76277 *
6 75839 *
7 75127 *
8 74724 *
SPECjbb2005 (from 4 to 8) 75807 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Aug 3, 2010

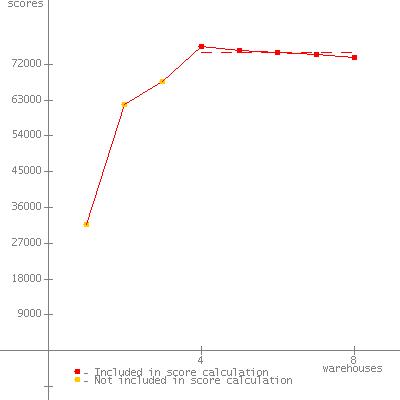

JVM 3 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 32048
2 55554
3 66466
4 77856 *
5 77098 *
6 76522 *
7 75906 *
8 75313 *
SPECjbb2005 (from 4 to 8) 76539 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Aug 3, 2010

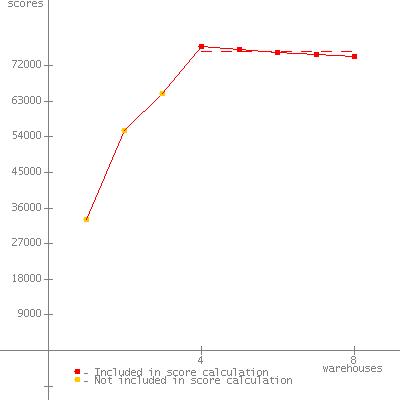

JVM 4 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 31672
2 61920
3 67631
4 76580 *
5 75583 *
6 75077 *
7 74397 *
8 73838 *
SPECjbb2005 (from 4 to 8) 75095 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Aug 3, 2010


JVM 5 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 32229
2 56903
3 65855
4 77513 *
5 76700 *
6 76073 *
7 75509 *
8 75144 *
SPECjbb2005 (from 4 to 8) 76188 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Aug 3, 2010


JVM 6 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 33343
2 58902
3 65317
4 76634 *
5 75919 *
6 75377 *
7 74874 *
8 74389 *
SPECjbb2005 (from 4 to 8) 75439 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Aug 3, 2010


JVM 7 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 32946
2 61367
3 65362
4 77380 *
5 76582 *
6 75867 *
7 75489 *
8 74992 *
SPECjbb2005 (from 4 to 8) 76062 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Aug 3, 2010


JVM 8 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 36203
2 60343
3 66149
4 77382 *
5 76717 *
6 76000 *
7 75564 *
8 74916 *
SPECjbb2005 (from 4 to 8) 76116 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Aug 3, 2010


JVM 9 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 33019
2 56017
3 67650
4 78110 *
5 77341 *
6 76707 *
7 76086 *
8 75782 *
SPECjbb2005 (from 4 to 8) 76805 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Aug 3, 2010


JVM 10 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 32747
2 62281
3 66872
4 78016 *
5 77117 *
6 76551 *
7 76020 *
8 75466 *
SPECjbb2005 (from 4 to 8) 76634 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Aug 3, 2010


JVM 11 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 32511
2 57185
3 65150
4 76031 *
5 75214 *
6 74507 *
7 74025 *
8 73667 *
SPECjbb2005 (from 4 to 8) 74689 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Aug 3, 2010


JVM 12 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 33228
2 55602
3 64878
4 76888 *
5 76005 *
6 75359 *
7 74767 *
8 74326 *
SPECjbb2005 (from 4 to 8) 75469 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Aug 3, 2010


JVM 13 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 34232
2 61267
3 64274
4 76833 *
5 76023 *
6 75396 *
7 74776 *
8 74284 *
SPECjbb2005 (from 4 to 8) 75462 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Aug 3, 2010


JVM 14 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 31017
2 56744
3 65081
4 76950 *
5 76120 *
6 75538 *
7 74957 *
8 74510 *
SPECjbb2005 (from 4 to 8) 75615 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Aug 3, 2010


JVM 15 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 31134
2 54236
3 65738
4 77048 *
5 76085 *
6 75763 *
7 75078 *
8 74590 *
SPECjbb2005 (from 4 to 8) 75713 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Aug 3, 2010


JVM 16 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 32387
2 58369
3 65534
4 76021 *
5 75090 *
6 74632 *
7 73827 *
8 73713 *
SPECjbb2005 (from 4 to 8) 74656 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Aug 3, 2010

SPECjbb2005 Version: [SPECjbb2005 1.07, March 15, 2006]
Reporting page, Copyright © 2005-2007 SPEC. All rights reserved

First published at SPEC.org on 08-Sep-2010
