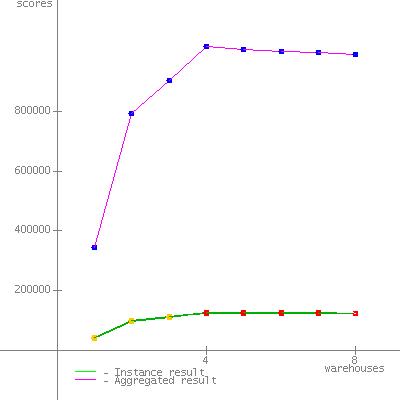

SPECjbb2005 SPECjbb2005 bops = 1002174, SPECjbb2005 bops/JVM = 125272
Hewlett-Packard Company ProLiant DL580 G7
IBM Corporation IBM J9 VM (build 2.4, J2RE 1.6.0 IBM J9 2.4 Windows Server 2008 amd64-64 jvmwa6460sr5-20090519_35743 (JIT enabled, AOT enabled)

JVM run JVM Scores
1124546
2125706
3125524
4124769
5124221
6124412
7126732
8126264
SPECjbb2005 bops = 1002174, SPECjbb2005 bops/JVM = 125272

Hardware
Hardware Vendor Hewlett-Packard Company
Vendor URL http://www.hp.com
Model ProLiant DL580 G7
Processor Intel Xeon X7560 2.27 GHz (Intel Turbo Boost Technology up to 2.67 GHz)
MHz 2267
# of Chips 2
# of Cores 16
# of Cores/Chip 8
HW Threading Enabled? Yes
Procs Avail to Java 32
Memory (MB) 65536
Memory Details 32 x 2 GB PC3-10600R CL9
Primary cache 32 KB I + 32 KB D on chip, per core
Secondary cache 256 KB I+D on chip, per core
Other cache 24 MB I+D on chip, per chip
Filesystem NTFS
Disks 1 x 146 GB 15 K SAS
Other hardware
Software
Software Vendor IBM Corporation
Vendor URL http://www.ibm.com
JVM Version IBM J9 VM (build 2.4, J2RE 1.6.0 IBM J9 2.4 Windows Server 2008 amd64-64 jvmwa6460sr5-20090519_35743 (JIT enabled, AOT enabled)
JVM Command Line java -Xaggressive -Xcompressedrefs -Xgcpolicy:gencon -Xmn1400m -Xms1875m -Xmx1875m -XlockReservation -Xnoloa -XtlhPrefetch -Xlp -spec.jbb.JBBmain -propfile SPECjbb.V1.props
JVM Initial Heap Memory (MB) 1875
JVM Maximum Heap Memory (MB) 1875
JVM Address bits 64
JVM CLASSPATH .\jbb.jar;
.\check.jar;
JVM BOOTCLASSPATH c:\java\ibm\jre\bin\compressedrefs\jclSC160\vm.jar;
c:\java\ibm\jre\lib\annotation.jar;
c:\java\ibm\jre\lib\beans.jar;
c:\java\ibm\jre\lib\java.util.jar;
c:\java\ibm\jre\lib\jndi.jar;
c:\java\ibm\jre\lib\logging.jar;
c:\java\ibm\jre\lib\security.jar;
c:\java\ibm\jre\lib\sql.jar;
c:\java\ibm\jre\lib\ibmorb.jar;
c:\java\ibm\jre\lib\ibmorbapi.jar;
c:\java\ibm\jre\lib\ibmcfw.jar;
c:\java\ibm\jre\lib\rt.jar;
c:\java\ibm\jre\lib\charsets.jar;
c:\java\ibm\jre\lib\resources.jar;
c:\java\ibm\jre\lib\ibmpkcs.jar;
c:\java\ibm\jre\lib\ibmcertpathfw.jar;
c:\java\ibm\jre\lib\ibmjgssfw.jar;
c:\java\ibm\jre\lib\ibmjssefw.jar;
c:\java\ibm\jre\lib\ibmsaslfw.jar;
c:\java\ibm\jre\lib\ibmjcefw.jar;
c:\java\ibm\jre\lib\ibmjgssprovider.jar;
c:\java\ibm\jre\lib\ibmjsseprovider2.jar;
c:\java\ibm\jre\lib\ibmcertpathprovider.jar;
c:\java\ibm\jre\lib\ibmxmlcrypto.jar;
c:\java\ibm\jre\lib\management-agent.jar;
c:\java\ibm\jre\lib\xml.jar;
c:\java\ibm\jre\lib\jlm.jar;
c:\java\ibm\jre\lib\javascript.jar
OS Version Microsoft Windows Server 2008 Enterprise x64 Edition with R2
Other software
Test Information
Tested by Hewlett-Packard Company
SPEC license # 3
Test location Houston, TX
Test date May 12, 2010
H/w available Mar-2010
JVM available Jul-2009
OS available Nov-2009
Other s/w available
AOT Compilation

Tuning
"Lock pages in memory" enabled for benchmark user.
Power Option Set to High Performance
Used start /AFFINITY 0xFF 0xFF00 0xFF0000 0xFF000000 0xFF00000000 0xFF0000000000 0xFF000000000000 0xFF00000000000000 was used to bind physical CPU nodes
Notes
Command line options are described at: http://publib.boulder.ibm.com/infocenter/javasdk/v6r0/index.jsp
BIOS Configuration
  • Power Regulator set to Static High
  • Node Interleaving Disabled
  • Hardware Prefetcher Disabled
  • Adjacent Sector Prefetcher Disabled

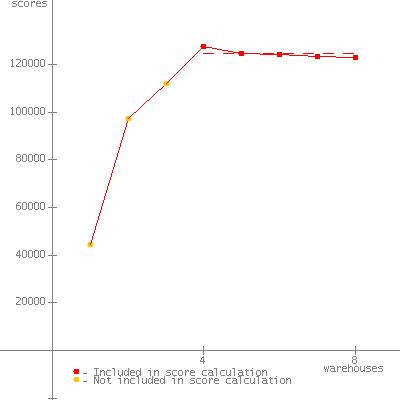

JVM 1 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 44547
2 97390
3 112016
4 127686 *
5 124695 *
6 124295 *
7 123312 *
8 122741 *
SPECjbb2005 (from 4 to 8) 124546 SPECjbb2005 bops
SPEC license # 3 Tested by: Hewlett-Packard Company Test date: May 12, 2010

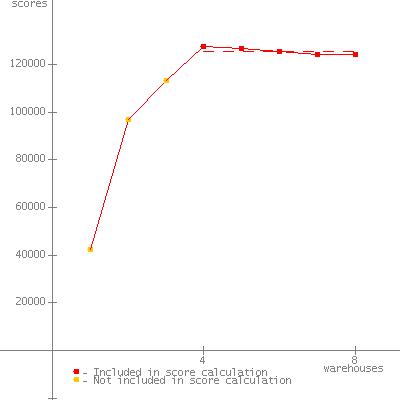

JVM 2 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 42429
2 97128
3 113369
4 127753 *
5 126650 *
6 125324 *
7 124410 *
8 124391 *
SPECjbb2005 (from 4 to 8) 125706 SPECjbb2005 bops
SPEC license # 3 Tested by: Hewlett-Packard Company Test date: May 12, 2010


JVM 3 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 42863
2 100259
3 111862
4 126916 *
5 126381 *
6 125416 *
7 125035 *
8 123873 *
SPECjbb2005 (from 4 to 8) 125524 SPECjbb2005 bops
SPEC license # 3 Tested by: Hewlett-Packard Company Test date: May 12, 2010


JVM 4 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 43454
2 99215
3 112704
4 126787 *
5 125462 *
6 124993 *
7 123697 *
8 122909 *
SPECjbb2005 (from 4 to 8) 124769 SPECjbb2005 bops
SPEC license # 3 Tested by: Hewlett-Packard Company Test date: May 12, 2010


JVM 5 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 42136
2 98052
3 112982
4 125672 *
5 124812 *
6 124240 *
7 123589 *
8 122791 *
SPECjbb2005 (from 4 to 8) 124221 SPECjbb2005 bops
SPEC license # 3 Tested by: Hewlett-Packard Company Test date: May 12, 2010


JVM 6 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 42339
2 99767
3 114767
4 125885 *
5 124442 *
6 124290 *
7 124074 *
8 123367 *
SPECjbb2005 (from 4 to 8) 124412 SPECjbb2005 bops
SPEC license # 3 Tested by: Hewlett-Packard Company Test date: May 12, 2010


JVM 7 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 43982
2 99654
3 113118
4 128851 *
5 127042 *
6 126435 *
7 125945 *
8 125387 *
SPECjbb2005 (from 4 to 8) 126732 SPECjbb2005 bops
SPEC license # 3 Tested by: Hewlett-Packard Company Test date: May 12, 2010


JVM 8 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 43625
2 99408
3 113162
4 127863 *
5 127075 *
6 125943 *
7 125642 *
8 124795 *
SPECjbb2005 (from 4 to 8) 126264 SPECjbb2005 bops
SPEC license # 3 Tested by: Hewlett-Packard Company Test date: May 12, 2010

SPECjbb2005 Version: [SPECjbb2005 1.07, March 15, 2006]
Reporting page, Copyright © 2005-2007 SPEC. All rights reserved

First published at SPEC.org on 19-Aug-2010
