SPECjbb2005 SPECjbb2005 bops = 1119946, SPECjbb2005 bops/JVM = 69997
IBM Corporation IBM BladeCenter PS702 Express (3.0 GHz, 16 core)
IBM Corporation JRE 1.6.0 (32-bit) IBM J9 2.4 AIX [build jvmap3260sr7-20091214_49398(SR7)]

JVM run JVM Scores
170268
270186
369995
469817
569795
670248
769612
870766
969556
1070203
1169290
1269441
1370308
1469745
1570142
1670574
SPECjbb2005 bops = 1119946, SPECjbb2005 bops/JVM = 69997

Hardware
Hardware Vendor IBM Corporation
Vendor URL http://www.ibm.com
Model IBM BladeCenter PS702 Express (3.0 GHz, 16 core)
Processor POWER7 (Intelligent Energy Optimization up to 3.30 GHz)
MHz 3000
# of Chips 2
# of Cores 16
# of Cores/Chip 8
HW Threading Enabled? Yes
Procs Avail to Java 64
Memory (MB) 131072
Memory Details 32 x 4GB DDR3 1066 MHz
Primary cache 32 KB I + 32 KB D on chip per core
Secondary cache 256KB I+D on chip per core
Other cache 4 MB I+D on chip per core
Filesystem AIX/JFS2
Disks 1 x 300GB SAS 10K RPM
Other hardware
Software
Software Vendor IBM Corporation
Vendor URL http://www.ibm.com
JVM Version JRE 1.6.0 (32-bit) IBM J9 2.4 AIX [build jvmap3260sr7-20091214_49398(SR7)]
JVM Command Line execrset -c processor_set_number -e java -Xlp -Xgcpolicy:gencon -Xms2560m -Xmx2560m -Xmn2048m -Xaggressive -XtlhPrefetch -XlockReservation -Xgcthreads4 -Xnoloa spec.jbb.JBBmain -propfile SPECjbb.props
JVM Initial Heap Memory (MB) 2560
JVM Maximum Heap Memory (MB) 2560
JVM Address bits 32
JVM CLASSPATH jbb.jar:
check.jar
JVM BOOTCLASSPATH /SPECjbb2005/Java6_SR7/jre/lib/vm.jar:
/SPECjbb2005/Java6_SR7/jre/lib/annotation.jar:
/SPECjbb2005/Java6_SR7/jre/lib/beans.jar:
/SPECjbb2005/Java6_SR7/jre/lib/java.util.jar:
/SPECjbb2005/Java6_SR7/jre/lib/jndi.jar:
/SPECjbb2005/Java6_SR7/jre/lib/logging.jar:
/SPECjbb2005/Java6_SR7/jre/lib/security.jar:
/SPECjbb2005/Java6_SR7/jre/lib/sql.jar:
/SPECjbb2005/Java6_SR7/jre/lib/ibmorb.jar:
/SPECjbb2005/Java6_SR7/jre/lib/ibmorbapi.jar:
/SPECjbb2005/Java6_SR7/jre/lib/ibmcfw.jar:
/SPECjbb2005/Java6_SR7/jre/lib/rt.jar:
/SPECjbb2005/Java6_SR7/jre/lib/charsets.jar:
/SPECjbb2005/Java6_SR7/jre/lib/resources.jar:
/SPECjbb2005/Java6_SR7/jre/lib/ibmpkcs.jar:
/SPECjbb2005/Java6_SR7/jre/lib/ibmcertpathfw.jar:
/SPECjbb2005/Java6_SR7/jre/lib/ibmjgssfw.jar:
/SPECjbb2005/Java6_SR7/jre/lib/ibmjssefw.jar:
/SPECjbb2005/Java6_SR7/jre/lib/ibmsaslfw.jar:
/SPECjbb2005/Java6_SR7/jre/lib/ibmjcefw.jar:
/SPECjbb2005/Java6_SR7/jre/lib/ibmjgssprovider.jar:
/SPECjbb2005/Java6_SR7/jre/lib/ibmjsseprovider2.jar:
/SPECjbb2005/Java6_SR7/jre/lib/ibmcertpathprovider.jar:
/SPECjbb2005/Java6_SR7/jre/lib/ibmxmlcrypto.jar:
/SPECjbb2005/Java6_SR7/jre/lib/management-agent.jar:
/SPECjbb2005/Java6_SR7/jre/lib/xml.jar:
/SPECjbb2005/Java6_SR7/jre/lib/jlm.jar:
/SPECjbb2005/Java6_SR7/jre/lib/javascript.jar
OS Version IBM AIX V6.1 with the 6100-05 Technology Level
Other software
Test Information
Tested by IBM Corporation
SPEC license # 11
Test location Rochester, MN
Test date Mar 26, 2010
H/w available Jun-2010
JVM available Dec-2009
OS available Apr-2010
Other s/w available
AOT Compilation

Tuning
Operating system tunings
  • vmo -o lgpg_regions=6144 -o lgpg_size=16777216 -o v_pinshm=1
  • dscrctl -n -s 1
  • MEMORY_AFFINITY=MCM
Notes
  • 16 JVMs were run in processor sets each containing 1 core

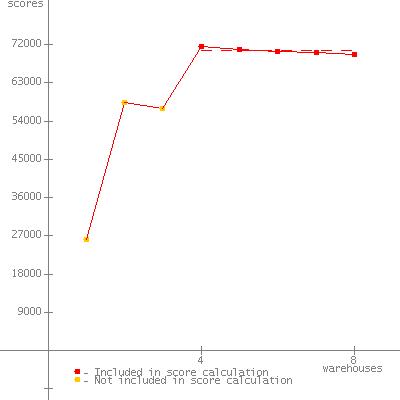

JVM 1 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 26777
2 57995
3 57134
4 71285 *
5 70662 *
6 70059 *
7 69896 *
8 69439 *
SPECjbb2005 (from 4 to 8) 70268 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Mar 26, 2010

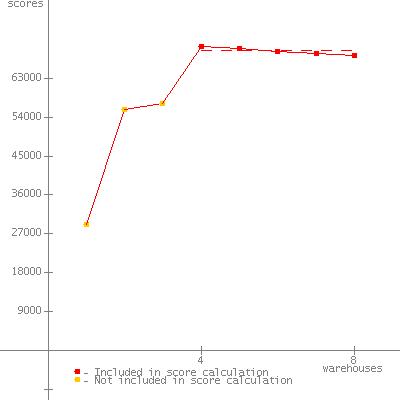

JVM 2 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 31008
2 58183
3 57634
4 71126 *
5 70612 *
6 70152 *
7 69647 *
8 69392 *
SPECjbb2005 (from 4 to 8) 70186 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Mar 26, 2010

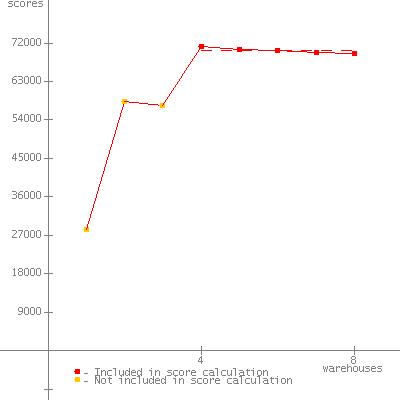

JVM 3 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 27605
2 57298
3 56648
4 70952 *
5 70480 *
6 69875 *
7 69553 *
8 69115 *
SPECjbb2005 (from 4 to 8) 69995 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Mar 26, 2010


JVM 4 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 27778
2 58000
3 57557
4 70921 *
5 70308 *
6 69693 *
7 69317 *
8 68846 *
SPECjbb2005 (from 4 to 8) 69817 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Mar 26, 2010


JVM 5 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 31823
2 58364
3 58259
4 70642 *
5 70337 *
6 69656 *
7 69334 *
8 69006 *
SPECjbb2005 (from 4 to 8) 69795 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Mar 26, 2010


JVM 6 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 28236
2 58262
3 57452
4 71262 *
5 70523 *
6 70219 *
7 69759 *
8 69477 *
SPECjbb2005 (from 4 to 8) 70248 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Mar 26, 2010


JVM 7 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 27807
2 55921
3 55853
4 70768 *
5 70032 *
6 69340 *
7 69112 *
8 68808 *
SPECjbb2005 (from 4 to 8) 69612 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Mar 26, 2010


JVM 8 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 28843
2 57623
3 56789
4 71887 *
5 71182 *
6 70602 *
7 70234 *
8 69927 *
SPECjbb2005 (from 4 to 8) 70766 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Mar 26, 2010


JVM 9 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 27398
2 56661
3 57438
4 70599 *
5 69961 *
6 69434 *
7 69075 *
8 68712 *
SPECjbb2005 (from 4 to 8) 69556 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Mar 26, 2010


JVM 10 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 26684
2 57928
3 56154
4 71219 *
5 70574 *
6 70129 *
7 69694 *
8 69399 *
SPECjbb2005 (from 4 to 8) 70203 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Mar 26, 2010


JVM 11 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 29265
2 55825
3 57038
4 70406 *
5 69783 *
6 69179 *
7 68725 *
8 68359 *
SPECjbb2005 (from 4 to 8) 69290 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Mar 26, 2010


JVM 12 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 30529
2 55628
3 56858
4 70514 *
5 69855 *
6 69248 *
7 69011 *
8 68578 *
SPECjbb2005 (from 4 to 8) 69441 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Mar 26, 2010


JVM 13 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 28096
2 57190
3 57705
4 71455 *
5 70746 *
6 70137 *
7 69748 *
8 69453 *
SPECjbb2005 (from 4 to 8) 70308 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Mar 26, 2010


JVM 14 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 28076
2 54818
3 56390
4 70667 *
5 70281 *
6 69445 *
7 69200 *
8 69132 *
SPECjbb2005 (from 4 to 8) 69745 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Mar 26, 2010


JVM 15 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 32361
2 55743
3 57186
4 70938 *
5 70714 *
6 70079 *
7 69692 *
8 69287 *
SPECjbb2005 (from 4 to 8) 70142 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Mar 26, 2010


JVM 16 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 26119
2 58383
3 56945
4 71652 *
5 70958 *
6 70464 *
7 70066 *
8 69731 *
SPECjbb2005 (from 4 to 8) 70574 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Mar 26, 2010

SPECjbb2005 Version: [SPECjbb2005 1.07, March 15, 2006]
Reporting page, Copyright © 2005-2007 SPEC. All rights reserved

First published at SPEC.org on 25-May-2010
