SPECjbb2005 SPECjbb2005 bops = 915103, SPECjbb2005 bops/JVM = 152517
IBM Corporation IBM System x3650 M3
IBM Corporation IBM J9 VM (build 2.4, J2RE 1.6.0 IBM J9 2.4 Windows Server 2008 amd64-64 jvmwa6460sr5-20090519_35743 (JIT enabled, AOT enabled)

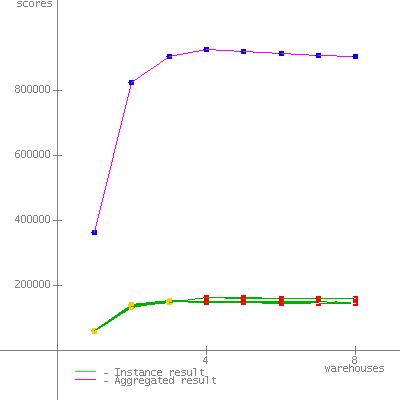

JVM run JVM Scores
1150694
2145697
3147887
4147145
5162015
6161665
SPECjbb2005 bops = 915103, SPECjbb2005 bops/JVM = 152517

Hardware
Hardware Vendor IBM Corporation
Vendor URL http://www.ibm.com
Model IBM System x3650 M3
Processor Intel Xeon X5680 3.33GHz (Intel Turbo Boost Technology up to 3.6 GHz)
MHz 3330
# of Chips 2
# of Cores 12
# of Cores/Chip 6
HW Threading Enabled? Yes
Procs Avail to Java 24
Memory (MB) 24576
Memory Details 12x2GB 2RX8 PC3L-10600R; slots 2, 3, 5, 6, 8, 9, 11, 12, 14, 15, 17 and 18 populated
Primary cache 32KBI+32KBD
Secondary cache 256 KB (I+D) on chip per core
Other cache 12 MB per processor
Filesystem NTFS
Disks 1 x 50GB SATA SSD,IBM Feature code 5197
Other hardware
Software
Software Vendor IBM Corporation
Vendor URL http://www.ibm.com
JVM Version IBM J9 VM (build 2.4, J2RE 1.6.0 IBM J9 2.4 Windows Server 2008 amd64-64 jvmwa6460sr5-20090519_35743 (JIT enabled, AOT enabled)
JVM Command Line start /AFFINITY %HEX% java -Xaggressive -Xcompressedrefs -Xgcpolicy:gencon -Xmn1400m -Xms1875m -Xmx1875m -XlockReservation -Xnoloa -XtlhPrefetch -Xlp spec.jbb.JBBmain -propfile SPECjbb.props
JVM Initial Heap Memory (MB) 1875
JVM Maximum Heap Memory (MB) 1875
JVM Address bits 64
JVM CLASSPATH .\jbb.jar;
.\check.jar;
JVM BOOTCLASSPATH C:\IBM\Java60\jre\bin\compressedrefs\jclSC160\vm.jar;
C:\IBM\Java60\jre\lib\annotation.jar;
C:\IBM\Java60\jre\lib\beans.jar;
C:\IBM\Java60\jre\lib\java.util.jar;
C:\IBM\Java60\jre\lib\jndi.jar;
C:\IBM\Java60\jre\lib\logging.jar;
C:\IBM\Java60\jre\lib\security.jar;
C:\IBM\Java60\jre\lib\sql.jar;
C:\IBM\Java60\jre\lib\ibmorb.jar;
C:\IBM\Java60\jre\lib\ibmorbapi.jar;
C:\IBM\Java60\jre\lib\ibmcfw.jar;
C:\IBM\Java60\jre\lib\rt.jar;
C:\IBM\Java60\jre\lib\charsets.jar;
C:\IBM\Java60\jre\lib\resources.jar;
C:\IBM\Java60\jre\lib\ibmpkcs.jar;
C:\IBM\Java60\jre\lib\ibmcertpathfw.jar;
C:\IBM\Java60\jre\lib\ibmjgssfw.jar;
C:\IBM\Java60\jre\lib\ibmjssefw.jar;
C:\IBM\Java60\jre\lib\ibmsaslfw.jar;
C:\IBM\Java60\jre\lib\ibmjcefw.jar;
C:\IBM\Java60\jre\lib\ibmjgssprovider.jar;
C:\IBM\Java60\jre\lib\ibmjsseprovider2.jar;
C:\IBM\Java60\jre\lib\ibmcertpathprovider.jar;
C:\IBM\Java60\jre\lib\ibmxmlcrypto.jar;
C:\IBM\Java60\jre\lib\management-agent.jar;
C:\IBM\Java60\jre\lib\xml.jar;
C:\IBM\Java60\jre\lib\jlm.jar;
C:\IBM\Java60\jre\lib\javascript.jar
OS Version Microsoft Windows Server 2008 Enterprise x64 Edition R2
Other software
Test Information
Tested by IBM Corporation
SPEC license # 11
Test location Taipei, Taiwan
Test date Mar 23, 2010
H/w available Jun-2010
JVM available Jun-2009
OS available Oct-2009
Other s/w available
AOT Compilation

Tuning
  • Affinity Masks set to 0xf, 0x70, 0x700, 0xf000, 0x70000, 0x700000
  • Using the local security settings console, "lock pages in memory" was enabled for the user running the benchmark.
  • Power Options: High Performance
  • BIOS Settings
    • Turbo Mode: Enable
    • Turbo Boost Power Optimization:Traditional
    • CPU C-State: Enable
    • Processor Data Prefetch: Disable
    • Data Reuse Optimization: Disabled
    • LV-DIMM Power: Enhanced Performance
    • Demand Scrub: Disable
Notes
none

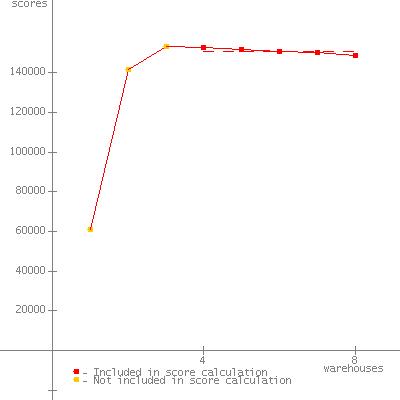

JVM 1 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 60999
2 141307
3 153304
4 152390 *
5 151814 *
6 150870 *
7 149959 *
8 148438 *
SPECjbb2005 (from 4 to 8) 150694 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Mar 23, 2010

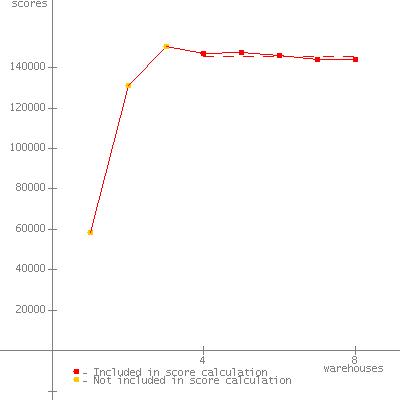

JVM 2 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 58571
2 131277
3 150620
4 147233 *
5 147309 *
6 146013 *
7 144100 *
8 143830 *
SPECjbb2005 (from 4 to 8) 145697 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Mar 23, 2010

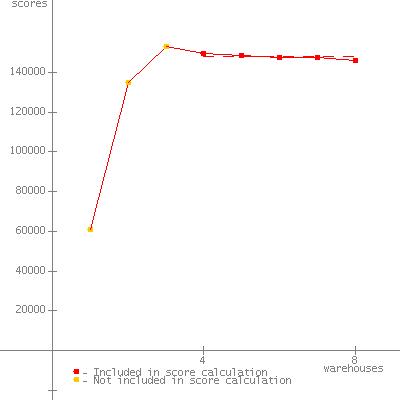

JVM 3 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 60875
2 134970
3 153221
4 149643 *
5 148740 *
6 147412 *
7 147468 *
8 146172 *
SPECjbb2005 (from 4 to 8) 147887 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Mar 23, 2010

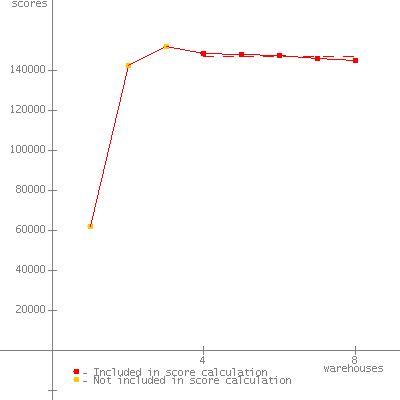

JVM 4 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 61989
2 142660
3 152270
4 148375 *
5 148351 *
6 147628 *
7 146227 *
8 145146 *
SPECjbb2005 (from 4 to 8) 147145 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Mar 23, 2010

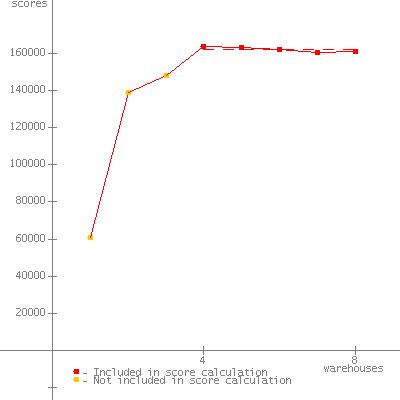

JVM 5 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 60599
2 138770
3 148051
4 163806 *
5 163032 *
6 161831 *
7 160435 *
8 160971 *
SPECjbb2005 (from 4 to 8) 162015 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Mar 23, 2010

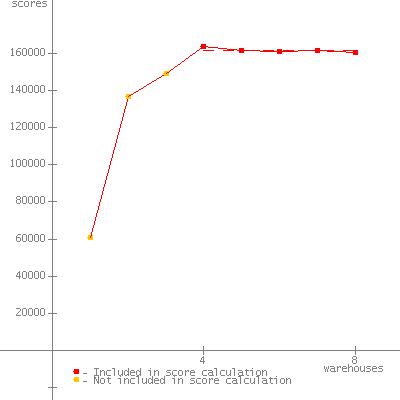

JVM 6 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 61035
2 136667
3 148931
4 163768 *
5 161571 *
6 160908 *
7 161452 *
8 160625 *
SPECjbb2005 (from 4 to 8) 161665 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Mar 23, 2010

SPECjbb2005 Version: [SPECjbb2005 1.07, March 15, 2006]
Reporting page, Copyright © 2005-2007 SPEC. All rights reserved

First published at SPEC.org on 27-Apr-2010
