SPECjbb2005 SPECjbb2005 bops = 877231, SPECjbb2005 bops/JVM = 146205
IBM Corporation IBM System x3400 M3
IBM Corporation IBM J9 VM (build 2.4, J2RE 1.6.0 IBM J9 2.4 Windows Server 2008 amd64-64 jvmwa6460sr5-20090519_35743 (JIT enabled, AOT enabled)

JVM run JVM Scores
1144473
2140872
3154988
4141620
5155510
6139768
SPECjbb2005 bops = 877231, SPECjbb2005 bops/JVM = 146205

Hardware
Hardware Vendor IBM Corporation
Vendor URL http://www.ibm.com
Model IBM System x3400 M3
Processor Intel Xeon X5670 2.93GHz (Intel Turbo Boost Technology up to 3.33 GHz)
MHz 2933
# of Chips 2
# of Cores 12
# of Cores/Chip 6
HW Threading Enabled? Yes
Procs Avail to Java 24
Memory (MB) 24576
Memory Details 12x2GB 2Rx8 PC3-10600R ; slots 2, 3, 5, 6, 7, 8, 10, 11, 13, 14, 15 and 16 populated
Primary cache 32 KB I + 32 KB D on chip per core
Secondary cache 256 KB I+D on chip per core
Other cache 12 MB I+D on chip per chip
Filesystem NTFS
Disks 1 x 73GB 2.5" 15K RPM SAS
Other hardware None
Software
Software Vendor IBM Corporation
Vendor URL http://www.ibm.com
JVM Version IBM J9 VM (build 2.4, J2RE 1.6.0 IBM J9 2.4 Windows Server 2008 amd64-64 jvmwa6460sr5-20090519_35743 (JIT enabled, AOT enabled)
JVM Command Line start /AFFINITY %HEX% java -Xaggressive -Xcompressedrefs -Xgcpolicy:gencon -Xmn1400m -Xms1875m -Xmx1875m -XlockReservation -Xnoloa -XtlhPrefetch -Xlp spec.jbb.JBBmain -propfile SPECjbb.props
JVM Initial Heap Memory (MB) 1875
JVM Maximum Heap Memory (MB) 1875
JVM Address bits 64
JVM CLASSPATH .\jbb.jar;
.\check.jar;
JVM BOOTCLASSPATH C:\ibm\java60\jre\bin\compressedrefs\jclSC160\vm.jar;
C:\ibm\java60\jre\lib\annotation.jar;
C:\ibm\java60\jre\lib\beans.jar;
C:\ibm\java60\jre\lib\java.util.jar;
C:\ibm\java60\jre\lib\jndi.jar;
C:\ibm\java60\jre\lib\logging.jar;
C:\ibm\java60\jre\lib\security.jar;
C:\ibm\java60\jre\lib\sql.jar;
C:\ibm\java60\jre\lib\ibmorb.jar;
C:\ibm\java60\jre\lib\ibmorbapi.jar;
C:\ibm\java60\jre\lib\ibmcfw.jar;
C:\ibm\java60\jre\lib\rt.jar;
C:\ibm\java60\jre\lib\charsets.jar;
C:\ibm\java60\jre\lib\resources.jar;
C:\ibm\java60\jre\lib\ibmpkcs.jar;
C:\ibm\java60\jre\lib\ibmcertpathfw.jar;
C:\ibm\java60\jre\lib\ibmjgssfw.jar;
C:\ibm\java60\jre\lib\ibmjssefw.jar;
C:\ibm\java60\jre\lib\ibmsaslfw.jar;
C:\ibm\java60\jre\lib\ibmjcefw.jar;
C:\ibm\java60\jre\lib\ibmjgssprovider.jar;
C:\ibm\java60\jre\lib\ibmjsseprovider2.jar;
C:\ibm\java60\jre\lib\ibmcertpathprovider.jar;
C:\ibm\java60\jre\lib\ibmxmlcrypto.jar;
C:\ibm\java60\jre\lib\management-agent.jar;
C:\ibm\java60\jre\lib\xml.jar;
C:\ibm\java60\jre\lib\jlm.jar;
C:\ibm\java60\jre\lib\javascript.jar
OS Version Microsoft Windows Server 2008 Enterprise x64 Edition R2
Other software
Test Information
Tested by IBM Corporation
SPEC license # 11
Test location Taipei, Taiwan
Test date Mar 25, 2010
H/w available Jun-2010
JVM available Jun 2009
OS available Oct-2009
Other s/w available None
AOT Compilation

Tuning
  • Affinity Masks set to 0xf, 0x70, 0x700, 0xf000, 0x70000, 0x700000
  • Using the local security settings console, "lock pages in memory" was enabled for the user running the benchmark.
  • Power Options: High Performance
  • BIOS Settings
    • Turbo Mode: Enable
    • Turbo Boost Power Optimization: Traditional
    • CPU C-States: Enable
    • Processor Data Prefetch: Disable
    • Data Reuse Optimization: Disable
    • LV-DIMM Power: Enhanced Performance
    • Demand Scrub: Disable
    • Thermal Mode: Performance
Notes



JVM 1 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 57859
2 127748
3 146847
4 146278 *
5 145588 *
6 144343 *
7 142936 *
8 143222 *
SPECjbb2005 (from 4 to 8) 144473 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Mar 25, 2010


JVM 2 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 58789
2 129168
3 147041
4 142862 *
5 141322 *
6 140615 *
7 139917 *
8 139643 *
SPECjbb2005 (from 4 to 8) 140872 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Mar 25, 2010

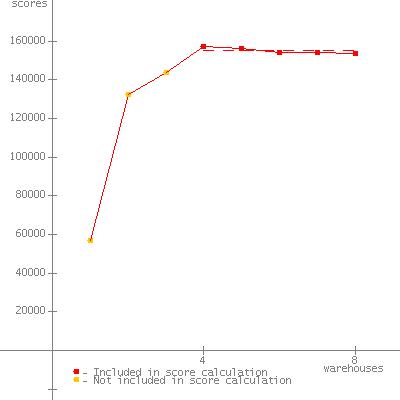

JVM 3 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 56851
2 132438
3 143566
4 157354 *
5 156080 *
6 153952 *
7 154074 *
8 153480 *
SPECjbb2005 (from 4 to 8) 154988 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Mar 25, 2010


JVM 4 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 57961
2 127547
3 146802
4 143191 *
5 142770 *
6 141009 *
7 140942 *
8 140189 *
SPECjbb2005 (from 4 to 8) 141620 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Mar 25, 2010

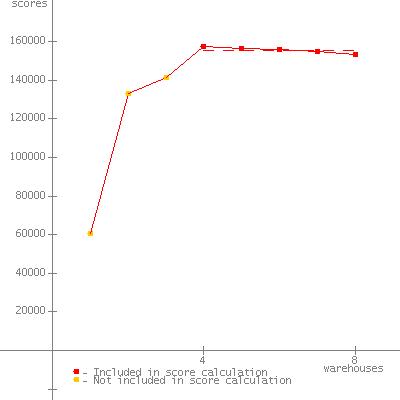

JVM 5 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 60459
2 133217
3 141440
4 157541 *
5 156120 *
6 155846 *
7 154670 *
8 153376 *
SPECjbb2005 (from 4 to 8) 155510 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Mar 25, 2010


JVM 6 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 59036
2 132072
3 146168
4 141630 *
5 140427 *
6 139613 *
7 138727 *
8 138446 *
SPECjbb2005 (from 4 to 8) 139768 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Mar 25, 2010

SPECjbb2005 Version: [SPECjbb2005 1.07, March 15, 2006]
Reporting page, Copyright © 2005-2007 SPEC. All rights reserved

First published at SPEC.org on 27-Apr-2010
