SPECjbb2005 SPECjbb2005 bops = 875369, SPECjbb2005 bops/JVM = 145895
IBM Corporation IBM BladeCenter HS22V
IBM Corporation IBM J9 VM (build 2.4, J2RE 1.6.0 IBM J9 2.4 Windows Server 2008 amd64-64 jvmwa6460sr5-20090519_35743 (JIT enabled, AOT enabled)

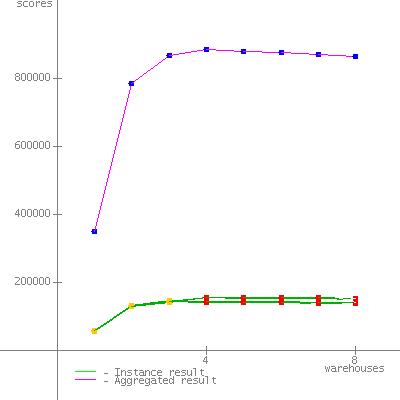

JVM run JVM Scores
1142594
2152891
3140780
4154969
5142349
6141786
SPECjbb2005 bops = 875369, SPECjbb2005 bops/JVM = 145895

Hardware
Hardware Vendor IBM Corporation
Vendor URL http://www.ibm.com
Model IBM BladeCenter HS22V
Processor Intel Xeon X5670 (Intel Turbo Boost Technology up to 3.33GHz)
MHz 2933
# of Chips 2
# of Cores 12
# of Cores/Chip 6
HW Threading Enabled? Yes
Procs Avail to Java 24
Memory (MB) 24576
Memory Details 12 x 2 GB PC3-10600R, slots 2,3,5,6,8,9,11,12,14,15,17 and 18 populated
Primary cache 32KB I + 32KB D on chip per core
Secondary cache 256KB (I+D) on chip per core
Other cache 12MB (I+D) on chip per chip
Filesystem NTFS
Disks 1 x 50GB SATA SSD
Other hardware IBM BladeCenter H
Software
Software Vendor IBM Corporation
Vendor URL http://www.ibm.com
JVM Version IBM J9 VM (build 2.4, J2RE 1.6.0 IBM J9 2.4 Windows Server 2008 amd64-64 jvmwa6460sr5-20090519_35743 (JIT enabled, AOT enabled)
JVM Command Line start /AFFINITY %HEX% java -Xaggressive -Xcompressedrefs -Xgcpolicy:gencon -Xmn1400m -Xms1875m -Xmx1875m -XlockReservation -Xnoloa -XtlhPrefetch -Xlp
JVM Initial Heap Memory (MB) 1875
JVM Maximum Heap Memory (MB) 1875
JVM Address bits 64
JVM CLASSPATH .\jbb.jar;
.\check.jar;
JVM BOOTCLASSPATH C:\Program Files\IBM\Java60\jre\bin\compressedrefs\jclSC160\vm.jar;
C:\Program Files\IBM\Java60\jre\lib\annotation.jar;
C:\Program Files\IBM\Java60\jre\lib\beans.jar;
C:\Program Files\IBM\Java60\jre\lib\java.util.jar;
C:\Program Files\IBM\Java60\jre\lib\jndi.jar;
C:\Program Files\IBM\Java60\jre\lib\logging.jar;
C:\Program Files\IBM\Java60\jre\lib\security.jar;
C:\Program Files\IBM\Java60\jre\lib\sql.jar;
C:\Program Files\IBM\Java60\jre\lib\ibmorb.jar;
C:\Program Files\IBM\Java60\jre\lib\ibmorbapi.jar;
C:\Program Files\IBM\Java60\jre\lib\ibmcfw.jar;
C:\Program Files\IBM\Java60\jre\lib\rt.jar;
C:\Program Files\IBM\Java60\jre\lib\charsets.jar;
C:\Program Files\IBM\Java60\jre\lib\resources.jar;
C:\Program Files\IBM\Java60\jre\lib\ibmpkcs.jar;
C:\Program Files\IBM\Java60\jre\lib\ibmcertpathfw.jar;
C:\Program Files\IBM\Java60\jre\lib\ibmjgssfw.jar;
C:\Program Files\IBM\Java60\jre\lib\ibmjssefw.jar;
C:\Program Files\IBM\Java60\jre\lib\ibmsaslfw.jar;
C:\Program Files\IBM\Java60\jre\lib\ibmjcefw.jar;
C:\Program Files\IBM\Java60\jre\lib\ibmjgssprovider.jar;
C:\Program Files\IBM\Java60\jre\lib\ibmjsseprovider2.jar;
C:\Program Files\IBM\Java60\jre\lib\ibmcertpathprovider.jar;
C:\Program Files\IBM\Java60\jre\lib\ibmxmlcrypto.jar;
C:\Program Files\IBM\Java60\jre\lib\management-agent.jar;
C:\Program Files\IBM\Java60\jre\lib\xml.jar;
C:\Program Files\IBM\Java60\jre\lib\jlm.jar;
C:\Program Files\IBM\Java60\jre\lib\javascript.jar
OS Version Microsoft Windows Server 2008 R2 Enterprise x64
Other software
Test Information
Tested by IBM Corporation
SPEC license # 11
Test location RTP, NC
Test date Mar 23, 2010
H/w available Jun-2010
JVM available Jun-2009
OS available Oct-2009
Other s/w available
AOT Compilation

Tuning
Operating system tunings
  • Affinity Masks set to 0xf, 0x70, 0x700, 0xf000, 0x70000, 0x700000
  • Lock Pages in memory enabled under Local Security Policies
BIOS Settings
  • Operating Mode set to Custom Mode
  • Turbo Mode Enabled
  • Turbo Boost Power set to Traditional
  • Cache Data Prefetch Disabled
  • Memory LV-DIMM Power set to Enhanced Performance
  • Data Reuse Performance Optimization set to disabled
Notes



JVM 1 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 58795
2 129250
3 148065
4 144062 *
5 143327 *
6 142958 *
7 141568 *
8 141053 *
SPECjbb2005 (from 4 to 8) 142594 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Mar 23, 2010

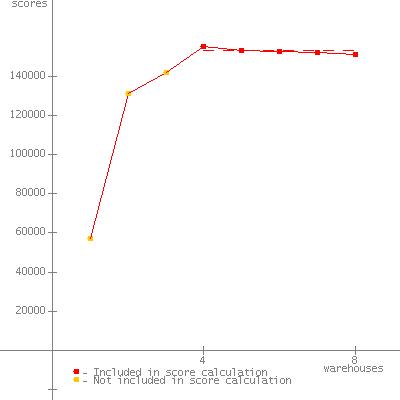

JVM 2 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 57223
2 130874
3 141692
4 155233 *
5 153108 *
6 152712 *
7 152232 *
8 151171 *
SPECjbb2005 (from 4 to 8) 152891 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Mar 23, 2010

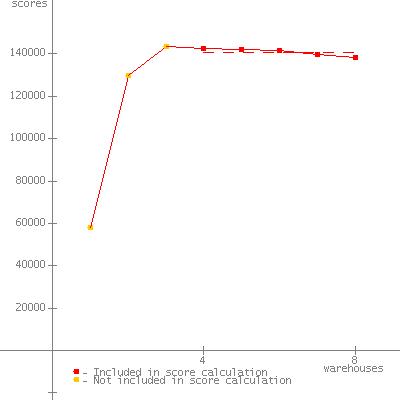

JVM 3 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 58229
2 129892
3 143684
4 142534 *
5 141924 *
6 141570 *
7 139773 *
8 138101 *
SPECjbb2005 (from 4 to 8) 140780 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Mar 23, 2010

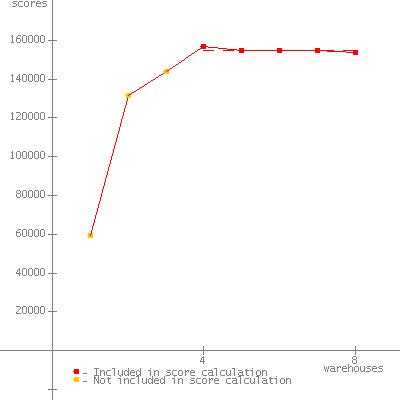

JVM 4 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 59319
2 131563
3 143957
4 157043 *
5 154630 *
6 154968 *
7 154665 *
8 153540 *
SPECjbb2005 (from 4 to 8) 154969 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Mar 23, 2010

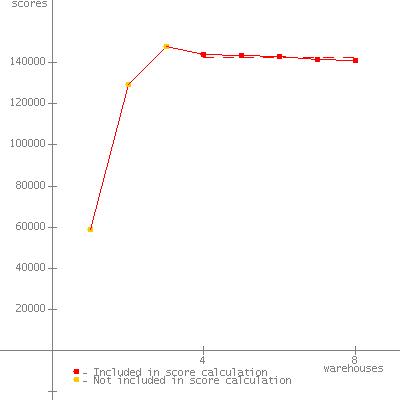

JVM 5 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 58306
2 132300
3 145905
4 143925 *
5 143261 *
6 142174 *
7 141210 *
8 141176 *
SPECjbb2005 (from 4 to 8) 142349 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Mar 23, 2010

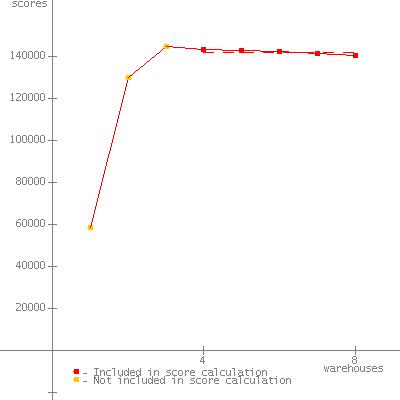

JVM 6 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 58487
2 130006
3 144681
4 142926 *
5 142588 *
6 142024 *
7 141236 *
8 140157 *
SPECjbb2005 (from 4 to 8) 141786 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Mar 23, 2010

SPECjbb2005 Version: [SPECjbb2005 1.07, March 15, 2006]
Reporting page, Copyright © 2005-2007 SPEC. All rights reserved

First published at SPEC.org on 14-Apr-2010
