SPECjbb2005 SPECjbb2005 bops = 927872, SPECjbb2005 bops/JVM = 154645
Fujitsu PRIMERGY BX922 S2, Intel Xeon X5680, 3.33 GHz
IBM Corporation IBM J9 VM (build 2.4, JRE 1.6.0 IBM J9 2.4 Windows Server 2008 amd64-64 jvmwa6460sr6-20090923_42924 (JIT enabled, AOT enabled)

JVM run JVM Scores
1164223
2152071
3151116
4147886
5163547
6149029
SPECjbb2005 bops = 927872, SPECjbb2005 bops/JVM = 154645

Hardware
Hardware Vendor Fujitsu
Vendor URL http://www.fujitsu.com
Model PRIMERGY BX922 S2, Intel Xeon X5680, 3.33 GHz
Processor Intel Xeon X5680 (Intel Turbo Boost Technology up to 3.60 GHz)
MHz 3333
# of Chips 2
# of Cores 12
# of Cores/Chip 6
HW Threading Enabled? Yes
Procs Avail to Java 24
Memory (MB) 49152
Memory Details 12x4GB PC3-10600R (CAS 9-9-9)
Primary cache 32KB(I) + 32KB(D) on chip, per core
Secondary cache 256KB(I+D) on chip, per core
Other cache 12MB(I+D) on chip, per chip
Filesystem NTFS
Disks Intel (2.5", SSD, 32GB)
Other hardware PRIMERGY BX900 S1 System Unit as blade chassis
Software
Software Vendor IBM Corporation
Vendor URL http://www.ibm.com
JVM Version IBM J9 VM (build 2.4, JRE 1.6.0 IBM J9 2.4 Windows Server 2008 amd64-64 jvmwa6460sr6-20090923_42924 (JIT enabled, AOT enabled)
JVM Command Line start /HIGH /AFFINITY [0xF,0x70,0x700,0xF000,070000,0x700000] /B java -Xaggressive -Xcompressedrefs -Xgcpolicy:gencon -Xmn1400m -Xms1875m -Xmx1875m -XlockReservation -Xnoloa -XtlhPrefetch -Xlp spec.jbb.JBBmain -propfile SPECjbb.props
JVM Initial Heap Memory (MB) 1875
JVM Maximum Heap Memory (MB) 1875
JVM Address bits 64
JVM CLASSPATH .\jbb.jar;
.\check.jar;
JVM BOOTCLASSPATH C:\Program Files\Java\J9\java\jre\bin\compressedrefs\jclSC160\vm.jar;
C:\Program Files\Java\J9\java\jre\lib\annotation.jar;
C:\Program Files\Java\J9\java\jre\lib\beans.jar;
C:\Program Files\Java\J9\java\jre\lib\java.util.jar;
C:\Program Files\Java\J9\java\jre\lib\jndi.jar;
C:\Program Files\Java\J9\java\jre\lib\logging.jar;
C:\Program Files\Java\J9\java\jre\lib\security.jar;
C:\Program Files\Java\J9\java\jre\lib\sql.jar;
C:\Program Files\Java\J9\java\jre\lib\ibmorb.jar;
C:\Program Files\Java\J9\java\jre\lib\ibmorbapi.jar;
C:\Program Files\Java\J9\java\jre\lib\ibmcfw.jar;
C:\Program Files\Java\J9\java\jre\lib\rt.jar;
C:\Program Files\Java\J9\java\jre\lib\charsets.jar;
C:\Program Files\Java\J9\java\jre\lib\resources.jar;
C:\Program Files\Java\J9\java\jre\lib\ibmpkcs.jar;
C:\Program Files\Java\J9\java\jre\lib\ibmcertpathfw.jar;
C:\Program Files\Java\J9\java\jre\lib\ibmjgssfw.jar;
C:\Program Files\Java\J9\java\jre\lib\ibmjssefw.jar;
C:\Program Files\Java\J9\java\jre\lib\ibmsaslfw.jar;
C:\Program Files\Java\J9\java\jre\lib\ibmjcefw.jar;
C:\Program Files\Java\J9\java\jre\lib\ibmjgssprovider.jar;
C:\Program Files\Java\J9\java\jre\lib\ibmjsseprovider2.jar;
C:\Program Files\Java\J9\java\jre\lib\ibmcertpathprovider.jar;
C:\Program Files\Java\J9\java\jre\lib\ibmxmlcrypto.jar;
C:\Program Files\Java\J9\java\jre\lib\management-agent.jar;
C:\Program Files\Java\J9\java\jre\lib\xml.jar;
C:\Program Files\Java\J9\java\jre\lib\jlm.jar;
C:\Program Files\Java\J9\java\jre\lib\javascript.jar
OS Version Microsoft Windows Server 2008 Enterprise R2
Other software N/A
Test Information
Tested by Fujitsu
SPEC license # 19
Test location Paderborn, Germany
Test date Mar 12, 2010
H/w available Mar-2010
JVM available Nov-2009
OS available Oct-2009
Other s/w available N/A
AOT Compilation
N/A
Tuning
  • Set "Performance/Power Setting" to "Traditional" for TurboBoost Technology.
  • Turned off "Hardware Prefetch" in BIOS.
  • Turned off "Adjacent Sector Prefetch" in BIOS.
  • Turned off "DCU IP Prefetch" in BIOS.
  • Turned off "DCU Streamer Prefetch" in BIOS.
  • Turned off "Data Reuse Optimization" in BIOS.
  • Each JVM instance was affinitized to 2 cores of a socket.
  • Using the local security settings console, "lock pages in memory" was enabled for the user running the benchmark.
Notes
N/A


JVM 1 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 62857
2 136198
3 148828
4 166299 *
5 164650 *
6 164487 *
7 162825 *
8 162855 *
SPECjbb2005 (from 4 to 8) 164223 SPECjbb2005 bops
SPEC license # 19 Tested by: Fujitsu Test date: Mar 12, 2010


JVM 2 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 59105
2 141914
3 154900
4 153985 *
5 151952 *
6 151999 *
7 151679 *
8 150742 *
SPECjbb2005 (from 4 to 8) 152071 SPECjbb2005 bops
SPEC license # 19 Tested by: Fujitsu Test date: Mar 12, 2010


JVM 3 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 62011
2 141769
3 154673
4 152709 *
5 151652 *
6 150612 *
7 150535 *
8 150071 *
SPECjbb2005 (from 4 to 8) 151116 SPECjbb2005 bops
SPEC license # 19 Tested by: Fujitsu Test date: Mar 12, 2010

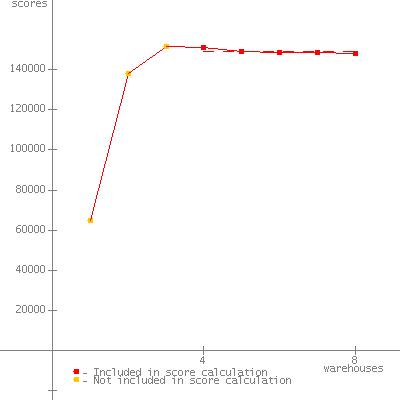

JVM 4 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 64569
2 138148
3 151357
4 149277 *
5 149103 *
6 147804 *
7 147120 *
8 146125 *
SPECjbb2005 (from 4 to 8) 147886 SPECjbb2005 bops
SPEC license # 19 Tested by: Fujitsu Test date: Mar 12, 2010


JVM 5 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 60188
2 135790
3 148621
4 164687 *
5 163802 *
6 163611 *
7 163033 *
8 162602 *
SPECjbb2005 (from 4 to 8) 163547 SPECjbb2005 bops
SPEC license # 19 Tested by: Fujitsu Test date: Mar 12, 2010


JVM 6 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 64596
2 138182
3 151706
4 151087 *
5 149093 *
6 148503 *
7 148447 *
8 148014 *
SPECjbb2005 (from 4 to 8) 149029 SPECjbb2005 bops
SPEC license # 19 Tested by: Fujitsu Test date: Mar 12, 2010

SPECjbb2005 Version: [SPECjbb2005 1.07, March 15, 2006]
Reporting page, Copyright © 2005-2007 SPEC. All rights reserved

First published at SPEC.org on 14-Apr-2010
