SPECjbb2005 SPECjbb2005 bops = 927067, SPECjbb2005 bops/JVM = 154511
Fujitsu PRIMERGY RX200 S6, Intel Xeon X5680, 3.33 GHz
IBM Corporation IBM J9 VM (build 2.4, JRE 1.6.0 IBM J9 2.4 Windows Server 2008 amd64-64 jvmwa6460sr6-20090923_42924 (JIT enabled, AOT enabled)

JVM run JVM Scores
1163611
2150204
3164351
4148218
5149888
6150795
SPECjbb2005 bops = 927067, SPECjbb2005 bops/JVM = 154511

Hardware
Hardware Vendor Fujitsu
Vendor URL http://www.fujitsu.com
Model PRIMERGY RX200 S6, Intel Xeon X5680, 3.33 GHz
Processor Intel Xeon X5680 (Intel Turbo Boost Technology up to 3.60 GHz)
MHz 3333
# of Chips 2
# of Cores 12
# of Cores/Chip 6
HW Threading Enabled? Yes
Procs Avail to Java 24
Memory (MB) 49152
Memory Details 12x4GB PC3-10600R (CAS 9-9-9)
Primary cache 32KB(I) + 32KB(D) on chip, per core
Secondary cache 256KB(I+D) on chip, per core
Other cache 12MB(I+D) on chip, per chip
Filesystem NTFS
Disks Seagate (2.5", SAS, 73GB, 10krpm)
Other hardware N/A
Software
Software Vendor IBM Corporation
Vendor URL http://www.ibm.com
JVM Version IBM J9 VM (build 2.4, JRE 1.6.0 IBM J9 2.4 Windows Server 2008 amd64-64 jvmwa6460sr6-20090923_42924 (JIT enabled, AOT enabled)
JVM Command Line start /HIGH /AFFINITY [0xF,0x70,0x700,0xF000,0x70000,0x700000] /B java -Xaggressive -Xcompressedrefs -Xgcpolicy:gencon -Xmn1400m -Xms1850m -Xmx1850m -XlockReservation -Xnoloa -XtlhPrefetch -Xlp
JVM Initial Heap Memory (MB) 1850
JVM Maximum Heap Memory (MB) 1850
JVM Address bits 64
JVM CLASSPATH .\jbb.jar;
.\check.jar;
JVM BOOTCLASSPATH C:\Program Files\Java\J9\java\jre\bin\compressedrefs\jclSC160\vm.jar;
C:\Program Files\Java\J9\java\jre\lib\annotation.jar;
C:\Program Files\Java\J9\java\jre\lib\beans.jar;
C:\Program Files\Java\J9\java\jre\lib\java.util.jar;
C:\Program Files\Java\J9\java\jre\lib\jndi.jar;
C:\Program Files\Java\J9\java\jre\lib\logging.jar;
C:\Program Files\Java\J9\java\jre\lib\security.jar;
C:\Program Files\Java\J9\java\jre\lib\sql.jar;
C:\Program Files\Java\J9\java\jre\lib\ibmorb.jar;
C:\Program Files\Java\J9\java\jre\lib\ibmorbapi.jar;
C:\Program Files\Java\J9\java\jre\lib\ibmcfw.jar;
C:\Program Files\Java\J9\java\jre\lib\rt.jar;
C:\Program Files\Java\J9\java\jre\lib\charsets.jar;
C:\Program Files\Java\J9\java\jre\lib\resources.jar;
C:\Program Files\Java\J9\java\jre\lib\ibmpkcs.jar;
C:\Program Files\Java\J9\java\jre\lib\ibmcertpathfw.jar;
C:\Program Files\Java\J9\java\jre\lib\ibmjgssfw.jar;
C:\Program Files\Java\J9\java\jre\lib\ibmjssefw.jar;
C:\Program Files\Java\J9\java\jre\lib\ibmsaslfw.jar;
C:\Program Files\Java\J9\java\jre\lib\ibmjcefw.jar;
C:\Program Files\Java\J9\java\jre\lib\ibmjgssprovider.jar;
C:\Program Files\Java\J9\java\jre\lib\ibmjsseprovider2.jar;
C:\Program Files\Java\J9\java\jre\lib\ibmcertpathprovider.jar;
C:\Program Files\Java\J9\java\jre\lib\ibmxmlcrypto.jar;
C:\Program Files\Java\J9\java\jre\lib\management-agent.jar;
C:\Program Files\Java\J9\java\jre\lib\xml.jar;
C:\Program Files\Java\J9\java\jre\lib\jlm.jar;
C:\Program Files\Java\J9\java\jre\lib\javascript.jar
OS Version Microsoft Windows Server 2008 R2 Enterprise
Other software N/A
Test Information
Tested by Fujitsu
SPEC license # 19
Test location Paderborn, Germany
Test date Mar 10, 2010
H/w available Apr-2010
JVM available Nov-2009
OS available Oct-2009
Other s/w available N/A
AOT Compilation
N/A
Tuning
  • Turned off "Hardware Prefetch" in BIOS.
  • Turned off "Adjacent Sector Prefetch" in BIOS.
  • Turned off "DCU IP Prefetch" in BIOS.
  • Turned off "DCU Streamer Prefetch" in BIOS.
  • Turned off "Data Reuse Optimization" in BIOS.
  • Each JVM instance was affinitized to 2 cores of a socket.
  • Using the local security settings console, "lock pages in memory" was enabled for the user running the benchmark.
Notes



JVM 1 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 62240
2 139896
3 150732
4 164610 *
5 163592 *
6 164302 *
7 163500 *
8 162051 *
SPECjbb2005 (from 4 to 8) 163611 SPECjbb2005 bops
SPEC license # 19 Tested by: Fujitsu Test date: Mar 10, 2010

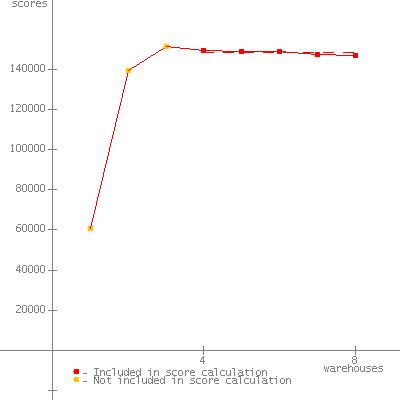

JVM 2 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 60811
2 133883
3 154390
4 151714 *
5 150723 *
6 150640 *
7 149337 *
8 148607 *
SPECjbb2005 (from 4 to 8) 150204 SPECjbb2005 bops
SPEC license # 19 Tested by: Fujitsu Test date: Mar 10, 2010


JVM 3 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 60110
2 138497
3 146030
4 165664 *
5 165458 *
6 164007 *
7 163470 *
8 163157 *
SPECjbb2005 (from 4 to 8) 164351 SPECjbb2005 bops
SPEC license # 19 Tested by: Fujitsu Test date: Mar 10, 2010


JVM 4 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 60578
2 139527
3 151388
4 149421 *
5 148957 *
6 148533 *
7 147333 *
8 146843 *
SPECjbb2005 (from 4 to 8) 148218 SPECjbb2005 bops
SPEC license # 19 Tested by: Fujitsu Test date: Mar 10, 2010


JVM 5 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 66388
2 137869
3 153210
4 151593 *
5 150643 *
6 149520 *
7 149213 *
8 148469 *
SPECjbb2005 (from 4 to 8) 149888 SPECjbb2005 bops
SPEC license # 19 Tested by: Fujitsu Test date: Mar 10, 2010


JVM 6 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 61377
2 140447
3 154468
4 152529 *
5 151372 *
6 150575 *
7 150176 *
8 149323 *
SPECjbb2005 (from 4 to 8) 150795 SPECjbb2005 bops
SPEC license # 19 Tested by: Fujitsu Test date: Mar 10, 2010

SPECjbb2005 Version: [SPECjbb2005 1.07, March 15, 2006]
Reporting page, Copyright © 2005-2007 SPEC. All rights reserved

First published at SPEC.org on 14-Apr-2010
