SPECjbb2005 SPECjbb2005 bops = 928393, SPECjbb2005 bops/JVM = 154732
Fujitsu PRIMERGY RX300 S6, Intel Xeon X5680, 3.33 GHz
IBM Corporation IBM J9 VM (build 2.4, JRE 1.6.0 IBM J9 2.4 Windows Server 2008 amd64-64 jvmwa6460sr6-20090923_42924 (JIT enabled, AOT enabled)

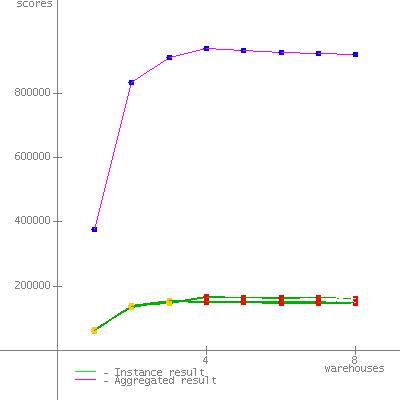

JVM run JVM Scores
1152201
2165010
3163951
4147726
5148735
6150770
SPECjbb2005 bops = 928393, SPECjbb2005 bops/JVM = 154732

Hardware
Hardware Vendor Fujitsu
Vendor URL http://www.fujitsu.com
Model PRIMERGY RX300 S6, Intel Xeon X5680, 3.33 GHz
Processor Intel Xeon X5680 (Intel Turbo Boost Technology up to 3.60 GHz)
MHz 3333
# of Chips 2
# of Cores 12
# of Cores/Chip 6
HW Threading Enabled? Yes
Procs Avail to Java 24
Memory (MB) 49152
Memory Details 12x4GB PC3-10600R (CAS 9-9-9)
Primary cache 32KB(I) + 32KB(D) on chip, per core
Secondary cache 256KB(I+D) on chip, per core
Other cache 12MB(I+D) on chip, per chip
Filesystem NTFS
Disks Seagate (2.5", SAS, 73GB, 10krpm)
Other hardware N/A
Software
Software Vendor IBM Corporation
Vendor URL http://www.ibm.com
JVM Version IBM J9 VM (build 2.4, JRE 1.6.0 IBM J9 2.4 Windows Server 2008 amd64-64 jvmwa6460sr6-20090923_42924 (JIT enabled, AOT enabled)
JVM Command Line start /HIGH /AFFINITY [0xF,0x70,0x700,0xF000,0x70000,0x700000] /B java -Xaggressive -Xcompressedrefs -Xgcpolicy:gencon -Xmn1400m -Xms1875m -Xmx1875m -XlockReservation -Xnoloa -XtlhPrefetch -Xlp
JVM Initial Heap Memory (MB) 1875
JVM Maximum Heap Memory (MB) 1875
JVM Address bits 64
JVM CLASSPATH .\jbb.jar;
.\check.jar;
JVM BOOTCLASSPATH C:\Program Files\Java\J9\java\jre\bin\compressedrefs\jclSC160\vm.jar;
C:\Program Files\Java\J9\java\jre\lib\annotation.jar;
C:\Program Files\Java\J9\java\jre\lib\beans.jar;
C:\Program Files\Java\J9\java\jre\lib\java.util.jar;
C:\Program Files\Java\J9\java\jre\lib\jndi.jar;
C:\Program Files\Java\J9\java\jre\lib\logging.jar;
C:\Program Files\Java\J9\java\jre\lib\security.jar;
C:\Program Files\Java\J9\java\jre\lib\sql.jar;
C:\Program Files\Java\J9\java\jre\lib\ibmorb.jar;
C:\Program Files\Java\J9\java\jre\lib\ibmorbapi.jar;
C:\Program Files\Java\J9\java\jre\lib\ibmcfw.jar;
C:\Program Files\Java\J9\java\jre\lib\rt.jar;
C:\Program Files\Java\J9\java\jre\lib\charsets.jar;
C:\Program Files\Java\J9\java\jre\lib\resources.jar;
C:\Program Files\Java\J9\java\jre\lib\ibmpkcs.jar;
C:\Program Files\Java\J9\java\jre\lib\ibmcertpathfw.jar;
C:\Program Files\Java\J9\java\jre\lib\ibmjgssfw.jar;
C:\Program Files\Java\J9\java\jre\lib\ibmjssefw.jar;
C:\Program Files\Java\J9\java\jre\lib\ibmsaslfw.jar;
C:\Program Files\Java\J9\java\jre\lib\ibmjcefw.jar;
C:\Program Files\Java\J9\java\jre\lib\ibmjgssprovider.jar;
C:\Program Files\Java\J9\java\jre\lib\ibmjsseprovider2.jar;
C:\Program Files\Java\J9\java\jre\lib\ibmcertpathprovider.jar;
C:\Program Files\Java\J9\java\jre\lib\ibmxmlcrypto.jar;
C:\Program Files\Java\J9\java\jre\lib\management-agent.jar;
C:\Program Files\Java\J9\java\jre\lib\xml.jar;
C:\Program Files\Java\J9\java\jre\lib\jlm.jar;
C:\Program Files\Java\J9\java\jre\lib\javascript.jar
OS Version Microsoft Windows Server 2008 R2 Enterprise
Other software N/A
Test Information
Tested by Fujitsu
SPEC license # 19
Test location Paderborn, Germany
Test date Feb 27, 2010
H/w available Apr-2010
JVM available Nov-2009
OS available Oct-2009
Other s/w available N/A
AOT Compilation
N/A
Tuning
  • Turned off "Hardware Prefetch" in BIOS.
  • Turned off "Adjacent Sector Prefetch" in BIOS.
  • Turned off "DCU IP Prefetch" in BIOS.
  • Turned off "DCU Streamer Prefetch" in BIOS.
  • Turned off "Data Reuse Optimization" in BIOS.
  • Each JVM instance was affinitized to 2 cores of a socket.
  • Using the local security settings console, "lock pages in memory" was enabled for the user running the benchmark.
Notes
  • This result has been measured on PRIMERGY RX300 S6. The PRIMERGY RX300 S6 and PRIMERGY TX300 S6 are electronically equivalent.

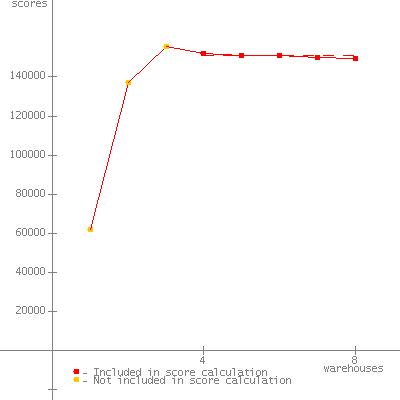

JVM 1 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 60715
2 140691
3 155252
4 153827 *
5 152771 *
6 152085 *
7 151786 *
8 150537 *
SPECjbb2005 (from 4 to 8) 152201 SPECjbb2005 bops
SPEC license # 19 Tested by: Fujitsu Test date: Feb 27, 2010

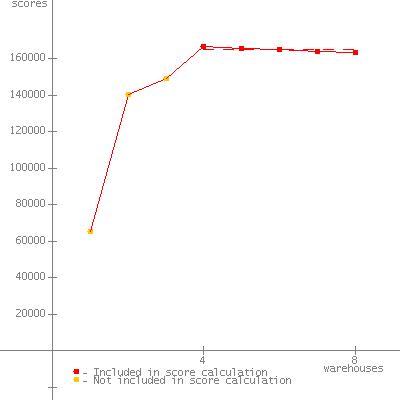

JVM 2 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 65414
2 140199
3 149384
4 166868 *
5 165860 *
6 164897 *
7 164145 *
8 163279 *
SPECjbb2005 (from 4 to 8) 165010 SPECjbb2005 bops
SPEC license # 19 Tested by: Fujitsu Test date: Feb 27, 2010

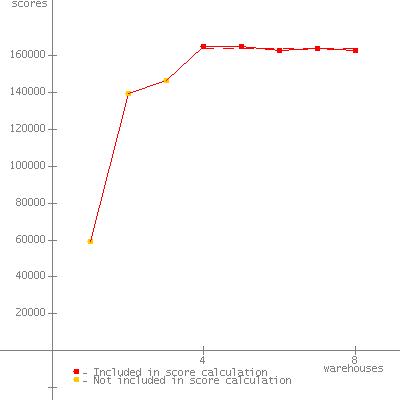

JVM 3 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 59209
2 139406
3 146687
4 165229 *
5 165058 *
6 162968 *
7 163837 *
8 162662 *
SPECjbb2005 (from 4 to 8) 163951 SPECjbb2005 bops
SPEC license # 19 Tested by: Fujitsu Test date: Feb 27, 2010

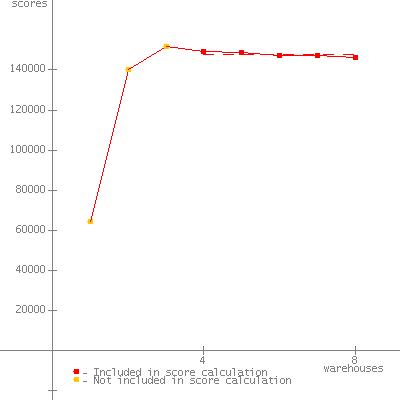

JVM 4 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 64311
2 140177
3 151841
4 149295 *
5 148673 *
6 147324 *
7 146994 *
8 146343 *
SPECjbb2005 (from 4 to 8) 147726 SPECjbb2005 bops
SPEC license # 19 Tested by: Fujitsu Test date: Feb 27, 2010

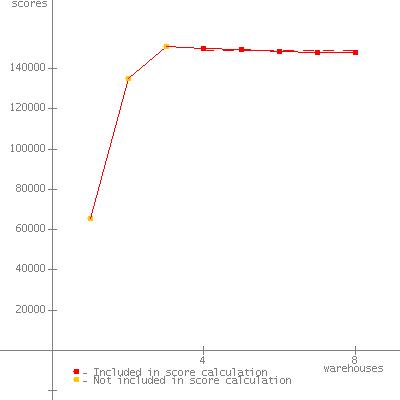

JVM 5 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 65655
2 134797
3 151060
4 149996 *
5 149427 *
6 148529 *
7 147860 *
8 147861 *
SPECjbb2005 (from 4 to 8) 148735 SPECjbb2005 bops
SPEC license # 19 Tested by: Fujitsu Test date: Feb 27, 2010

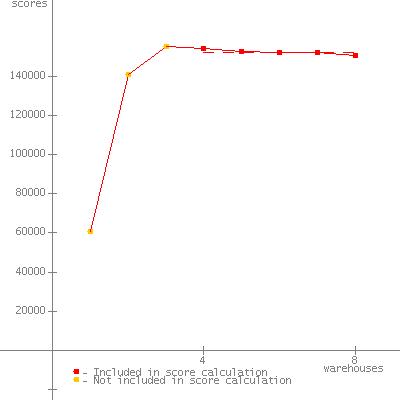

JVM 6 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 61821
2 137029
3 155750
4 152113 *
5 151078 *
6 151047 *
7 149966 *
8 149648 *
SPECjbb2005 (from 4 to 8) 150770 SPECjbb2005 bops
SPEC license # 19 Tested by: Fujitsu Test date: Feb 27, 2010

SPECjbb2005 Version: [SPECjbb2005 1.07, March 15, 2006]
Reporting page, Copyright © 2005-2007 SPEC. All rights reserved

First published at SPEC.org on 14-Apr-2010
