SPECjbb2005 SPECjbb2005 bops = 1011147, SPECjbb2005 bops/JVM = 126393
Dell Inc. PowerEdge R810 (Intel Xeon X7560, 2.26 GHz)
IBM Corporation IBM J9 VM (build 2.4, JRE 1.6.0 IBM J9 2.4 Windows Server 2008 amd64-64 jvmwa64 60sr5-20090519_35743 (JIT enabled, AOT enabled)

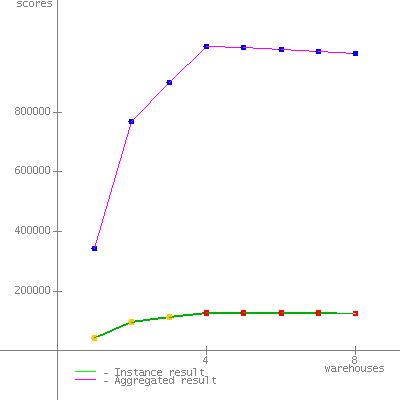

JVM run JVM Scores
1127538
2126033
3125066
4126756
5125554
6126390
7127161
8126649
SPECjbb2005 bops = 1011147, SPECjbb2005 bops/JVM = 126393

Hardware
Hardware Vendor Dell Inc.
Vendor URL http://www.dell.com
Model PowerEdge R810 (Intel Xeon X7560, 2.26 GHz)
Processor Intel Xeon X7560
MHz 2266
# of Chips 2
# of Cores 16
# of Cores/Chip 8
HW Threading Enabled? Yes
Procs Avail to Java 32
Memory (MB) 131072
Memory Details 32 x 4 GB DDR3-1066 QR RDIMM
Primary cache 32 KB I + 32 KB D on chip per core
Secondary cache 256 KB I+D on chip per core
Other cache 24 MB I+D L3 on chip per chip
Filesystem NTFS
Disks 1 x 146 GB 15000 RPM SAS
Other hardware N/A
Software
Software Vendor IBM Corporation
Vendor URL http://www.ibm.com
JVM Version IBM J9 VM (build 2.4, JRE 1.6.0 IBM J9 2.4 Windows Server 2008 amd64-64 jvmwa64 60sr5-20090519_35743 (JIT enabled, AOT enabled)
JVM Command Line start /HIGH /affinity [F,F0,F00,F000,F0000,F00000,F000000,F0000000] Java -Xmn1400m -Xms1875m -Xmx1875m -Xaggressive -Xcompressedrefs -Xgcpolicy:gencon -XlockReservation -Xnoloa -XtlhPrefetch -Xlp spec.jbb.JBBmain -propfile SPECjbb.props
JVM Initial Heap Memory (MB) 1875
JVM Maximum Heap Memory (MB) 1875
JVM Address bits 64
JVM CLASSPATH .\jbb.jar;
.\check.jar;
JVM BOOTCLASSPATH c:\specjbb2005\jvm\jre\bin\compressedrefs\jclSC160\vm.jar;
c:\specjbb2005\jvm\jre\lib\annotation.jar;
c:\specjbb2005\jvm\jre\lib\beans.jar;
c:\specjbb2005\jvm\jre\lib\java.util.jar;
c:\specjbb2005\jvm\jre\lib\jndi.jar;
c:\specjbb2005\jvm\jre\lib\logging.jar;
c:\specjbb2005\jvm\jre\lib\security.jar;
c:\specjbb2005\jvm\jre\lib\sql.jar;
c:\specjbb2005\jvm\jre\lib\ibmorb.jar;
c:\specjbb2005\jvm\jre\lib\ibmorbapi.jar;
c:\specjbb2005\jvm\jre\lib\ibmcfw.jar;
c:\specjbb2005\jvm\jre\lib\rt.jar;
c:\specjbb2005\jvm\jre\lib\charsets.jar;
c:\specjbb2005\jvm\jre\lib\resources.jar;
c:\specjbb2005\jvm\jre\lib\ibmpkcs.jar;
c:\specjbb2005\jvm\jre\lib\ibmcertpathfw.jar;
c:\specjbb2005\jvm\jre\lib\ibmjgssfw.jar;
c:\specjbb2005\jvm\jre\lib\ibmjssefw.jar;
c:\specjbb2005\jvm\jre\lib\ibmsaslfw.jar;
c:\specjbb2005\jvm\jre\lib\ibmjcefw.jar;
c:\specjbb2005\jvm\jre\lib\ibmjgssprovider.jar;
c:\specjbb2005\jvm\jre\lib\ibmjsseprovider2.jar;
c:\specjbb2005\jvm\jre\lib\ibmcertpathprovider.jar;
c:\specjbb2005\jvm\jre\lib\ibmxmlcrypto.jar;
c:\specjbb2005\jvm\jre\lib\management-agent.jar;
c:\specjbb2005\jvm\jre\lib\xml.jar;
c:\specjbb2005\jvm\jre\lib\jlm.jar;
c:\specjbb2005\jvm\jre\lib\javascript.jar
OS Version Microsoft Windows Server 2008 R2, Enterprise Edition
Other software N/A
Test Information
Tested by Dell Inc.
SPEC license # 55
Test location Round Rock, TX
Test date Feb-2010
H/w available Mar-2010
JVM available Jul-2009
OS available Oct-2009
Other s/w available N/A
AOT Compilation
N/A
Tuning
  • Disabled 'Hardware Prefetcher' in BIOS
  • Disabled 'Adjacent Cache Line Prefetch' in BIOS
  • 'Power Management' set to 'Maximum Performance' in BIOS
  • 'Lock pages in memory' enabled for benchmark user
  • Each JVM instance was affinitized to 4 logical processors
Notes
Command line options are described at:http://publib.boulder.ibm.com/infocenter/javasdk/v6r0/index.jsp

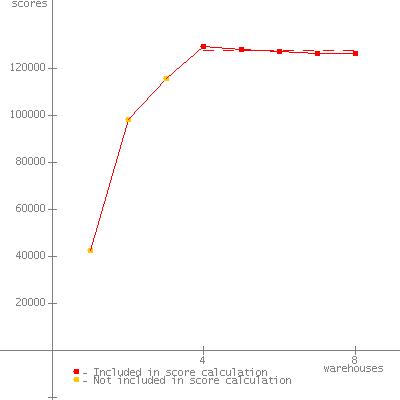

JVM 1 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 42402
2 98253
3 115877
4 129545 *
5 128159 *
6 127178 *
7 126568 *
8 126242 *
SPECjbb2005 (from 4 to 8) 127538 SPECjbb2005 bops
SPEC license # 55 Tested by: Dell Inc. Test date: Feb-2010

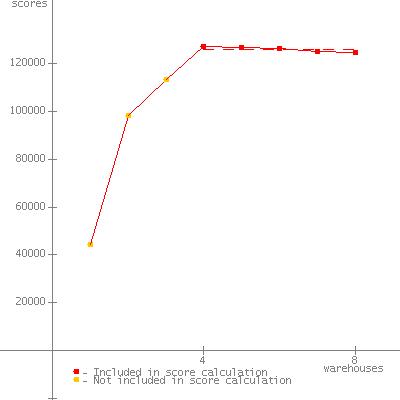

JVM 2 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 44570
2 98405
3 113415
4 127321 *
5 126812 *
6 126262 *
7 125219 *
8 124549 *
SPECjbb2005 (from 4 to 8) 126033 SPECjbb2005 bops
SPEC license # 55 Tested by: Dell Inc. Test date: Feb-2010

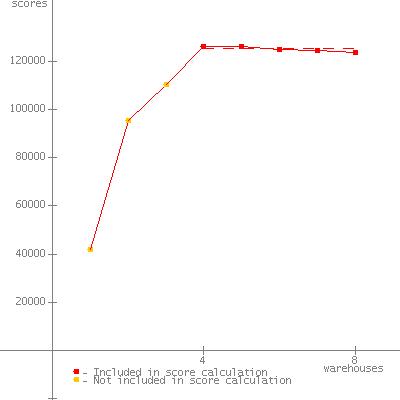

JVM 3 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 41831
2 95263
3 110408
4 126238 *
5 126078 *
6 124903 *
7 124612 *
8 123501 *
SPECjbb2005 (from 4 to 8) 125066 SPECjbb2005 bops
SPEC license # 55 Tested by: Dell Inc. Test date: Feb-2010


JVM 4 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 42410
2 94759
3 112015
4 127542 *
5 128031 *
6 126834 *
7 126050 *
8 125323 *
SPECjbb2005 (from 4 to 8) 126756 SPECjbb2005 bops
SPEC license # 55 Tested by: Dell Inc. Test date: Feb-2010

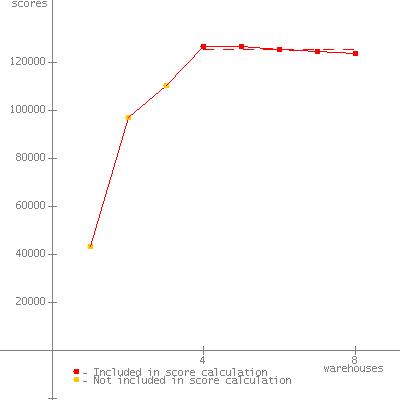

JVM 5 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 43236
2 97226
3 110659
4 126727 *
5 126925 *
6 125627 *
7 124565 *
8 123926 *
SPECjbb2005 (from 4 to 8) 125554 SPECjbb2005 bops
SPEC license # 55 Tested by: Dell Inc. Test date: Feb-2010


JVM 6 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 41736
2 96672
3 112434
4 128354 *
5 127341 *
6 126114 *
7 125670 *
8 124471 *
SPECjbb2005 (from 4 to 8) 126390 SPECjbb2005 bops
SPEC license # 55 Tested by: Dell Inc. Test date: Feb-2010


JVM 7 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 42826
2 95087
3 114797
4 127927 *
5 127986 *
6 127159 *
7 127121 *
8 125614 *
SPECjbb2005 (from 4 to 8) 127161 SPECjbb2005 bops
SPEC license # 55 Tested by: Dell Inc. Test date: Feb-2010

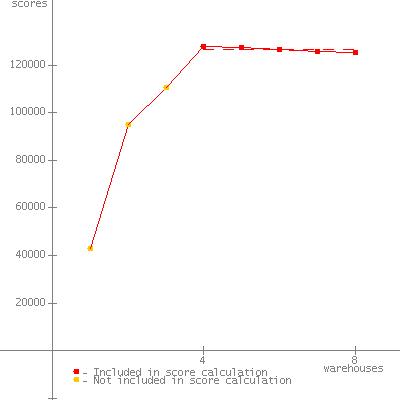

JVM 8 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 42906
2 94965
3 110739
4 128050 *
5 127306 *
6 126607 *
7 125865 *
8 125417 *
SPECjbb2005 (from 4 to 8) 126649 SPECjbb2005 bops
SPEC license # 55 Tested by: Dell Inc. Test date: Feb-2010

SPECjbb2005 Version: [SPECjbb2005 1.07, March 15, 2006]
Reporting page, Copyright © 2005-2007 SPEC. All rights reserved

First published at SPEC.org on 01-Apr-2010
