SPECjbb2005 SPECjbb2005 bops = 1031159, SPECjbb2005 bops/JVM = 128895
Dell Inc. PowerEdge M905 (AMD Opteron 8439 SE, 2.80 GHz)
IBM IBM J9 VM (build 2.4, J2RE 1.6.0 IBM J9 2.4 Windows Server 2008 amd64-64 jvmwa6460sr5-20090519_35743 (JIT enabled, AOT enabled)

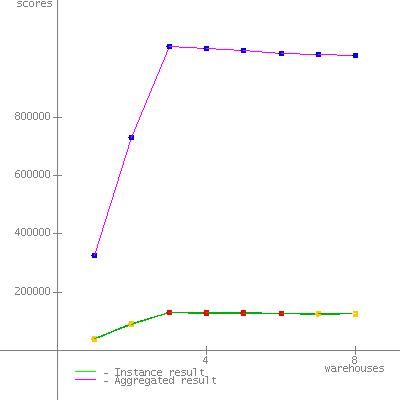

JVM run JVM Scores
1128361
2129647
3129179
4129569
5127965
6127483
7130035
8128920
SPECjbb2005 bops = 1031159, SPECjbb2005 bops/JVM = 128895

Hardware
Hardware Vendor Dell Inc.
Vendor URL http://www.dell.com
Model PowerEdge M905 (AMD Opteron 8439 SE, 2.80 GHz)
Processor AMD Opteron 8439 SE
MHz 2800
# of Chips 4
# of Cores 24
# of Cores/Chip 6
HW Threading Enabled? No
Procs Avail to Java 24
Memory (MB) 65536
Memory Details 16 x 4 GB DDR2-800
Primary cache 64 KB I + 64 KB D on chip per core
Secondary cache 512 KB I+D per core
Other cache 6 MB I+D L3 per chip
Filesystem NTFS
Disks 1 x 73 GB 10000 RPM SAS
Other hardware none
Software
Software Vendor IBM
Vendor URL http://www.ibm.com
JVM Version IBM J9 VM (build 2.4, J2RE 1.6.0 IBM J9 2.4 Windows Server 2008 amd64-64 jvmwa6460sr5-20090519_35743 (JIT enabled, AOT enabled)
JVM Command Line start /AFFINITY [7,38,1C0,E00,7000,38000,1C0000,E00000] -Xaggressive -Xcompressedrefs -Xgcpolicy:gencon -Xmn1400m -Xms1875m -Xmx1875m -XlockReservation -Xnoloa -XtlhPrefetch -Xlp
JVM Initial Heap Memory (MB) 1875
JVM Maximum Heap Memory (MB) 1875
JVM Address bits 64
JVM CLASSPATH .\jbb.jar;
.\check.jar;
JVM BOOTCLASSPATH C:\SPECjbb2005\IBM-J9\jre\bin\compressedrefs\jclSC160\vm.jar;
C:\SPECjbb2005\IBM-J9\jre\lib\annotation.jar;
C:\SPECjbb2005\IBM-J9\jre\lib\beans.jar;
C:\SPECjbb2005\IBM-J9\jre\lib\java.util.jar;
C:\SPECjbb2005\IBM-J9\jre\lib\jndi.jar;
C:\SPECjbb2005\IBM-J9\jre\lib\logging.jar;
C:\SPECjbb2005\IBM-J9\jre\lib\security.jar;
C:\SPECjbb2005\IBM-J9\jre\lib\sql.jar;
C:\SPECjbb2005\IBM-J9\jre\lib\ibmorb.jar;
C:\SPECjbb2005\IBM-J9\jre\lib\ibmorbapi.jar;
C:\SPECjbb2005\IBM-J9\jre\lib\ibmcfw.jar;
C:\SPECjbb2005\IBM-J9\jre\lib\rt.jar;
C:\SPECjbb2005\IBM-J9\jre\lib\charsets.jar;
C:\SPECjbb2005\IBM-J9\jre\lib\resources.jar;
C:\SPECjbb2005\IBM-J9\jre\lib\ibmpkcs.jar;
C:\SPECjbb2005\IBM-J9\jre\lib\ibmcertpathfw.jar;
C:\SPECjbb2005\IBM-J9\jre\lib\ibmjgssfw.jar;
C:\SPECjbb2005\IBM-J9\jre\lib\ibmjssefw.jar;
C:\SPECjbb2005\IBM-J9\jre\lib\ibmsaslfw.jar;
C:\SPECjbb2005\IBM-J9\jre\lib\ibmjcefw.jar;
C:\SPECjbb2005\IBM-J9\jre\lib\ibmjgssprovider.jar;
C:\SPECjbb2005\IBM-J9\jre\lib\ibmjsseprovider2.jar;
C:\SPECjbb2005\IBM-J9\jre\lib\ibmcertpathprovider.jar;
C:\SPECjbb2005\IBM-J9\jre\lib\ibmxmlcrypto.jar;
C:\SPECjbb2005\IBM-J9\jre\lib\management-agent.jar;
C:\SPECjbb2005\IBM-J9\jre\lib\xml.jar;
C:\SPECjbb2005\IBM-J9\jre\lib\jlm.jar;
C:\SPECjbb2005\IBM-J9\jre\lib\javascript.jar
OS Version Microsoft Windows Server 2008 SP2 Enterprise x64
Other software N/A
Test Information
Tested by Dell Inc.
SPEC license # 55
Test location Round Rock, TX
Test date Nov 18, 2009
H/w available Dec-2009
JVM available Jun-2009
OS available May-2009
Other s/w available N/A
AOT Compilation
None
Tuning
  • "Lock pages in memory" enabled for benchmark user.
  • Each JVM instance was affinitized to the cores of a chip.
Notes
  • Disabled 'Hardware Prefetcher' in BIOS
  • Disabled 'DRAM Prefetcher' in BIOS
  • Disabled 'Hardware Prefetch Training on Software Prefetch' in BIOS
  • Command line options are described at: http://publib.boulder.ibm.com/infocenter/javasdk/v6r0/index.jsp

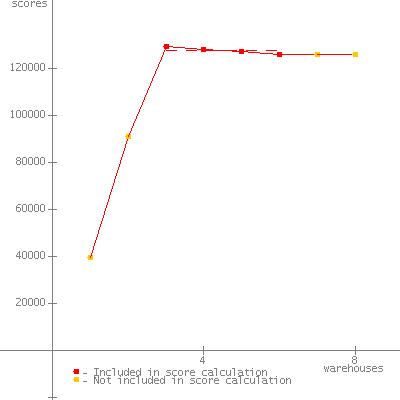

JVM 1 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 40260
2 91234
3 130251 *
4 128992 *
5 127731 *
6 126469 *
7 126442
8 126219
SPECjbb2005 (from 3 to 6) 128361 SPECjbb2005 bops
SPEC license # 55 Tested by: Dell Inc. Test date: Nov 18, 2009


JVM 2 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 41167
2 91909
3 130243 *
4 129939 *
5 129845 *
6 128561 *
7 127846
8 127279
SPECjbb2005 (from 3 to 6) 129647 SPECjbb2005 bops
SPEC license # 55 Tested by: Dell Inc. Test date: Nov 18, 2009


JVM 3 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 41808
2 91711
3 130744 *
4 129628 *
5 128896 *
6 127448 *
7 127474
8 126988
SPECjbb2005 (from 3 to 6) 129179 SPECjbb2005 bops
SPEC license # 55 Tested by: Dell Inc. Test date: Nov 18, 2009


JVM 4 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 39550
2 91793
3 130662 *
4 130202 *
5 129120 *
6 128290 *
7 127104
8 126924
SPECjbb2005 (from 3 to 6) 129569 SPECjbb2005 bops
SPEC license # 55 Tested by: Dell Inc. Test date: Nov 18, 2009


JVM 5 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 39763
2 91281
3 129705 *
4 128339 *
5 127623 *
6 126191 *
7 126334
8 126129
SPECjbb2005 (from 3 to 6) 127965 SPECjbb2005 bops
SPEC license # 55 Tested by: Dell Inc. Test date: Nov 18, 2009


JVM 6 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 41166
2 90503
3 129319 *
4 128058 *
5 126890 *
6 125664 *
7 125210
8 124710
SPECjbb2005 (from 3 to 6) 127483 SPECjbb2005 bops
SPEC license # 55 Tested by: Dell Inc. Test date: Nov 18, 2009


JVM 7 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 39795
2 91387
3 131632 *
4 130277 *
5 129649 *
6 128584 *
7 128371
8 127426
SPECjbb2005 (from 3 to 6) 130035 SPECjbb2005 bops
SPEC license # 55 Tested by: Dell Inc. Test date: Nov 18, 2009


JVM 8 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 41076
2 90226
3 130494 *
4 129683 *
5 128577 *
6 126927 *
7 126895
8 126508
SPECjbb2005 (from 3 to 6) 128920 SPECjbb2005 bops
SPEC license # 55 Tested by: Dell Inc. Test date: Nov 18, 2009

SPECjbb2005 Version: [SPECjbb2005 1.07, March 15, 2006]
Reporting page, Copyright © 2005-2007 SPEC. All rights reserved

First published at SPEC.org on 17-Dec-2009
