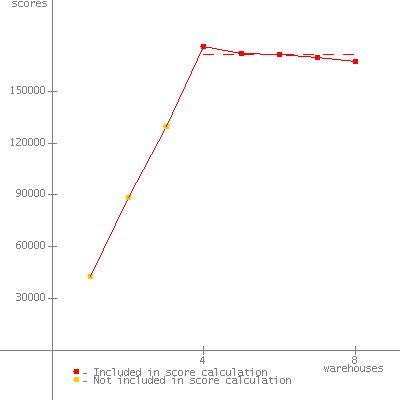

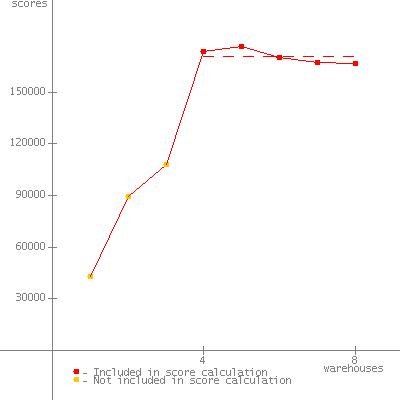

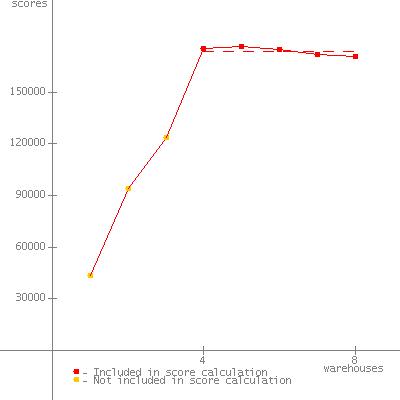

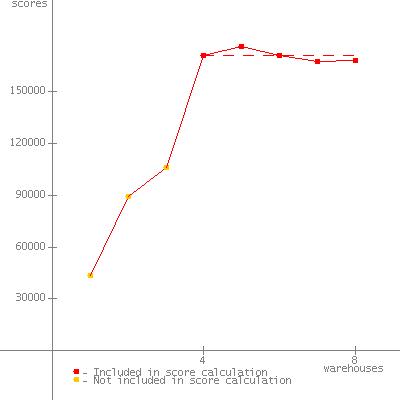

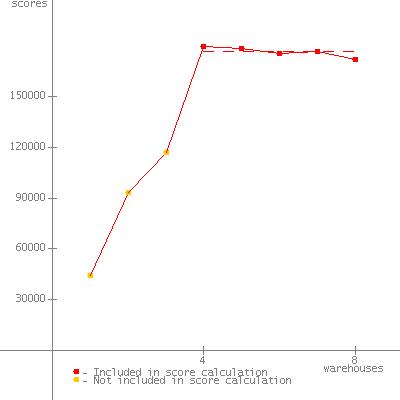

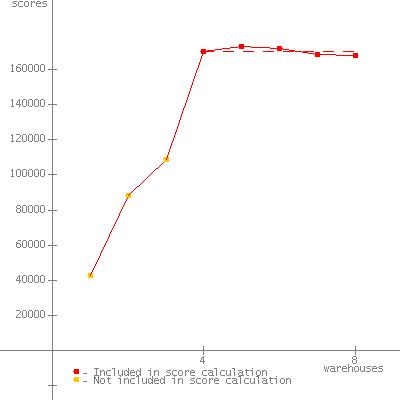

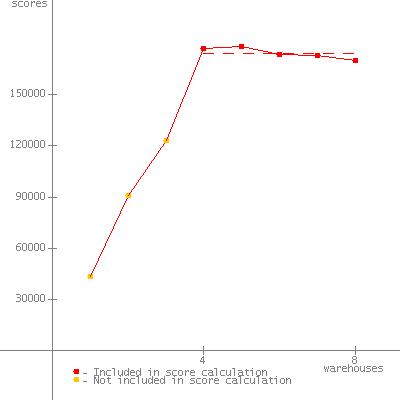

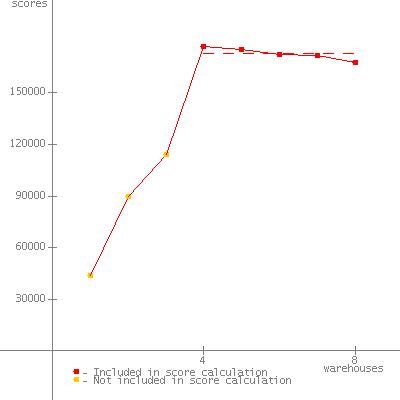

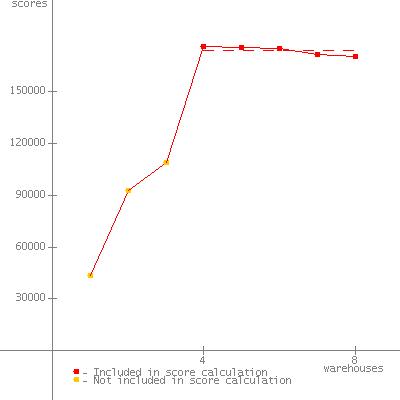

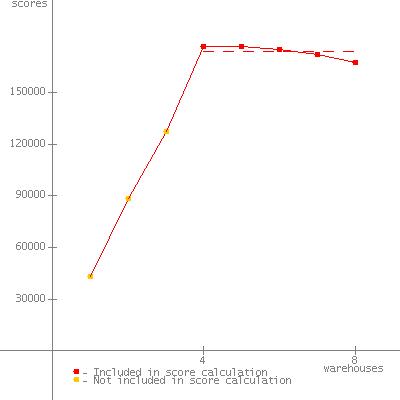

JVM run JVM Scores 1 173115 2 173337 3 176193 4 173254 5 174855 6 173835 7 174841 8 172563 9 174961 10 171700 11 171560 12 174347 13 170092 14 176415 15 171695 16 170479 17 169976 18 174558 19 175367 20 170919 21 173723 22 169183 23 172076 24 173919 25 173914 26 170955 27 171163 28 173379 29 172346 30 172933 31 172679 32 173901 SPECjbb2005 bops = 5534233, SPECjbb2005 bops/JVM = 172945

Hardware Hardware Vendor 3Leaf Systems, Inc. Vendor URL http://www.3leafsystems.com Model 3Leaf Systems Voyager Platform Processor Quad-Core AMD Opteron(tm) Processor 8384 MHz 2700 # of Chips 32 # of Cores 128 # of Cores/Chip 4 HW Threading Enabled? No Procs Avail to Java 128 Memory (MB) 500090 Memory Details 128 x 4GB Registered ECC DDR2 667Mhz Primary cache 64KBI+64KBD Secondary cache 512KB per core Other cache 6MB per chip Filesystem ext3 Disks 1 x 4GB SCSI (classes) 1 x 12GB SCSI (OS) Other hardware Mellanox DDR Infiniband switch. The SUT utilizes 16 3Leaf Voyager boards, each with two Opteron sockets and an additional F socket for the 3Leaf ASIC. The ASIC handles the cache coherent memory access between the Voyager boards and is facilitated by the 3Leaf DVMM which is a very thin "bare-metal" hypervisor. Each Voyager occupies 1u rack space and thus the total form factor is 16u + 1u for the Voyager interconnect. The OS instance is standard RHEL 5.2. Total available resources for the machine are 128 cores and 512GB memory.

Software Software Vendor Oracle Vendor URL http://www.oracle.com JVM Version Oracle JRockit(R) 6 P28.0.0 (build P28.0.0-29-114096-1.6.0_11-20090427-1758-linux-x86_64, compiled mode) JVM Command Line numactl --physcpubind=[0-3,...,124-127] --membind=[0,...,31] java -cp jbb.jar:check.jar -Xms3900m -Xmx3900m -Xns3300m -XlargePages -XXaggressive -XXcallProfiling -Xgc:genpar -XXgcthreads:4 -XXtlaSize:min=4k,preferred=1024k spec.jbb.JBBmain -propfile bSPECjbb.props -id $x > multi.$x & JVM Initial Heap Memory (MB) 3900MB JVM Maximum Heap Memory (MB) 3900MB JVM Address bits 64 JVM CLASSPATH jbb.jar: check.jar JVM BOOTCLASSPATH /root/jrockit-jdk1.6.0_11/jre/lib/amd64/jrockit/jrockit1.6.0.jar: /root/jrockit-jdk1.6.0_11/jre/lib/amd64/jrockit/jmapi.jar: /root/jrockit-jdk1.6.0_11/jre/lib/amd64/jrockit/jmxmapi.jar: /root/jrockit-jdk1.6.0_11/jre/lib/amd64/jrockit/rmp.jar: /root/jrockit-jdk1.6.0_11/jre/lib/amd64/jrockit/latency.jar: /root/jrockit-jdk1.6.0_11/jre/lib/resources.jar: /root/jrockit-jdk1.6.0_11/jre/lib/rt.jar: /root/jrockit-jdk1.6.0_11/jre/lib/sunrsasign.jar: /root/jrockit-jdk1.6.0_11/jre/lib/jsse.jar: /root/jrockit-jdk1.6.0_11/jre/lib/jce.jar: /root/jrockit-jdk1.6.0_11/jre/lib/charsets.jar: /root/jrockit-jdk1.6.0_11/jre/classes OS Version RHEL 5.2 Other software 3Leaf Systems DVMM

Test Information Tested by 3Leaf Systems, Inc. SPEC license # 3769 Test location Santa Clara, CA Test date Jun 5, 2009 H/w available September-2009 JVM available May-2009 OS available May-2008 Other s/w available September-2009

AOT Compilation   Tuning Operating system tunings mount -t hugetlbfs nodev /mnt/hugepages vm.nr_hugepages=65536 Notes "JRockit Command line options are described at: http://download.oracle.com/docs/cd/E13150_01/jrockit_jvm/jrockit/jrdocs/refman/intro.html , 3Leaf Systems DVMM described at http://www.3leafsystems.com/dvmm.html"
