SPECjbb2005 SPECjbb2005 bops = 772061, SPECjbb2005 bops/JVM = 193015
Tyan Thunder n4250QE (S4985-SI), AMD Opteron 8425 HE
IBM IBM J9 VM (build 2.4, J2RE 1.6.0 IBM J9 2.4 Windows Server 2008 amd64-64 jvmwa6460-20081105_25433 (JIT enabled, AOT enabled)

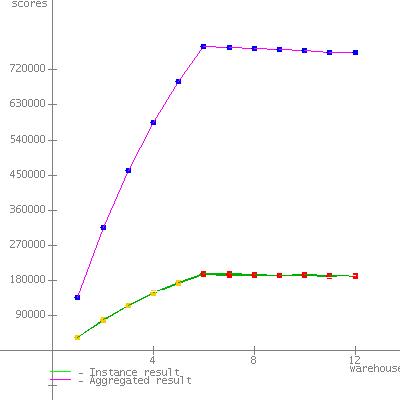

JVM run JVM Scores
1191980
2192962
3192646
4194473
SPECjbb2005 bops = 772061, SPECjbb2005 bops/JVM = 193015

Hardware
Hardware Vendor Tyan
Vendor URL http://www.tyan.com
Model Thunder n4250QE (S4985-SI), AMD Opteron 8425 HE
Processor AMD Opteron 8425 HE
MHz 2100
# of Chips 4
# of Cores 24
# of Cores/Chip 6
HW Threading Enabled? No
Procs Avail to Java 24
Memory (MB) 65536
Memory Details 16 x 4 GB DDR2-800
Primary cache 64 KB I + 64 KB D on chip per core
Secondary cache 512 KB I+D on chip per core
Other cache 6 MB I+D on chip per chip
Filesystem NTFS
Disks 1 x 250GB SATA
Other hardware
Software
Software Vendor IBM
Vendor URL http://www.ibm.com
JVM Version IBM J9 VM (build 2.4, J2RE 1.6.0 IBM J9 2.4 Windows Server 2008 amd64-64 jvmwa6460-20081105_25433 (JIT enabled, AOT enabled)
JVM Command Line start /B /AFFINITY %CPUS% java -Xcompressedrefs -Xlp -Xgcpolicy:gencon -Xmn1400m -Xms1875m -Xmx1875m -XlockReservation -Xnoloa -XtlhPrefetch
JVM Initial Heap Memory (MB) 1875
JVM Maximum Heap Memory (MB) 1875
JVM Address bits 64
JVM CLASSPATH .\jbb.jar;
.\check.jar;
JVM BOOTCLASSPATH C:\Program Files\IBM\WebSphere\Appserver1\java\jre\bin\compressedrefs\jclSC160\vm.jar;
C:\Program Files\IBM\WebSphere\Appserver1\java\jre\lib\annotation.jar;
C:\Program Files\IBM\WebSphere\Appserver1\java\jre\lib\beans.jar;
C:\Program Files\IBM\WebSphere\Appserver1\java\jre\lib\java.util.jar;
C:\Program Files\IBM\WebSphere\Appserver1\java\jre\lib\jndi.jar;
C:\Program Files\IBM\WebSphere\Appserver1\java\jre\lib\logging.jar;
C:\Program Files\IBM\WebSphere\Appserver1\java\jre\lib\security.jar;
C:\Program Files\IBM\WebSphere\Appserver1\java\jre\lib\sql.jar;
C:\Program Files\IBM\WebSphere\Appserver1\java\jre\lib\ibmorb.jar;
C:\Program Files\IBM\WebSphere\Appserver1\java\jre\lib\ibmorbapi.jar;
C:\Program Files\IBM\WebSphere\Appserver1\java\jre\lib\ibmcfw.jar;
C:\Program Files\IBM\WebSphere\Appserver1\java\jre\lib\rt.jar;
C:\Program Files\IBM\WebSphere\Appserver1\java\jre\lib\charsets.jar;
C:\Program Files\IBM\WebSphere\Appserver1\java\jre\lib\resources.jar;
C:\Program Files\IBM\WebSphere\Appserver1\java\jre\lib\ibmpkcs.jar;
C:\Program Files\IBM\WebSphere\Appserver1\java\jre\lib\ibmcertpathfw.jar;
C:\Program Files\IBM\WebSphere\Appserver1\java\jre\lib\ibmjgssfw.jar;
C:\Program Files\IBM\WebSphere\Appserver1\java\jre\lib\ibmjssefw.jar;
C:\Program Files\IBM\WebSphere\Appserver1\java\jre\lib\ibmsaslfw.jar;
C:\Program Files\IBM\WebSphere\Appserver1\java\jre\lib\ibmjcefw.jar;
C:\Program Files\IBM\WebSphere\Appserver1\java\jre\lib\ibmjgssprovider.jar;
C:\Program Files\IBM\WebSphere\Appserver1\java\jre\lib\ibmjsseprovider2.jar;
C:\Program Files\IBM\WebSphere\Appserver1\java\jre\lib\ibmcertpathprovider.jar;
C:\Program Files\IBM\WebSphere\Appserver1\java\jre\lib\ibmxmlcrypto.jar;
C:\Program Files\IBM\WebSphere\Appserver1\java\jre\lib\management-agent.jar;
C:\Program Files\IBM\WebSphere\Appserver1\java\jre\lib\xml.jar;
C:\Program Files\IBM\WebSphere\Appserver1\java\jre\lib\jlm.jar;
C:\Program Files\IBM\WebSphere\Appserver1\java\jre\lib\javascript.jar
OS Version Microsoft Windows Server 2008 Enterprise with SP1 (64-bit)
Other software
Test Information
Tested by Advanced Micro Devices
SPEC license # 49
Test location Austin, TX
Test date May 28, 2009
H/w available Jul-2009
JVM available Dec-2008
OS available Feb-2008
Other s/w available
AOT Compilation

Tuning
OS
  • The start command was used to affinitize each JVM to a socket. The affinity mask, %CPUS%, was set to the following values: 3F, FC0, 3F000, FC0000.
  • Using the Local Security Settings console, "lock pages in memory" was enabled for the user running the benchmark.
Notes
The command line options are described at:
http://publib.boulder.ibm.com/infocenter/javasdk/v6r0/index.jsp

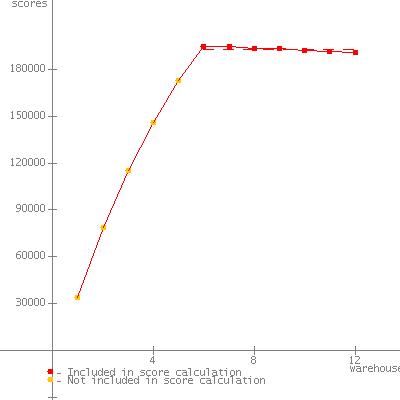

JVM 1 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 34125
2 78449
3 115319
4 145312
5 171547
6 194638 *
7 193874 *
8 192353 *
9 191507 *
10 191335 *
11 190087 *
12 190068 *
SPECjbb2005 (from 6 to 12) 191980 SPECjbb2005 bops
SPEC license # 49 Tested by: Advanced Micro Devices Test date: May 28, 2009


JVM 2 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 34236
2 78542
3 115233
4 146057
5 172615
6 194852 *
7 194669 *
8 193630 *
9 193512 *
10 192031 *
11 191436 *
12 190604 *
SPECjbb2005 (from 6 to 12) 192962 SPECjbb2005 bops
SPEC license # 49 Tested by: Advanced Micro Devices Test date: May 28, 2009


JVM 3 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 34578
2 78811
3 115487
4 145807
5 171786
6 194719 *
7 193375 *
8 193044 *
9 193218 *
10 191954 *
11 191246 *
12 190964 *
SPECjbb2005 (from 6 to 12) 192646 SPECjbb2005 bops
SPEC license # 49 Tested by: Advanced Micro Devices Test date: May 28, 2009


JVM 4 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 33490
2 79141
3 115694
4 147977
5 174355
6 196493 *
7 196482 *
8 195358 *
9 193889 *
10 194481 *
11 192221 *
12 192387 *
SPECjbb2005 (from 6 to 12) 194473 SPECjbb2005 bops
SPEC license # 49 Tested by: Advanced Micro Devices Test date: May 28, 2009

SPECjbb2005 Version: [SPECjbb2005 1.07, March 15, 2006]
Reporting page, Copyright © 2005-2007 SPEC. All rights reserved

First published at SPEC.org on 14-Jul-2009
