SPECjbb2005 SPECjbb2005 bops = 593904, SPECjbb2005 bops/JVM = 74238
IBM Corporation IBM Power 560 Express (3.6 GHz, 16 core)
IBM Corporation J2RE 1.6.0 (32-bit) IBM J9 2.4 AIX [build pap3260sr1-20080117_01]

JVM run JVM Scores
173622
274594
374550
475077
573882
674142
773783
874254
SPECjbb2005 bops = 593904, SPECjbb2005 bops/JVM = 74238

Hardware
Hardware Vendor IBM Corporation
Vendor URL http://www.ibm.com
Model IBM Power 560 Express (3.6 GHz, 16 core)
Processor POWER6
MHz 3600
# of Chips 8
# of Cores 16
# of Cores/Chip 2
HW Threading Enabled? Yes
Procs Avail to Java 32
Memory (MB) 65536
Memory Details 32 x 2 GB DDR2 667 MHz
Primary cache 64 KBI + 64 KBD on chip per core
Secondary cache 4 MB on chip per core
Other cache 32 MB off chip per chip
Filesystem AIX/JFS2
Disks 1 x 146 GB SAS 15K RPM
Other hardware
Software
Software Vendor IBM Corporation
Vendor URL http://www.ibm.com
JVM Version J2RE 1.6.0 (32-bit) IBM J9 2.4 AIX [build pap3260sr1-20080117_01]
JVM Command Line execrset -c processor_set_number -e java -Xlp -Xgcpolicy:gencon -Xms2560m -Xmx2560m -Xmn2g -XlockReservation -Xgcthreads4 spec.jbb.JBBmain -propfile SPECjbb.props
JVM Initial Heap Memory (MB) 2560
JVM Maximum Heap Memory (MB) 2560
JVM Address bits 32
JVM CLASSPATH jbb.jar:
check.jar
JVM BOOTCLASSPATH /spec/pap3260sr1-20080117/jre/lib/vm.jar:
/spec/pap3260sr1-20080117/jre/lib/facilitators.jar:
/spec/pap3260sr1-20080117/jre/lib/annotation.jar:
/spec/pap3260sr1-20080117/jre/lib/beans.jar:
/spec/pap3260sr1-20080117/jre/lib/java.util.jar:
/spec/pap3260sr1-20080117/jre/lib/jndi.jar:
/spec/pap3260sr1-20080117/jre/lib/logging.jar:
/spec/pap3260sr1-20080117/jre/lib/security.jar:
/spec/pap3260sr1-20080117/jre/lib/sql.jar:
/spec/pap3260sr1-20080117/jre/lib/ibmorb.jar:
/spec/pap3260sr1-20080117/jre/lib/ibmorbapi.jar:
/spec/pap3260sr1-20080117/jre/lib/ibmcfw.jar:
/spec/pap3260sr1-20080117/jre/lib/rt.jar:
/spec/pap3260sr1-20080117/jre/lib/charsets.jar:
/spec/pap3260sr1-20080117/jre/lib/resources.jar:
/spec/pap3260sr1-20080117/jre/lib/ibmpkcs.jar:
/spec/pap3260sr1-20080117/jre/lib/ibmcertpathfw.jar:
/spec/pap3260sr1-20080117/jre/lib/ibmjgssfw.jar:
/spec/pap3260sr1-20080117/jre/lib/ibmjssefw.jar:
/spec/pap3260sr1-20080117/jre/lib/ibmsaslfw.jar:
/spec/pap3260sr1-20080117/jre/lib/ibmjcefw.jar:
/spec/pap3260sr1-20080117/jre/lib/ibmjgssprovider.jar:
/spec/pap3260sr1-20080117/jre/lib/ibmjsseprovider2.jar:
/spec/pap3260sr1-20080117/jre/lib/ibmcertpathprovider.jar:
/spec/pap3260sr1-20080117/jre/lib/ibmxmlcrypto.jar:
/spec/pap3260sr1-20080117/jre/lib/management-agent.jar:
/spec/pap3260sr1-20080117/jre/lib/xml.jar:
/spec/pap3260sr1-20080117/jre/lib/jlm.jar:
/spec/pap3260sr1-20080117/jre/lib/javascript.jar:
/spec/pap3260sr1-20080117/jre/lib/RACF.jar
OS Version IBM AIX V6.1 with the 6100-02 Technology Level
Other software
Test Information
Tested by IBM Corporation
SPEC license # 11
Test location Austin, TX
Test date Sep 26, 2008
H/w available Nov-2008
JVM available Apr-2008
OS available Nov-2008
Other s/w available
AOT Compilation

Tuning
Operating system tunings
  • vmo -o lgpg_regions=1536 -o lgpg_size=16777216 -o v_pinshm=1
  • dscrctl -n -s 1
  • LDR_CNTRL=DATAPSIZE=64k@STACKPSIZE=64k@TEXTPSIZE=64k
  • MEMORY_AFFINITY=MCM
Notes
8 JVMs were run in processor sets each containing 2 cores

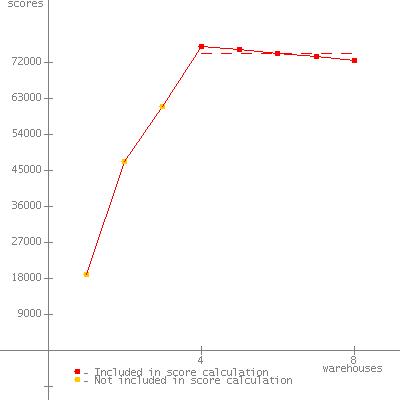

JVM 1 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 20160
2 47299
3 62025
4 75828 *
5 74469 *
6 73382 *
7 72689 *
8 71741 *
SPECjbb2005 (from 4 to 8) 73622 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Sep 26, 2008

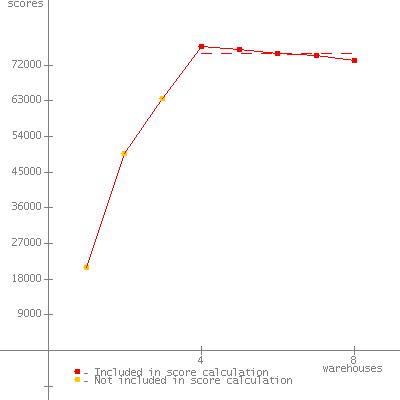

JVM 2 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 20436
2 47642
3 62186
4 76059 *
5 75647 *
6 74524 *
7 73886 *
8 72856 *
SPECjbb2005 (from 4 to 8) 74594 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Sep 26, 2008


JVM 3 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 20896
2 50235
3 63076
4 76575 *
5 75534 *
6 74494 *
7 73643 *
8 72506 *
SPECjbb2005 (from 4 to 8) 74550 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Sep 26, 2008


JVM 4 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 21012
2 49825
3 63642
4 76825 *
5 76084 *
6 74884 *
7 74361 *
8 73230 *
SPECjbb2005 (from 4 to 8) 75077 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Sep 26, 2008


JVM 5 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 20060
2 48385
3 61621
4 74923 *
5 74802 *
6 74137 *
7 73345 *
8 72201 *
SPECjbb2005 (from 4 to 8) 73882 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Sep 26, 2008


JVM 6 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 18680
2 47893
3 61738
4 76186 *
5 75030 *
6 74018 *
7 73317 *
8 72158 *
SPECjbb2005 (from 4 to 8) 74142 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Sep 26, 2008


JVM 7 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 19623
2 46806
3 62100
4 75638 *
5 74586 *
6 73694 *
7 72995 *
8 72001 *
SPECjbb2005 (from 4 to 8) 73783 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Sep 26, 2008


JVM 8 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 18923
2 47240
3 60911
4 76003 *
5 75228 *
6 74286 *
7 73424 *
8 72327 *
SPECjbb2005 (from 4 to 8) 74254 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Sep 26, 2008

SPECjbb2005 Version: [SPECjbb2005 1.07, March 15, 2006]
Reporting page, Copyright © 2005-2007 SPEC. All rights reserved

First published at SPEC.org on 23-Oct-2008
