SPECjbb2005 SPECjbb2005 bops = 330605, SPECjbb2005 bops/JVM = 82651
IBM Corporation IBM System x3650
IBM Corporation IBM J9 2.4 JRE 1.6.0 (build pwa6460sr1-20080419_01(SR1))

JVM run JVM Scores
183038
282831
383727
481009
SPECjbb2005 bops = 330605, SPECjbb2005 bops/JVM = 82651

Hardware
Hardware Vendor IBM Corporation
Vendor URL http://www.ibm.com
Model IBM System x3650
Processor Intel Xeon X5470
MHz 3333
# of Chips 2
# of Cores 8
# of Cores/Chip 4
HW Threading Enabled? No
Procs Avail to Java 8
Memory (MB) 32768
Memory Details 8 x 4GB PC2-5300F
Primary cache 32 KB I + 32 KB D
Secondary cache 12MB(I+D) on chip, 6MB per core pair
Other cache None
Filesystem NTFS
Disks 1 x 36GB SAS
Other hardware None
Software
Software Vendor IBM Corporation
Vendor URL http://www.ibm.com
JVM Version IBM J9 2.4 JRE 1.6.0 (build pwa6460sr1-20080419_01(SR1))
JVM Command Line start /AFFINITY %HEX% java -Xcompressedrefs -Xlp -Xgcpolicy:gencon -Xmn1400m -Xms1875m -Xmx1875m -XlockReservation -Xnoloa -XtlhPrefetch
JVM Initial Heap Memory (MB) 1875
JVM Maximum Heap Memory (MB) 1875
JVM Address bits 64
JVM CLASSPATH .\jbb.jar;
.\check.jar;
JVM BOOTCLASSPATH C:\Program Files\IBM\Java60\jre\bin\compressedrefs\jclSC160\vm.jar;
C:\Program Files\IBM\Java60\jre\lib\annotation.jar;
C:\Program Files\IBM\Java60\jre\lib\beans.jar;
C:\Program Files\IBM\Java60\jre\lib\java.util.jar;
C:\Program Files\IBM\Java60\jre\lib\jndi.jar;
C:\Program Files\IBM\Java60\jre\lib\logging.jar;
C:\Program Files\IBM\Java60\jre\lib\security.jar;
C:\Program Files\IBM\Java60\jre\lib\sql.jar;
C:\Program Files\IBM\Java60\jre\lib\ibmorb.jar;
C:\Program Files\IBM\Java60\jre\lib\ibmorbapi.jar;
C:\Program Files\IBM\Java60\jre\lib\ibmcfw.jar;
C:\Program Files\IBM\Java60\jre\lib\rt.jar;
C:\Program Files\IBM\Java60\jre\lib\charsets.jar;
C:\Program Files\IBM\Java60\jre\lib\resources.jar;
C:\Program Files\IBM\Java60\jre\lib\ibmpkcs.jar;
C:\Program Files\IBM\Java60\jre\lib\ibmcertpathfw.jar;
C:\Program Files\IBM\Java60\jre\lib\ibmjgssfw.jar;
C:\Program Files\IBM\Java60\jre\lib\ibmjssefw.jar;
C:\Program Files\IBM\Java60\jre\lib\ibmsaslfw.jar;
C:\Program Files\IBM\Java60\jre\lib\ibmjcefw.jar;
C:\Program Files\IBM\Java60\jre\lib\ibmjgssprovider.jar;
C:\Program Files\IBM\Java60\jre\lib\ibmjsseprovider2.jar;
C:\Program Files\IBM\Java60\jre\lib\ibmcertpathprovider.jar;
C:\Program Files\IBM\Java60\jre\lib\ibmxmlcrypto.jar;
C:\Program Files\IBM\Java60\jre\lib\management-agent.jar;
C:\Program Files\IBM\Java60\jre\lib\xml.jar;
C:\Program Files\IBM\Java60\jre\lib\jlm.jar;
C:\Program Files\IBM\Java60\jre\lib\javascript.jar
OS Version Windows Server 2003 R2 Enterprise x64 Edition SP1
Other software None
Test Information
Tested by IBM Corporation
SPEC license # 11
Test location RTP, NC
Test date Sep 3, 2008
H/w available Nov-2008
JVM available Jun-2008
OS available Dec-2007
Other s/w available
AOT Compilation

Tuning
  • Affinity Masks set to 0x03, 0x0C, 0x30, 0xC0
  • Hardware Prefetch and Adjacent Sector Prefetch disabled
  • Lock Pages in memory enabled under Local Security Policies
  • Notes

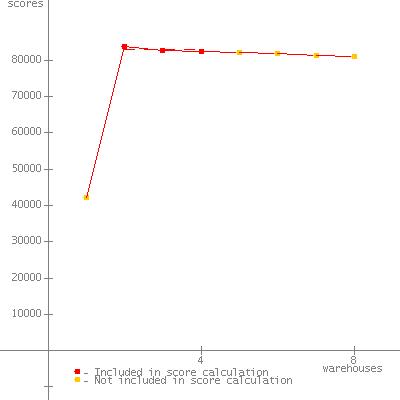

    JVM 1 Scores:
    Warehouses SPECjbb2005 bops Incl. in metric
    1 42182
    2 83931 *
    3 82845 *
    4 82338 *
    5 82173
    6 81795
    7 81477
    8 81211
    SPECjbb2005 (from 2 to 4) 83038 SPECjbb2005 bops
    SPEC license # 11 Tested by: IBM Corporation Test date: Sep 3, 2008


    JVM 2 Scores:
    Warehouses SPECjbb2005 bops Incl. in metric
    1 42666
    2 83497 *
    3 82820 *
    4 82178 *
    5 81328
    6 81206
    7 80999
    8 80472
    SPECjbb2005 (from 2 to 4) 82831 SPECjbb2005 bops
    SPEC license # 11 Tested by: IBM Corporation Test date: Sep 3, 2008


    JVM 3 Scores:
    Warehouses SPECjbb2005 bops Incl. in metric
    1 41935
    2 84471 *
    3 83739 *
    4 82970 *
    5 82378
    6 81923
    7 81601
    8 81459
    SPECjbb2005 (from 2 to 4) 83727 SPECjbb2005 bops
    SPEC license # 11 Tested by: IBM Corporation Test date: Sep 3, 2008


    JVM 4 Scores:
    Warehouses SPECjbb2005 bops Incl. in metric
    1 41932
    2 81683 *
    3 81077 *
    4 80265 *
    5 79882
    6 79780
    7 79241
    8 79027
    SPECjbb2005 (from 2 to 4) 81009 SPECjbb2005 bops
    SPEC license # 11 Tested by: IBM Corporation Test date: Sep 3, 2008

    SPECjbb2005 Version: [SPECjbb2005 1.07, March 15, 2006]
    Reporting page, Copyright © 2005-2007 SPEC. All rights reserved

    First published at SPEC.org on 24-Sep-2008
