SPECjbb2005 SPECjbb2005 bops = 140220, SPECjbb2005 bops/JVM = 140220
Dell PowerEdge R200 (Intel Xeon X3230, 2.66 GHz)
BEA Systems, Inc. BEA JRockit(R) 6.0 P27.4.0 (build P27.4.0-10-90053-1.6.0_02-20071009-1827-windows-x86_64)

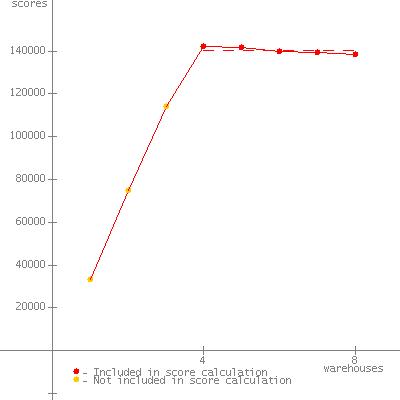

Warehouses SPECjbb2005 bops Incl. in metric
1 33024
2 74930
3 114121
4 142269 *
5 141634 *
6 139948 *
7 139105 *
8 138143 *
SPECjbb2005 (from 4 to 8) 140220 SPECjbb2005 bops
SPEC license # 55 Tested by: Dell Test date: Nov 5, 2007

Hardware
Hardware Vendor Dell
Vendor URL http://www.dell.com/
Model PowerEdge R200 (Intel Xeon X3230, 2.66 GHz)
Processor Quad-Core Intel Xeon processor X3230 (1066 MHz system bus)
MHz 2666
# of Chips 1
# of Cores 4
# of Cores/Chip 4
HW Threading Enabled? No
Procs Avail to Java 4
Memory (MB) 8192
Memory Details 4 x 2GB DDR2-800
Primary cache 32KB(I) + 32KB(D) on chip, per core
Secondary cache 8 MB I+D on chip (4 MB shared per 2 cores)
Other cache n/a
Filesystem NTFS
Disks 2 x 73GB SAS
Other hardware none
Software
Software Vendor BEA Systems, Inc.
Vendor URL http://www.bea.com/
JVM Version BEA JRockit(R) 6.0 P27.4.0 (build P27.4.0-10-90053-1.6.0_02-20071009-1827-windows-x86_64)
JVM Command Line start /AFFINITY %HEX% /B %JAVA% -Xms3700m -Xns3200m -Xmx3700m -XXaggressive -XXthroughputcompaction -XXlazyunlocking -XXcallprofiling -Xgc:genpar -XXgcthreads=4 -XXtlasize:min=4k,preferred=512k spec.jbb.JBBmain -propfile SPECjbb.props
JVM Initial Heap Memory (MB) 3700
JVM Maximum Heap Memory (MB) 3700
JVM Address bits 64
JVM CLASSPATH .\jbb.jar;
.\check.jar;
JVM BOOTCLASSPATH C:\SPECjbb2005\jvm\jrockit-jdk1.6.0_02\jre\bin\jrockit\jrockit1.6.0.jar;
C:\SPECjbb2005\jvm\jrockit-jdk1.6.0_02\jre\bin\jrockit\jmapi.jar;
C:\SPECjbb2005\jvm\jrockit-jdk1.6.0_02\jre\bin\jrockit\jmxmapi.jar;
C:\SPECjbb2005\jvm\jrockit-jdk1.6.0_02\jre\bin\jrockit\rmp.jar;
C:\SPECjbb2005\jvm\jrockit-jdk1.6.0_02\jre\bin\jrockit\latency.jar;
C:\SPECjbb2005\jvm\jrockit-jdk1.6.0_02\jre\lib\resources.jar;
C:\SPECjbb2005\jvm\jrockit-jdk1.6.0_02\jre\lib\rt.jar;
C:\SPECjbb2005\jvm\jrockit-jdk1.6.0_02\jre\lib\sunrsasign.jar;
C:\SPECjbb2005\jvm\jrockit-jdk1.6.0_02\jre\lib\jsse.jar;
C:\SPECjbb2005\jvm\jrockit-jdk1.6.0_02\jre\lib\jce.jar;
C:\SPECjbb2005\jvm\jrockit-jdk1.6.0_02\jre\lib\charsets.jar;
C:\SPECjbb2005\jvm\jrockit-jdk1.6.0_02\jre\classes
OS Version Microsoft Windows Server 2003 Enterprise x64 Edition + SP1 (64-bit)
Other software none
Test Information
Tested by Dell
SPEC license # 55
Test location Round Rock, TX
Test date Nov 5, 2007
H/w available Nov-2007
JVM available Oct-2007
OS available Dec-2005
Other s/w available n/a
AOT Compilation

Tuning
  • Using the local security settings console, "lock pages in memory" was enabled for the user running the benchmark.
  • Each JVM instance was affinitized to two logical processors.
Notes
  • Disabled 'Hardware Prefetcher' in BIOS
  • Disabled 'Adjacent Cache Line Prefetch' in BIOS
  • Command line options are described in: DELL-20061108.txt

Details of Runs

Warehouses Thrput Total heap (MB) Thread spread % % > 120s transaction type Count Time (in seconds)
SizeUsed totalmax
1 33024 3700 2536 <0.01% <0.01 new_order 435235 12.6 .016
payment 300217 6.22 .172
order_status 30021 .660 .016
delivery 30021 3.98 .016
stock_level 30021 .780 .016
cust_report 165200 4.89 .016
2 74930 3700 1667 1.31% <0.01 new_order 988289 24.2 .062
payment 681546 10.1 .078
order_status 68155 1.26 .016
delivery 68154 11.1 .016
stock_level 68155 1.34 .016
cust_report 374806 10.2 .078
3 114121 3700 1891 4.07% <0.01 new_order 1504789 36.6 .079
payment 1037460 14.5 .079
order_status 103746 1.99 .016
delivery 103747 16.7 .032
stock_level 103745 2.31 .016
cust_report 570131 15.2 .079
4 142269 3700 2260 .366% .033 new_order 15007820 385 .172
payment 10350217 156 .265
order_status 1035022 17.9 .032
delivery 1035022 196 .063
stock_level 1035022 24.2 .188
cust_report 5692618 159 .140
5 141634 3700 1846 49.2% <0.01 new_order 14936261 464 .578
payment 10300681 198 .406
order_status 1030068 25.1 .375
delivery 1030066 247 2.03
stock_level 1030067 29.3 .609
cust_report 5665104 203 .610
6 139948 3700 3205 43.4% <0.01 new_order 14758363 567 .954
payment 10178023 240 .750
order_status 1017803 25.8 .750
delivery 1017802 285 1.14
stock_level 1017803 38.6 .750
cust_report 5597689 247 .766
7 139105 3700 1505 44.1% <0.01 new_order 14669530 678 .797
payment 10116746 288 .875
order_status 1011675 31.9 .578
delivery 1011674 325 1.52
stock_level 1011674 39.4 .594
cust_report 5563960 278 .579
8 138143 3700 2297 15.2% .046 new_order 14574320 770 .797
payment 10051356 329 .844
order_status 1005136 32.6 .500
delivery 1005134 379 .953
stock_level 1005136 47.7 .609
cust_report 5528389 315 .797

SPECjbb2005 Version: [SPECjbb2005 1.07, March 15, 2006]
Reporting page, Copyright © 2005-2007 SPEC. All rights reserved

First published at SPEC.org on 05-Dec-2007
