SPECjbb2005 SPECjbb2005 bops = 691975, SPECjbb2005 bops/JVM = 86497
IBM Corporation IBM System p 570 (4.7 GHz, 16 core)
IBM Corporation J2RE 1.5.0 (32-bit) IBM J9 2.4 AIX [build j9vmap32p24-20070404]

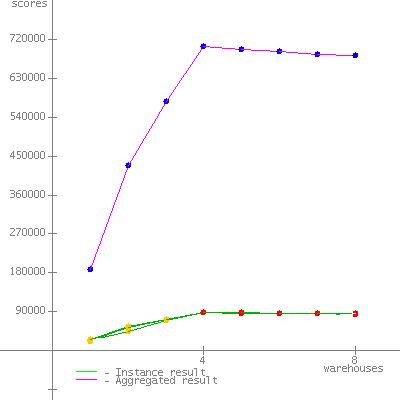

JVM run JVM Scores
185638
286863
386185
486496
586623
686850
786820
886500
SPECjbb2005 bops = 691975, SPECjbb2005 bops/JVM = 86497

Hardware
Hardware Vendor IBM Corporation
Vendor URL http://www.ibm.com
Model IBM System p 570 (4.7 GHz, 16 core)
Processor POWER6
MHz 4700
# of Chips 8
# of Cores 16
# of Cores/Chip 2
HW Threading Enabled? Yes
Procs Avail to Java 32
Memory (MB) 65536
Memory Details 64 x 1GB DDR2
Primary cache 64KBI+64KBD on chip per core
Secondary cache 4MB on chip per core
Other cache 32MB off chip per chip
Filesystem JFS
Disks 1 x 73GB SAS
Other hardware
Software
Software Vendor IBM Corporation
Vendor URL http://www.ibm.com
JVM Version J2RE 1.5.0 (32-bit) IBM J9 2.4 AIX [build j9vmap32p24-20070404]
JVM Command Line execrset -c processor_set_number -e java -Xlp -Xjvm:perf -Xgcpolicy:gencon -Xmns2500m -Xmnx2500m -Xmo500m -Xmx3072m -XlockReservation spec.jbb.JBBmain -propfile SPECjbb.props
JVM Initial Heap Memory (MB) 3000
JVM Maximum Heap Memory (MB) 3072
JVM Address bits 32
JVM CLASSPATH jbb.jar:
check.jar
JVM BOOTCLASSPATH /java/pap32pdev-20070405/jre/bin/perf/jclSC150/vm.jar:
/java/pap32pdev-20070405/jre/lib/core.jar:
/java/pap32pdev-20070405/jre/lib/charsets.jar:
/java/pap32pdev-20070405/jre/lib/graphics.jar:
/java/pap32pdev-20070405/jre/lib/security.jar:
/java/pap32pdev-20070405/jre/lib/ibmpkcs.jar:
/java/pap32pdev-20070405/jre/lib/ibmorb.jar:
/java/pap32pdev-20070405/jre/lib/ibmcfw.jar:
/java/pap32pdev-20070405/jre/lib/ibmorbapi.jar:
/java/pap32pdev-20070405/jre/lib/ibmjcefw.jar:
/java/pap32pdev-20070405/jre/lib/ibmjgssprovider.jar:
/java/pap32pdev-20070405/jre/lib/ibmjsseprovider2.jar:
/java/pap32pdev-20070405/jre/lib/ibmjaaslm.jar:
/java/pap32pdev-20070405/jre/lib/ibmcertpathprovider.jar:
/java/pap32pdev-20070405/jre/lib/server.jar:
/java/pap32pdev-20070405/jre/lib/xml.jar
OS Version IBM AIX 5L V5.3
Other software
Test Information
Tested by IBM Corporation
SPEC license # 11
Test location Austin, TX
Test date May 6, 2007
H/w available Jun-2007
JVM available Aug-2007
OS available Jun-2007
Other s/w available
AOT Compilation

Tuning
Operating system tunings
  • vmo -o lgpg_regions=2688 -o lgpg_size=16777216 -o v_pinshm=1
  • LDR_CNTRL=DATAPSIZE=64k@STACKPSIZE=64k@TEXTPSIZE=64k
  • MEMORY_AFFINITY=MCM
Notes

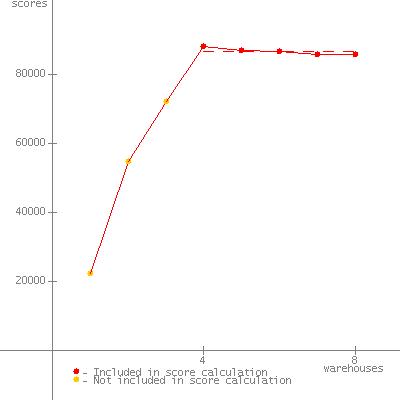

JVM 1 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 22954
2 56292
3 71132
4 87236 *
5 86103 *
6 85675 *
7 84774 *
8 84401 *
SPECjbb2005 (from 4 to 8) 85638 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: May 6, 2007


JVM 2 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 24609
2 54786
3 72070
4 88353 *
5 87336 *
6 86991 *
7 86087 *
8 85549 *
SPECjbb2005 (from 4 to 8) 86863 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: May 6, 2007


JVM 3 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 22935
2 54838
3 72279
4 87630 *
5 86640 *
6 86238 *
7 85447 *
8 84968 *
SPECjbb2005 (from 4 to 8) 86185 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: May 6, 2007


JVM 4 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 23573
2 55340
3 72241
4 88104 *
5 86874 *
6 86647 *
7 85682 *
8 85171 *
SPECjbb2005 (from 4 to 8) 86496 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: May 6, 2007


JVM 5 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 22167
2 55418
3 72602
4 88325 *
5 87293 *
6 86542 *
7 85757 *
8 85197 *
SPECjbb2005 (from 4 to 8) 86623 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: May 6, 2007


JVM 6 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 24540
2 44011
3 70592
4 88301 *
5 87431 *
6 86712 *
7 85965 *
8 85844 *
SPECjbb2005 (from 4 to 8) 86850 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: May 6, 2007


JVM 7 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 22264
2 54752
3 72190
4 88356 *
5 87100 *
6 86722 *
7 86034 *
8 85886 *
SPECjbb2005 (from 4 to 8) 86820 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: May 6, 2007


JVM 8 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 24657
2 53860
3 72366
4 88229 *
5 87038 *
6 86453 *
7 85751 *
8 85028 *
SPECjbb2005 (from 4 to 8) 86500 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: May 6, 2007

SPECjbb2005 Version: [SPECjbb2005 1.07, March 15, 2006]
Reporting page, Copyright © 2005-2007 SPEC. All rights reserved

First published at SPEC.org on 07-Jun-2007
