SPECjbb2005 SPECjbb2005 bops = 346742, SPECjbb2005 bops/JVM = 86686
IBM Corporation IBM System p 570 (4.7 GHz, 8 core)
IBM Corporation J2RE 1.5.0 (32-bit) IBM J9 2.4 AIX [build j9vmap32p24-20070404]

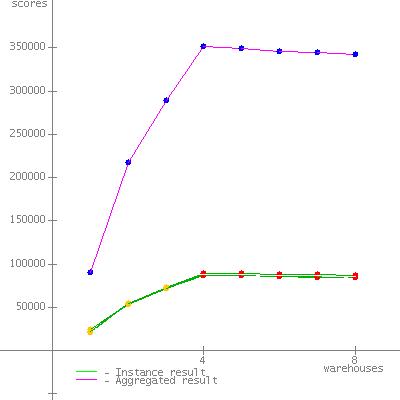

JVM run JVM Scores
186031
285808
388240
486663
SPECjbb2005 bops = 346742, SPECjbb2005 bops/JVM = 86686

Hardware
Hardware Vendor IBM Corporation
Vendor URL http://www.ibm.com
Model IBM System p 570 (4.7 GHz, 8 core)
Processor POWER6
MHz 4700
# of Chips 4
# of Cores 8
# of Cores/Chip 2
HW Threading Enabled? Yes
Procs Avail to Java 16
Memory (MB) 32768
Memory Details 32 x 1GB DDR2
Primary cache 64KBI+64KBD on chip per core
Secondary cache 4MB on chip per core
Other cache 32MB off chip per chip
Filesystem JFS
Disks 1 x 73GB SAS
Other hardware
Software
Software Vendor IBM Corporation
Vendor URL http://www.ibm.com
JVM Version J2RE 1.5.0 (32-bit) IBM J9 2.4 AIX [build j9vmap32p24-20070404]
JVM Command Line execrset -c processor_set_number -e java -Xlp -Xjvm:perf -Xgcpolicy:gencon -Xmns2500m -Xmnx2500m -Xmo400m -Xmx3072m -XlockReservation spec.jbb.JBBmain -propfile SPECjbb.props
JVM Initial Heap Memory (MB) 2900
JVM Maximum Heap Memory (MB) 3072
JVM Address bits 32
JVM CLASSPATH jbb.jar:
check.jar
JVM BOOTCLASSPATH /java/pap32pdev-20070405/jre/bin/perf/jclSC150/vm.jar:
/java/pap32pdev-20070405/jre/lib/core.jar:
/java/pap32pdev-20070405/jre/lib/charsets.jar:
/java/pap32pdev-20070405/jre/lib/graphics.jar:
/java/pap32pdev-20070405/jre/lib/security.jar:
/java/pap32pdev-20070405/jre/lib/ibmpkcs.jar:
/java/pap32pdev-20070405/jre/lib/ibmorb.jar:
/java/pap32pdev-20070405/jre/lib/ibmcfw.jar:
/java/pap32pdev-20070405/jre/lib/ibmorbapi.jar:
/java/pap32pdev-20070405/jre/lib/ibmjcefw.jar:
/java/pap32pdev-20070405/jre/lib/ibmjgssprovider.jar:
/java/pap32pdev-20070405/jre/lib/ibmjsseprovider2.jar:
/java/pap32pdev-20070405/jre/lib/ibmjaaslm.jar:
/java/pap32pdev-20070405/jre/lib/ibmcertpathprovider.jar:
/java/pap32pdev-20070405/jre/lib/server.jar:
/java/pap32pdev-20070405/jre/lib/xml.jar
OS Version IBM AIX 5L V5.3
Other software
Test Information
Tested by IBM Corporation
SPEC license # 11
Test location Austin, TX
Test date May 9, 2007
H/w available Jun-2007
JVM available Aug-2007
OS available Jun-2007
Other s/w available
AOT Compilation

Tuning
Operating system tunings
  • vmo -o lgpg_regions=1536 -o lgpg_size=16777216 -o v_pinshm=1
  • LDR_CNTRL=DATAPSIZE=64k@STACKPSIZE=64k@TEXTPSIZE=64k
  • MEMORY_AFFINITY=MCM
Notes

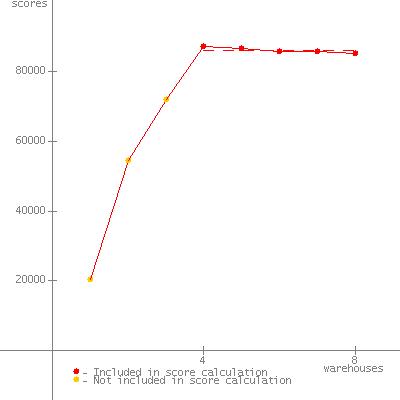

JVM 1 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 20412
2 54496
3 71820
4 87246 *
5 86523 *
6 85577 *
7 85708 *
8 85103 *
SPECjbb2005 (from 4 to 8) 86031 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: May 9, 2007


JVM 2 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 24181
2 53819
3 71277
4 87260 *
5 86569 *
6 85633 *
7 84936 *
8 84643 *
SPECjbb2005 (from 4 to 8) 85808 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: May 9, 2007

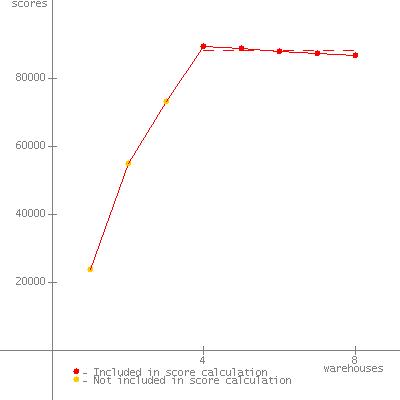

JVM 3 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 23861
2 55012
3 73502
4 89655 *
5 89015 *
6 88137 *
7 87522 *
8 86869 *
SPECjbb2005 (from 4 to 8) 88240 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: May 9, 2007


JVM 4 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 22360
2 54722
3 72285
4 87921 *
5 87232 *
6 86374 *
7 86089 *
8 85698 *
SPECjbb2005 (from 4 to 8) 86663 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: May 9, 2007

SPECjbb2005 Version: [SPECjbb2005 1.07, March 15, 2006]
Reporting page, Copyright © 2005-2007 SPEC. All rights reserved

First published at SPEC.org on 07-Jun-2007
