SPECjbb2005 SPECjbb2005 bops = 112038, SPECjbb2005 bops/JVM = 112038
Dell PowerEdge 840
BEA Systems, Inc BEA JRockit(R) 5.0 P27.1.0 (build P27.1.0-7-71488-1.5.0_08-20061103-1228-windows-x86_64)

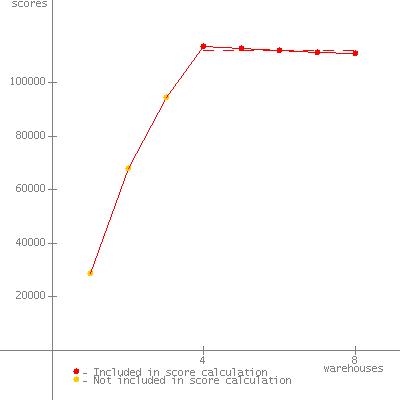

Warehouses SPECjbb2005 bops Incl. in metric
1 28871
2 67877
3 94421
4 113528 *
5 112808 *
6 111983 *
7 111249 *
8 110621 *
SPECjbb2005 (from 4 to 8) 112038 SPECjbb2005 bops
SPEC license # 55 Tested by: Dell Test date: Dec 19, 2006

Hardware
Hardware Vendor Dell
Vendor URL http://www.dell.com/
Model PowerEdge 840
Processor Intel Xeon Processor X3220 (1066MHz system bus)
MHz 2400
# of Chips 1
# of Cores 4
# of Cores/Chip 4
HW Threading Enabled? No
Procs Avail to Java 4
Memory (MB) 8192
Memory Details 4 x 2GB 533MHz DDR2 SDRAM
Primary cache 32KB(I) + 32KB(D)on chip, per core
Secondary cache 8 MB I+D on chip, per chip (4 MB shared per 2 cores)
Other cache n/a
Filesystem NTFS
Disks 1 x 73GB SAS
Other hardware none
Software
Software Vendor BEA Systems, Inc
Vendor URL http://www.bea.com/
JVM Version BEA JRockit(R) 5.0 P27.1.0 (build P27.1.0-7-71488-1.5.0_08-20061103-1228-windows-x86_64)
JVM Command Line java -Xms3700m -Xmx3700m -Xgc:genpar -Xns3100m -XXaggressive -Xlargepages -XXlazyunlocking -XXtlasize:min=16k,preferred=64k spec.jbb.JBBmain -propfile SPECjbb.props
JVM Initial Heap Memory (MB) 3700
JVM Maximum Heap Memory (MB) 3700
JVM Address bits 64
JVM CLASSPATH .\jbb.jar;
.\check.jar;
JVM BOOTCLASSPATH C:\SPECjbb2005\jrockit-jdk1.5.0_08\jre\bin\jrockit\jrockit1.5.0.jar;
C:\SPECjbb2005\jrockit-jdk1.5.0_08\jre\bin\jrockit\managementapi.jar;
C:\SPECjbb2005\jrockit-jdk1.5.0_08\jre\bin\jrockit\jmxmapi.jar;
C:\SPECjbb2005\jrockit-jdk1.5.0_08\jre\bin\jrockit\rmp.jar;
C:\SPECjbb2005\jrockit-jdk1.5.0_08\jre\lib\rt.jar;
C:\SPECjbb2005\jrockit-jdk1.5.0_08\jre\lib\i18n.jar;
C:\SPECjbb2005\jrockit-jdk1.5.0_08\jre\lib\sunrsasign.jar;
C:\SPECjbb2005\jrockit-jdk1.5.0_08\jre\lib\jsse.jar;
C:\SPECjbb2005\jrockit-jdk1.5.0_08\jre\lib\jce.jar;
C:\SPECjbb2005\jrockit-jdk1.5.0_08\jre\lib\charsets.jar;
C:\SPECjbb2005\jrockit-jdk1.5.0_08\jre\classes
OS Version Microsoft Windows Server 2003 Enterprise x64 Edition + SP1 (64-bit)
Other software none
Test Information
Tested by Dell
SPEC license # 55
Test location Round Rock, TX
Test date Dec 19, 2006
H/w available Jan-2007
JVM available Feb-2007
OS available Mar-2005
Other s/w available n/a
AOT Compilation
n/a
Tuning
  • Using the local security settings console, "lock pages in memory" was enabled for the user running the benchmark.
Notes
  • Disabled 'Hardware Prefetcher' in BIOS
  • Disabled 'Adjacent Cache Line Prefetch' in BIOS
  • Command line options are described in: DELL-20061108.txt

Details of Runs

Warehouses Thrput Total heap (MB) Thread spread % % > 120s transaction type Count Time (in seconds)
SizeUsed totalmax
1 28871 3700 1886 <0.01% <0.01 new_order 380572 12.0 .016
payment 262468 5.01 .312
order_status 26246 .583 .016
delivery 26247 4.74 .016
stock_level 26246 .813 .016
cust_report 144362 5.87 .016
2 67877 3700 2449 .463% <0.01 new_order 894823 24.3 .141
payment 617059 11.2 .047
order_status 61706 1.14 .016
delivery 61706 9.27 .016
stock_level 61706 1.33 .016
cust_report 339300 10.6 .032
3 94421 3700 1637 6.16% <0.01 new_order 1244590 36.6 .125
payment 858373 14.0 .016
order_status 85837 1.61 .016
delivery 85836 17.8 .125
stock_level 85836 2.15 .016
cust_report 472155 15.2 .032
4 113528 3700 1847 .396% .072 new_order 11981314 376 .172
payment 8262499 141 .234
order_status 826250 16.9 .031
delivery 826252 214 .125
stock_level 826250 24.1 .046
cust_report 4543695 161 .266
5 112808 3700 1095 31.7% <0.01 new_order 11897248 474 .579
payment 8204249 175 .750
order_status 820424 19.5 .375
delivery 820423 261 .766
stock_level 820427 30.3 .375
cust_report 4511249 204 .578
6 111983 3700 1589 42.1% .039 new_order 11813640 547 .875
payment 8147392 225 .953
order_status 814737 26.7 .750
delivery 814734 311 1.14
stock_level 814737 32.4 .578
cust_report 4481120 253 .969
7 111249 3700 3420 44.9% .065 new_order 11739516 638 1.06
payment 8096088 270 1.69
order_status 809610 31.7 .579
delivery 809608 370 6.64
stock_level 809610 43.4 .578
cust_report 4452670 281 .750
8 110621 3700 1772 17.4% .039 new_order 11670865 738 .922
payment 8048337 306 .844
order_status 804834 33.8 .672
delivery 804837 414 2.98
stock_level 804833 56.8 .578
cust_report 4425807 320 1.52

SPECjbb2005 Version: [SPECjbb2005 1.07, March 15, 2006]
Reporting page, Copyright © 2005 SPEC. All rights reserved

First published at SPEC.org on 17-Jan-2007
